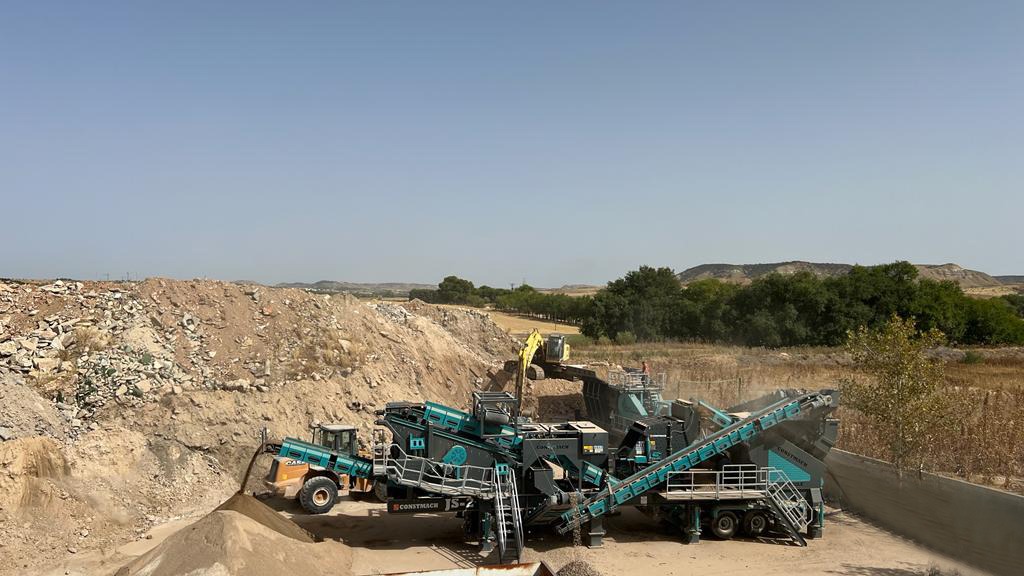

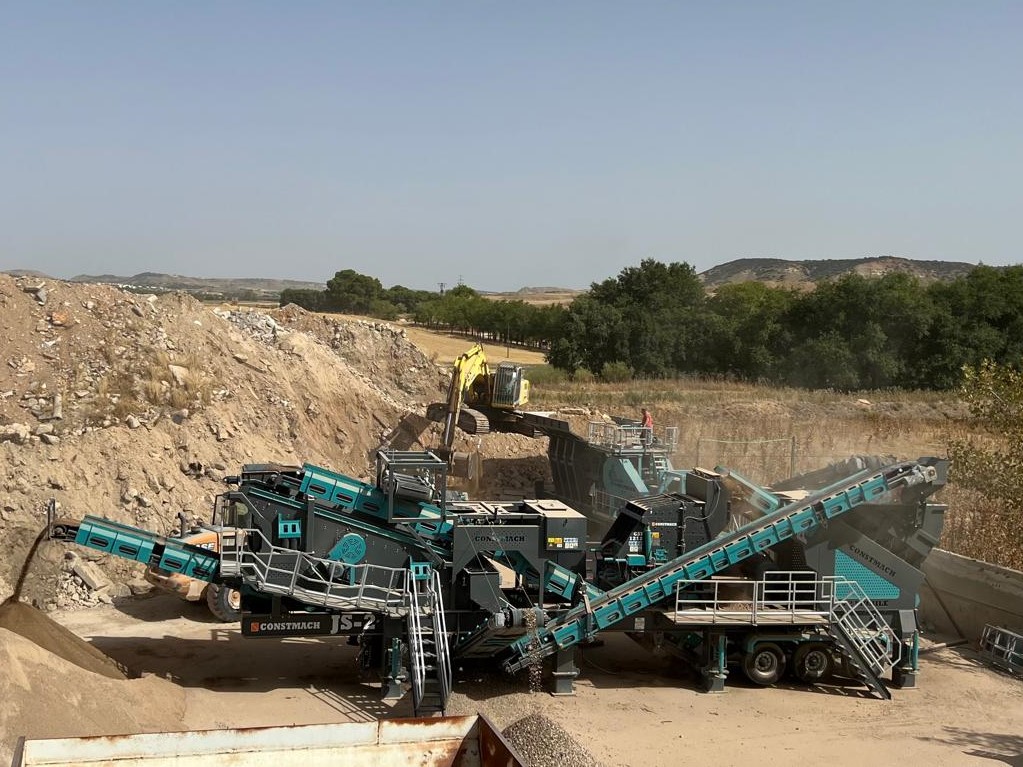

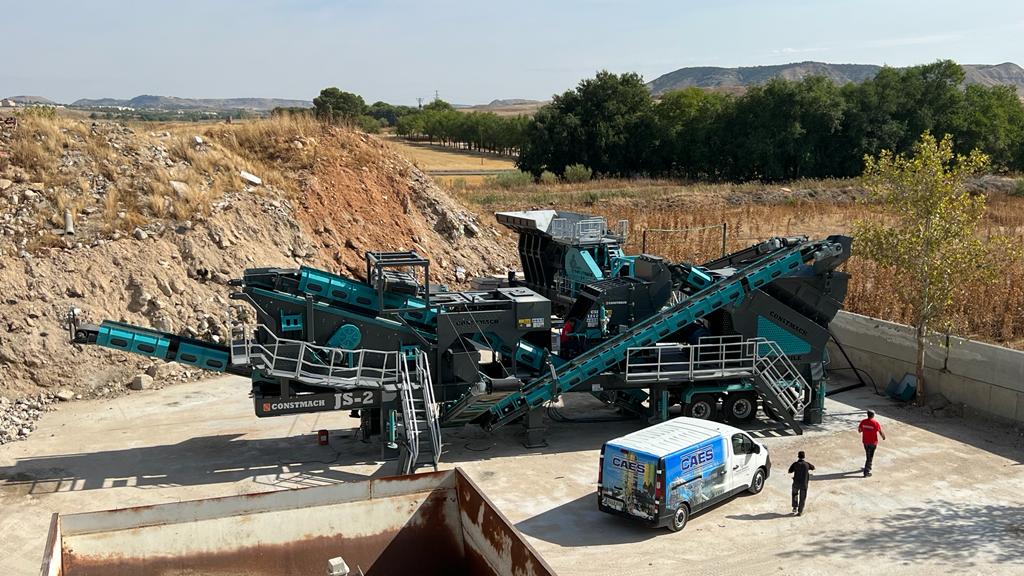

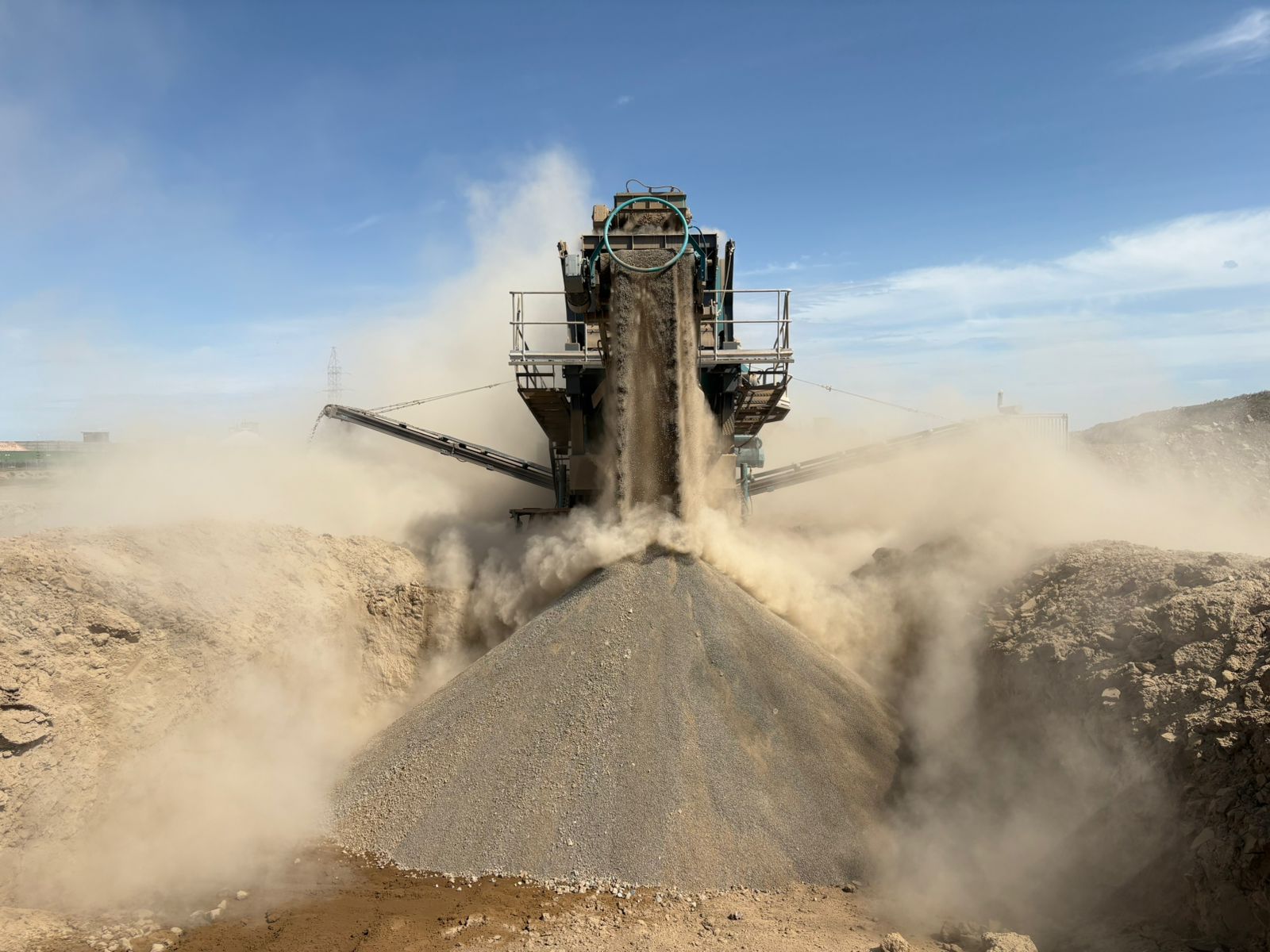

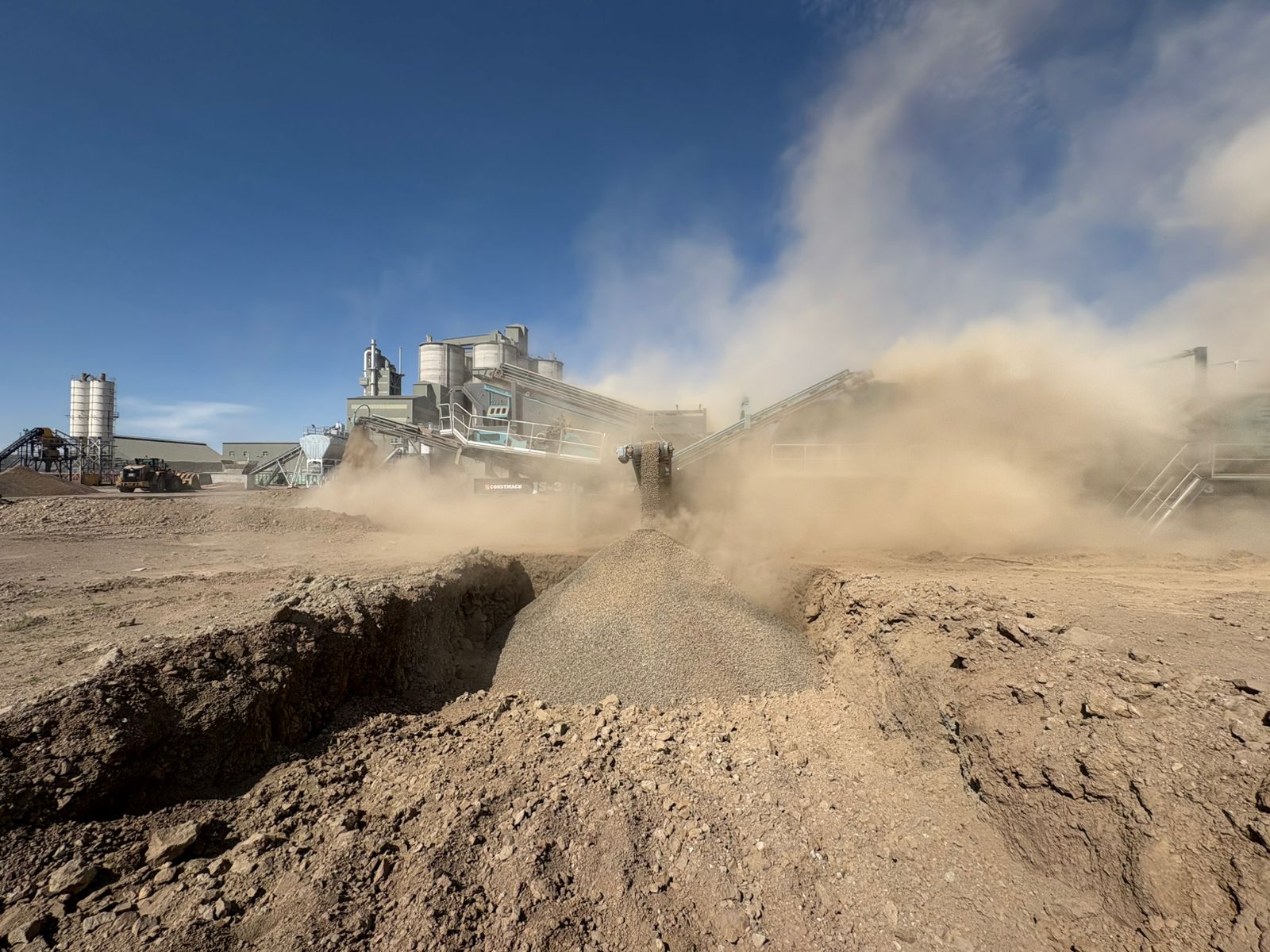

CONSTMACH JS-3 Mobile Crushing plant is a perfect solution for crushing low-middle hard materials such as limestone, riverstone, dolomite, basalt etc.

JS-3 is the result of advanced design and engineering, usage of premium quality components with long-lasting and excellent craftsmanship.

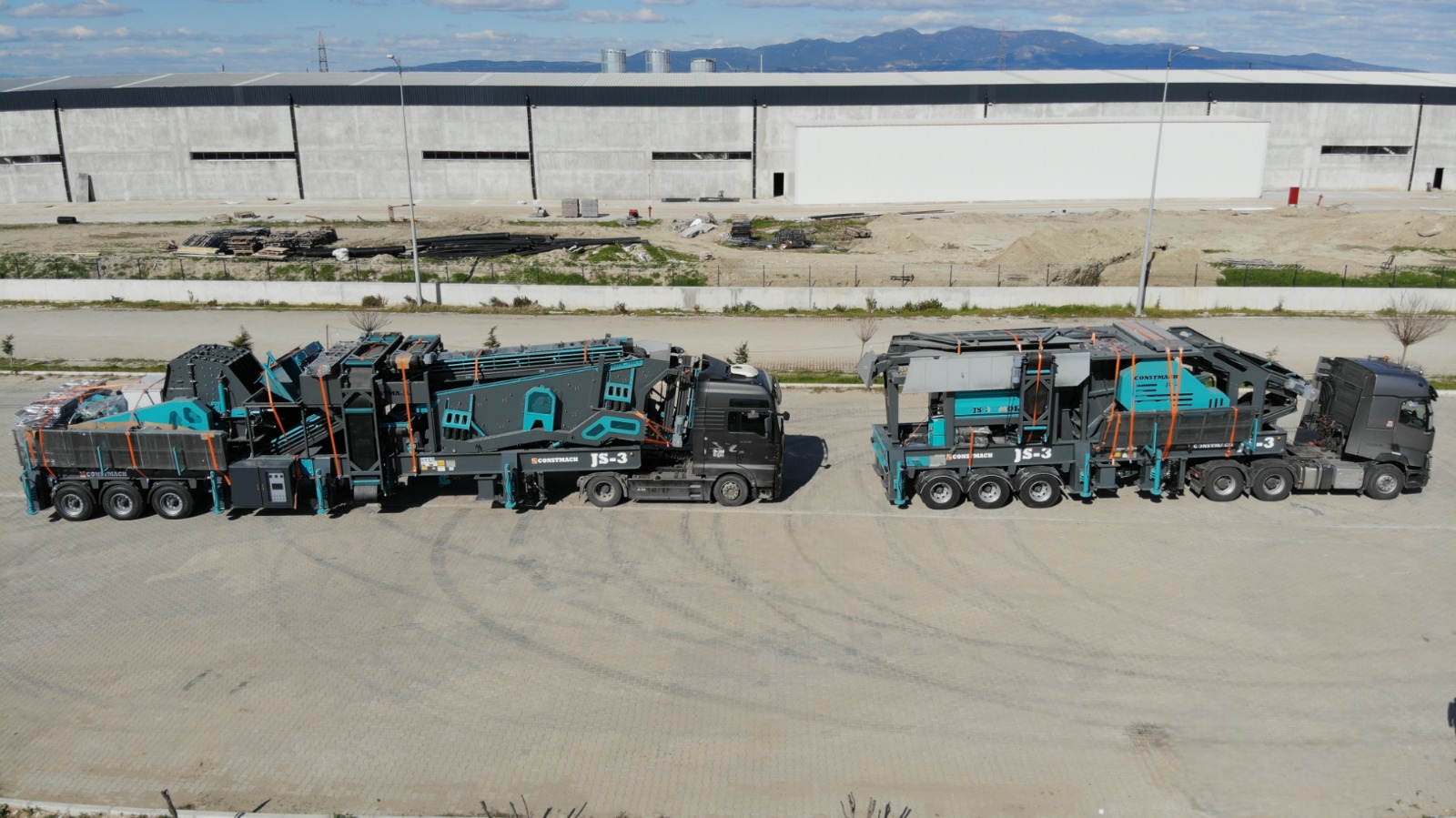

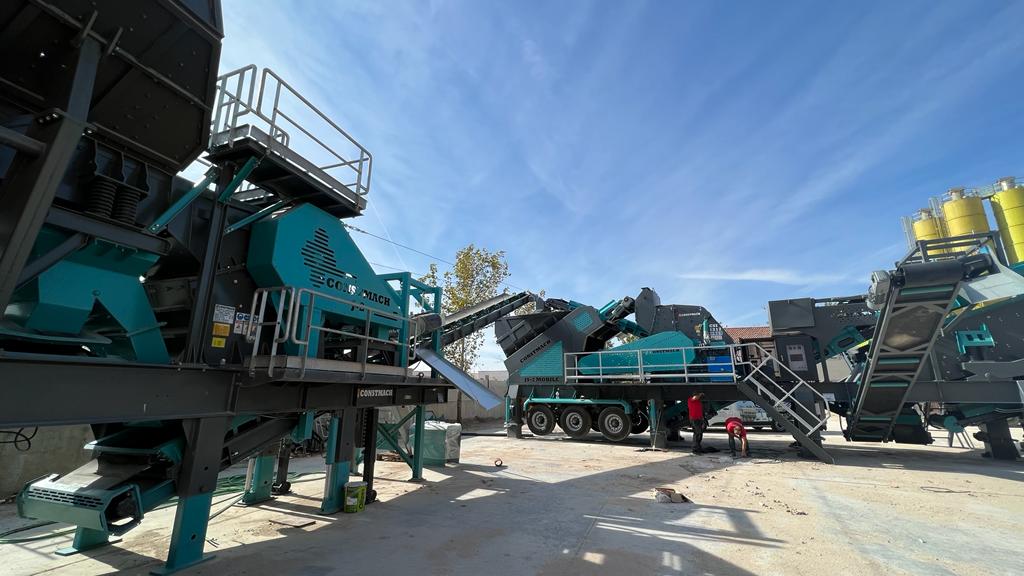

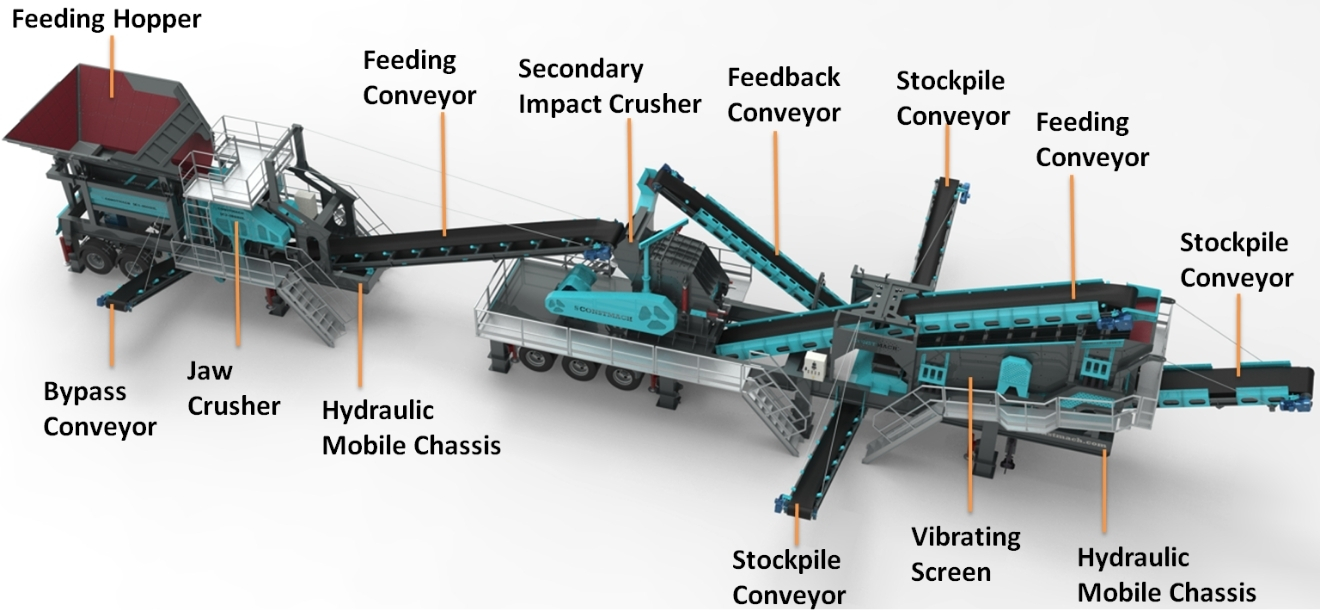

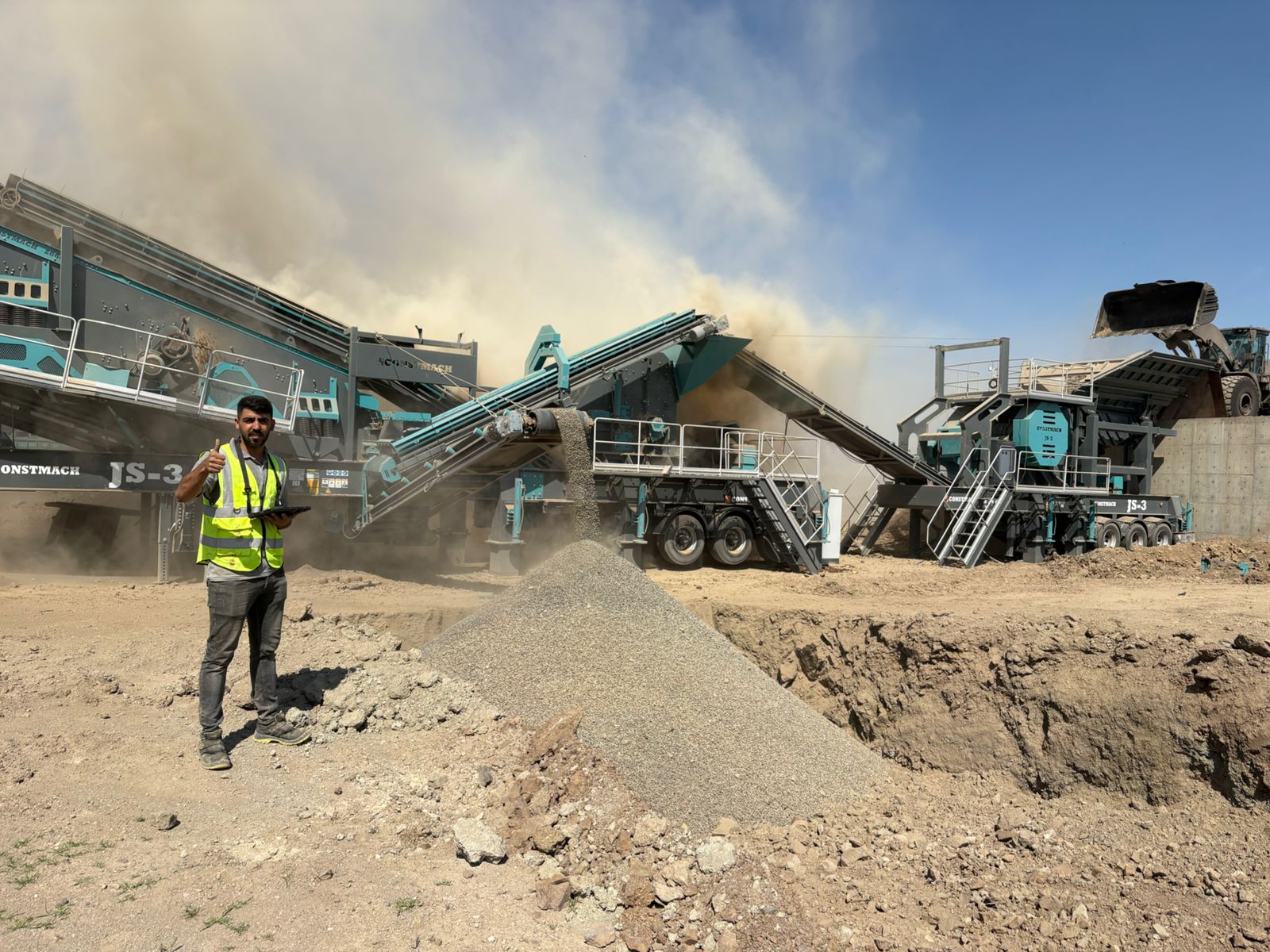

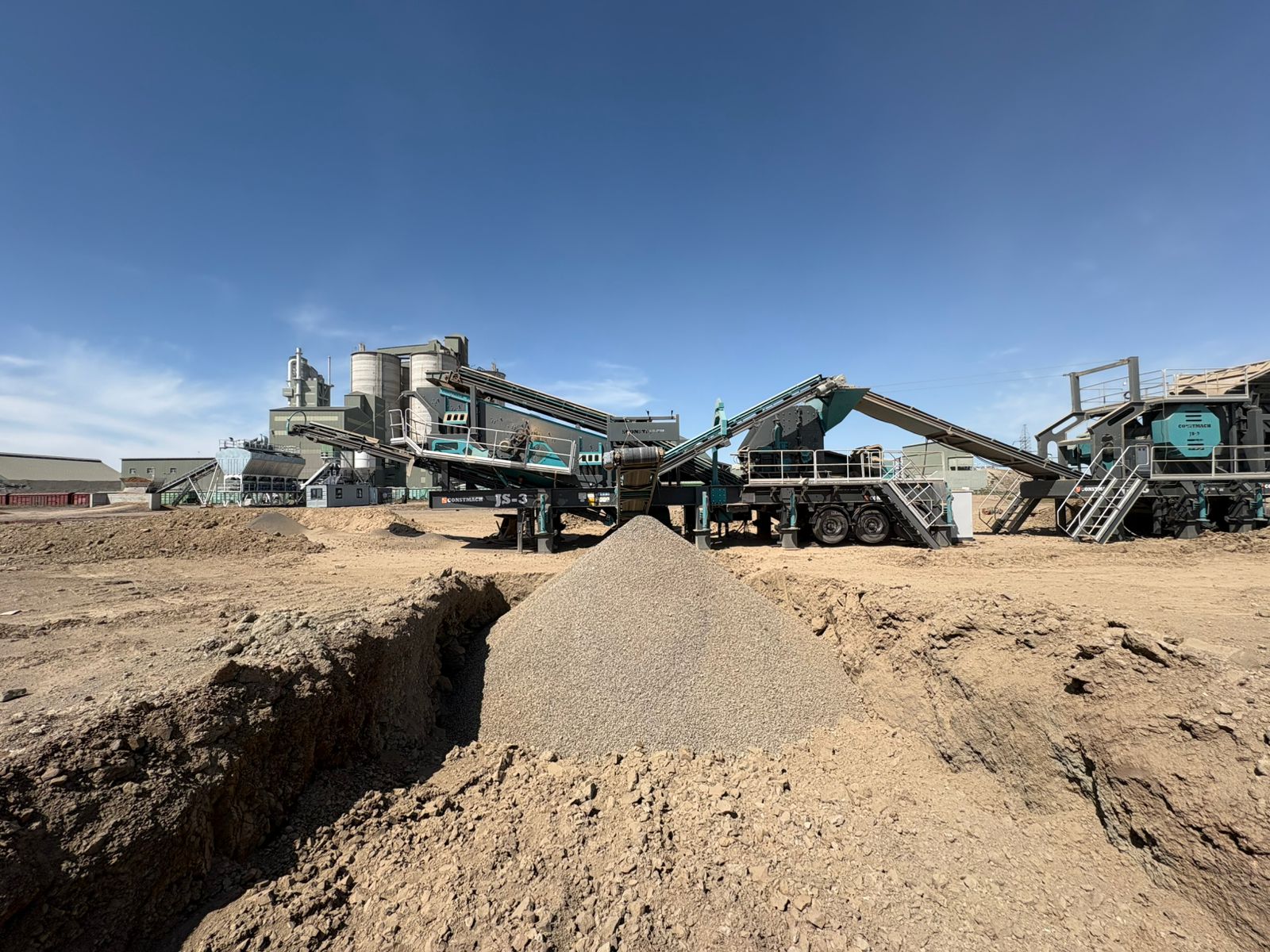

JS-3 Mobile Crushing & Screening Plant includes double chassis and it is combination of:

1st chassis:

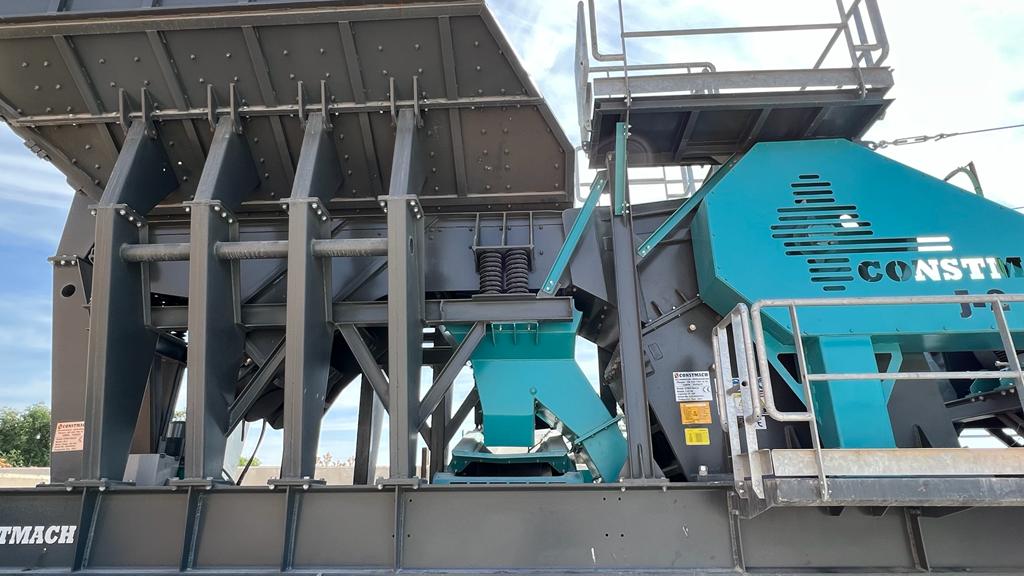

• Feeding Hopper with vibrating feeder
• CJC-110 Primary Jaw Crusher
• By-pass conveyor (for extraction of soil)
• Feeding Conveyor
• Wheeled mobile chassis with hydraulic legs
• Dust Removing System

2nd chassis:

• CSI-1215 Secondary Impact Crusher
• Vibrating Screen with 3 decks
• Feedback Conveyor from vibrating screen to secondary impact crusher

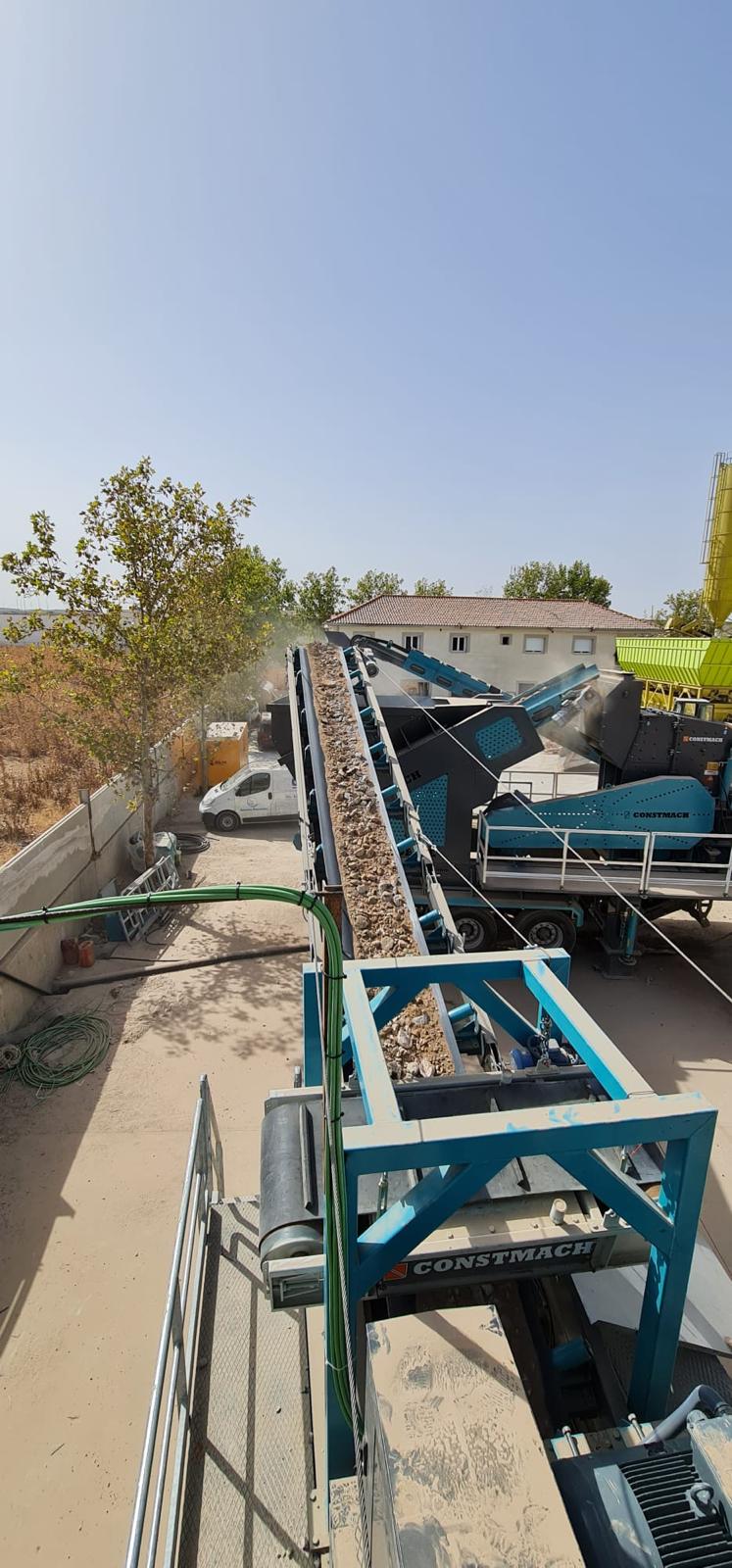

• Fold-up type Stockpile Conveyors
• Wheeled mobile chassis with hydraulic legs

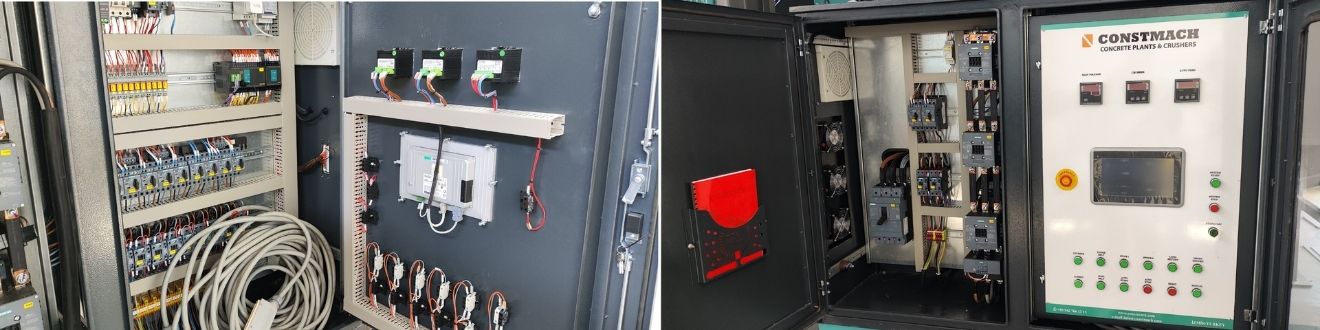

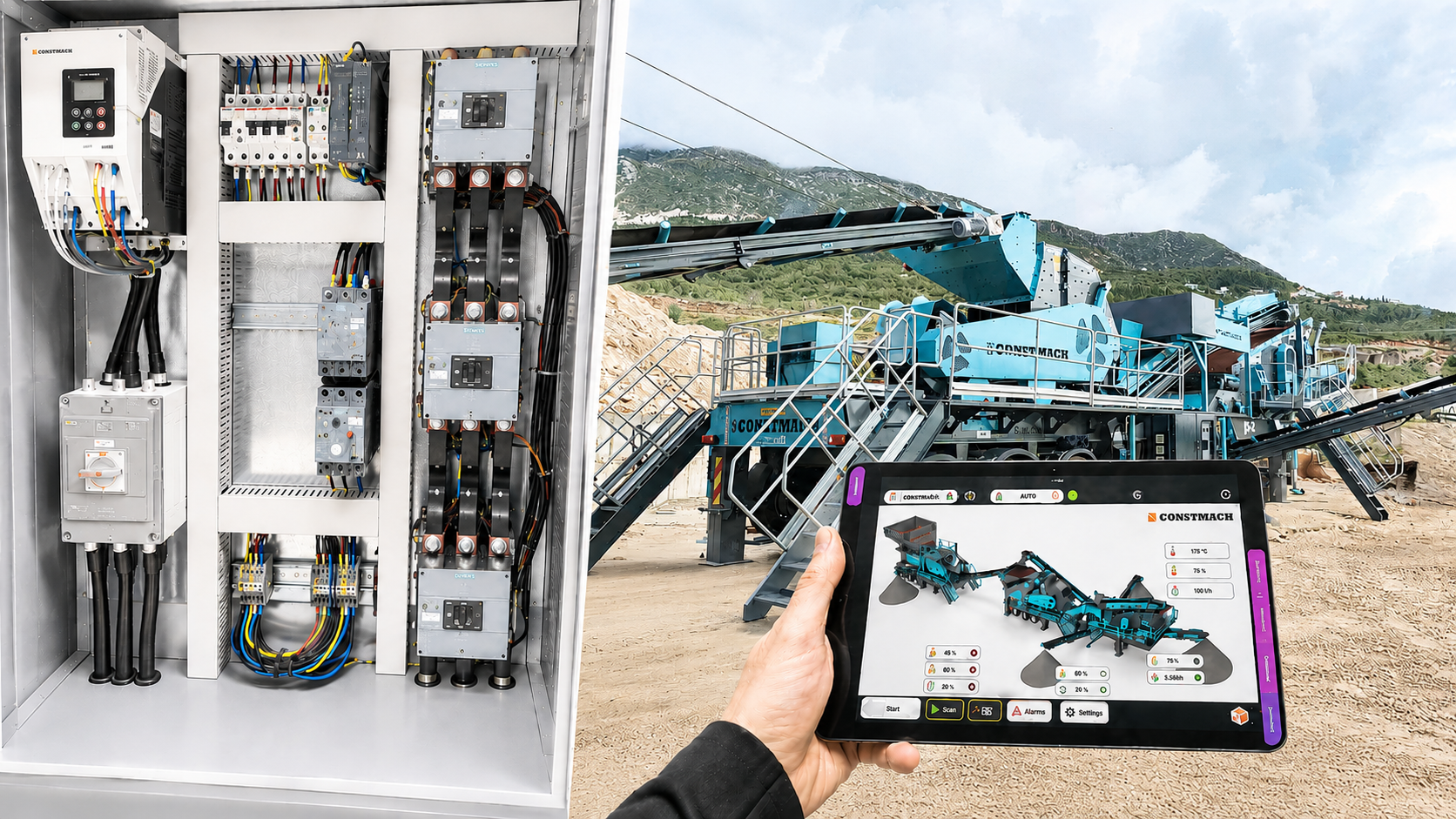

• Automation System with PLC and remote controller for whole system
• Dust Removing System
• Diesel Electric Generator Set (Optional Application)

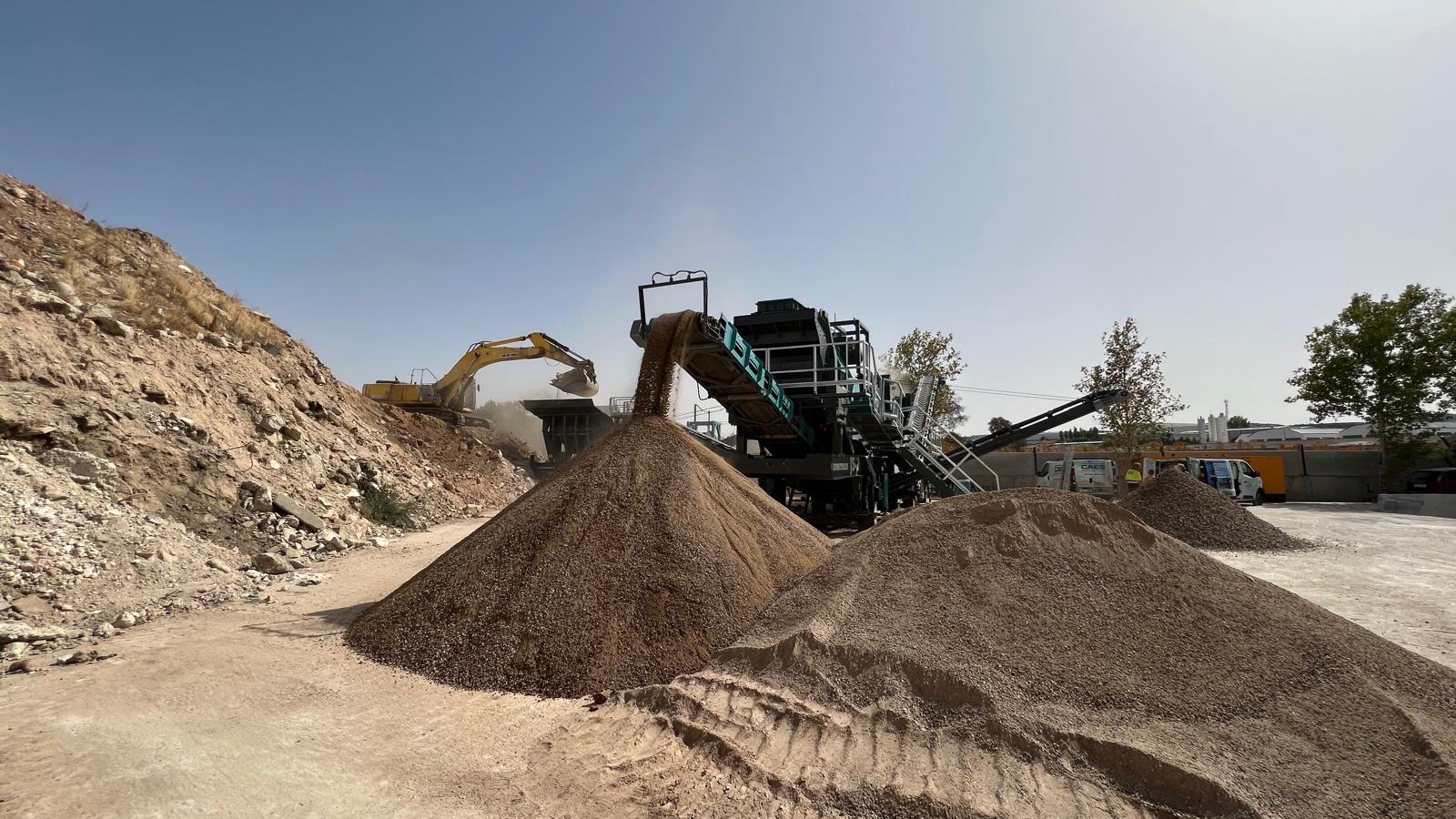

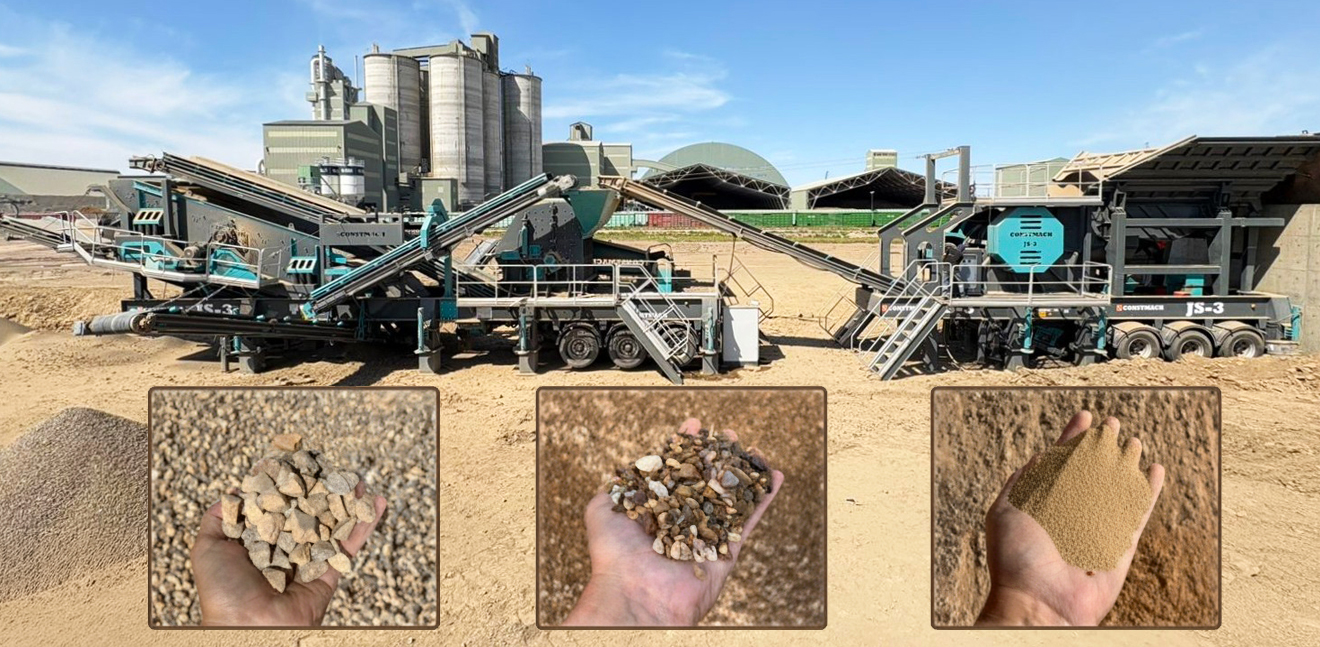

JS-3 production capacity changes between 250 to 300 tph according to hardness grade of the material to be crushed. Maximum feeding size is 850 x 600 mm. Thanks to special design of the secondary impact crusher, produced final materials have a satisfying fine material ratio and also excellent cubical shape which is a desired result especially for concrete production. It is possible to get 3 or 4 different fractions at the same time.

In case of need, it is possible to adapt an electric generator to chassis of the plant.

JS-3 is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding hopper and stock conveyors with hydraulic opening mechanism and in that case the plant can be taken to operation without needing any external equipment such as crane, loader etc.
