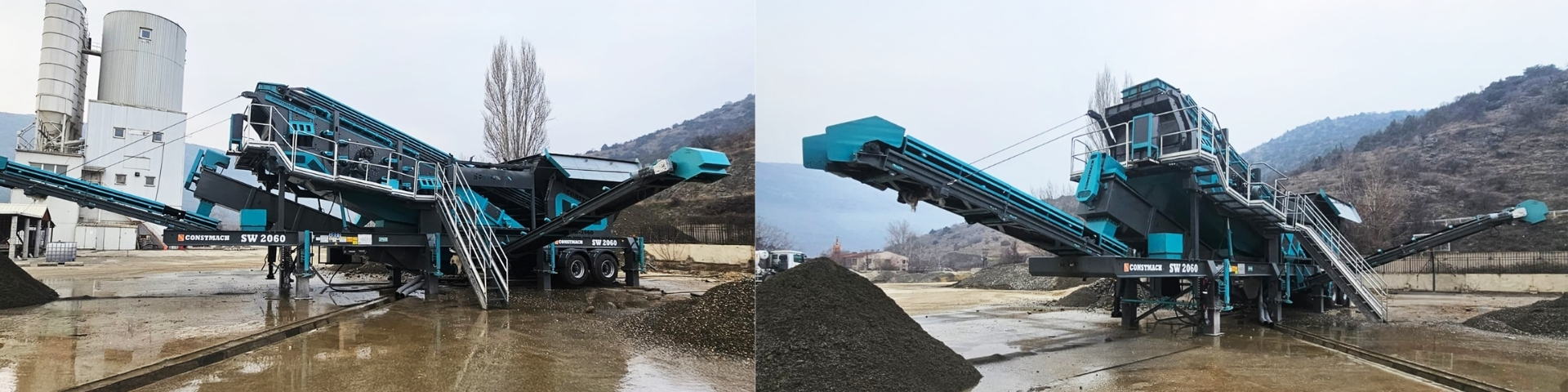

Mobile Screening Washing Plant

CONSTMACH SW Series Mobile Screening & Washing plants are used for natural screening and washing of sands and gravels. The biggest advantage of our mobile screening and washing plants is easy mobility, quick installation and relatively smaller land requirement. All necessary equipment to for screening and washing process are combined on a single wheeled chassis.

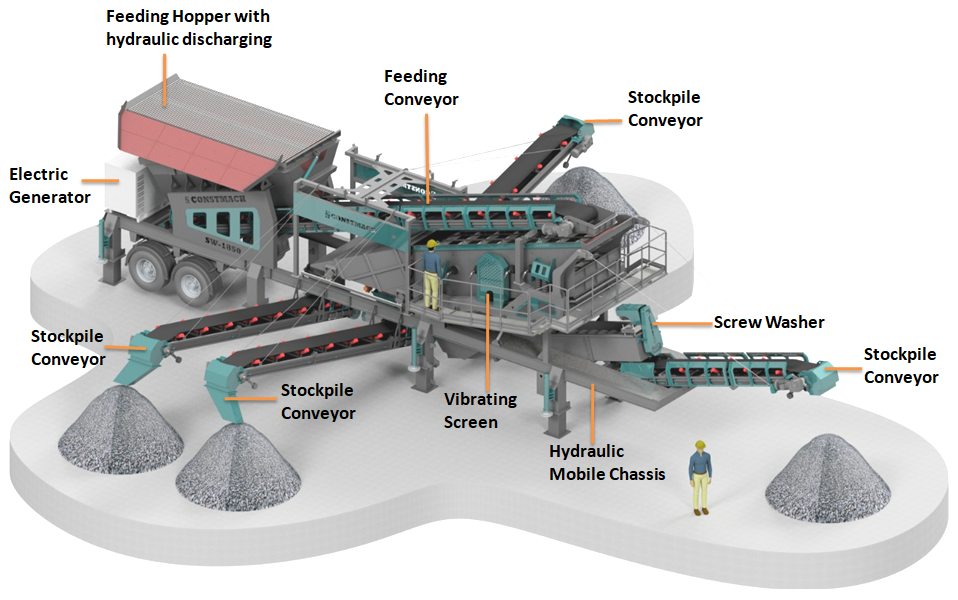

CONSTMACH SW Series Mobile Screening & Washing plants is combination of:

  • Feeding Hopper with Vibrating Feeder
  • Vibrating Screen
  • Feedback Conveyor from Feeding Hopper of Vibrating Screen
  • Washing Screen
  • Fold-up type Stockpile Conveyors
  • Wheeled mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller
  • Diesel Electric Generator Set (Optional Application)

In case of need, it is possible to adapt an electric generator to chassis of the plant and also to remove the washer and use the plant for only screening purpose.

CONSTMACH Mobile Screening & Washing plants are equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . The plant is operated by just a tablet controller.

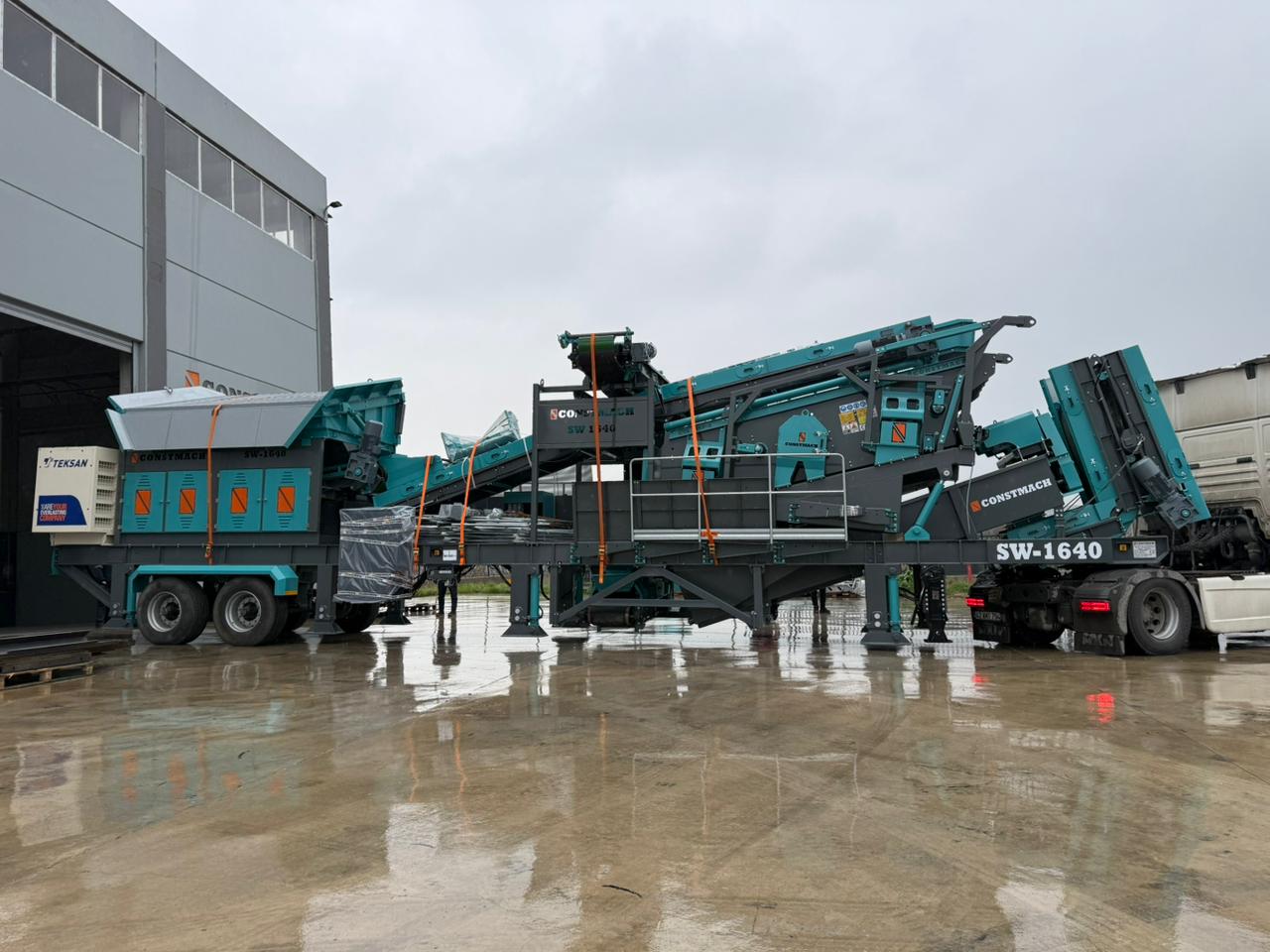

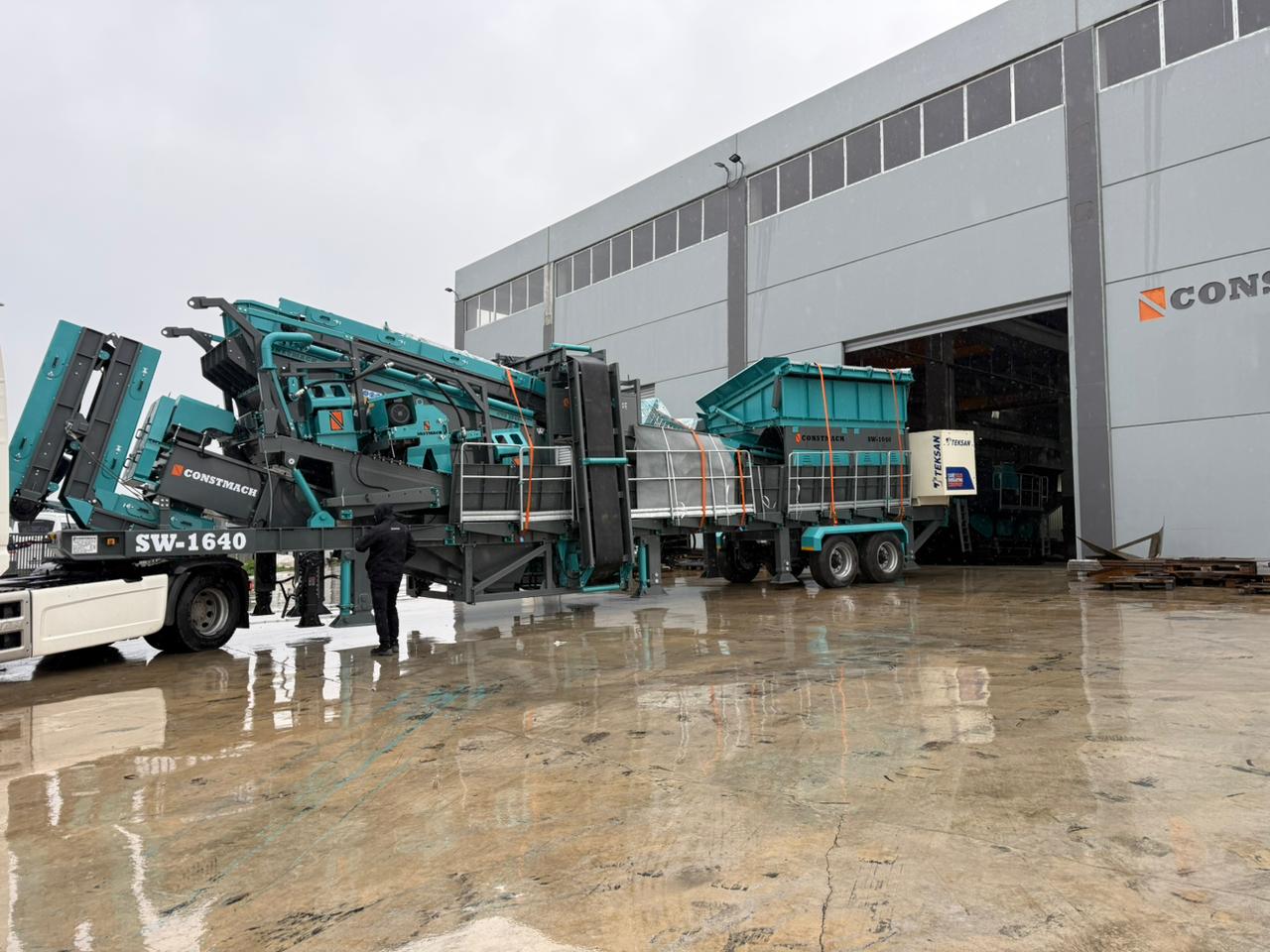

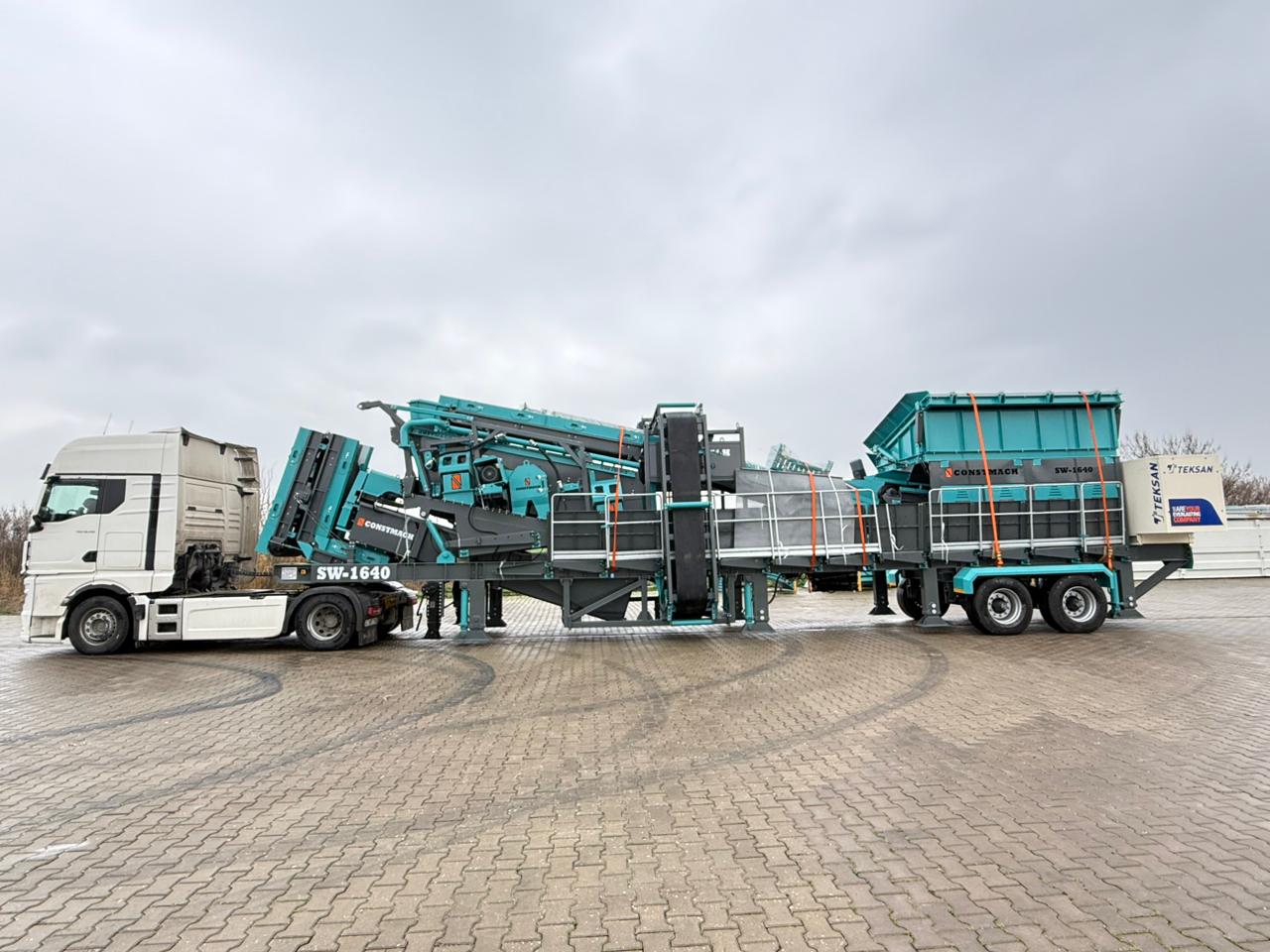

Overall dimensions of Mobile Screening & Washing plants are determined according to international road transport regulations and it is transported between jobsites easily.

You can see the general layout, transport information and photos of Mobile Screening Washing Plants by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.

Mobile Screening Washing Plant Technical Specifications
MODEL Production Capacity Screen Sizes Washer Sizes Feeding Height Electric Generator Requirement Weight
SW-1240 60 tph 1.2 x 4 meters 400 x 4.000 mm 3.2 meters 50 kVA 14 tonnes
SW-1640 80 tph 1.6 x 4 meters 500 x 5.000 mm 3.2 meters 60 kVA 17 tonnes
SW-1850 150 tph 1.8 x 5 meters 600 x 6.000 mm 3.4 meters 80 kVA 22 tonnes
SW-2060 200 tph 2 x 6 meters 700 x 7.000 mm 3.6 meters 100 kVA 32 tonnes
Overall dimensions of Mobile Screening & Washing plants are determined according to international road transport regulations and it is transported between jobsites easily.
Mobile Screening Washing Plant E-Catalog
