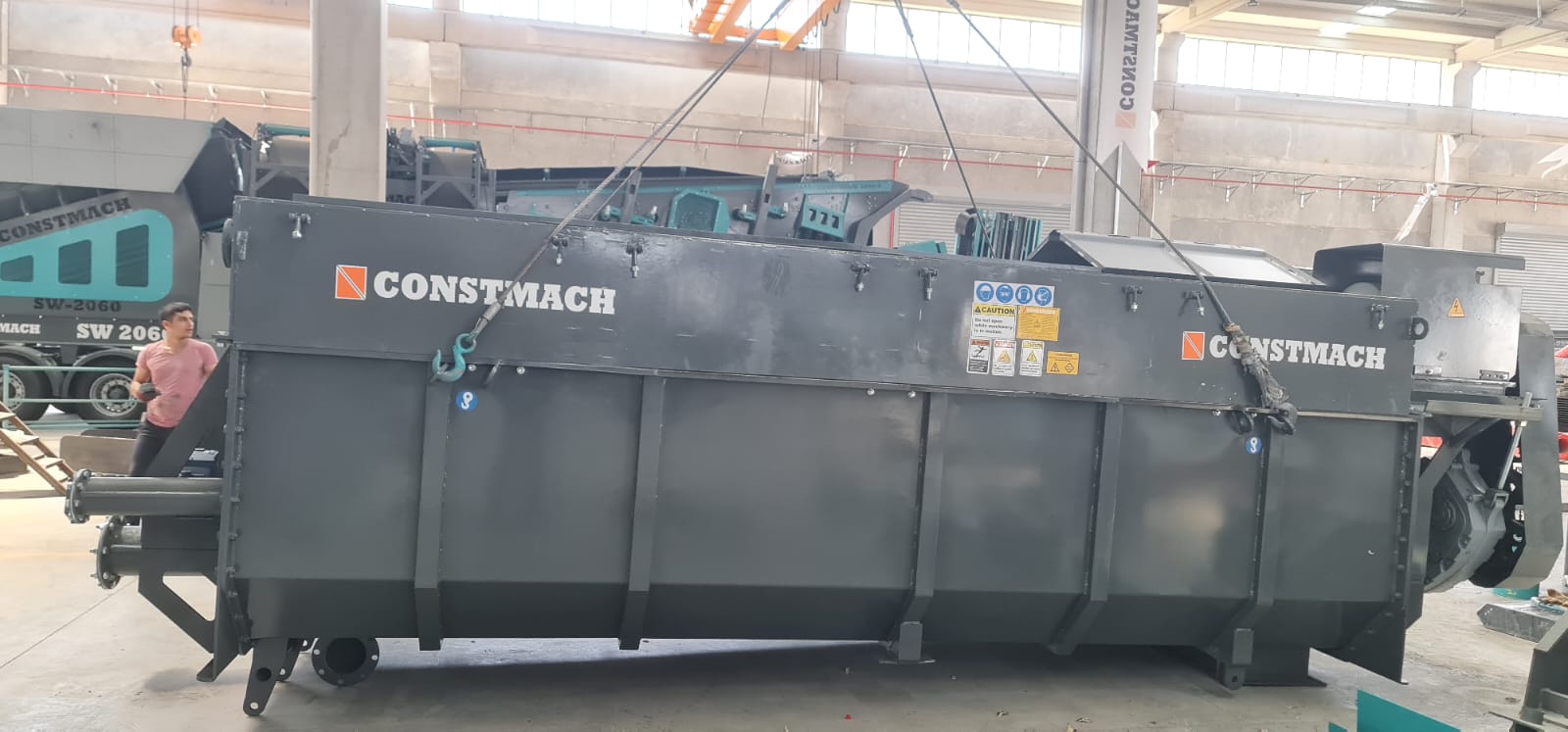

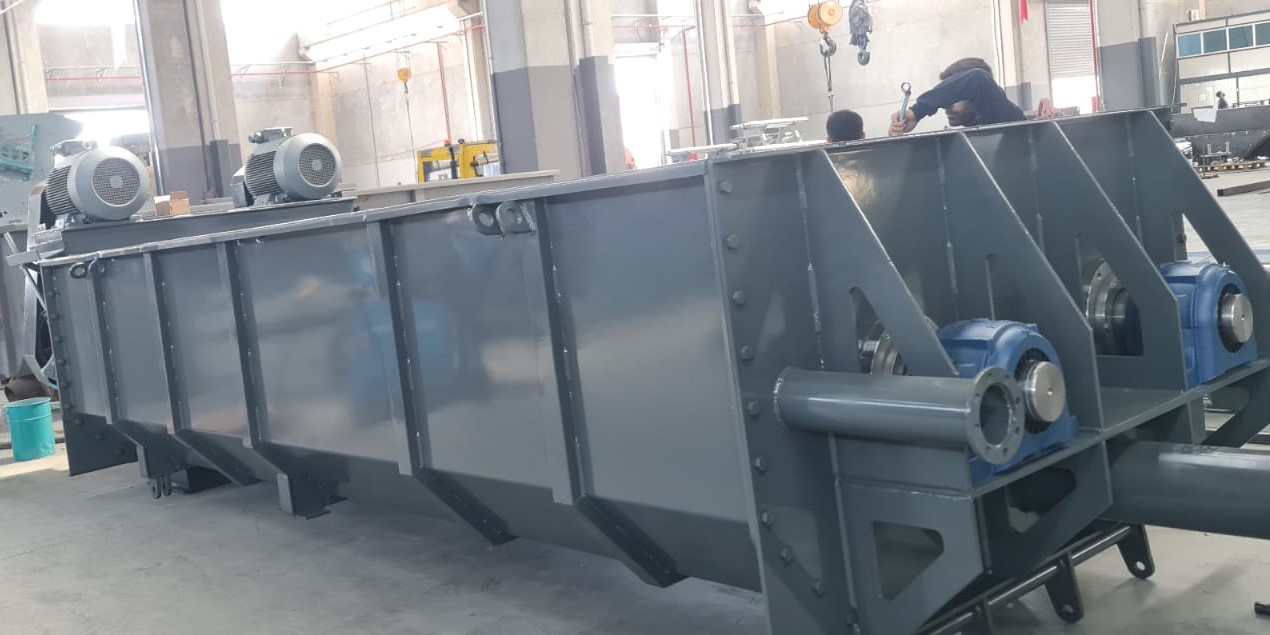

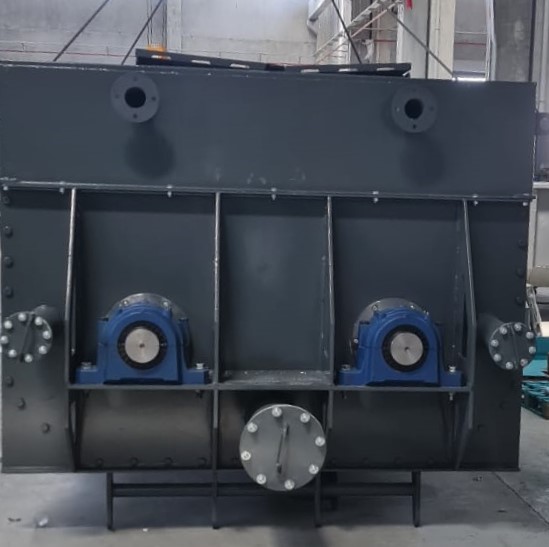

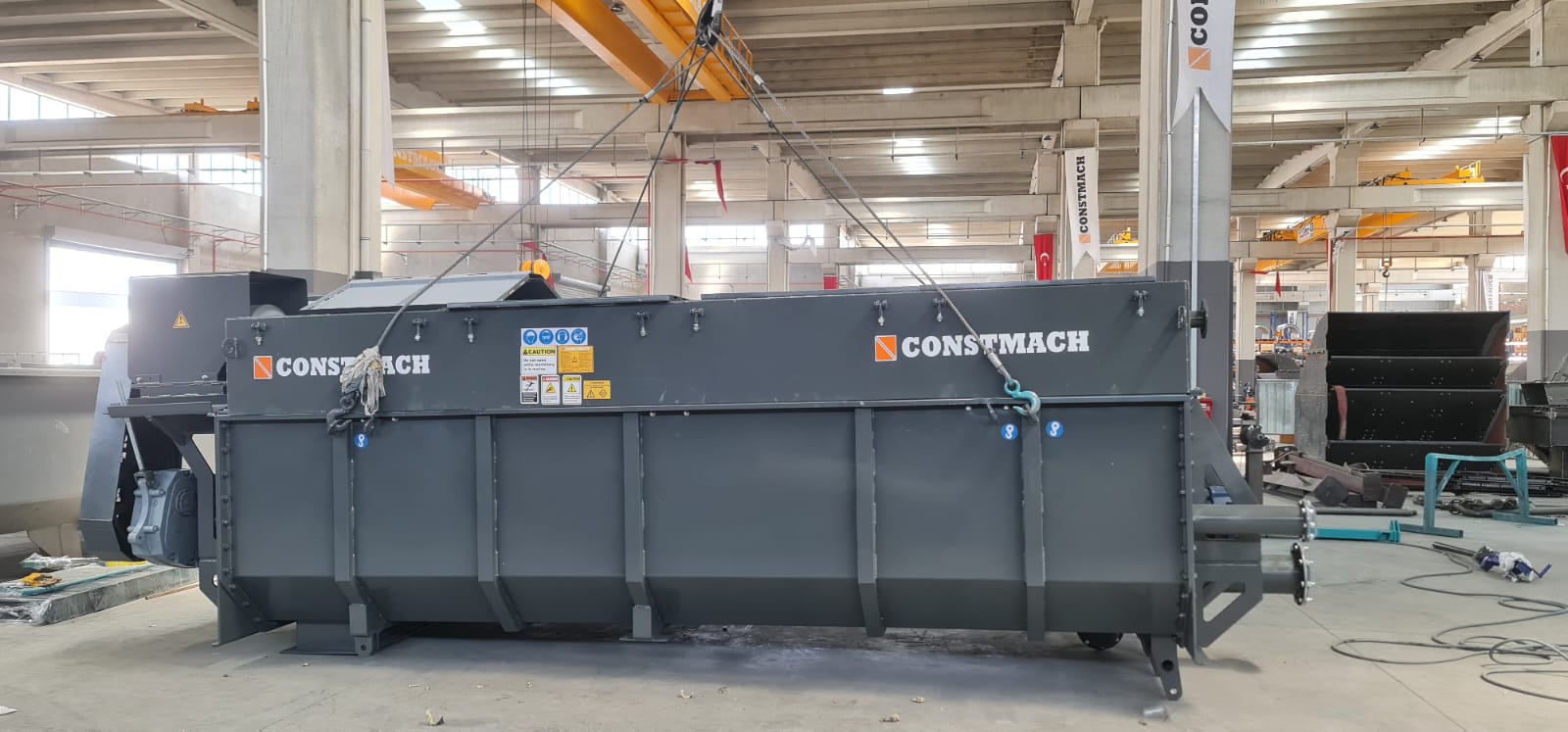

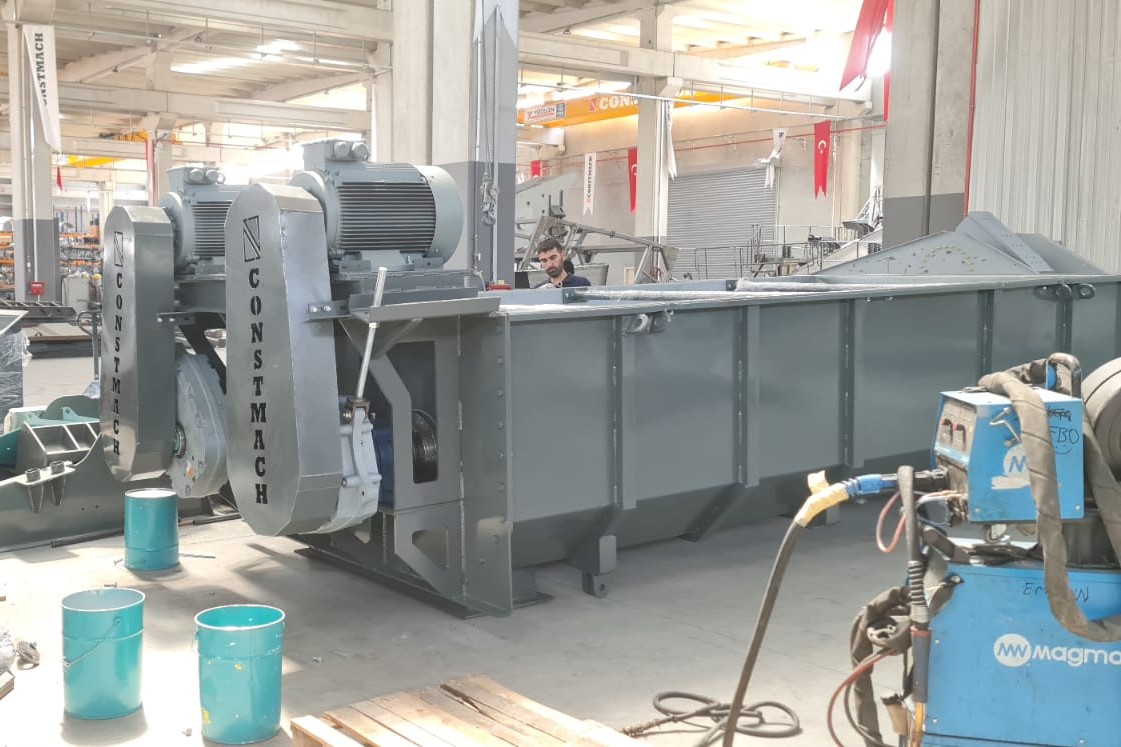

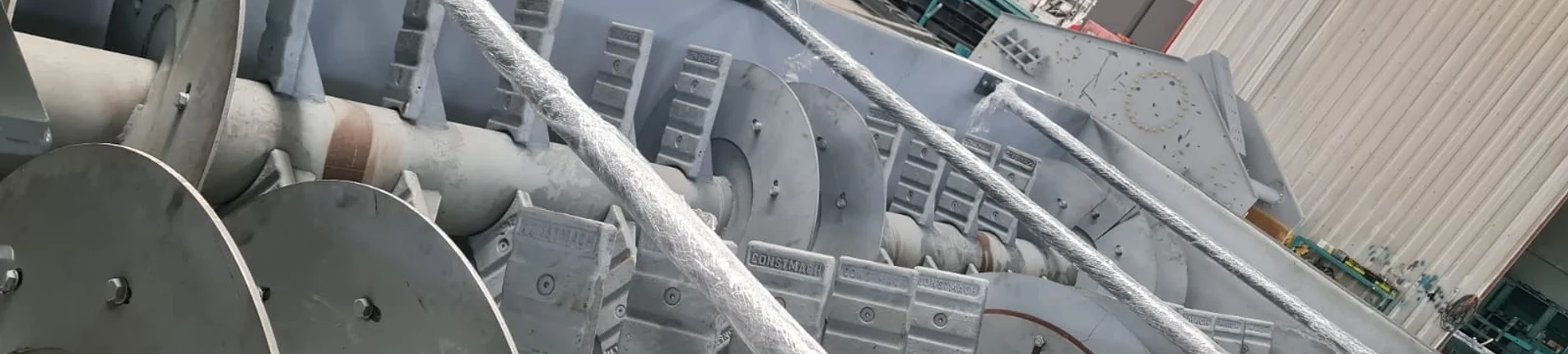

Log Washer

CONSTMACH, a leading construction machinery manufacturer, has revolutionized the aggregate washing industry with its state-of-the-art Log Washers. Designed to tackle the most challenging materials, these machines ensure efficient and thorough cleaning, making them an essential asset for construction and mining operations.

Innovative Design and Superior Performance

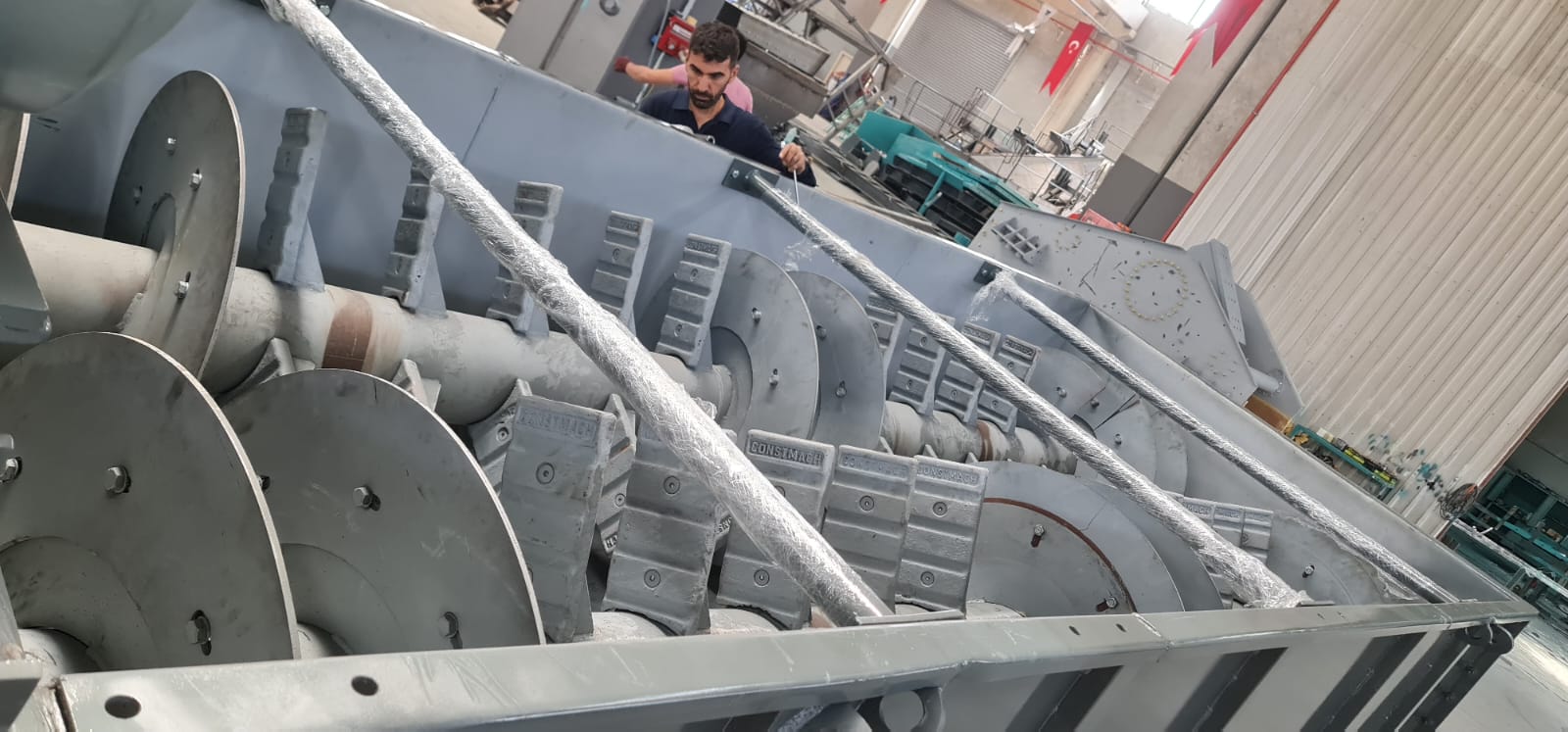

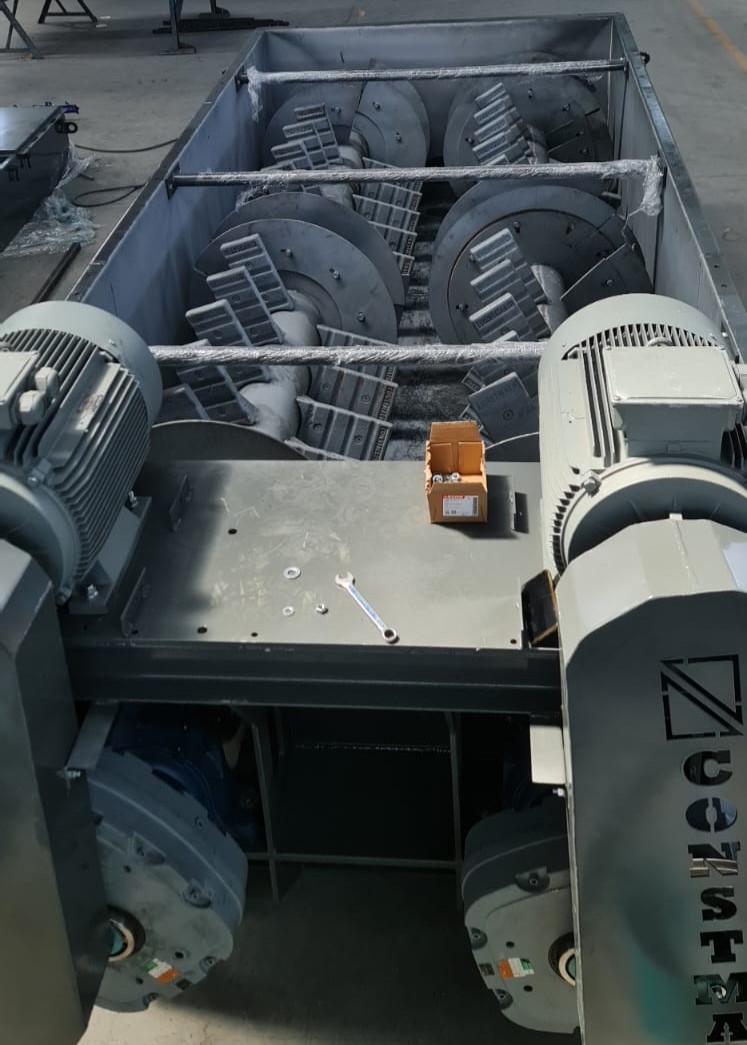

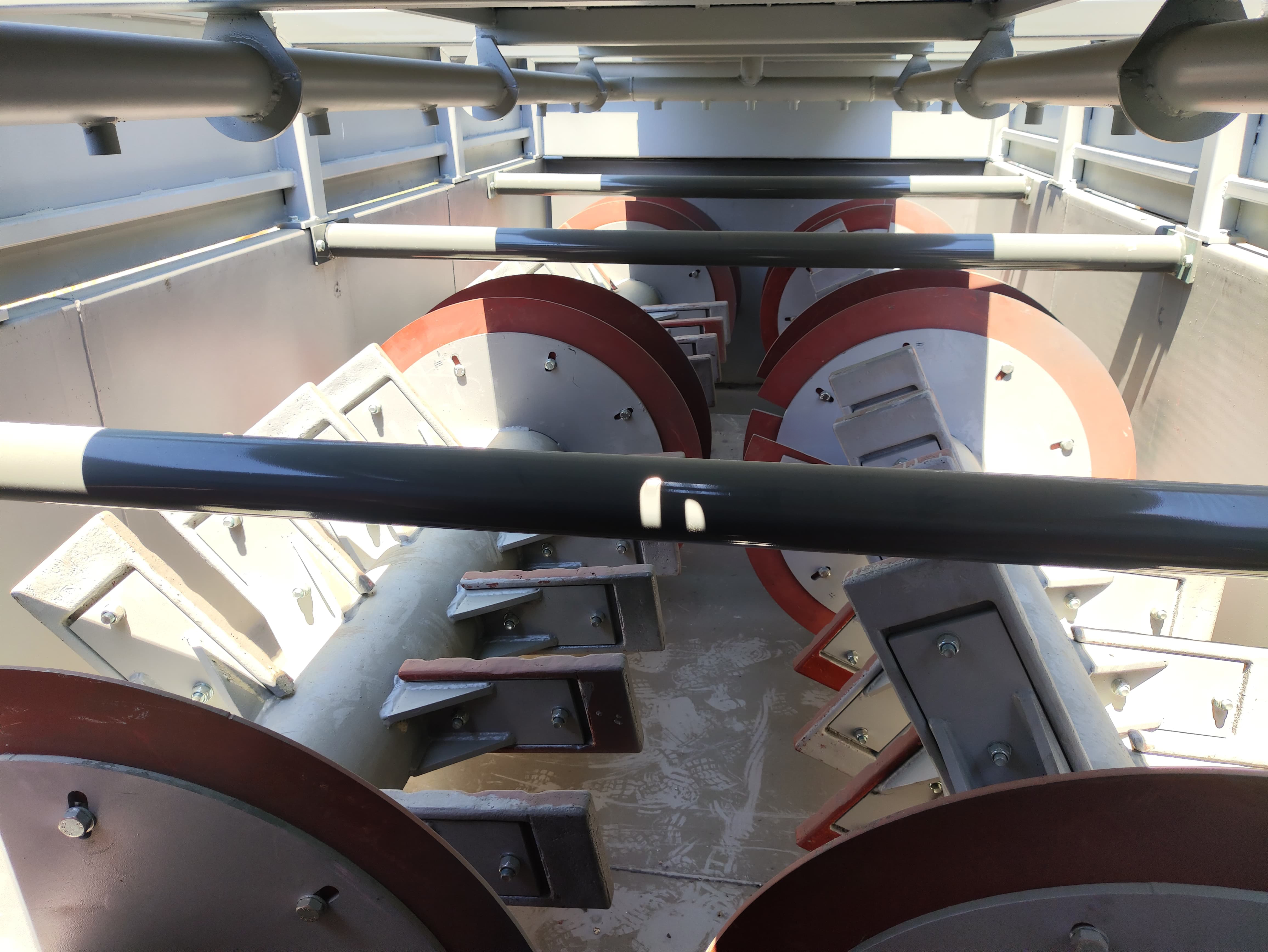

CONSTMACH Log Washers are engineered to provide high-quality cleaning for aggregates, particularly for materials with high clay content and heavy contaminants. Their robust design incorporates twin shafts with rotating paddles, which create a scrubbing action to effectively break down and remove impurities. This process results in cleaner, more valuable aggregates, ready for use in various construction applications.

Key Features
  • Durable Construction: Built with high-grade materials, CONSTMACH Log Washers are designed to withstand harsh operating conditions, ensuring longevity and reliability.

  • Efficient Cleaning Mechanism: The rotating paddles on the twin shafts create a powerful scrubbing action, breaking down clays and other contaminants from the aggregates. This results in cleaner output with minimal loss of valuable material.

  • Adjustable Settings: Operators can adjust the angle and speed of the shafts to customize the cleaning process based on the type and level of contamination of the aggregates.

  • High Capacity: CONSTMACH Log Washers are capable of handling large volumes of material, making them suitable for high-demand operations. This high capacity does not compromise the cleaning quality, ensuring efficiency across the board.

  • Low Maintenance: Designed for ease of maintenance, these machines have accessible components that can be quickly serviced or replaced, minimizing downtime and operational costs.


Applications and Benefits
CONSTMACH Log Washers are versatile machines used in a variety of settings, including:

  1. Construction Sites: For preparing clean aggregates that enhance the quality of concrete.
  2. Mining Operations: To separate valuable minerals from clay and other waste materials.
  3. Recycling Plants: For cleaning recycled aggregates, making them suitable for reuse in new construction projects.


The primary benefit of using CONSTMACH Log Washers lies in their ability to deliver cleaner aggregates, which improves the strength and durability of the final construction materials. Additionally, by removing impurities efficiently, these machines help in reducing wear and tear on other processing equipment, thereby extending their operational life and reducing maintenance costs.

CONSTMACH Log Washers represent a significant advancement in aggregate cleaning technology. Their innovative design, high efficiency, and durable construction make them an indispensable tool for industries that rely on clean, high-quality aggregates. By investing in CONSTMACH Log Washers, companies can enhance their operational efficiency, reduce costs, and ultimately produce superior construction materials.

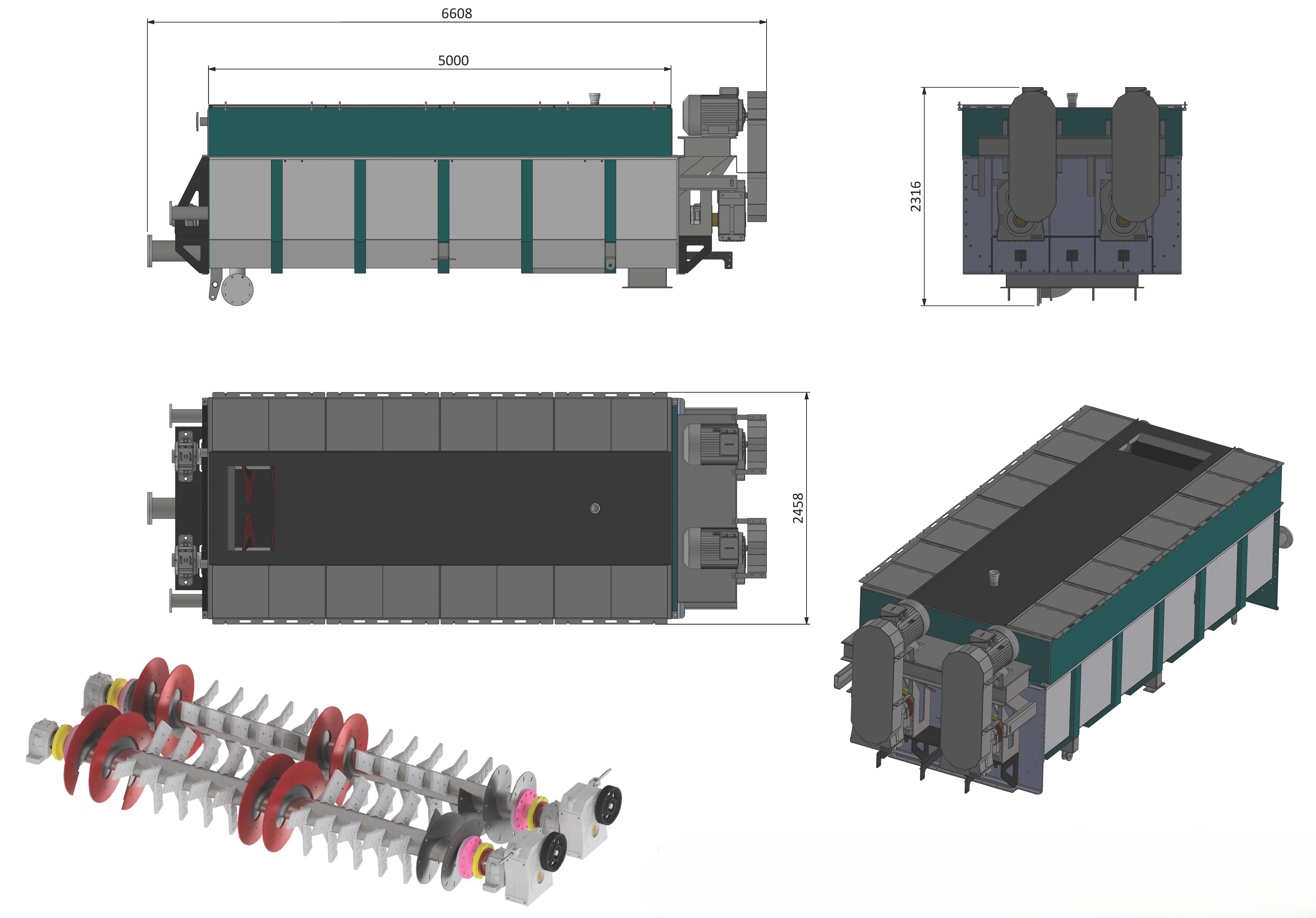

Log Washer Technical Specifications

TECHNICAL SPECIFICATIONS


Size 2000 x 7000 mm (Double Row)
Electric Motor 2 x 37 kW, GAMAK Brand, IE3 Efficiency class, 1500 rpm
Feeding Size 0 - 50 mm
Main Body Material S235JR A1 Quality, 8 mm Sheet as Twisted Type
Speed 15 - 25 rpm
Screw Double Row Carrier Spiral Spoons, S235JR, 8 mm Sheet and the Arms Against Wear Will be Covered With Casting, Helices are Hardox Coated.
Shaft Cr-Ni-Mo Alloy Steel
Housing GS52 Steel Casting
Bearing SKF or FAG, Heavy Duty type spherical roller bearings
Capacity 200 - 400 tph
Weight 24000 kg
Transport

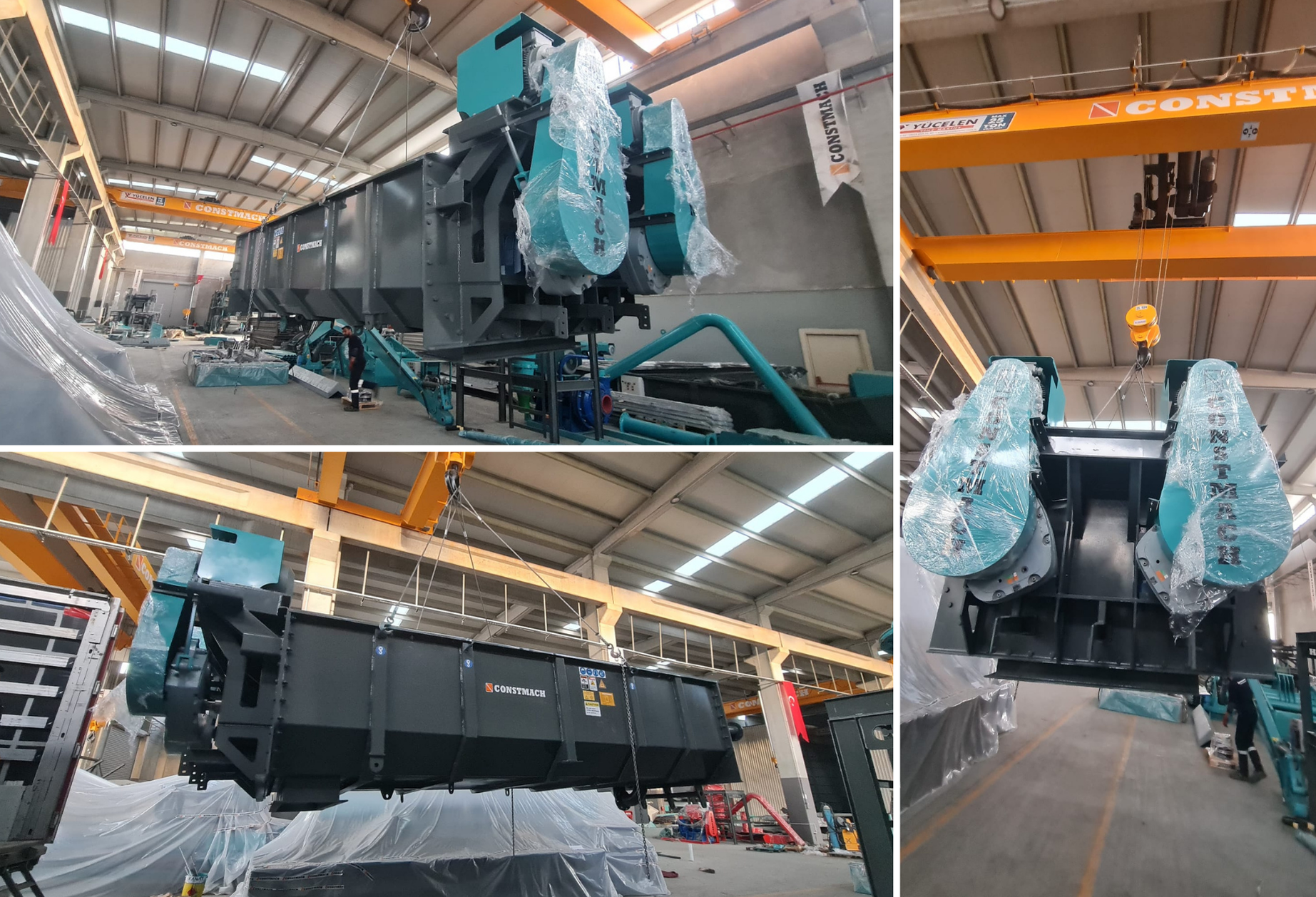

Log Washer Transport
Log Washer Transport
