PI-1 Mobile Limestone Crusher

CONSTMACH PI-1 Mobile Crushing plant is an ideal solution for crushing materials with low grade of hardness and abrasiveness such as limestone. PI-1 is the result of advanced design and engineering, usage of premium quality components with long-lasting and excellent craftsmanship.

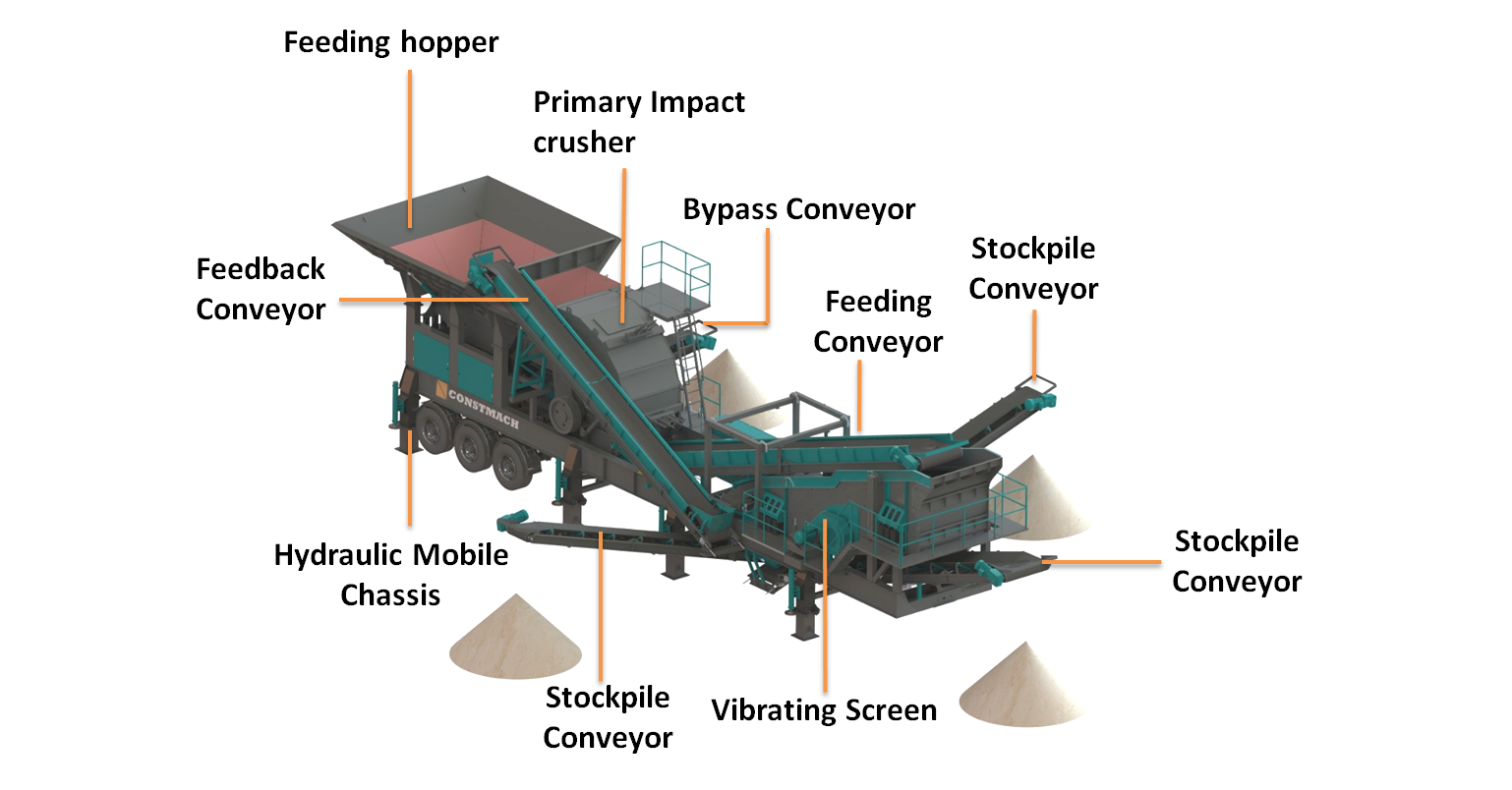

PI-1 Mobile Crushing and Screening Plant is combination of:

  • Feeding Hopper with vibrating feeder
  • CPI-1412 Primary Impact Crusher
  • By-pass conveyor (for extraction of soil)
  • Feeding Conveyor between primary impact crusher and vibrating screen
  • Vibrating Screen with 3 or 4 decks
  • Feedback Conveyor from vibrating screen to impact crusher
  • Fold-up type Stockpile Conveyors
  • Wheeled mobile chassis with hydraulic legs
  • Automation System with PLC and remote controller
  • Dust Removing System
  • Diesel Electric Generator Set (Optional Application)

PI-1 Mobile Limestone Crusher production capacity changes between 150 to 200 tph according to hardness grade of the material to be crushed. Maximum feeding size is 850 x 850 mm. Thanks to special design of the secondary impact crusher, produced final materials have a satisfying fine material ratio and also excellent cubical shape which is a desired result especially for concrete production. It is possible to get 3 or 4 different fractions at the same time.

In case of need, it is possible to adapt an electric generator to chassis of the plant.

PI-1 Mobile Limestone Crushing plant is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding hopper and stock conveyors with hydraulic opening mechanism and in that case the plant can be taken to operation without needing any external equipment such as crane, loader etc.

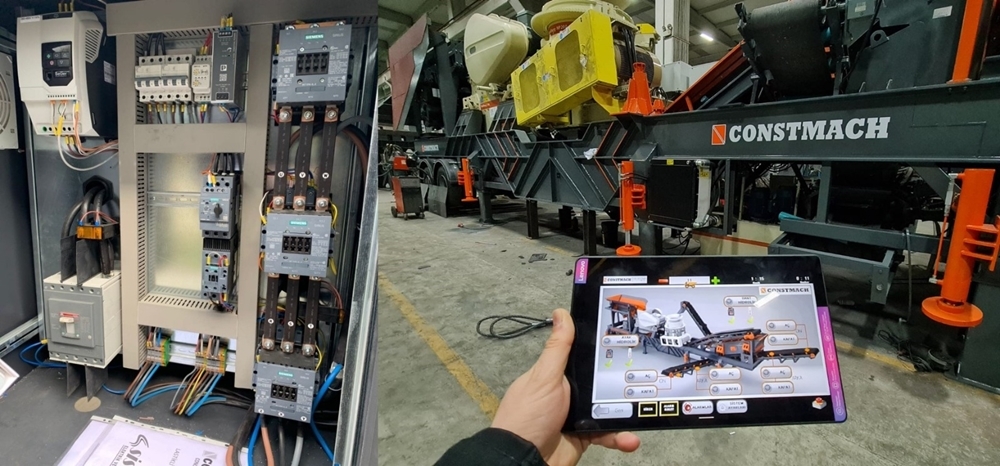

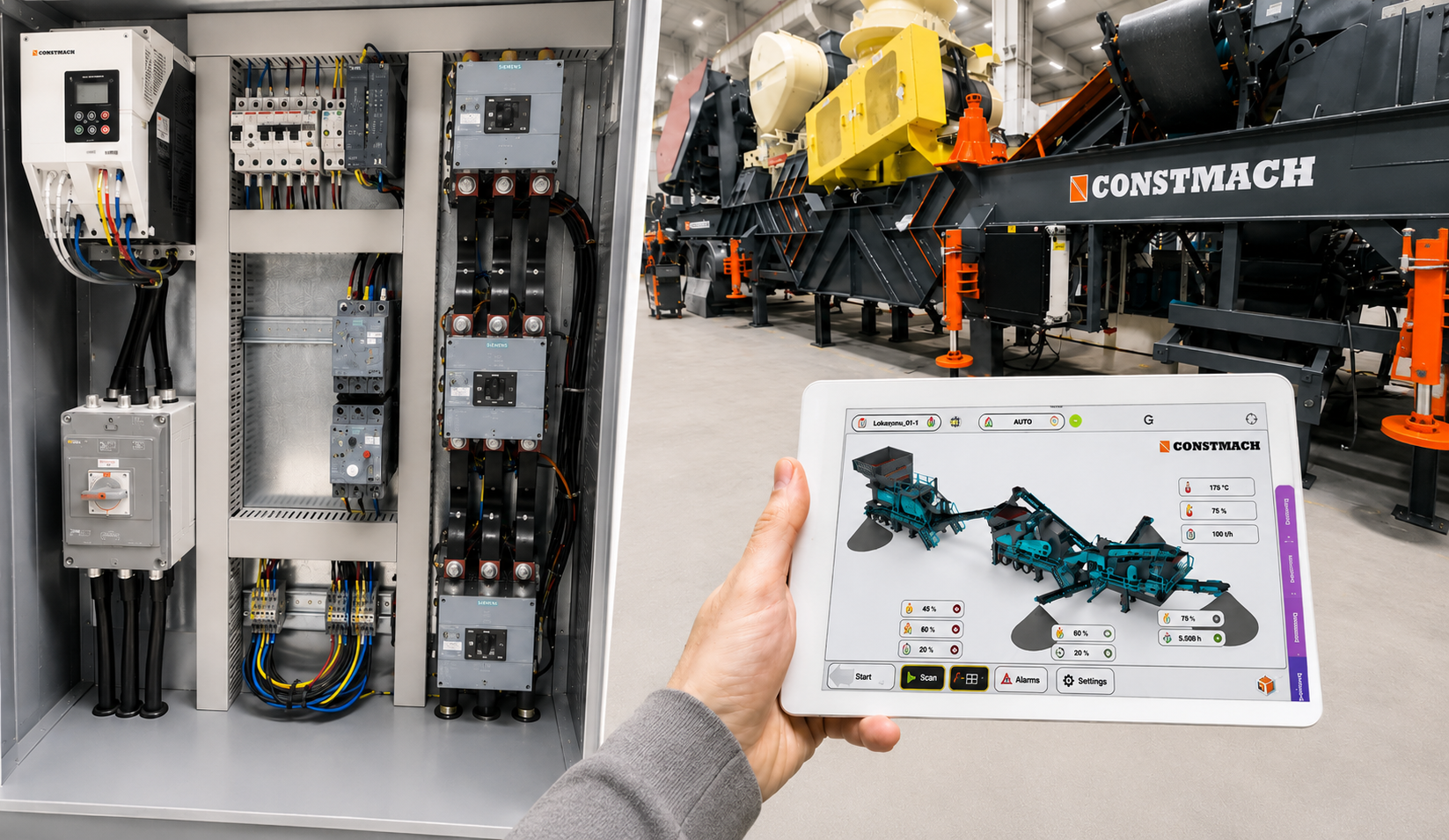

PI-1 Mobile Crushing plant is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . PI-1 Mobile Crusher is operated by just a tablet controller.

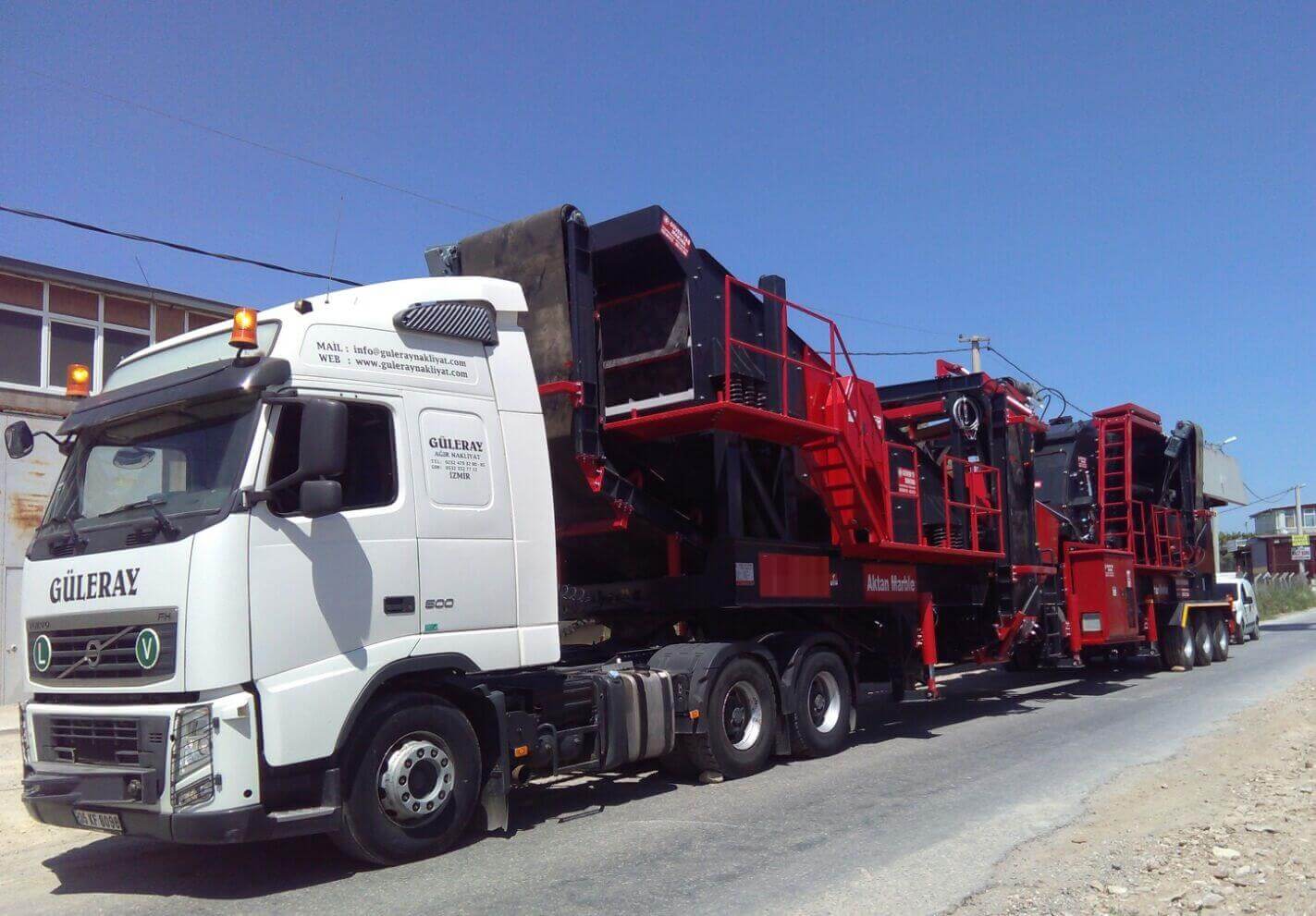

Overall dimensions of PI-1 Mobile Limestone Crushing plant are determined according to international road transport regulations and it is transported between jobsites easily.

PI-1 Mobile Limestone Crusher Technical Specifications
Production Capacity 150-200 tph
Maximum Feeding Size 850 x 850 mm
Feeding Height 4.2 meters
Main Configuration Primary Impactor + 3 Decks Screen
Total Motor Power 320 kW
Electric Generator Requirement 850 kVA
Weight of the plant 49 Tonnes
Sizes of the plant 15(L) x 3.2(W) x 4.2(H) meters
Chassis Type Single chassis on wheels, equipped with hydraulic opening legs.
Overall dimensions of PI-1 are determined according to international road transport regulations and it is transported between jobsites easily.
PI-1 Mobile Limestone Crusher General Layout
