CONSTMACH JCV-1 Tiple Chassis Mobile Crushing is combination of our JC-1 mobile crushing plant and V-70 mobile sand making plant. The system is used in case of requiring to crush hardest rocks such as granite, basalt etc. and also to have high ratio fine material with good cubical shape at the same time.

JCV-1 is the outcome of sophisticated design and engineering, usage of top quality materials and components with long-lasting and excellent craftsmanship..

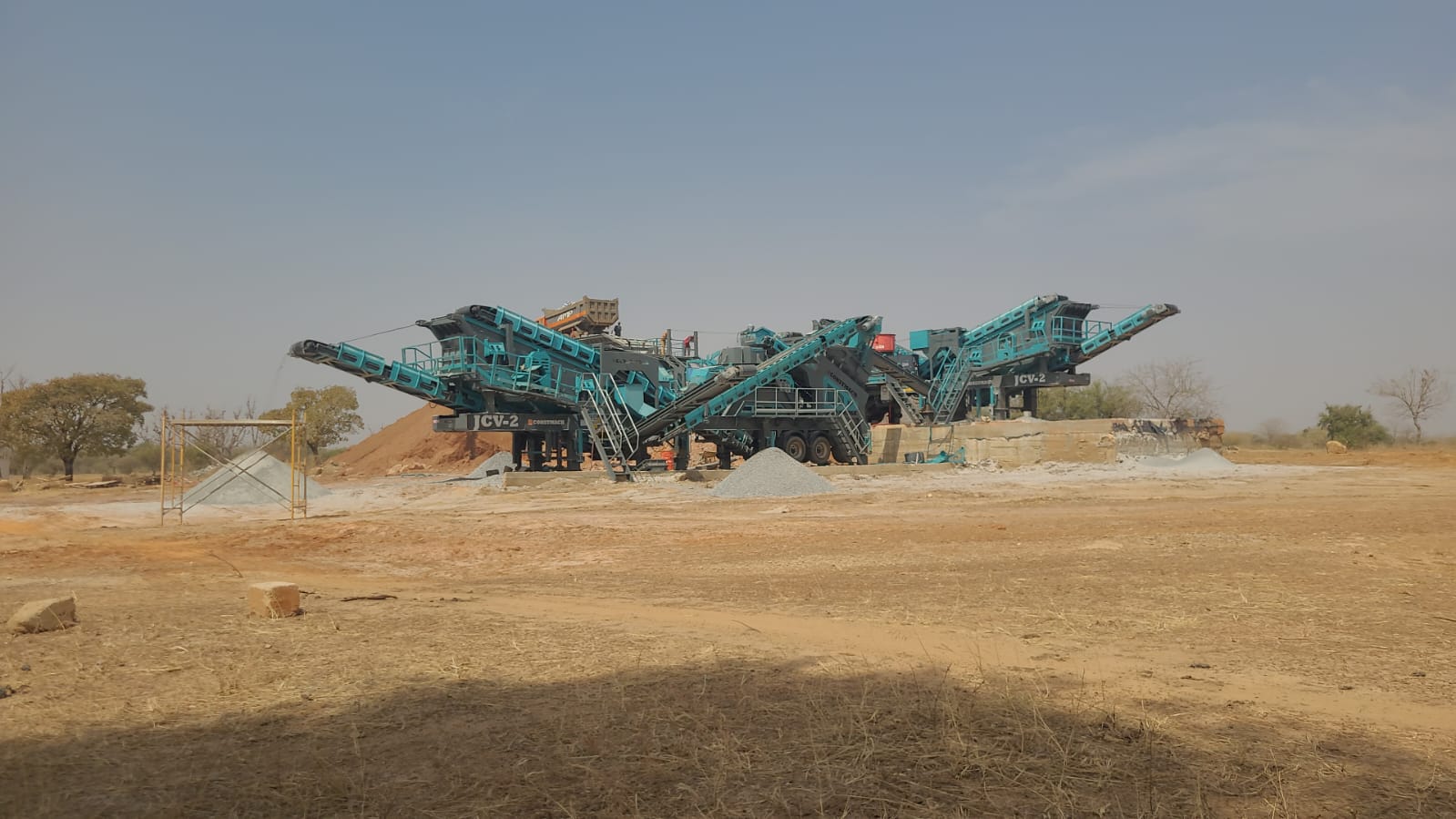

JCV-1 is a triple chassis mobile crushing plant and it is combination of:

1st Chassis

• Feeding Hopper with vibrating feeder
• CJC-60 Primary Jaw Crusher
• By-pass conveyor (for extraction of soil)
• Feeding Conveyor between jaw crusher and hopper of cone crusher
• Wheeled mobile chassis with hydraulic legs
• Automation System with PLC and remote controller
• Dust Removing System

2nd Chassis

• Feeding Hopper of Cone Crusher
• Cone Crusher, METSO HP 100 or equivalent
• Vibrating Screen with 2 decks
• Feedback Conveyor from vibrating screen to cone crusher
• Fold-up type Stockpile Conveyors
• Feeding conveyor to the 3rd chassis
• Wheeled mobile chassis with hydraulic legs
• Automation System with PLC and remote controller
• Dust Removing System
• Diesel Electric Generator Set (Optional Application)

3rd Chassis

• Feeding Hopper with vibrating feeder
• VSI 100 CR Closed Rotor Vertical Shaft Impact Crusher
• Feeding Conveyors
• Vibrating Screen with 3 decks
• Feedback Conveyor
• Stockpile Conveyors
• Mobile chassis with hydraulic legs
• Automation System with PLC and remote controller
• Dust Removing System

JCV-1 production capacity changes between 60 to 80 tph according to hardness grade of the material to be crushed. Maximum feeding size is 610 x 380 mm. The cone crusher is Metso HP 100 or equivalent model and the VSI model is VSI-700-CR. It is possible to get 5 different fractions at the same time.

In case of need, it is possible to adapt an electric generator to chassis of the plant.

JCV-1 is a user-friendly combination which promises easy mount/assemble features to its operators. The plant can be put into use in very short time. In case of need, it is possible to equip the feeding hopper and stock conveyors with hydraulic opening mechanism and in that case the plant can be taken to operation without needing any external equipment such as crane, loader etc.

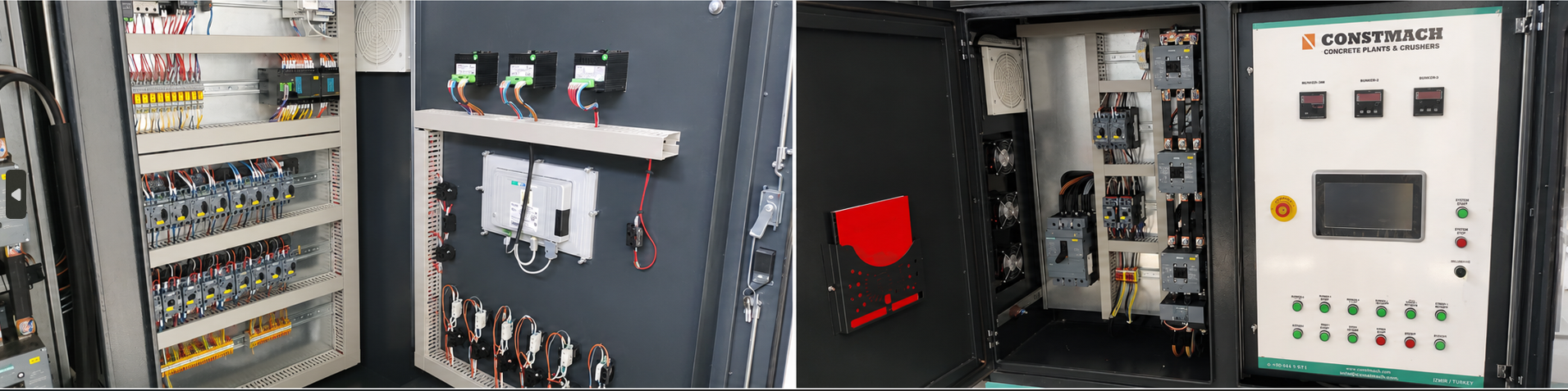

JCV-1 is equipped with high-tech automation system including top class SIEMENS – SCHNEIDER brand electronic components and PLC . JCV-1 is operated by just a tablet controller.

Overall dimensions of both chassises JCV-1 are determined according to international road transport regulations and it is transported between jobsites easily.
