Vibrating Screens
CONSTMACH Vibrating Screens are highly preferable screening equipments for the purpose of screening all types of material owing to its durable and simple design. Modular structure allows users to change the spare parts and handle the maintenance activities easily. CONSTMACH Vibrating Screens can be produced as “driven from top” or “driven from center” versions. Screen meshes material can be made of steel or polyurethan according to hardness level of the material to be screened.
Main features of CONSTMACH VIBRATING SCREENS:- Single, double, triple, quad deck configurations available
- Crowned or flat deck support frames (stress relieved)
- Precision machined and ground forged steel eccentric shaft/s
- Superior bearing fit and shaft strength
- Maximum bearing performance with branded grease or oil
- Bearings from SKF, FAG, Timken and NSK
- Huck bolt fastener construction Provides exceptional reliability
- Replaceable bolted and welded, abrasion resistant, steel lined feedbox and discharge lips
Vibrating Screens Technical Specifications
| Model | Number of Decks | Layer Dimensions (mm) | Production Capacity (t/h) | Motor (kW) | Weight (kg) | |
| CVS-1240 | 2 | 4,8 m² | 1.200 x 4.000 mm | 70 – 95 t/h | 7,5 kW | 7.400 kg |
| 3 | 11 kW | 7.700 kg | ||||
| 4 | 11 kW | 8.000 kg | ||||
| CVS-1640 | 2 | 6,4 m² | 1.600 x 4.000 mm | 100 – 130 t/h | 11 kW | 13.500 kg |
| 3 | 15 kW | 14.000 kg | ||||
| 4 | 15 kW | 14.750 kg | ||||
| CVS-1650 | 2 | 8 m² | 1.600 x 5.000 mm | 130– 160 t/h | 11 kW | 14.000 kg |
| 3 | 15 kW | 14.750 kg | ||||
| 4 | 18,5 kW | 15.500 kg | ||||
| CVS-1850 | 2 | 9 m² | 1.800 x 5.000 mm | 140– 180 t/h | 11 kW | 16.000 kg |
| 3 | 15 kW | 16.750 kg | ||||
| 4 | 18,5 kW | 17.500 kg | ||||
| CVS-2050 | 2 | 10 m² | 2.000 x 5.000 mm | 170– 220 t/h | 15 kW | 16.500 kg |
| 3 | 18,5 kW | 17.400 kg | ||||
| 4 | 22 kW | 18.200 kg | ||||
| CVS-2060 | 2 | 12 m² | 2.000 x 6.000 mm | 192– 240 t/h | 15 kW | 17.500 kg |
| 3 | 18,5 kW | 19.000 kg | ||||
| 4 | 22 kW | 20.500 kg | ||||
| CVS-2470 | 2 | 16,8 m² | 2.400 x 7.000 mm | 268,8– 336 t/h | 2 x 15 kW | 20.500 kg |
| 3 | 2 x 18,5 kW | 22.000 kg | ||||
| 4 | 2 x 22 kW | 24.000 kg | ||||

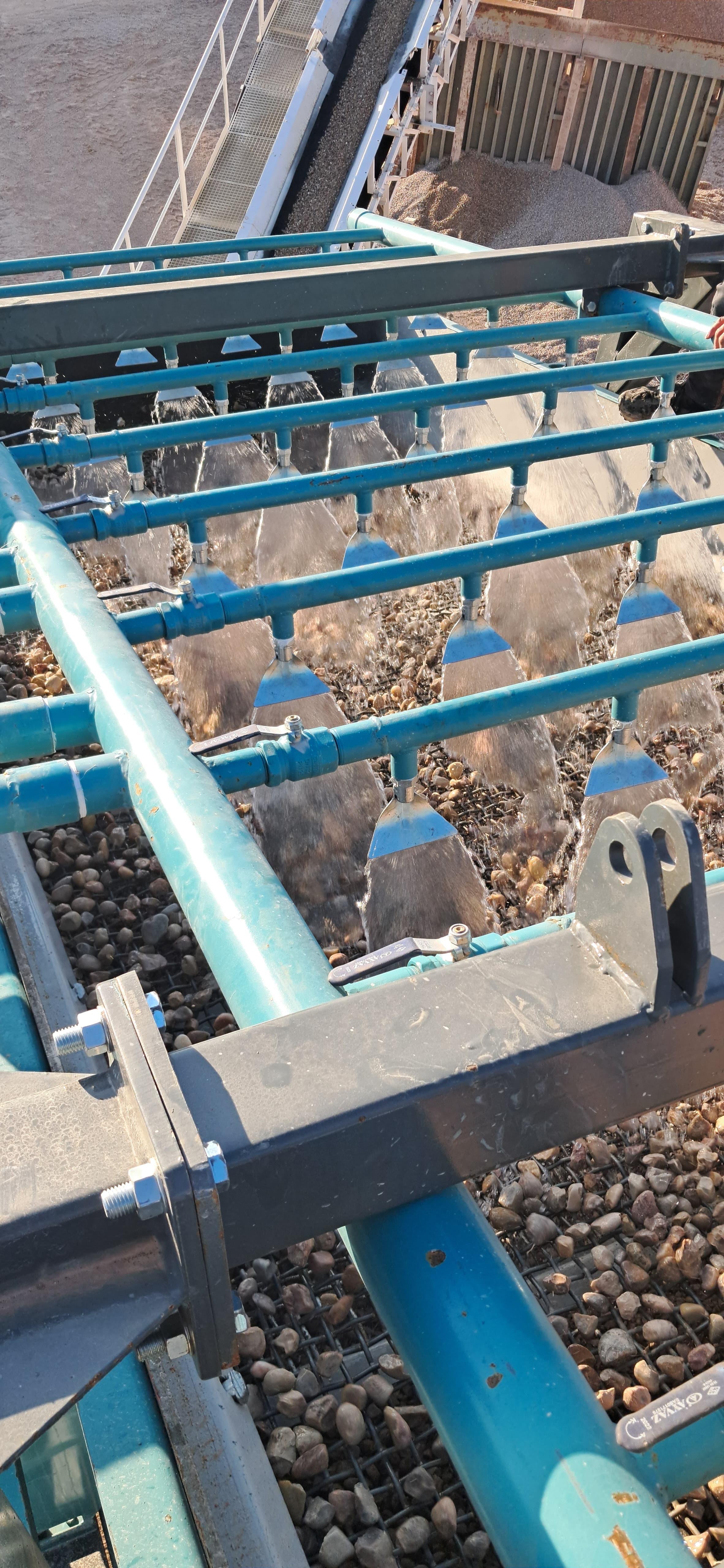

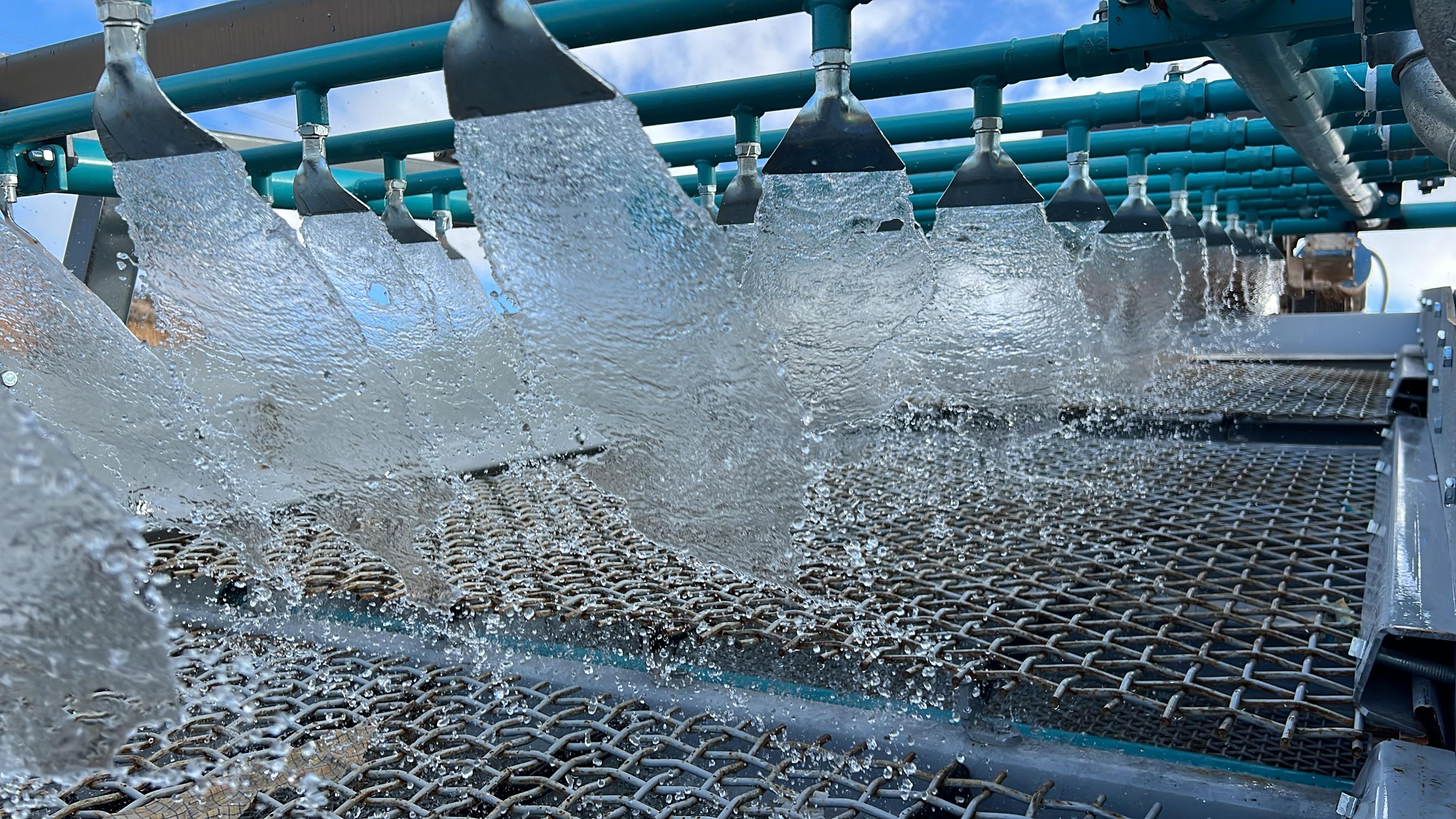

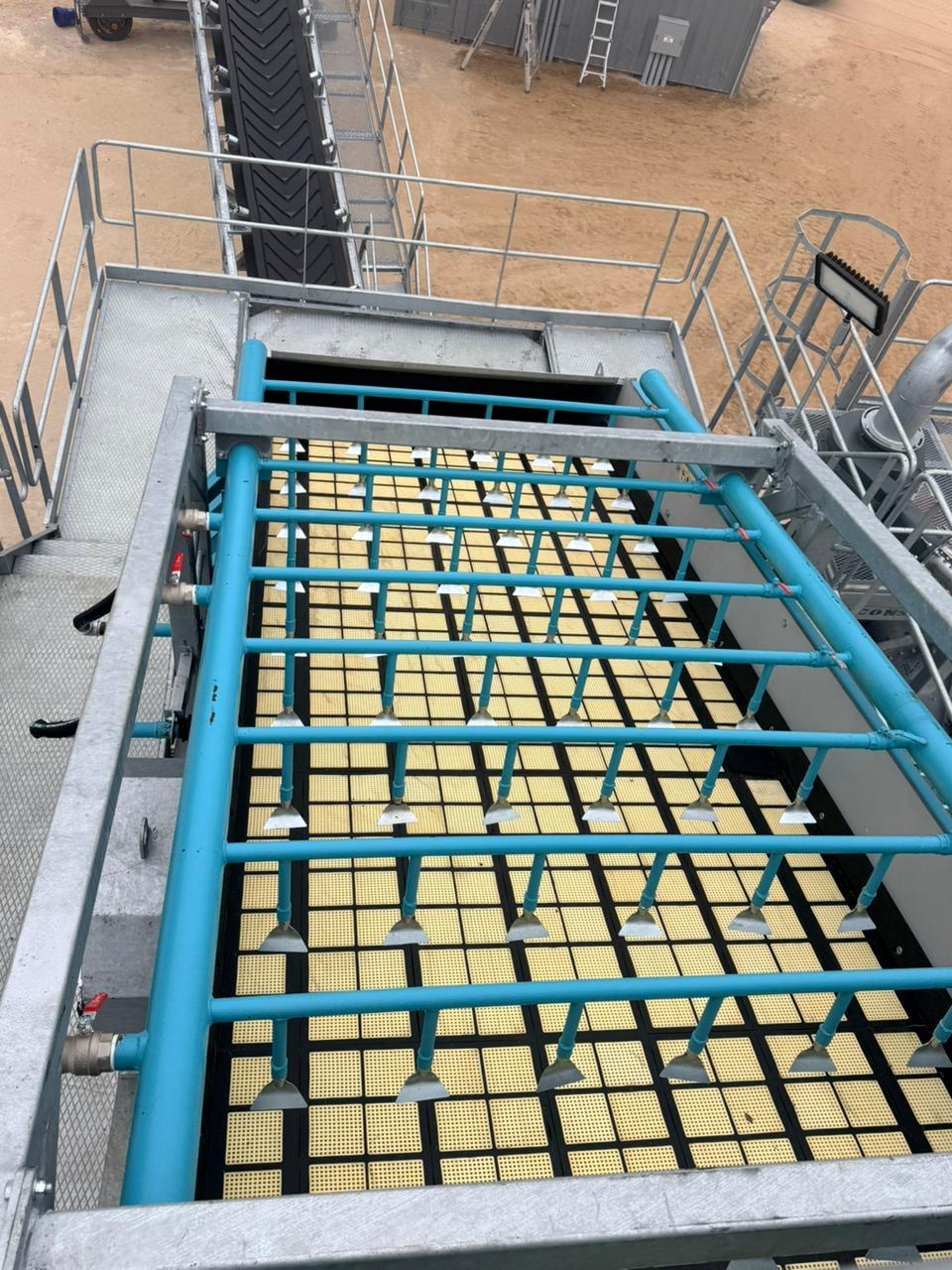

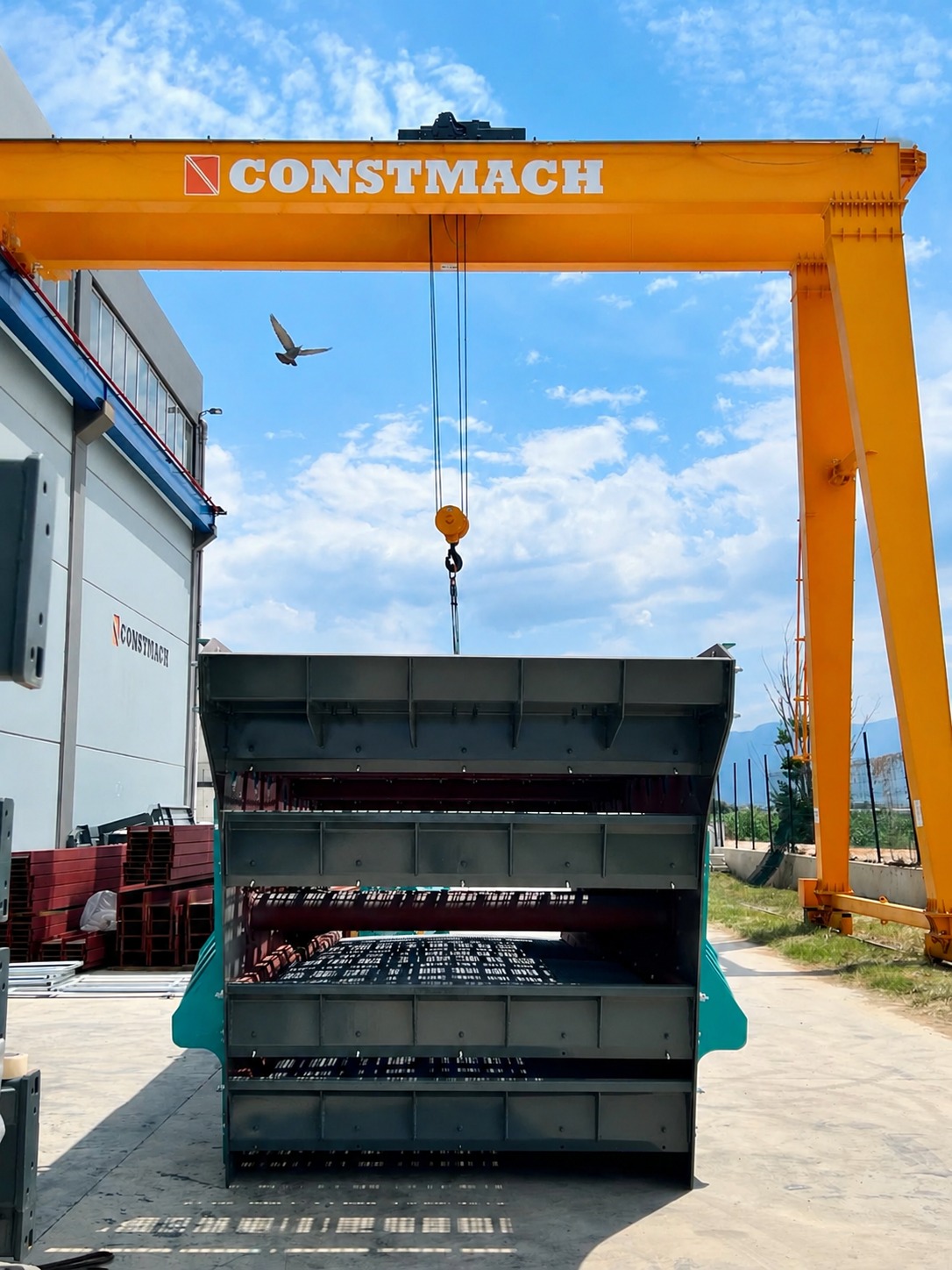

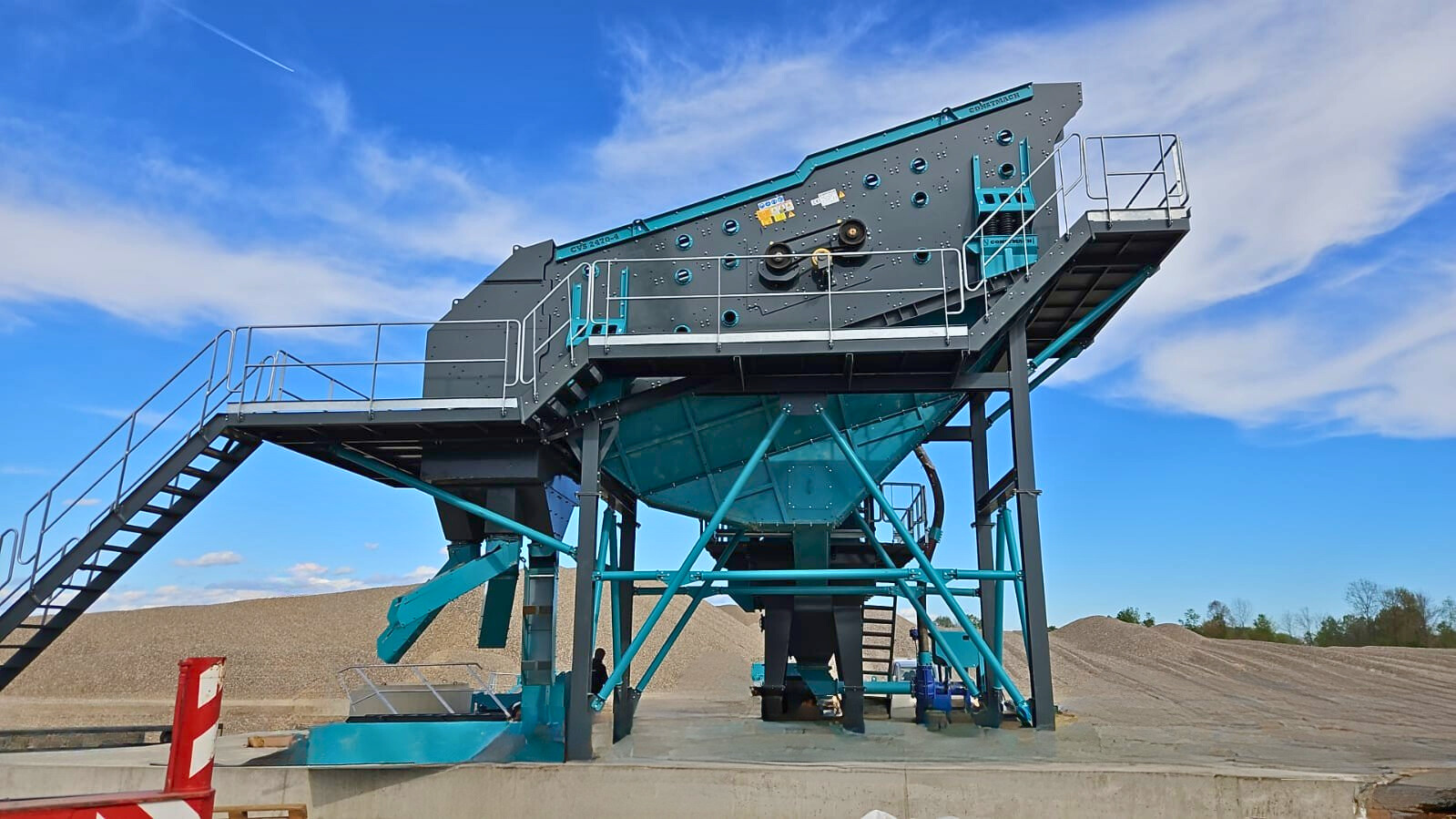

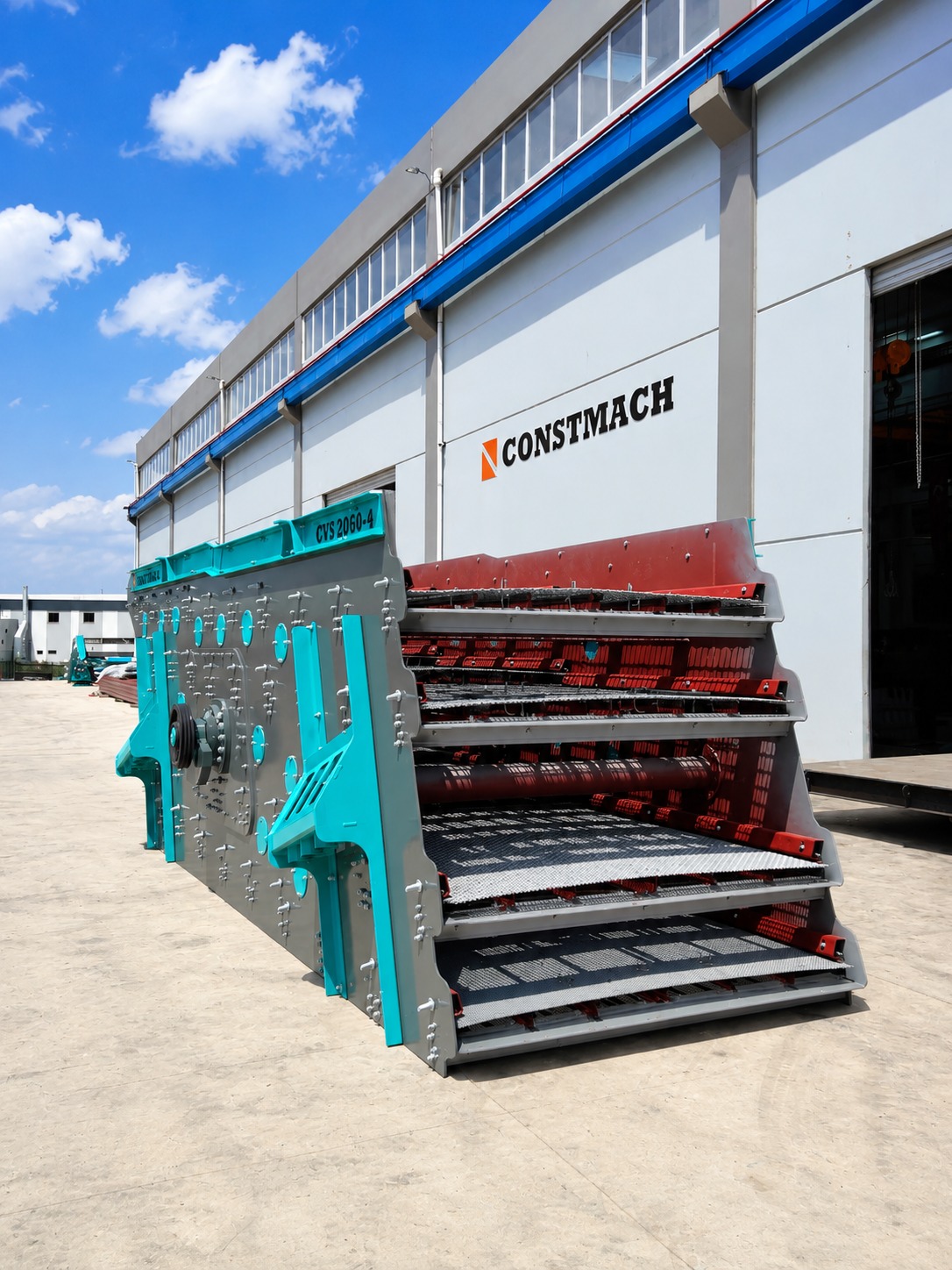

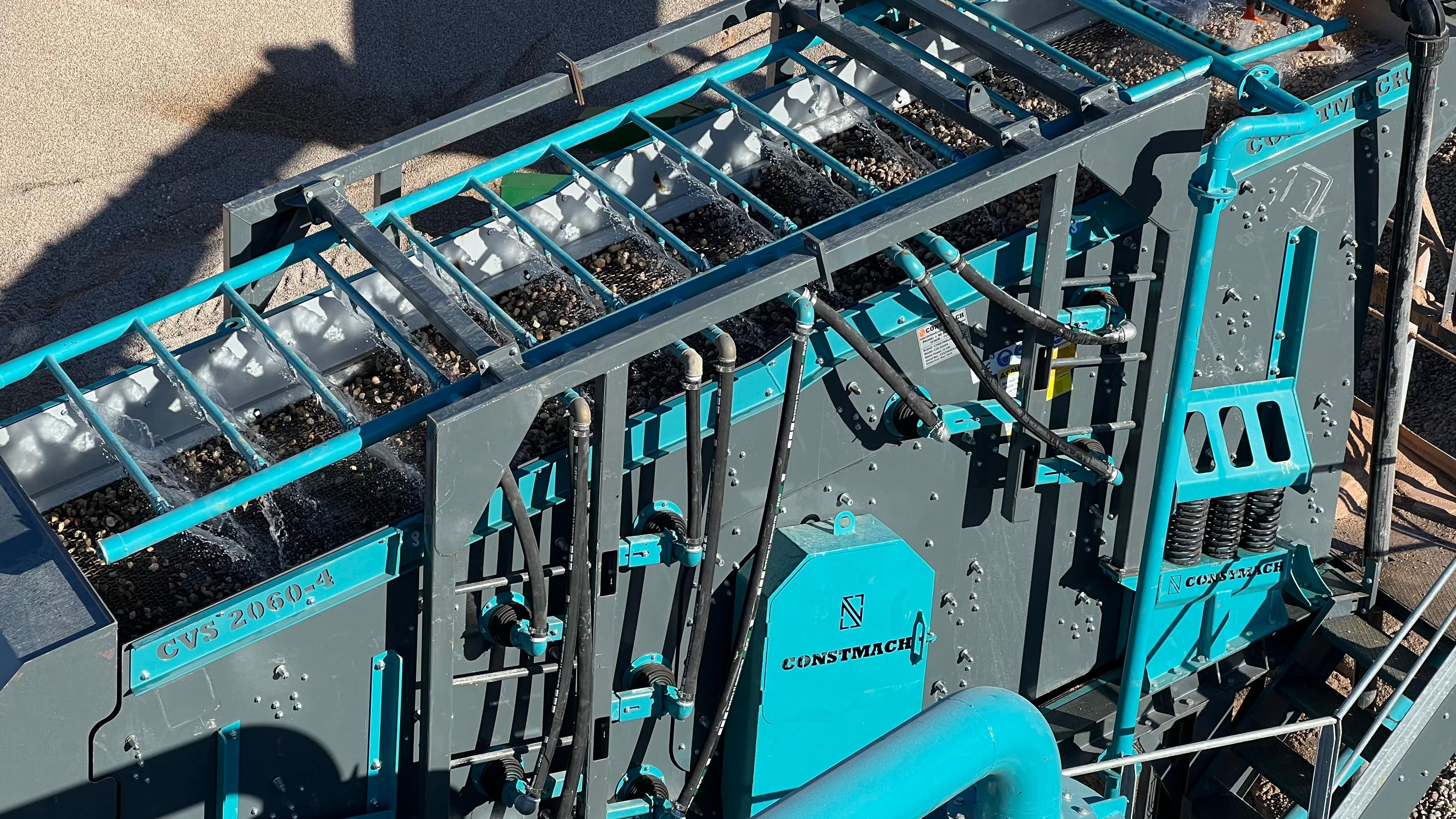

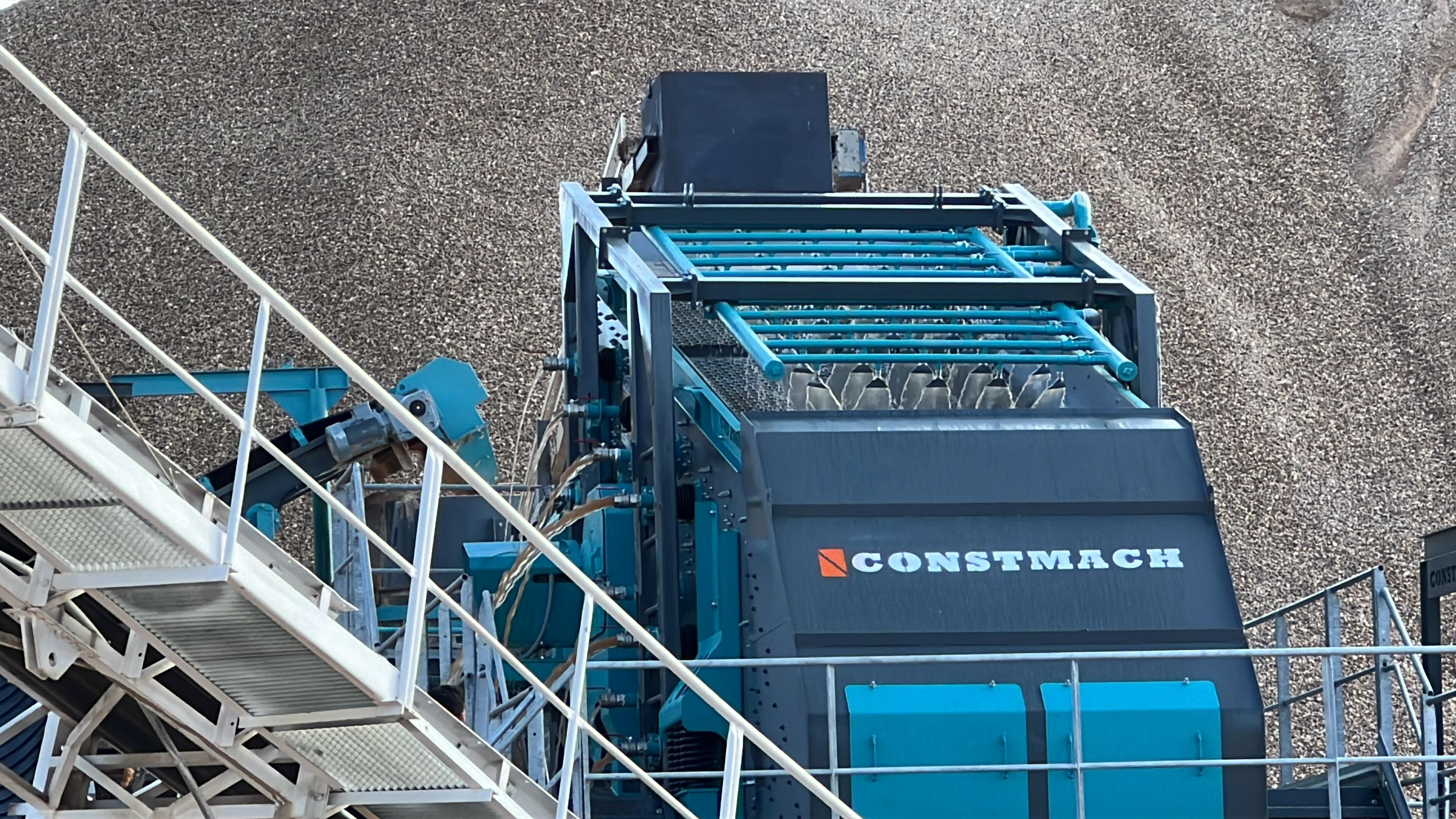

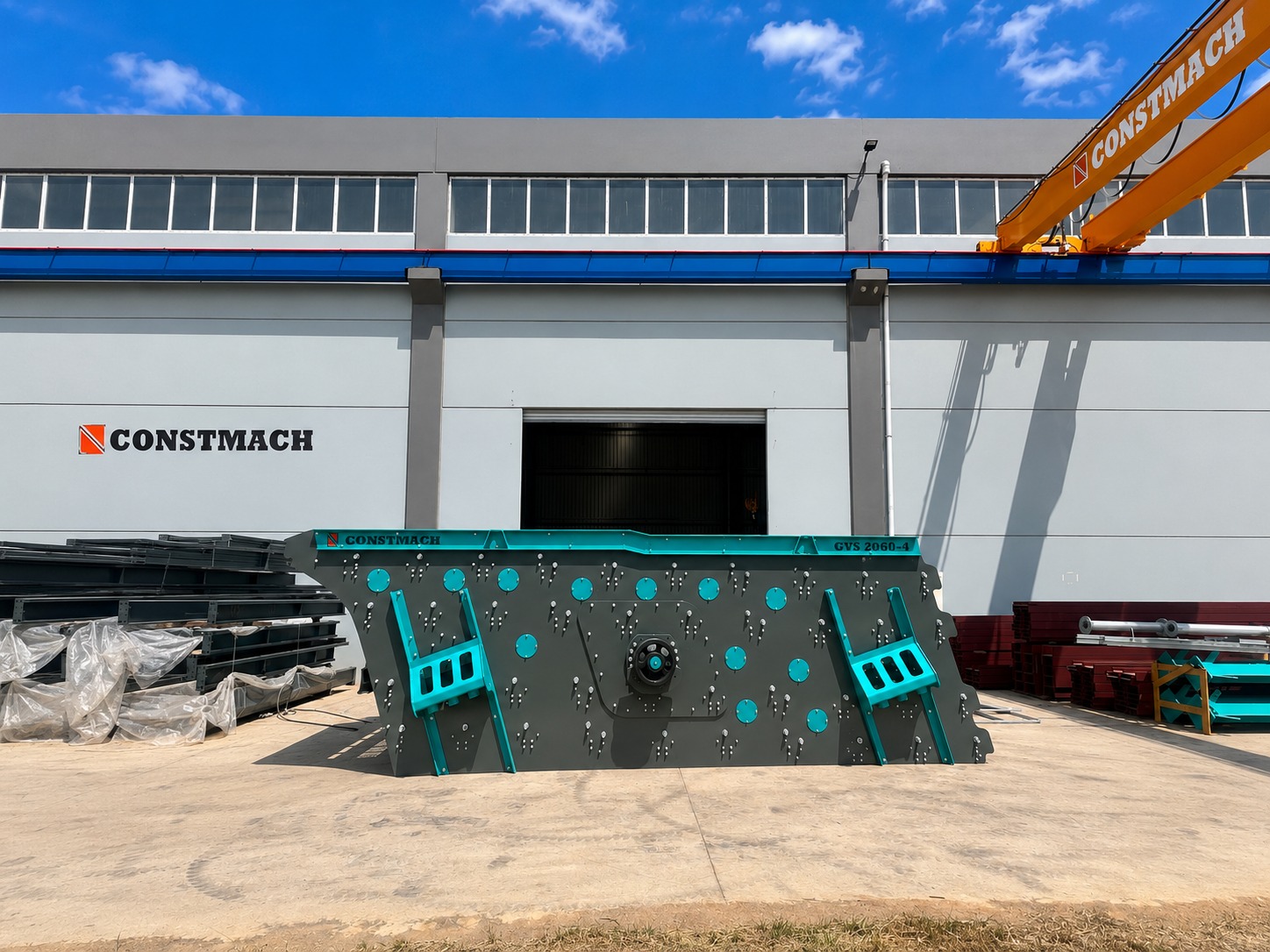

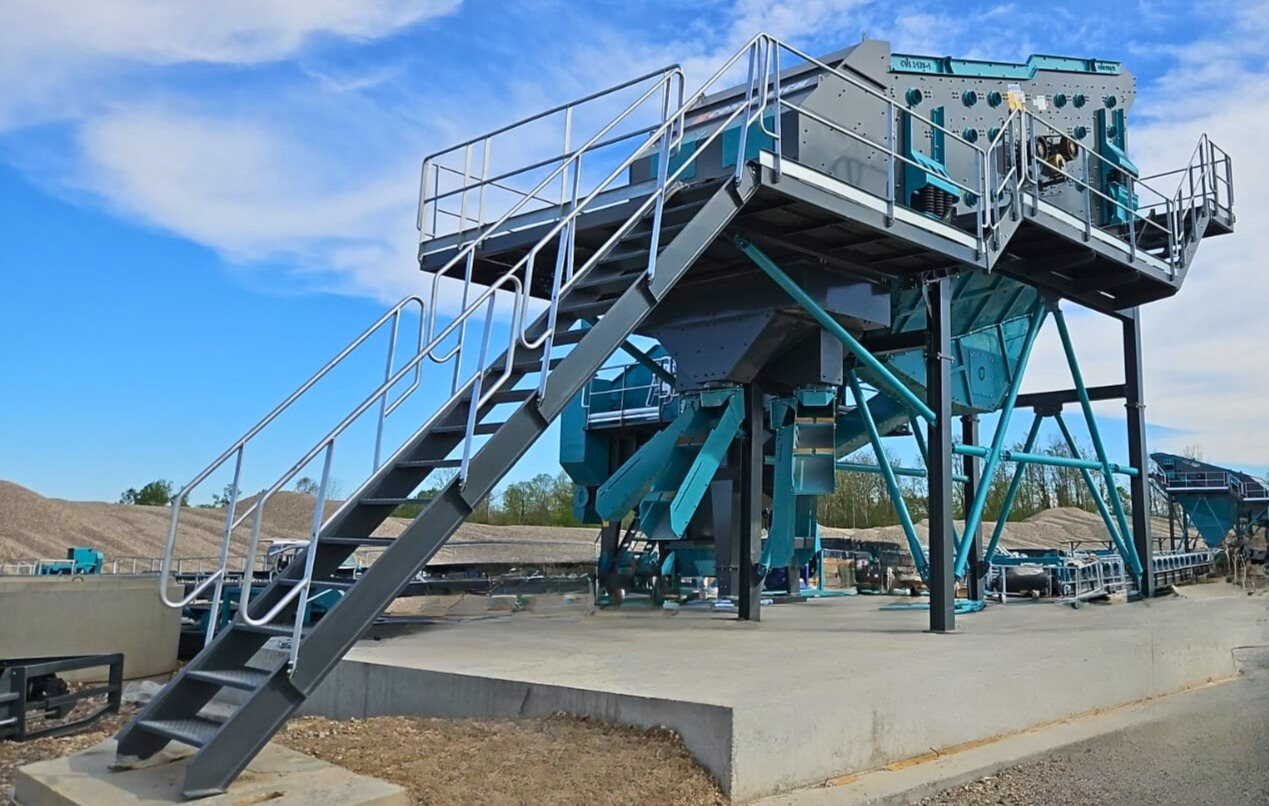

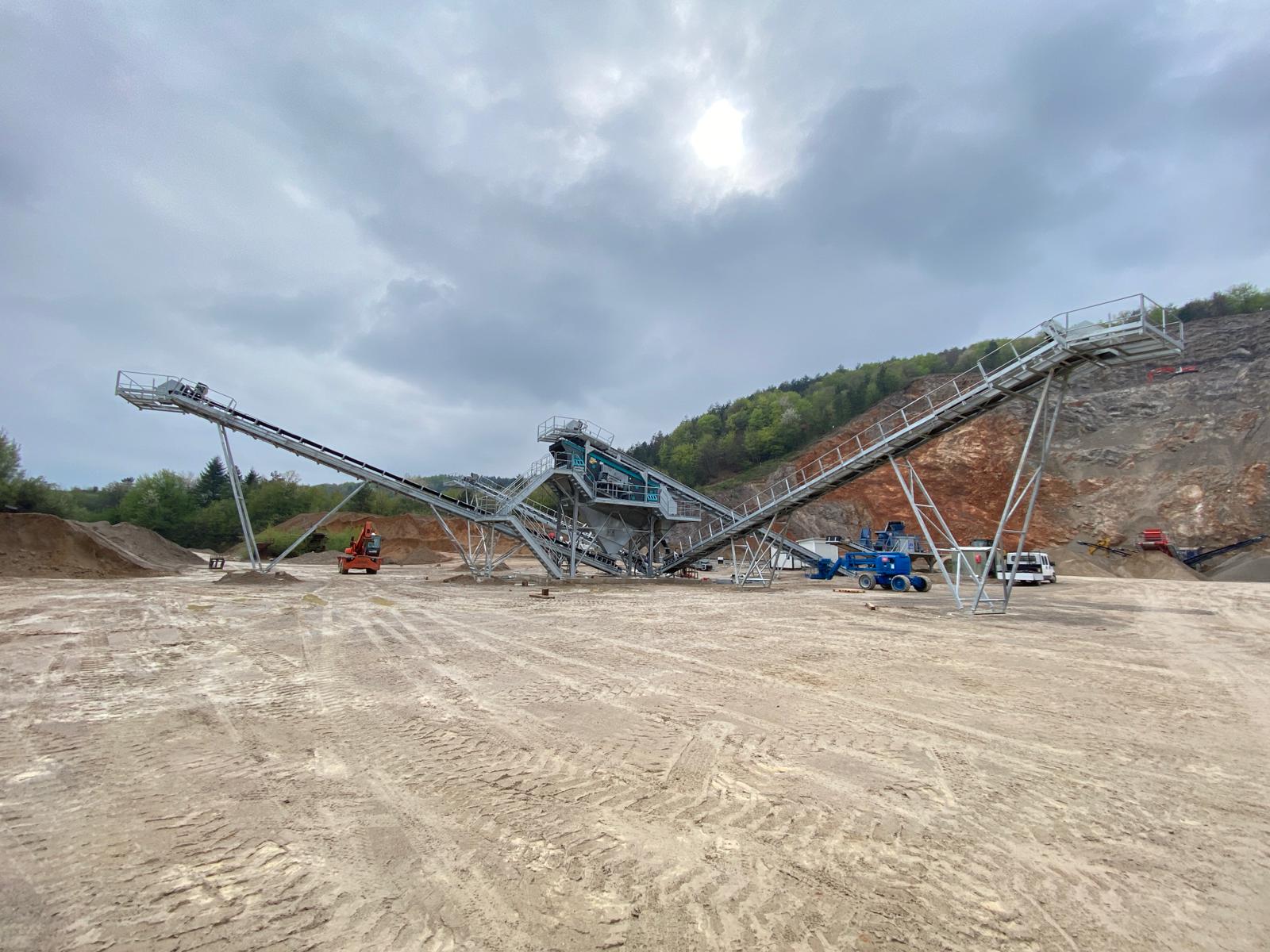

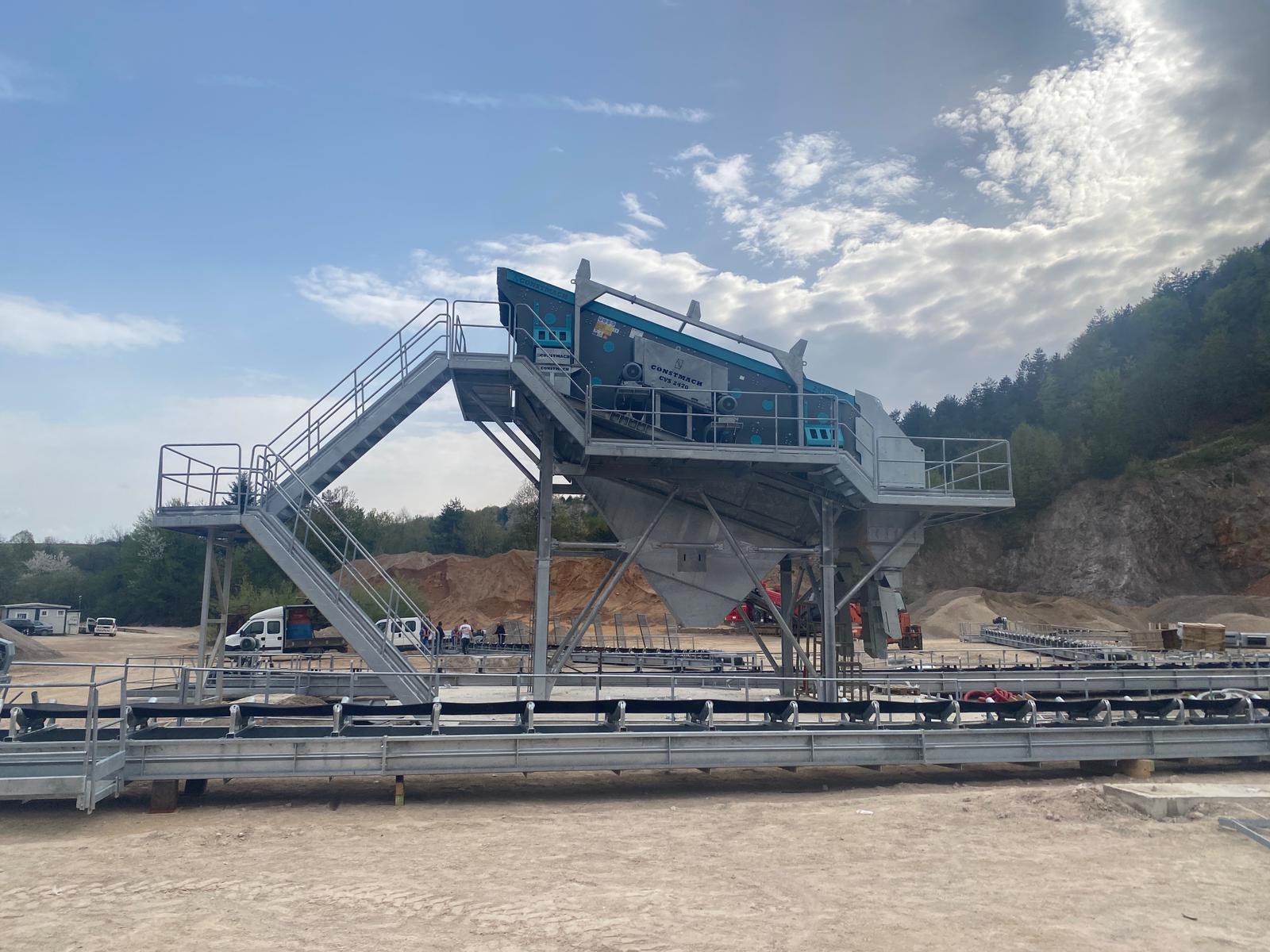

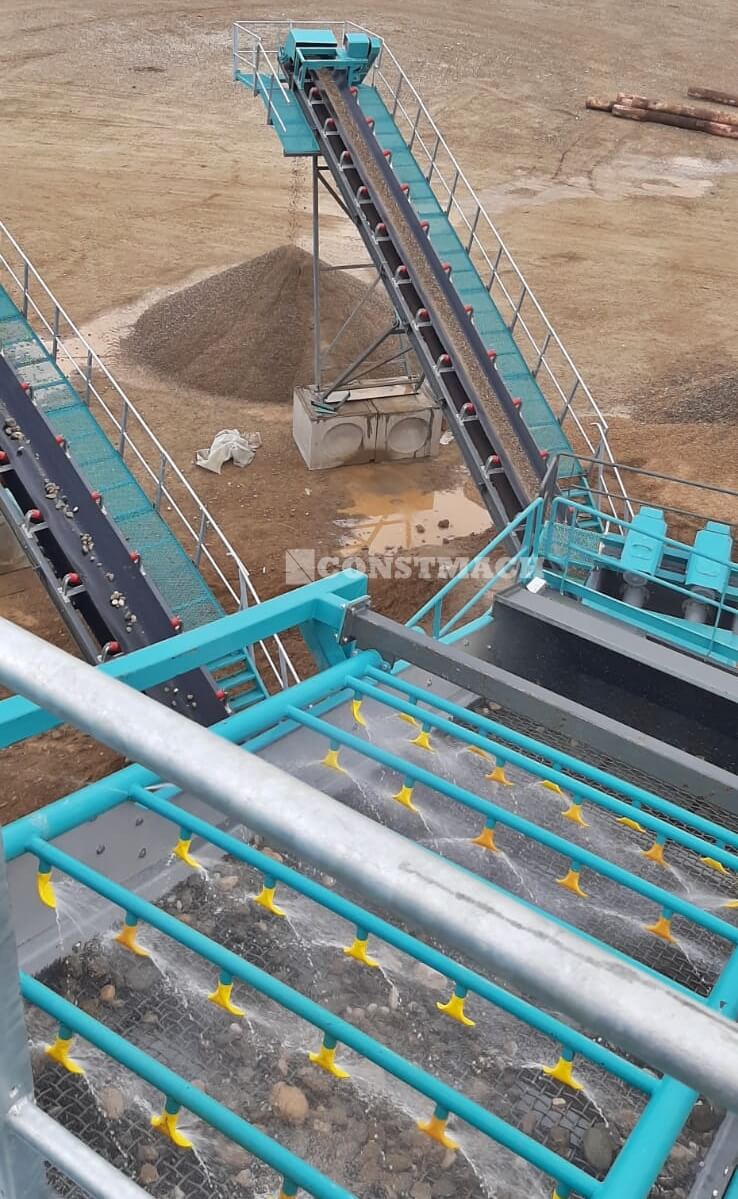

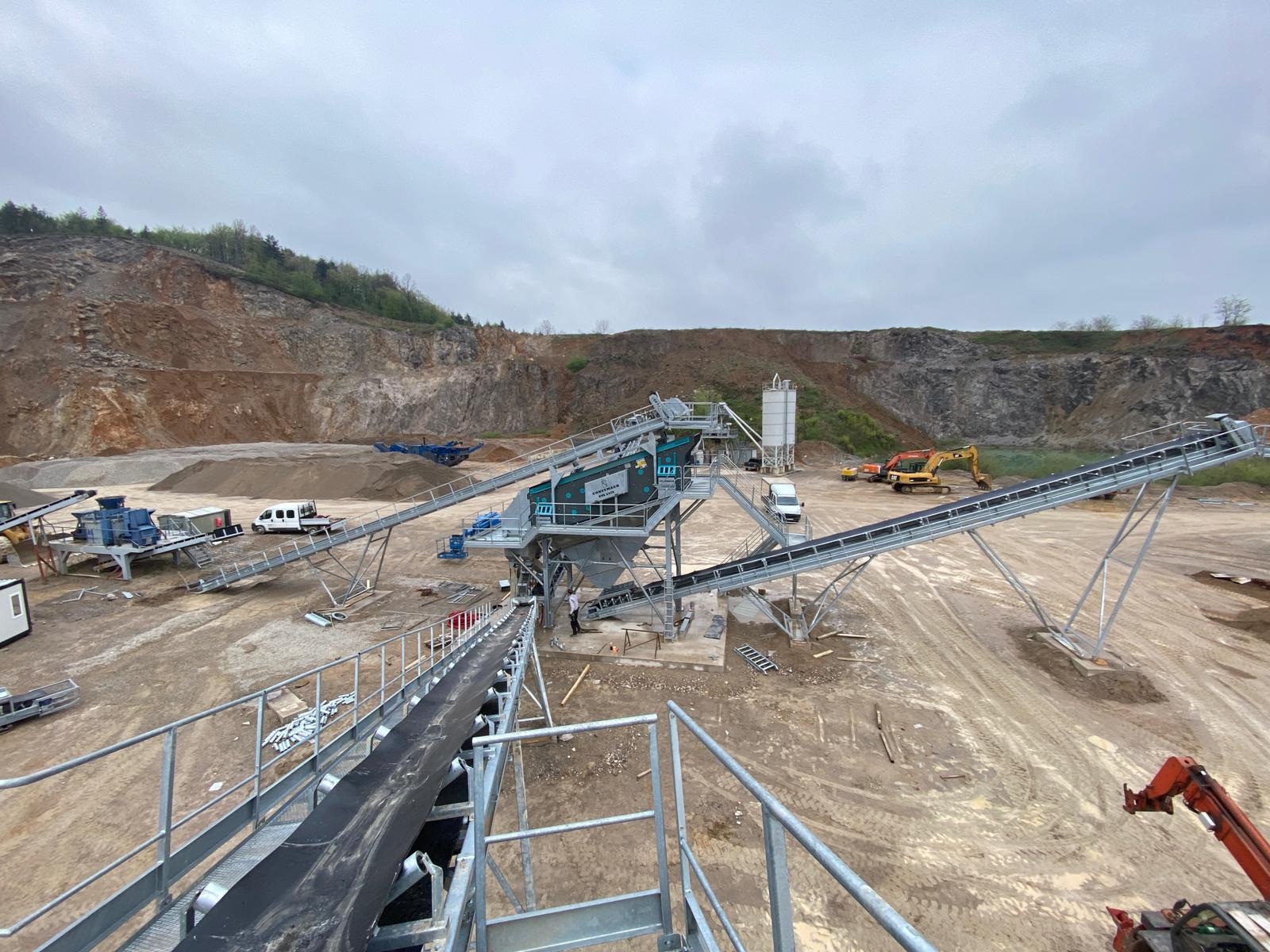

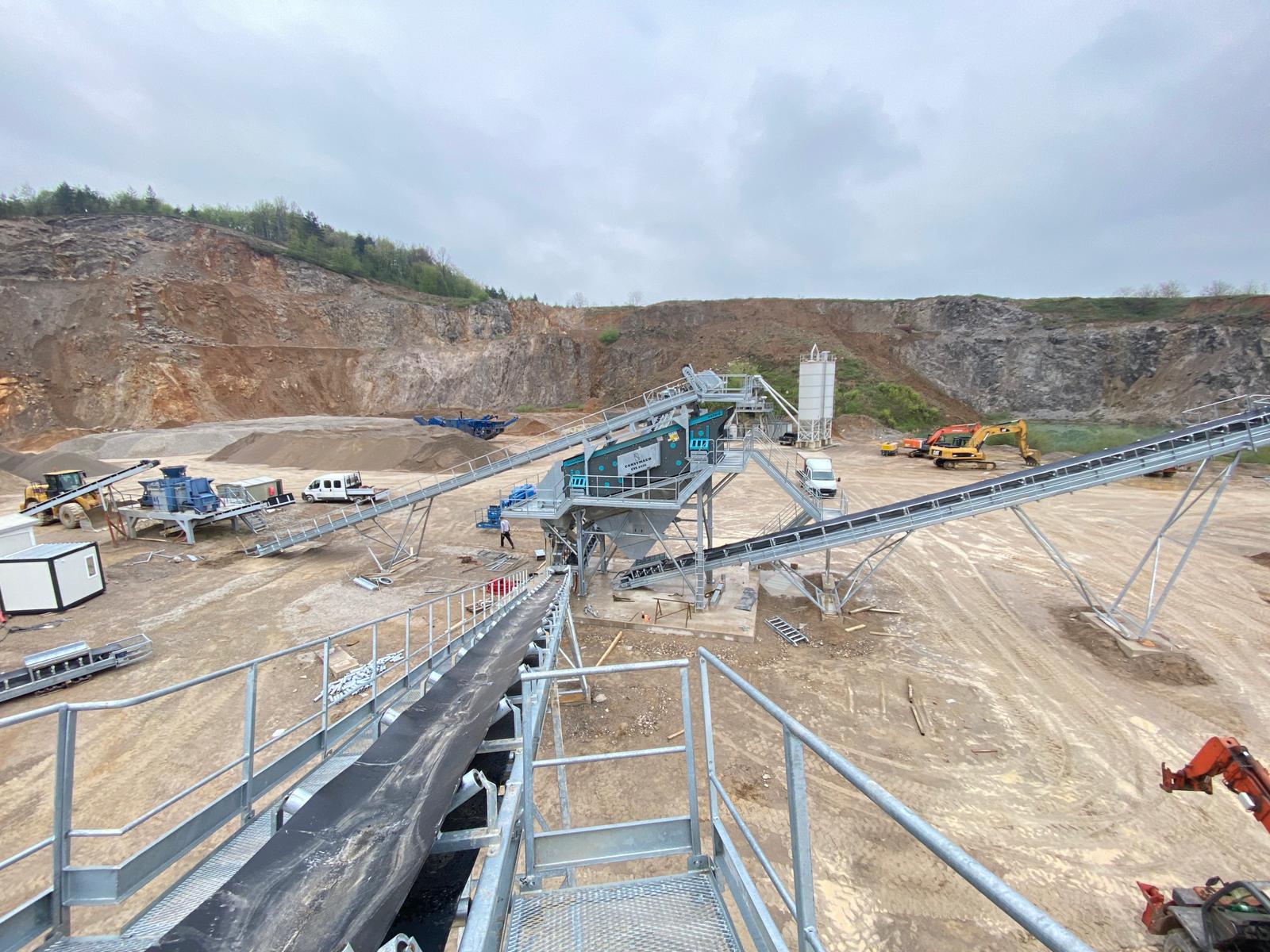

Vibrating Screens Gallery
You can examine some photos of the product named Vibrating Screens taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Transport
Vibrating Screens General Layout
