Secondary Impact Crushers
CONSTMACH Secondary Impact Crushers offer high capacity, cubic shape and reduced wear costs. Besides having the greatest durability, our ease of maintenance means less total downtime. Thanks to their three step pendulums, CONSTMACH Secondary Impact Crushers can make primary, secondary and tertiary crushing operations.
Features of CONSTMACH SECONDARY IMPACT CRUSHERS:- High strength, open disc, stress-relieved rotor
- Large spherical roller bearings
- High chrome or manganes alloy breaker bars
- Rear doors allow access to the breaker plate liner bolts
- Two hydraulic cylinders for opening the body
- High reduction ratio
- Large discharge opening
- Hydraulic adjustment system allows breaker plate openingchanges while crushing
Secondary Impact Crushers Technical Specifications
| CSI - 1210 | 1.100 x 1.100 mm | 200 mm | 120 - 150 t/h | 160 kW | 17.500 kg |
| CSI - 1212 | 1.100 x 1.250 mm | 250 mm | 200 - 250 t/h | 200 kW | 21.500 kg |
| CSI - 1215 | 1.100 x 1.500 mm | 350 mm | 300 - 350 t/h | 250 kW | 26.000 kg |

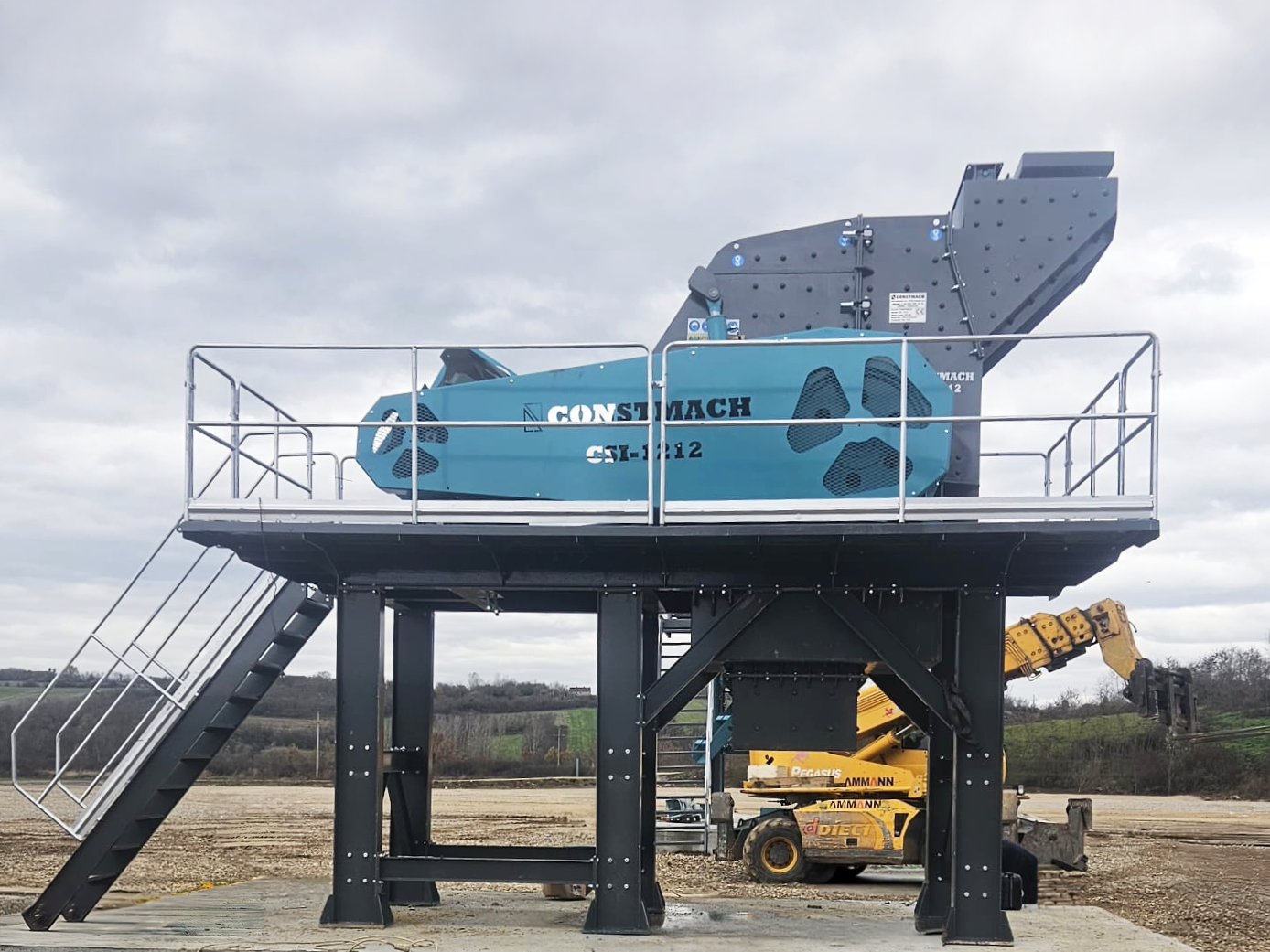

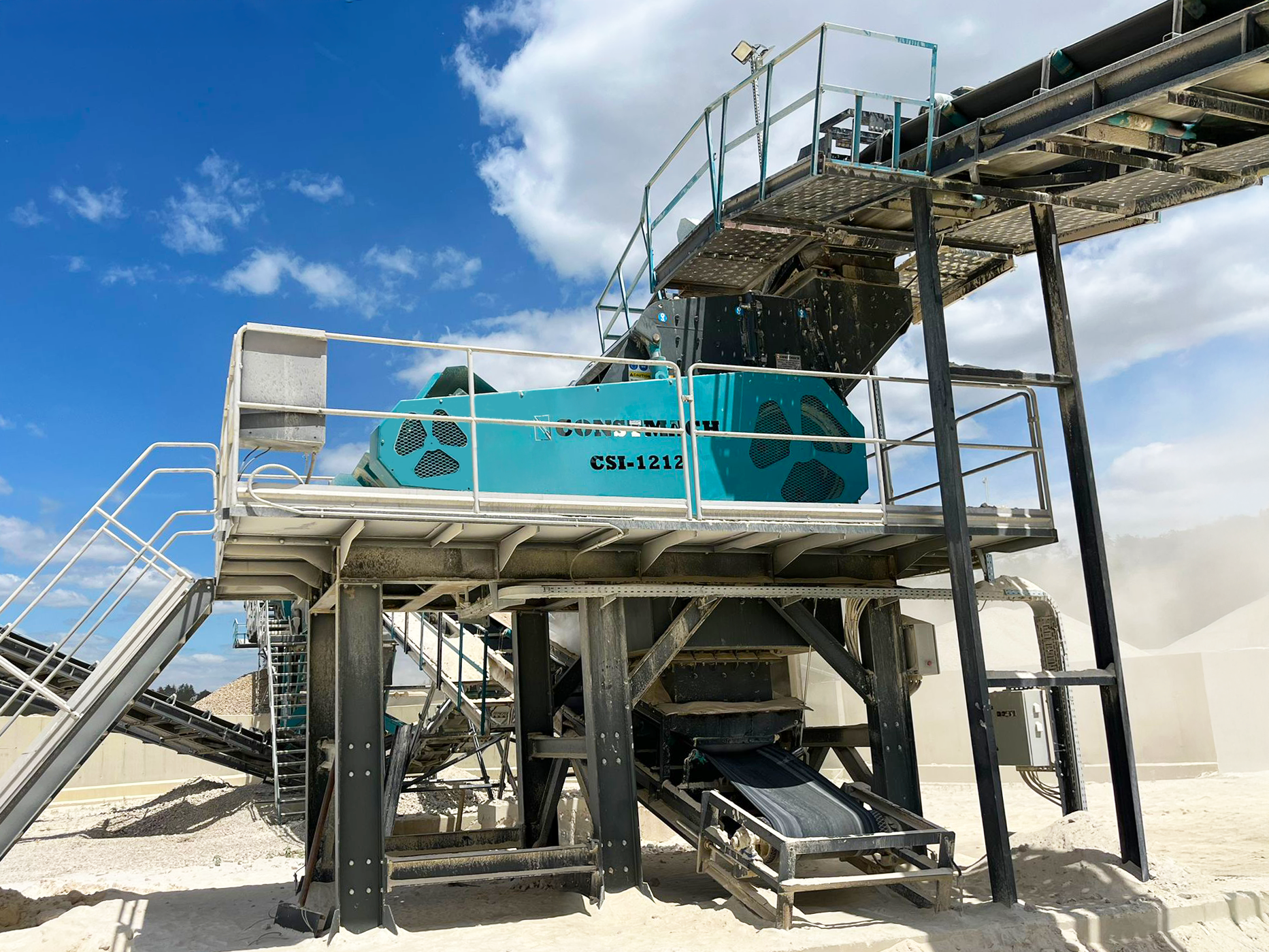

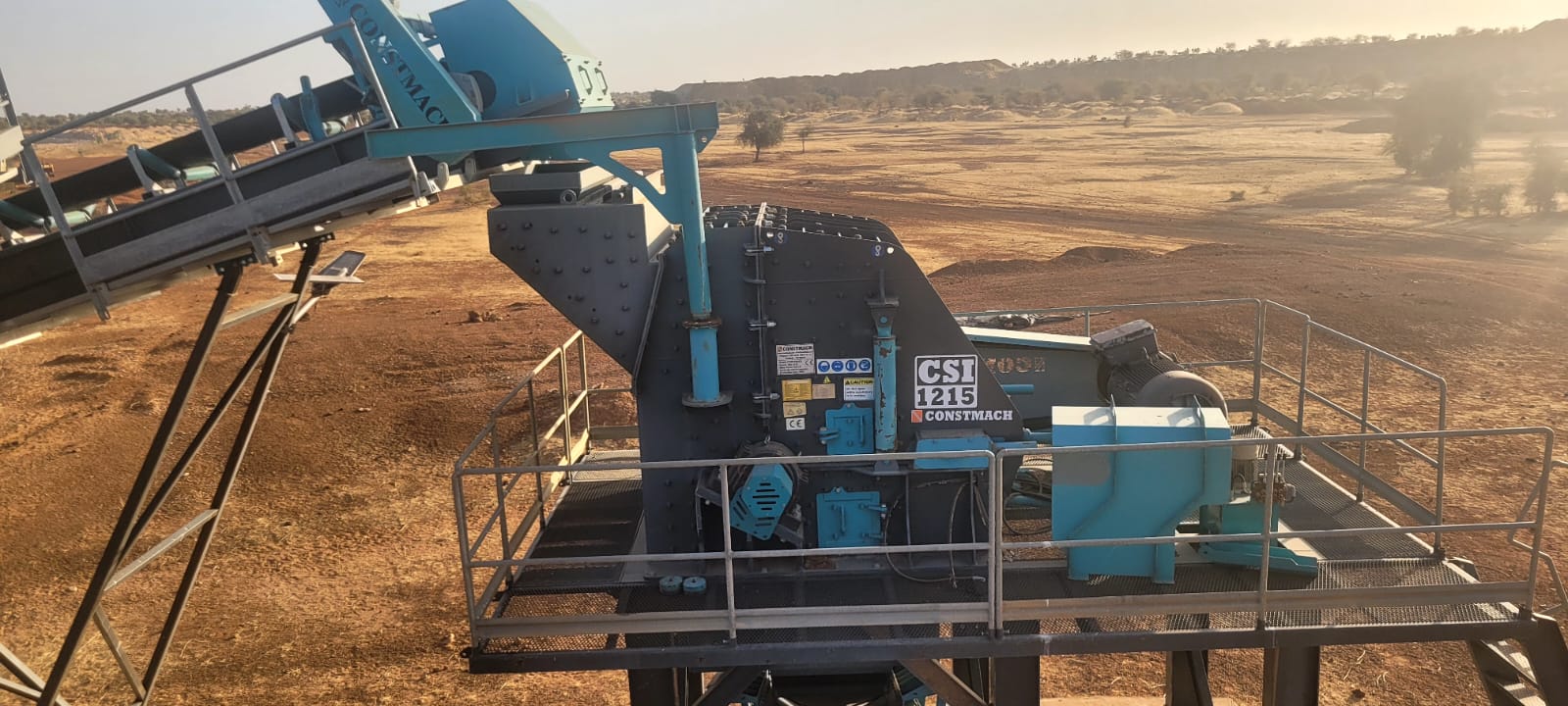

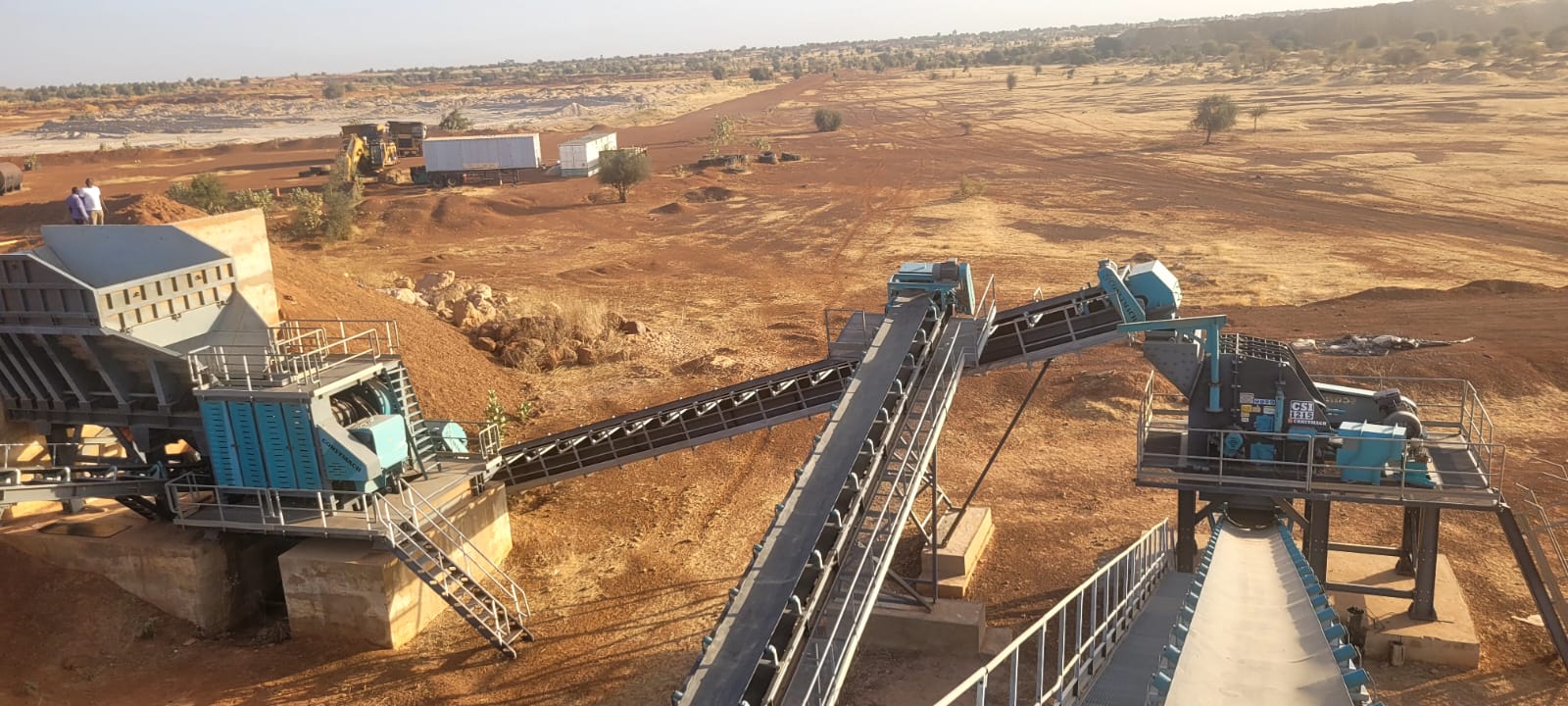

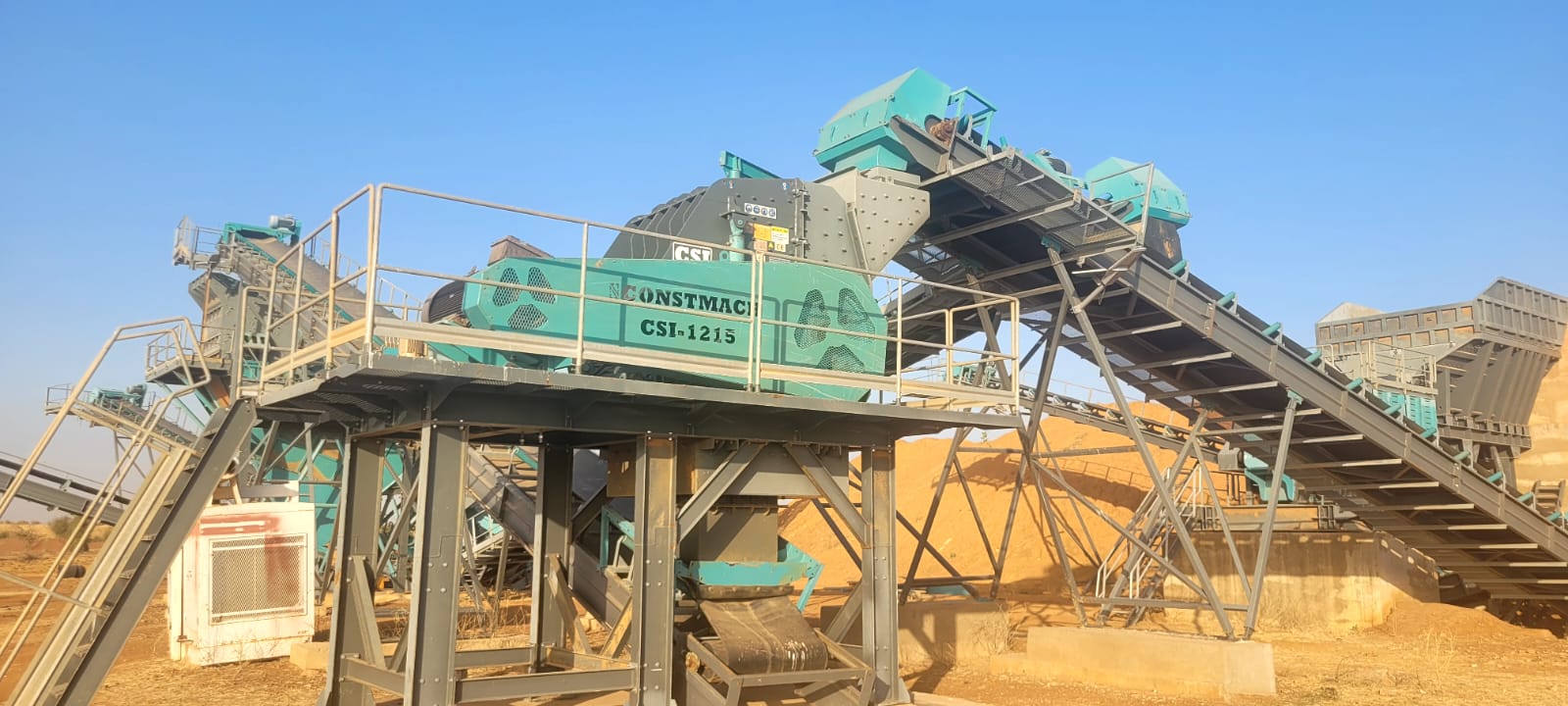

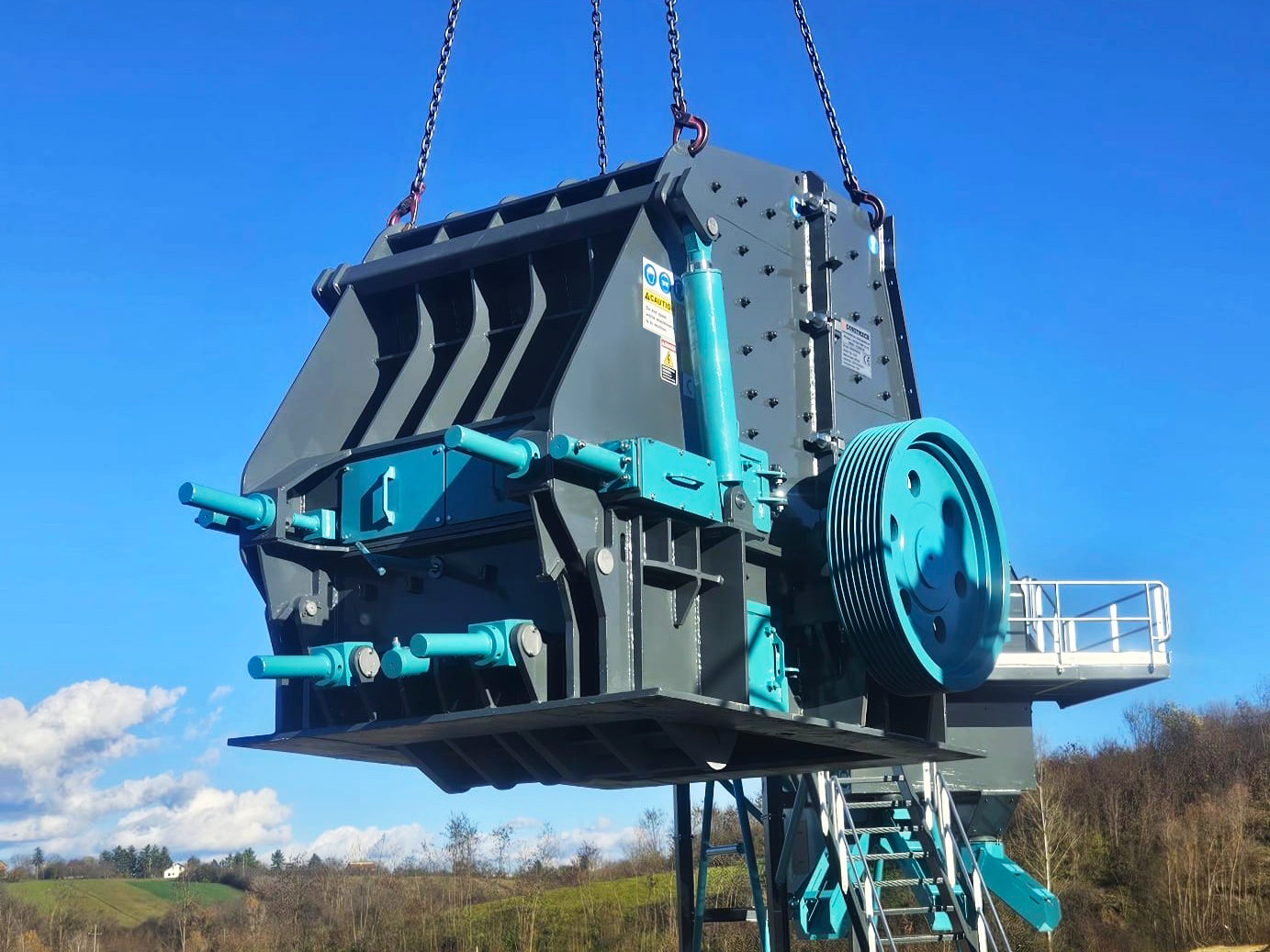

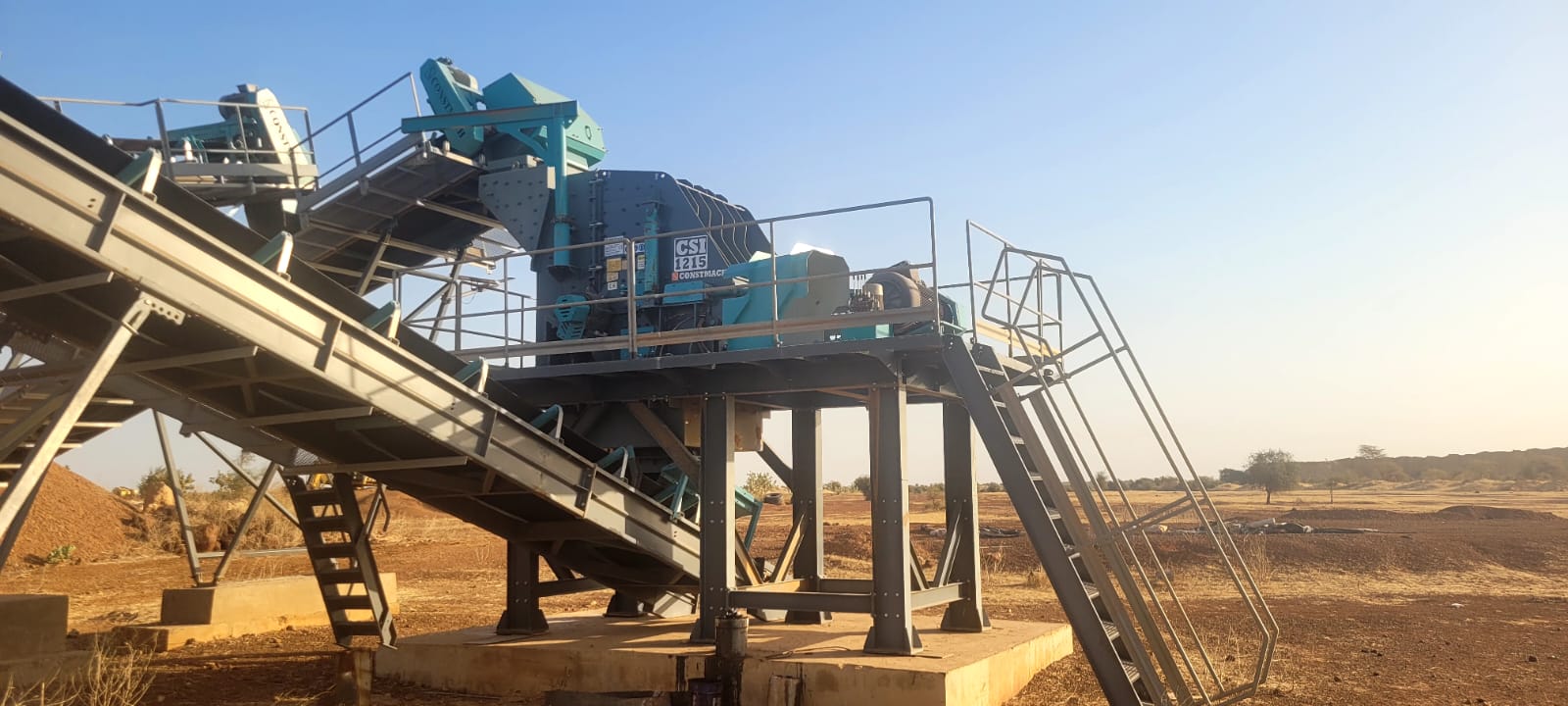

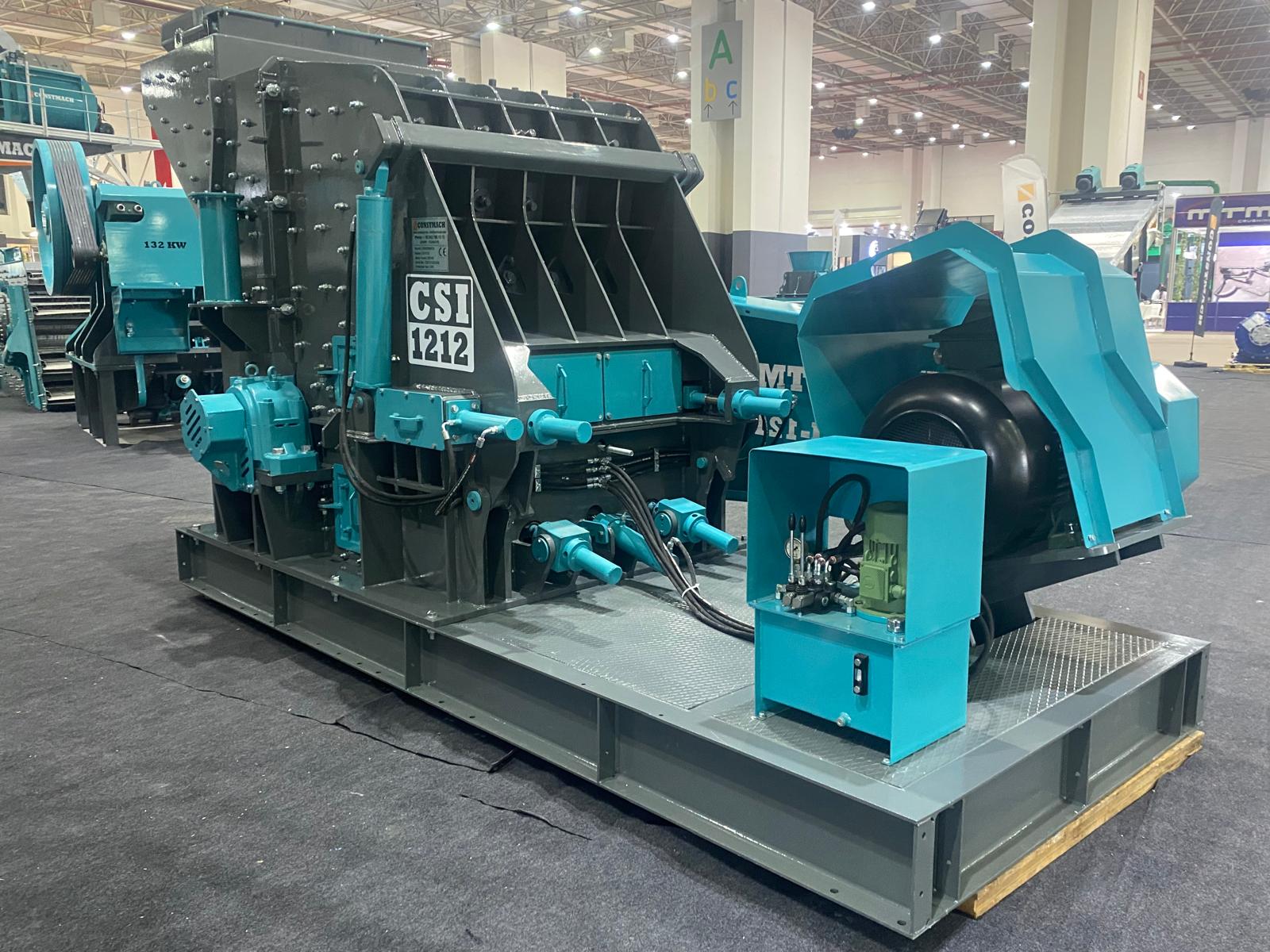

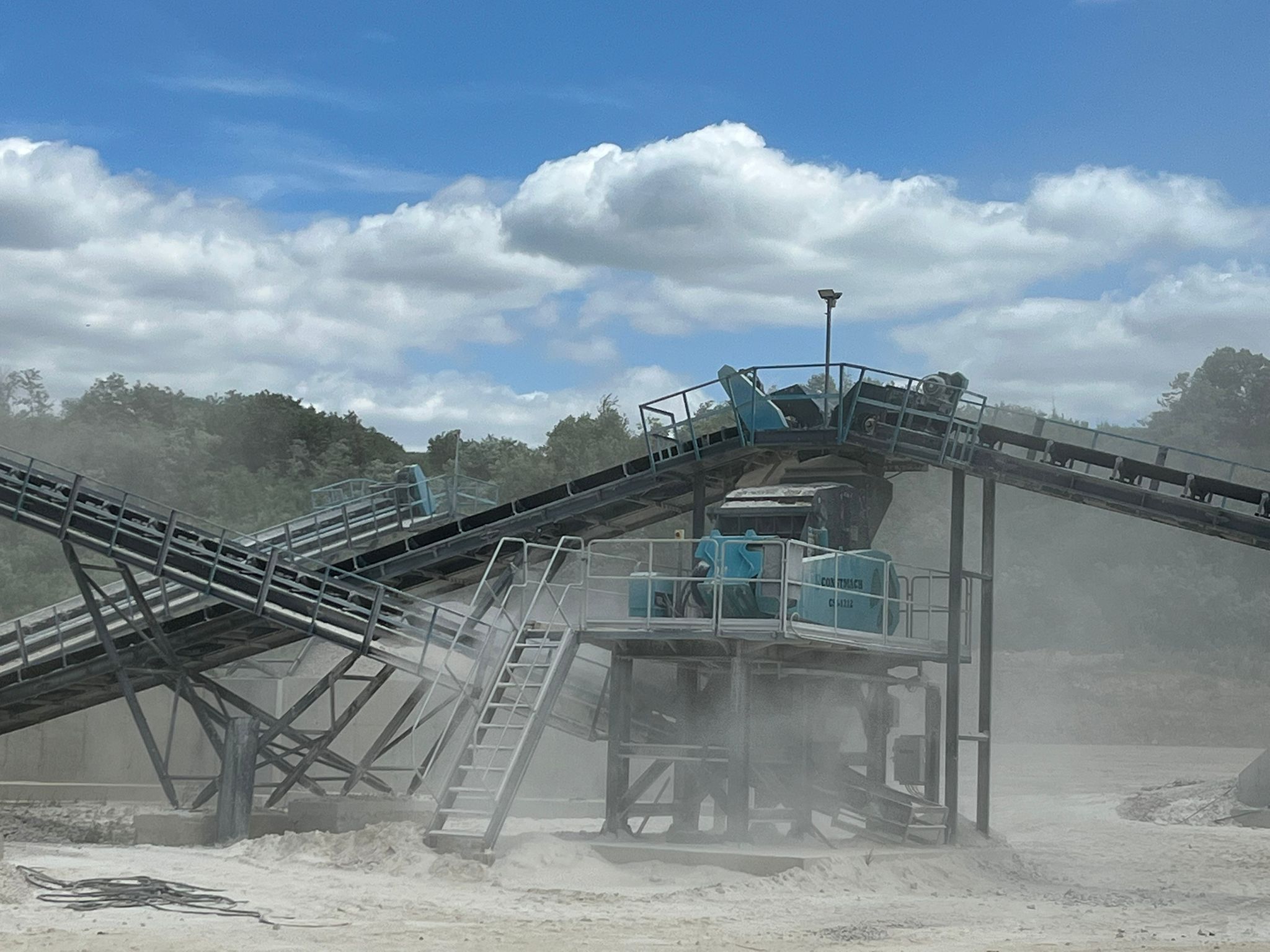

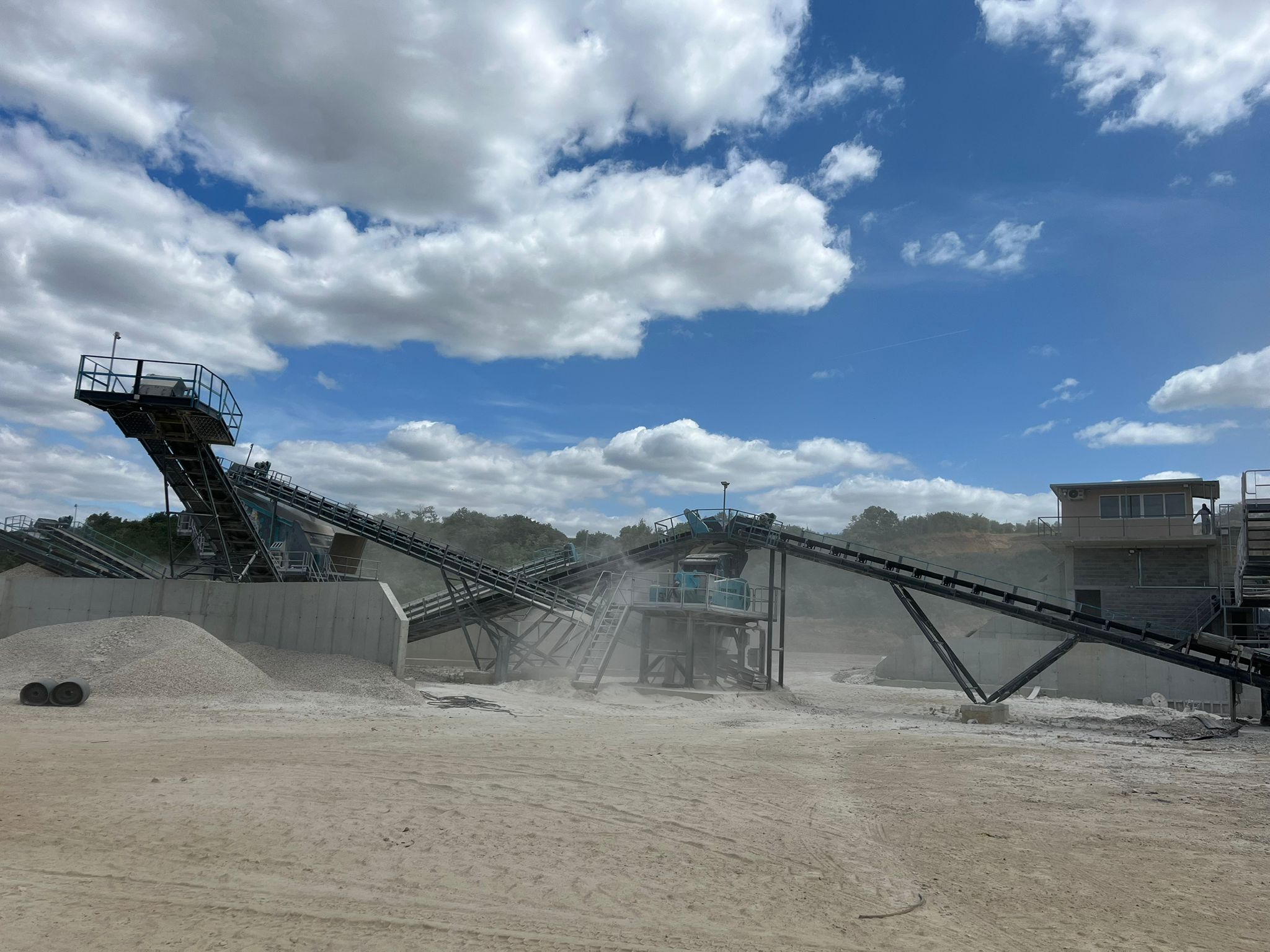

Secondary Impact Crushers Gallery
You can examine some photos of the product named Secondary Impact Crushers taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Transport
Our shipping friendly secondary impact crushers minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT or flat rack containers.
Secondary Impact Crushers General Layout
