CONSTMACH STATIONARY 240 stationary concrete plant consists of two different and independent 120 m3/h capacity concrete plants which are installed side-by-side in the same site. In this plant, there are double INDEPENDENT 3 m3 capacity mixers and discharging is made by two different discharging buckets to two different truck mixers. Most important advantage of this plant is charging two truck mixers at the same time for not to spend so much time for waiting for the trucks. While one mixer is used for standard concrete production the other mixer can be used for special purpose concrete production such as concrete block or precast concrete. CONSTMACH STATIONARY 240 concrete batching plants are preferred for for extremely high capacity ready mixed concrete projects.

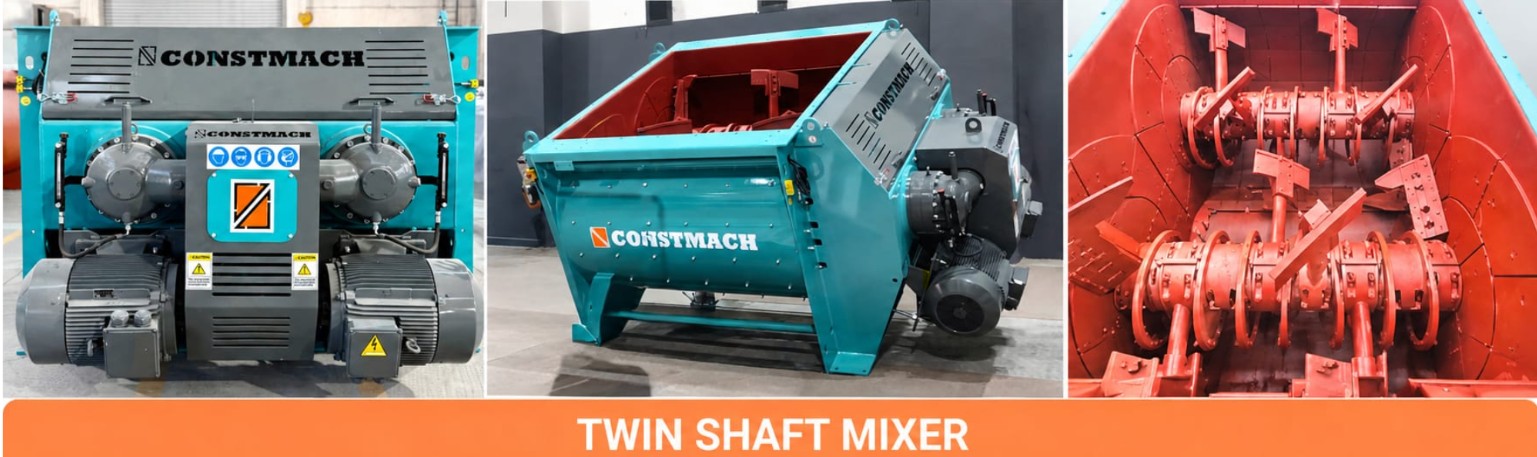

2 sets Twin shaft mixers with 3 m3 wet concrete volume are used in STATIONARY 240 concrete batching plants.

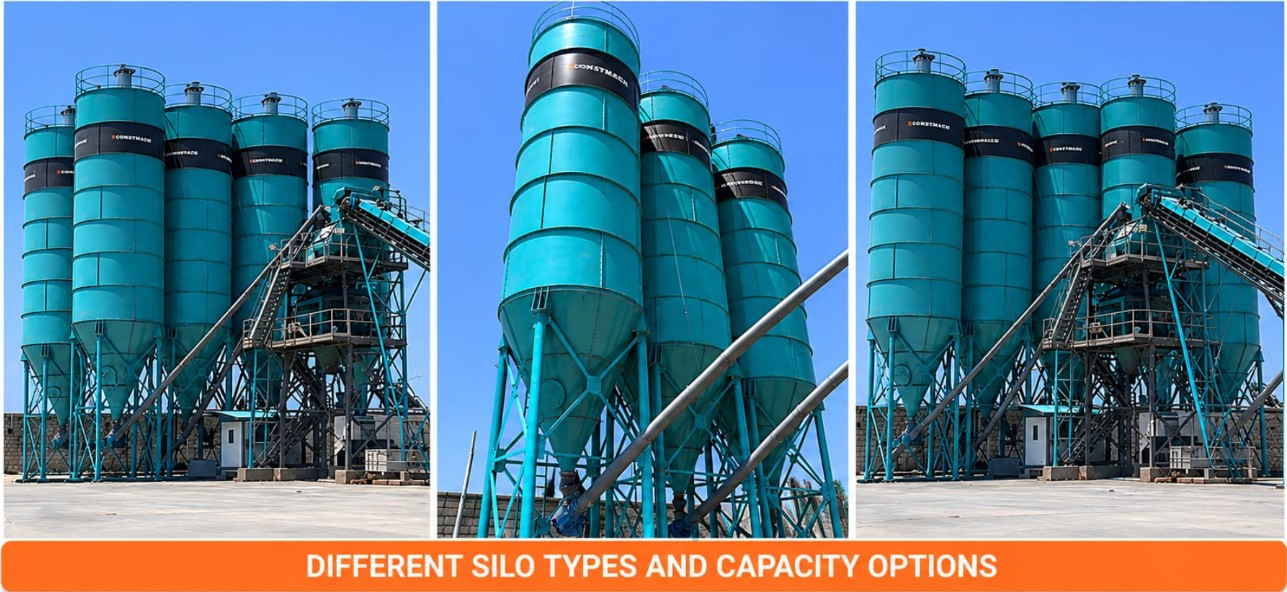

STATIONARY 240 concrete plant can be equipped with different size of cement silos from 100 to 500 tonnes storage capacity according to the needs and conditions of our clients’ projects. If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging systems which are integrated to STATIONARY 240.

STATIONARY 240 concrete plant can be equipped with different size of cement silos from 100 to 500 tonnes storage capacity according to the needs and conditions of our clients’ projects. If the cement is supplied in bags, the cement is filled to the silos easily by means of a big bag opening and silo charging systems which are integrated to STATIONARY 240.

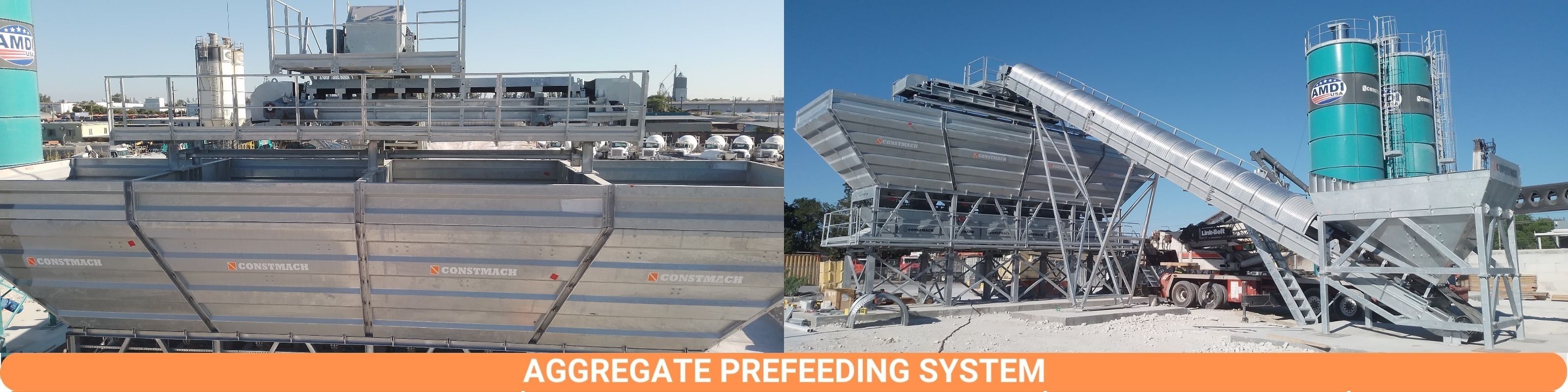

Aggregate pre-feeding systems are our alternative solutions to the loading ramps which are necessary for charging the hoppers by loaders. In case of using aggregate pre-feeding systems, requirement of loading ramp is removed.

Different Layouts and site plans for STATIONARY 240 concrete plant are applied according to the conditions of the field where the concrete plant is to be installed and in case of the field sizes are limited, aggregates is transferred by skip hoist system instead of belt conveyors.

STATIONARY 240 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.
