Mobile 100

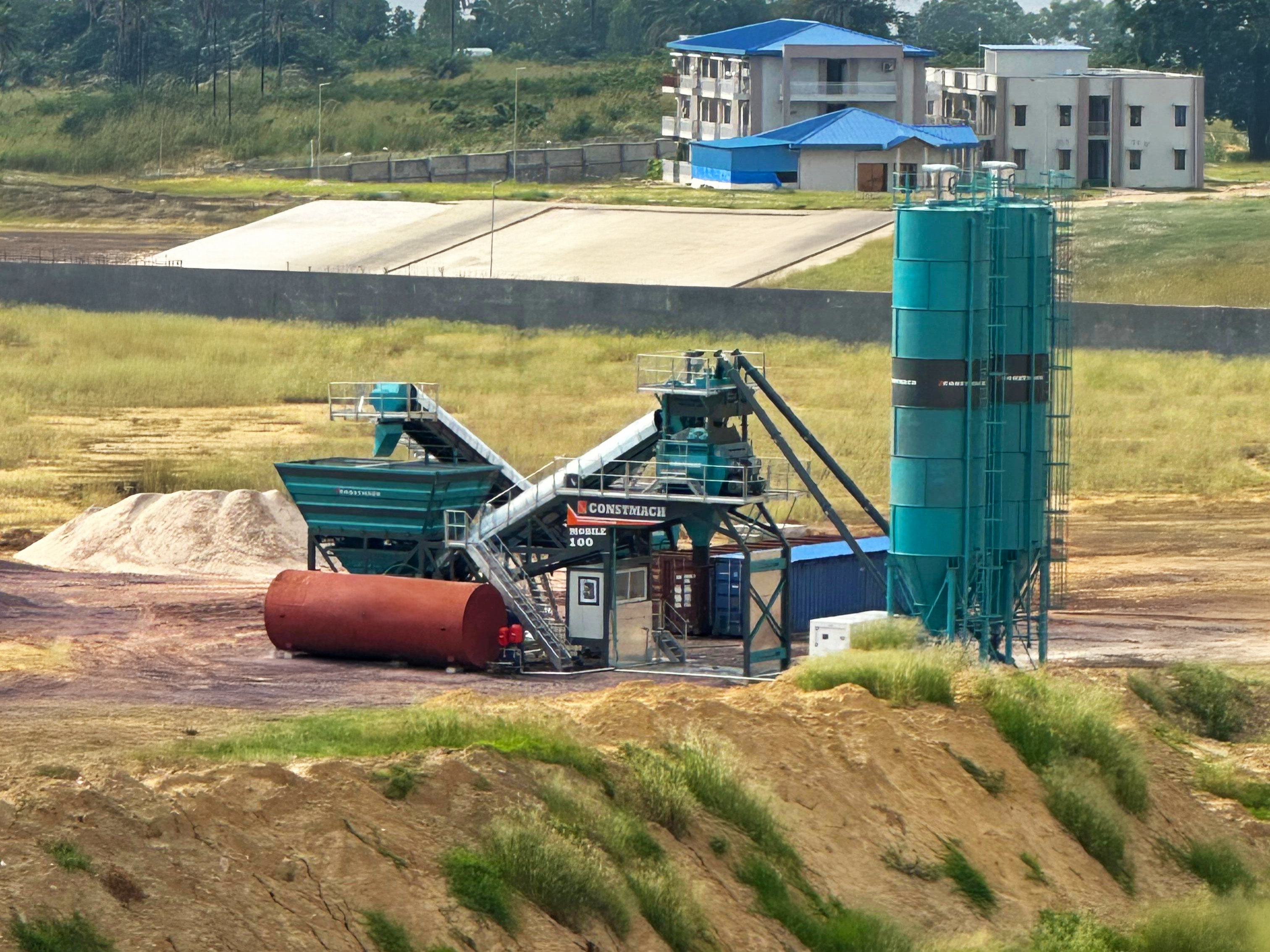

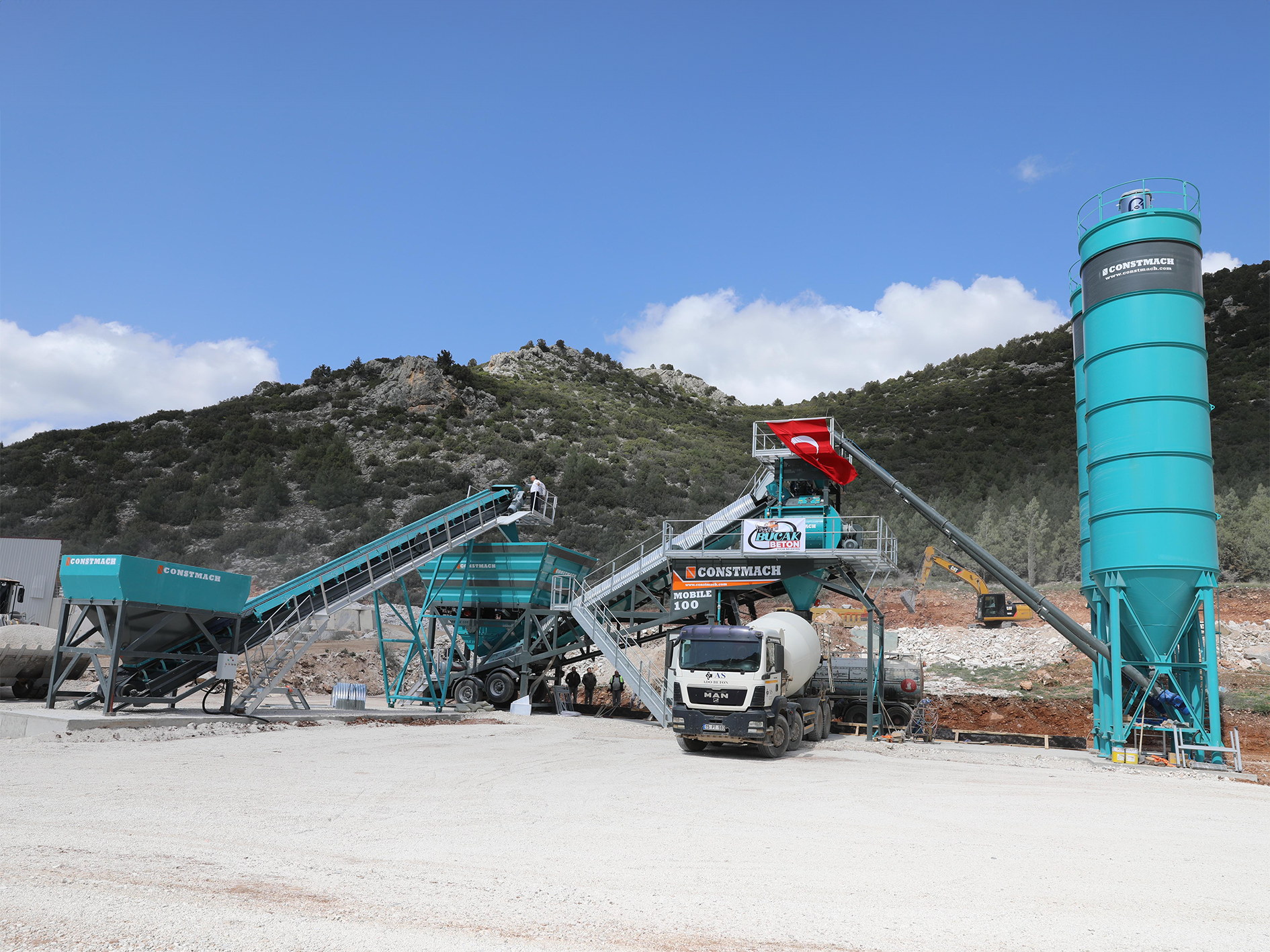

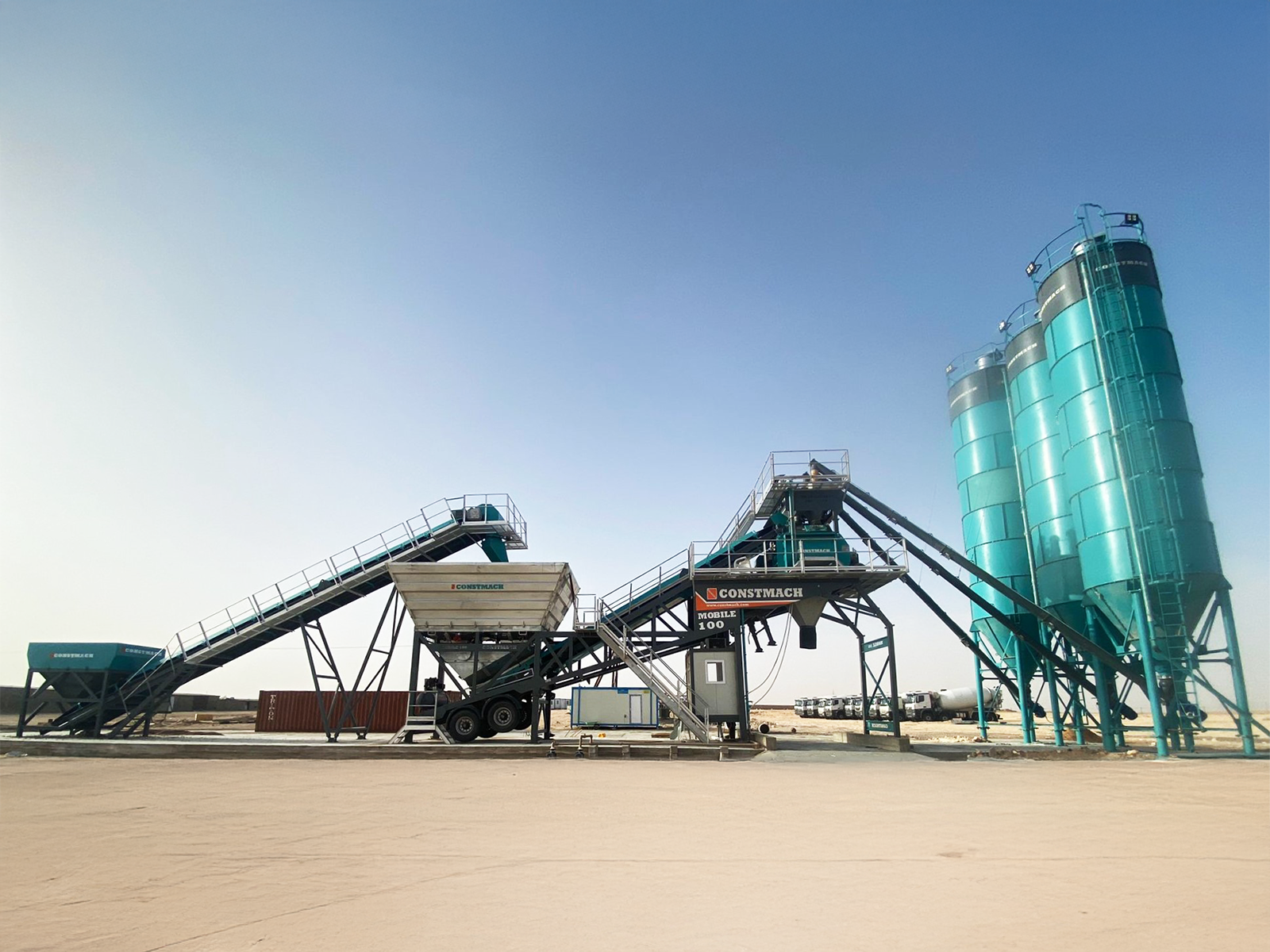

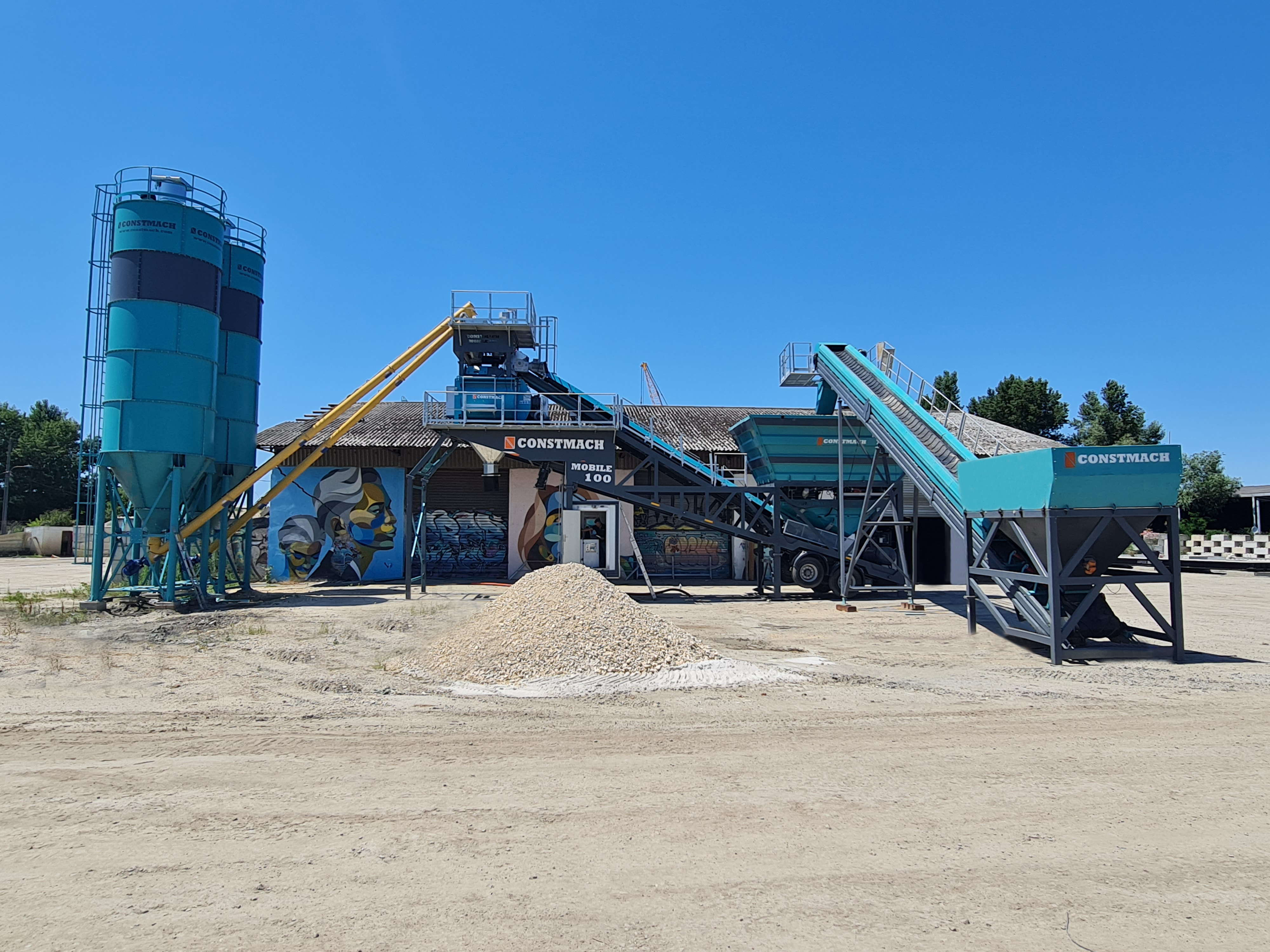

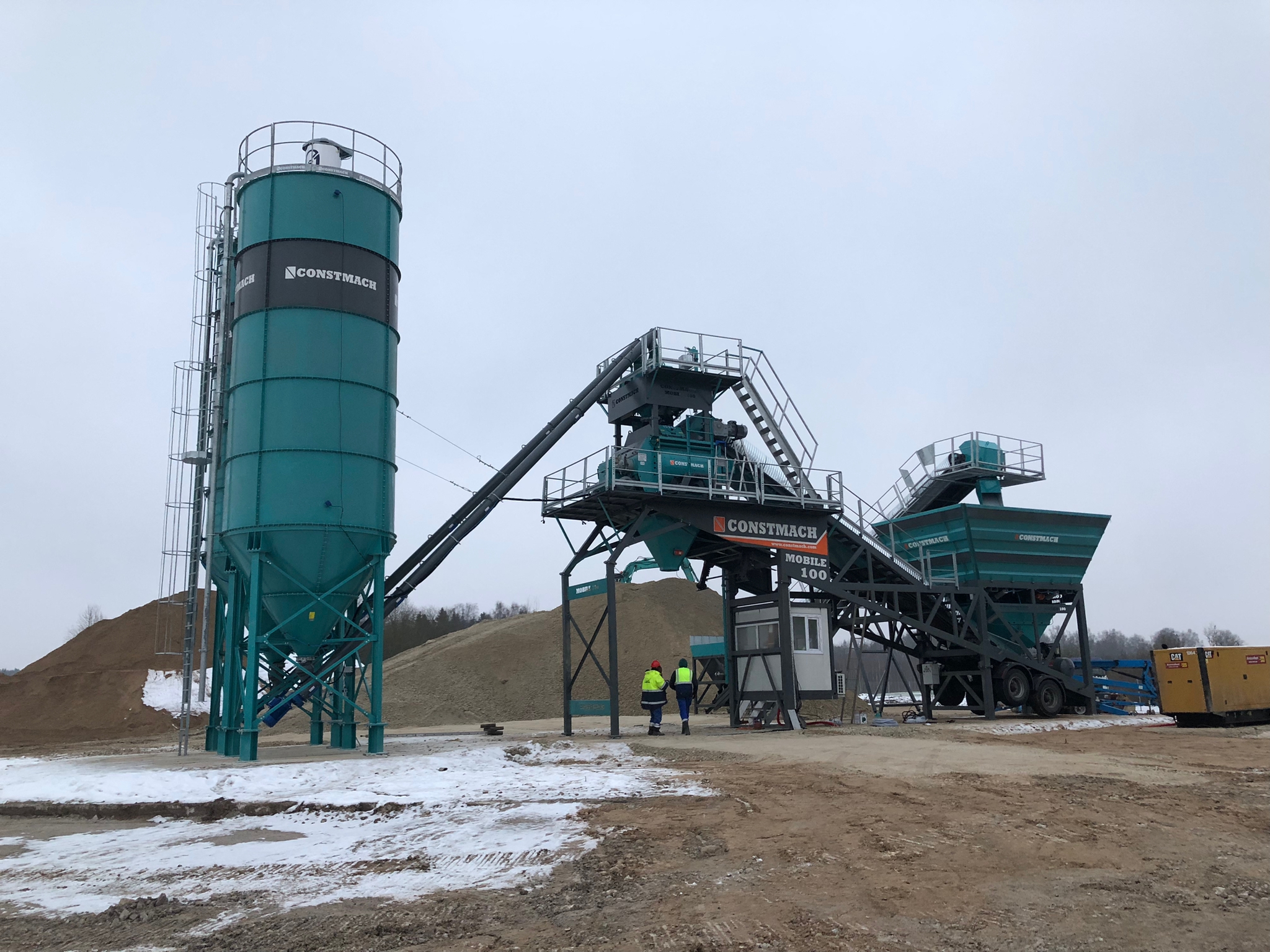

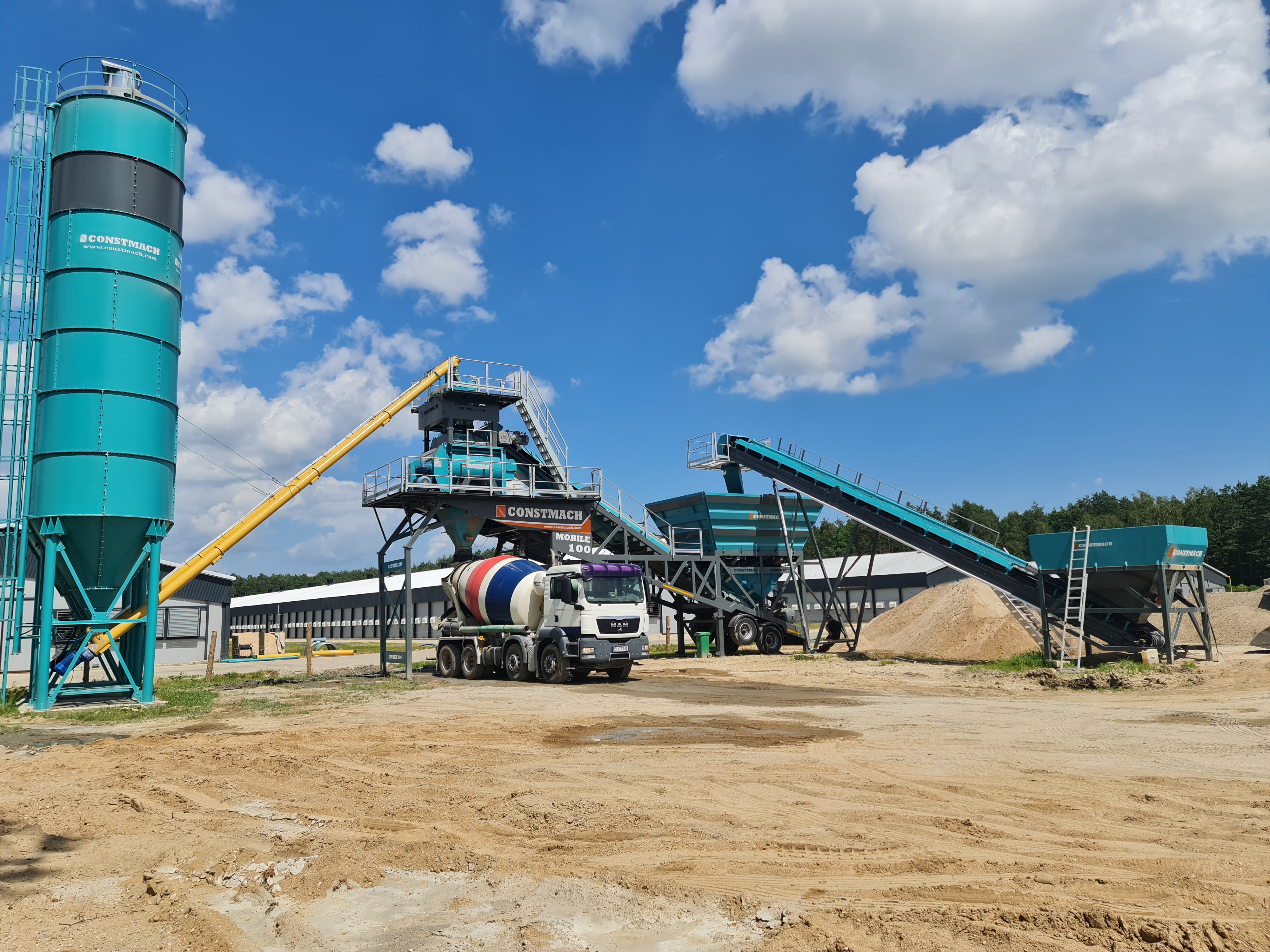

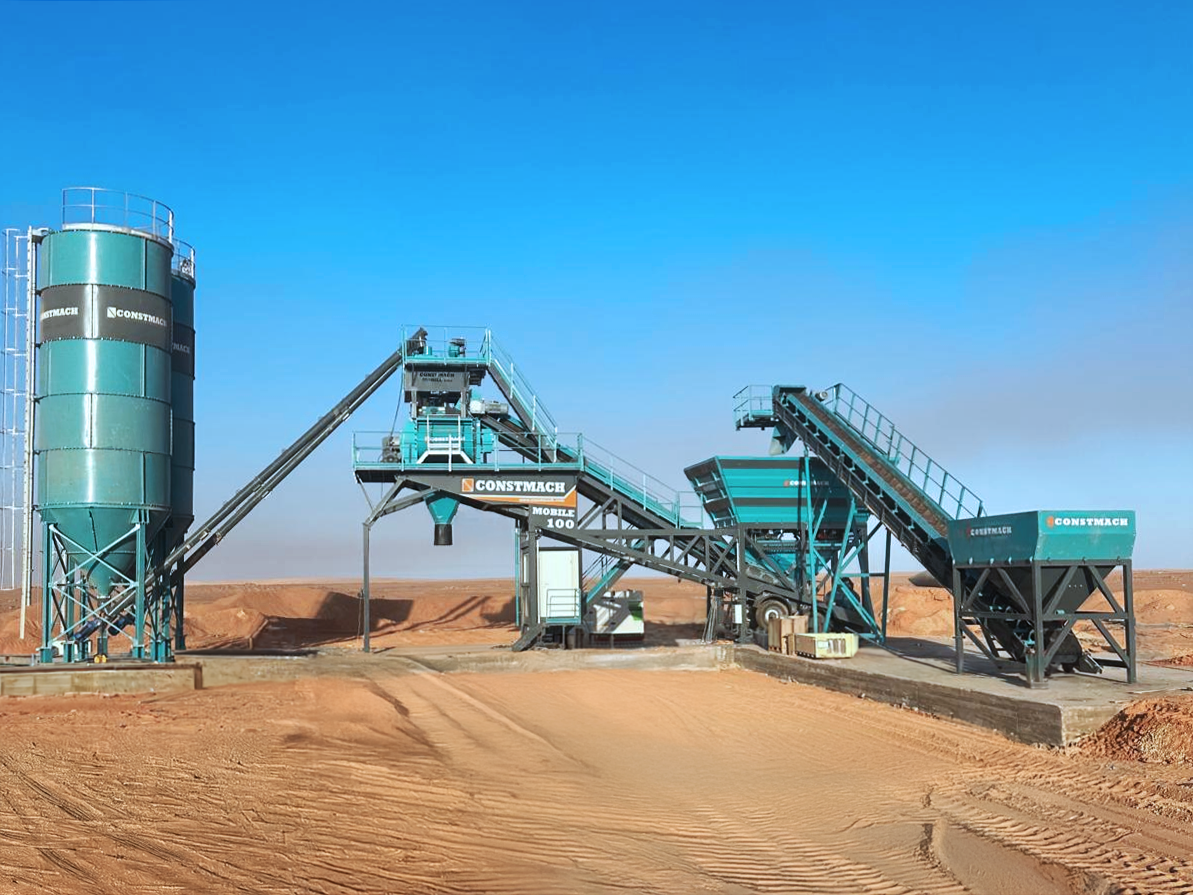

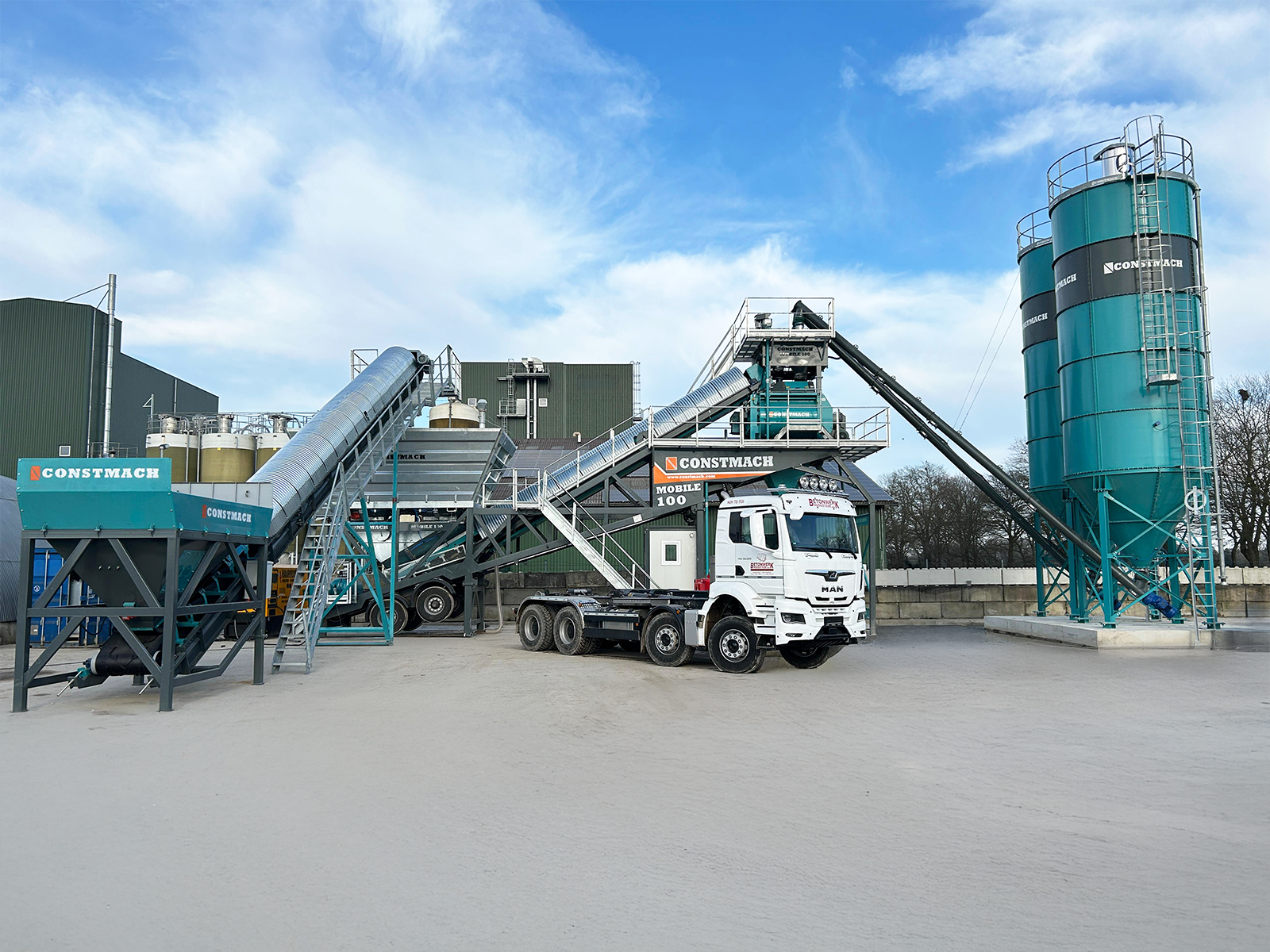

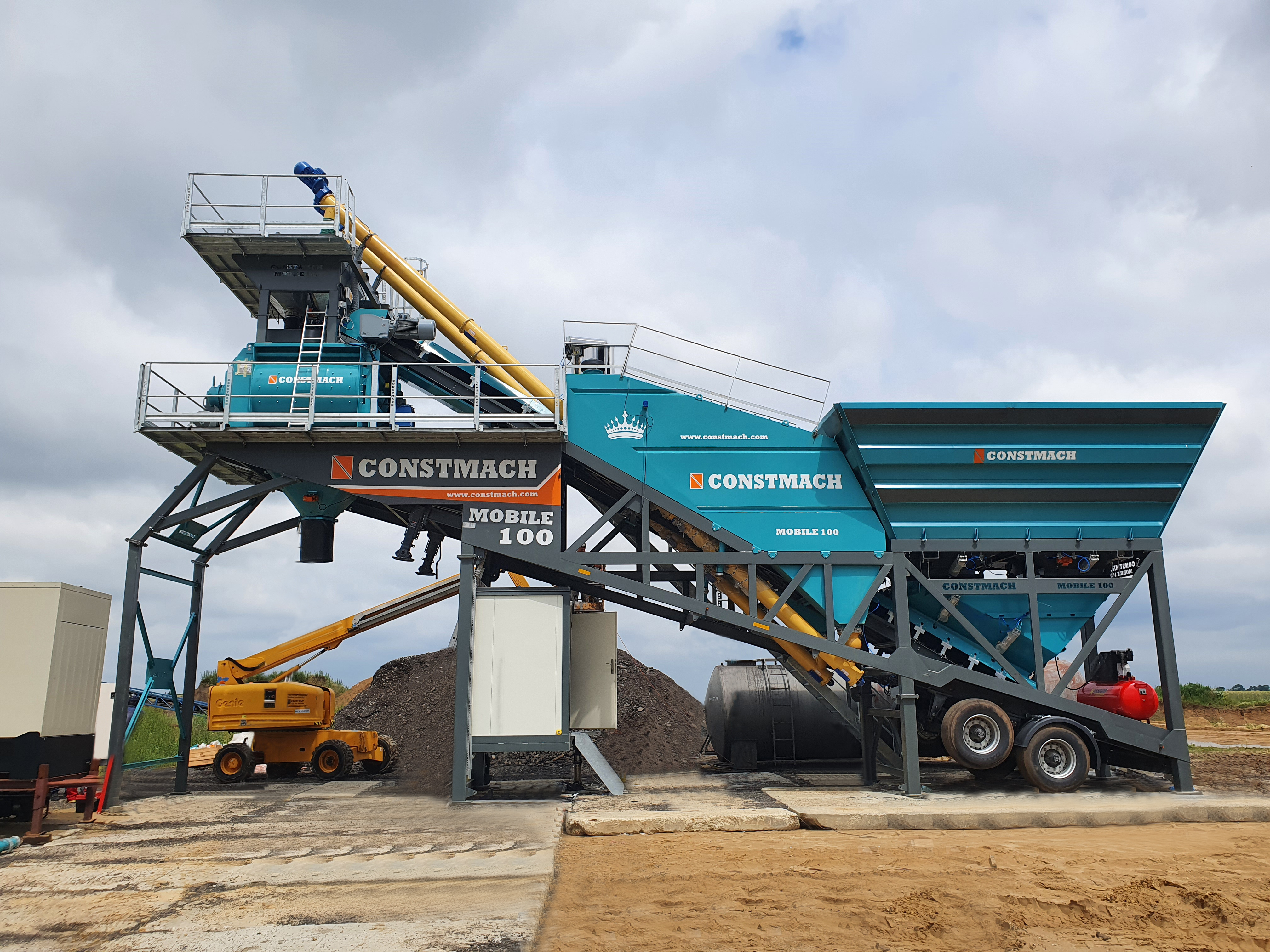

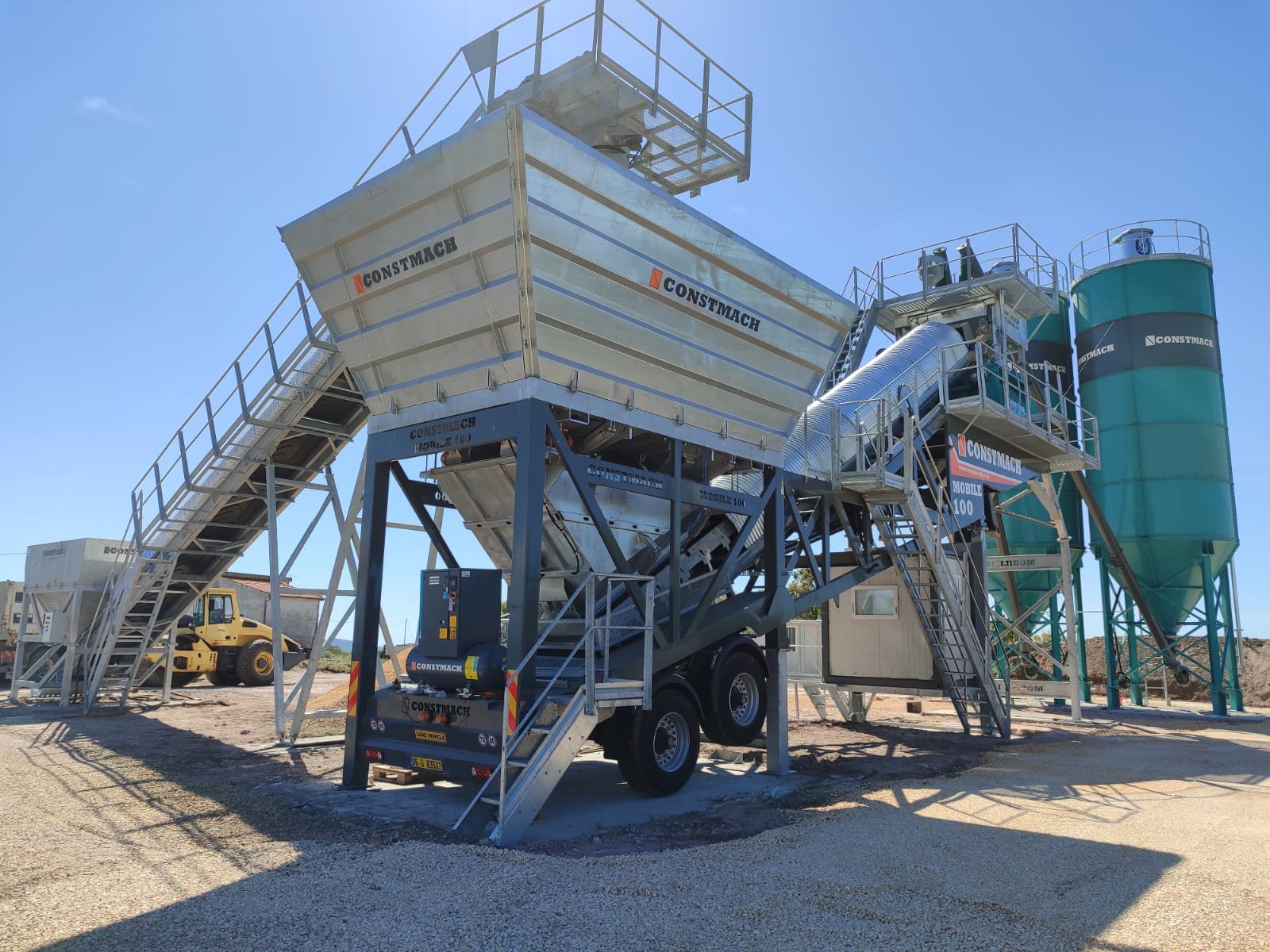

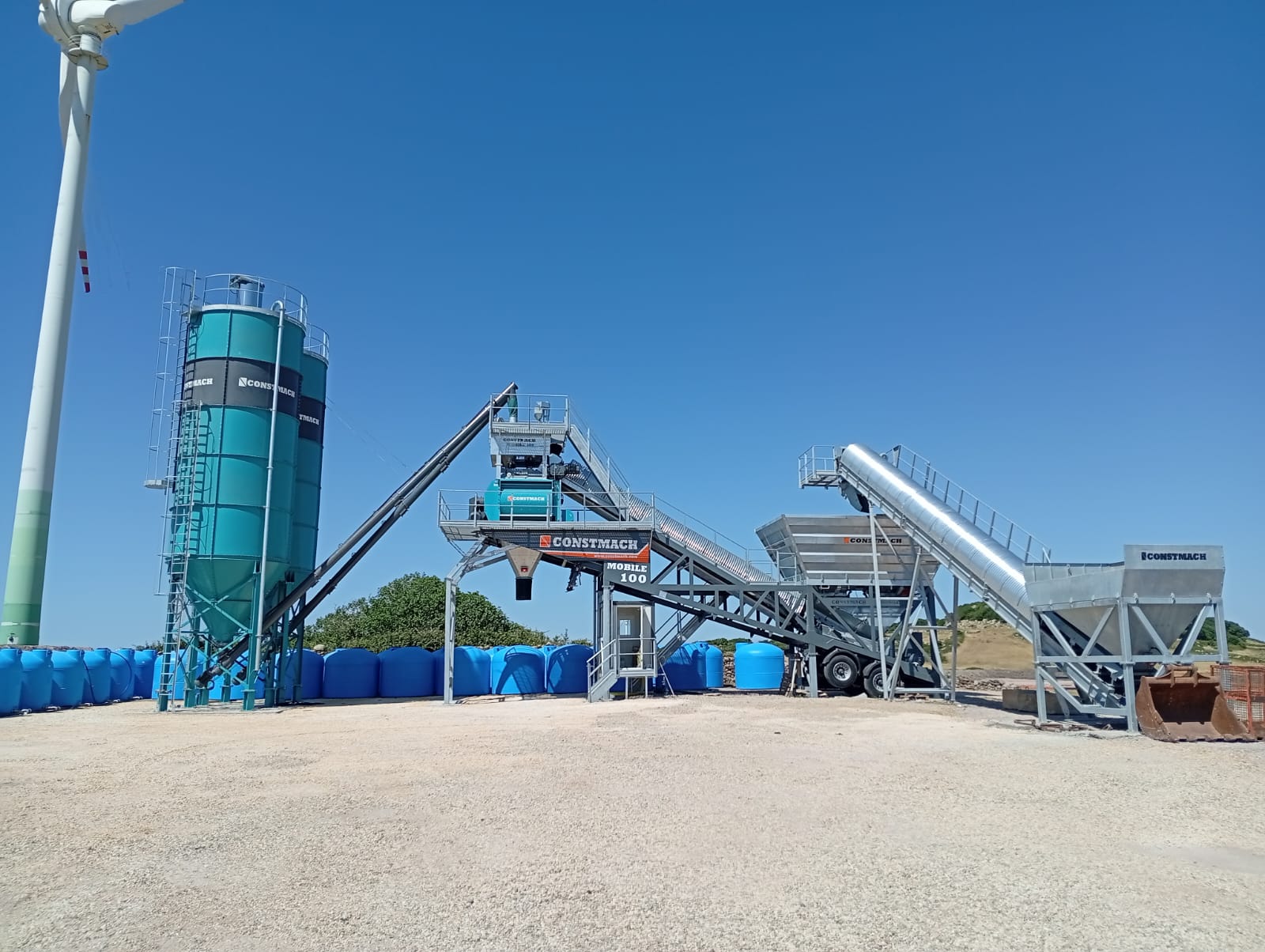

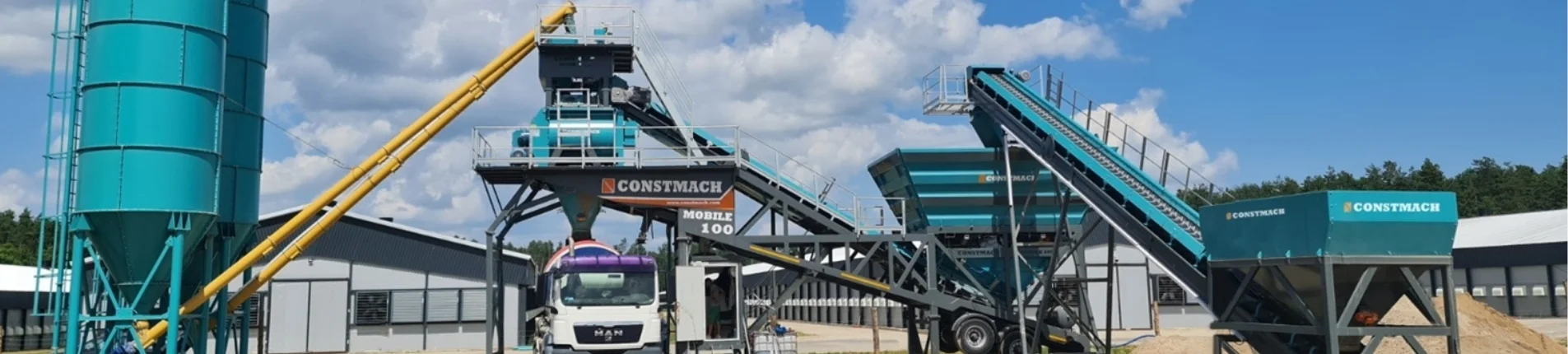

CONSTMACH MOBILE 100 full automatic Mobile Concrete Batching Plant is a suitable solution for temporary needs but high production capacity with its features of rapid installation, advantage of starting production in a short time and minimum infrastructure necessity. MOBILE 100 mobile concrete plant has the features of being able to have all necessary equipments for concrete production, even a cement silo is located on a single wheeled mobile chassis and this offers easy transportation and rapid installation advantages to its users.

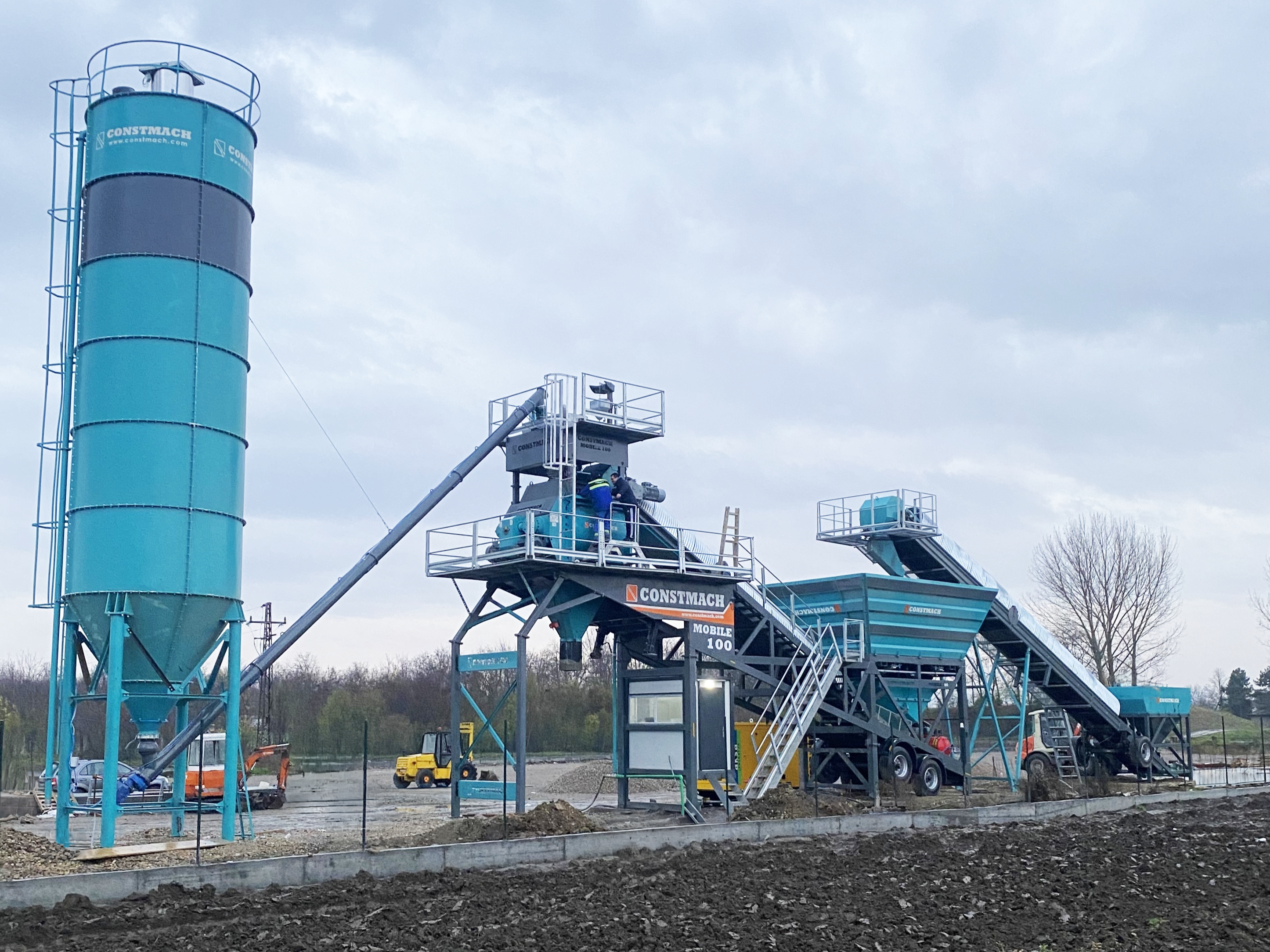

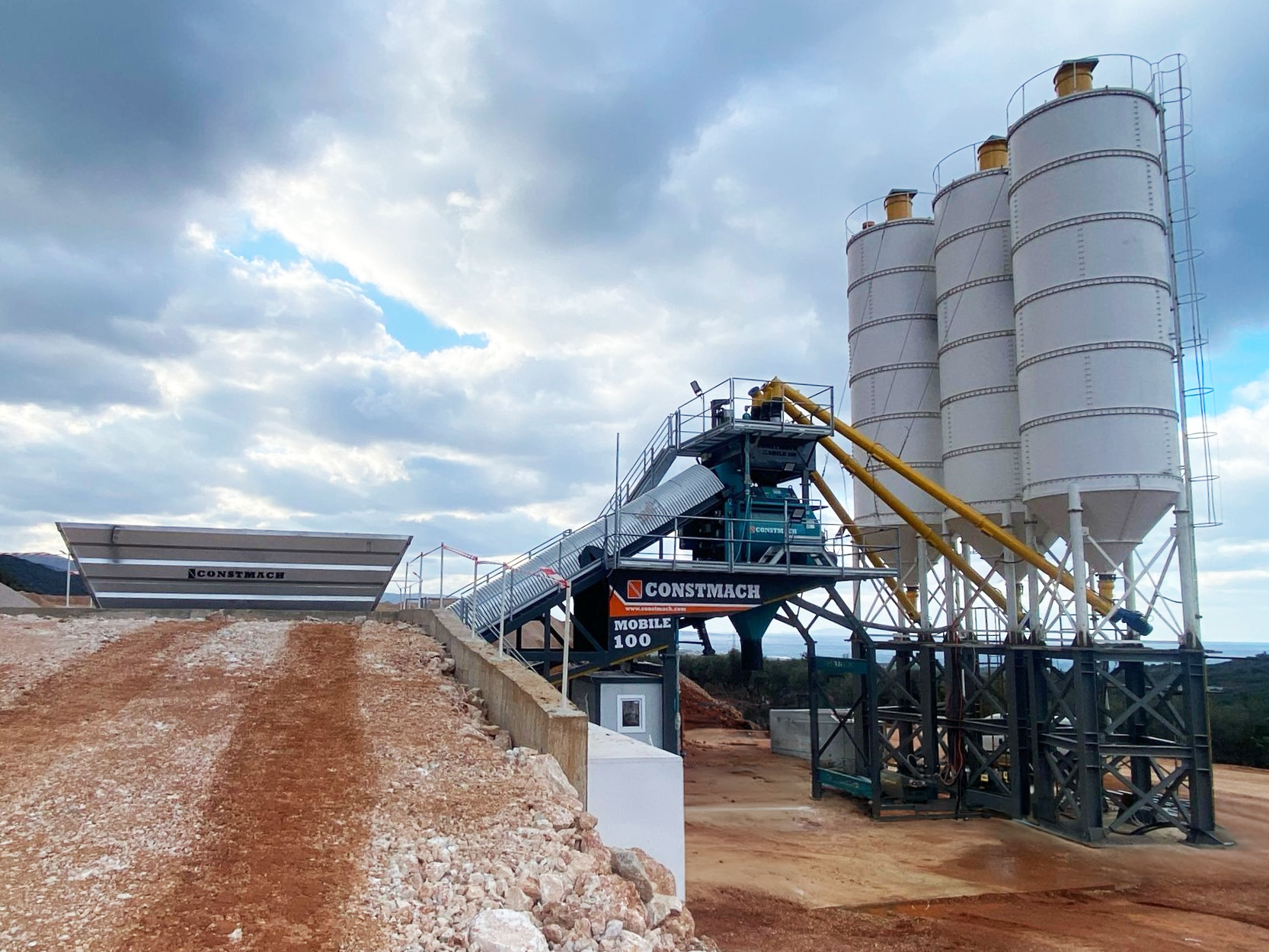

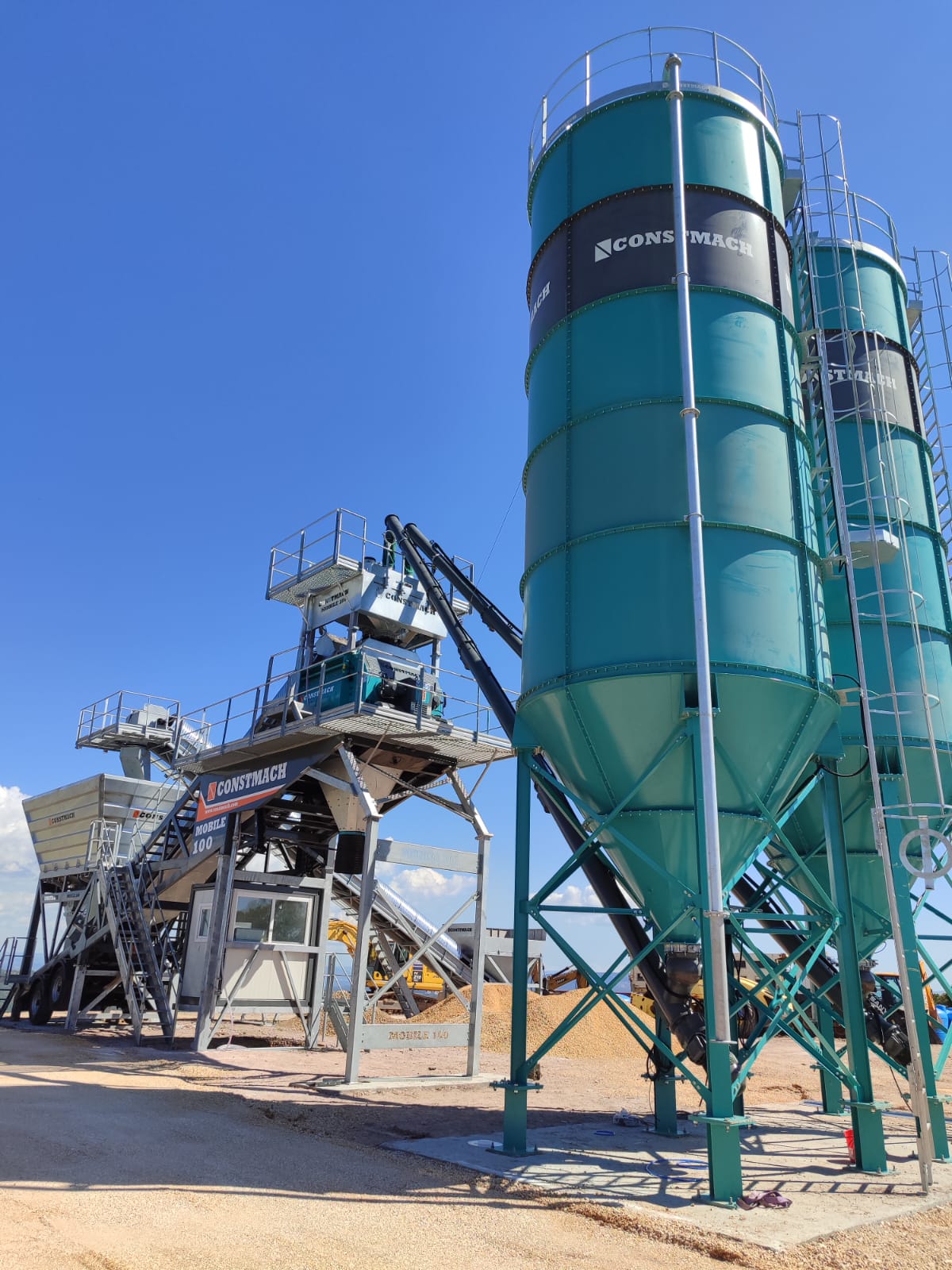

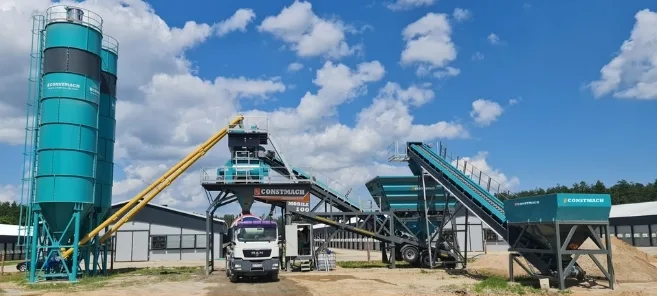

CONSTMACH MOBILE 100 mobile type Concrete batching plant requires a minimum site preparation. Just a flat ground that is capable to carry the total load of the plant is enough. Cement silos which are mounted to the chassis of mobile plants have 33 tonnes stock capacity. In case of necessity, external cement silos which have stock capacity from 50 to 500 tonnes can be also used. External type cement silos have always full steel legs to remove the necessity of concrete legs building.

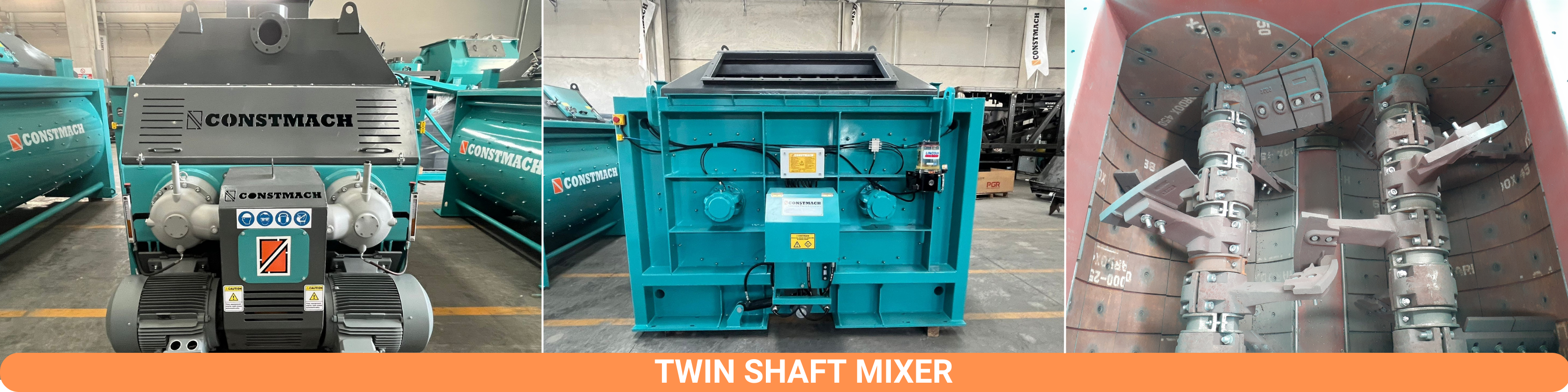

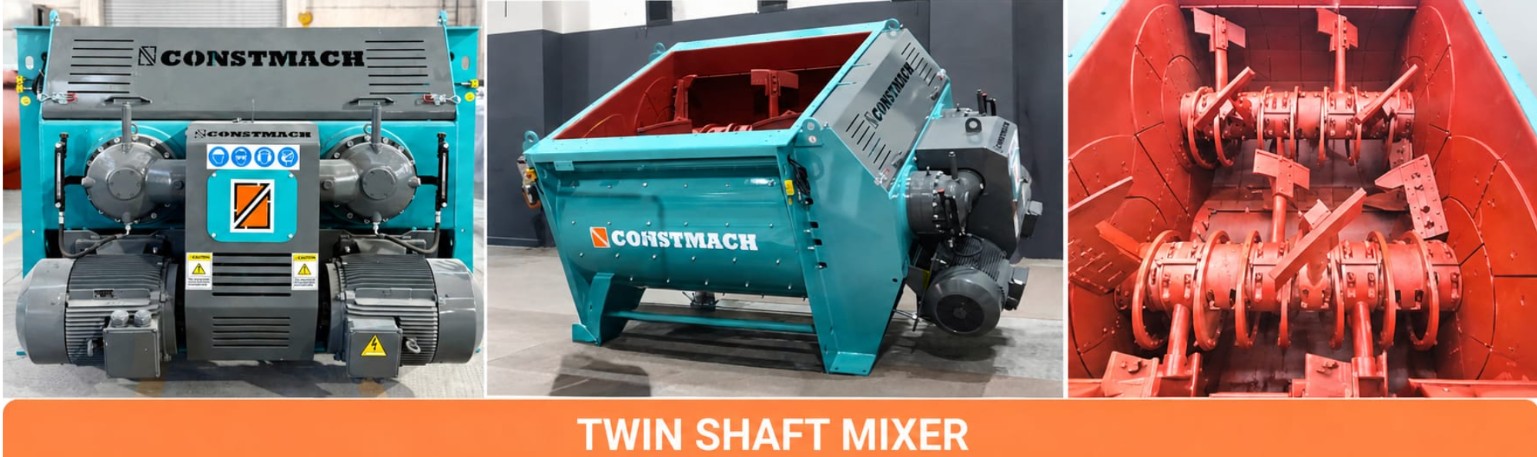

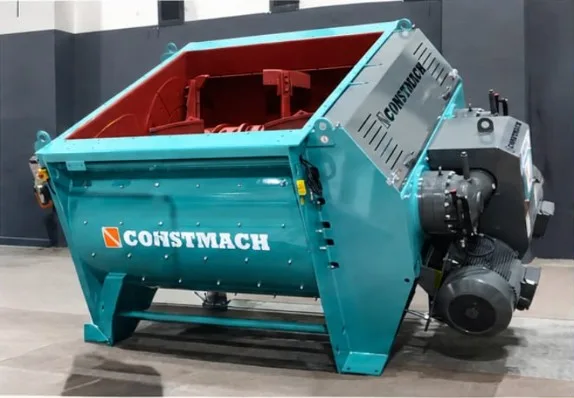

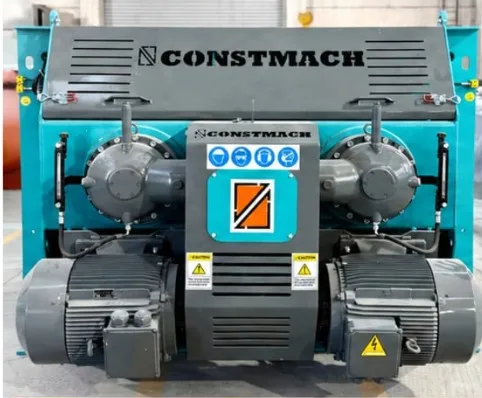

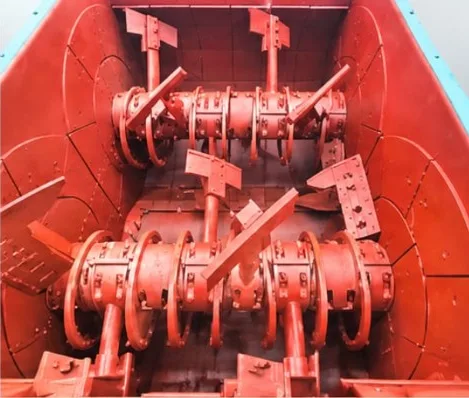

Twin shaft, single shaft or pan type mixers can be used in MOBILE 100 concrete plant so that it could be used for different purposes such as ready mixed concrete, dry mixed concrete, precast concrete production etc.

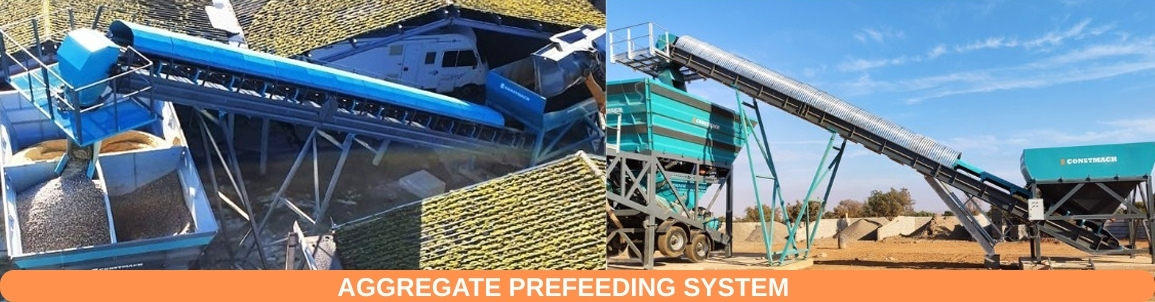

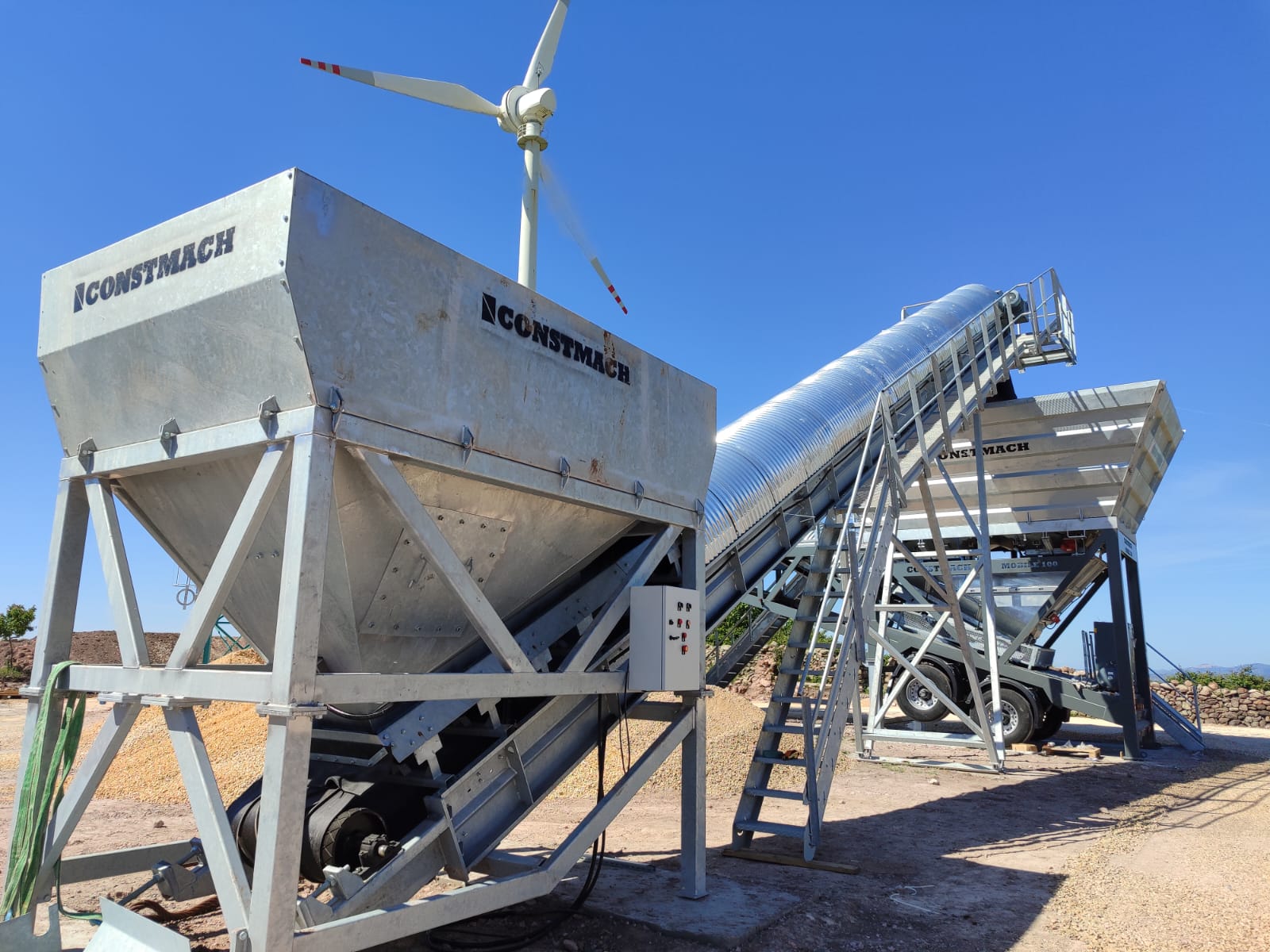

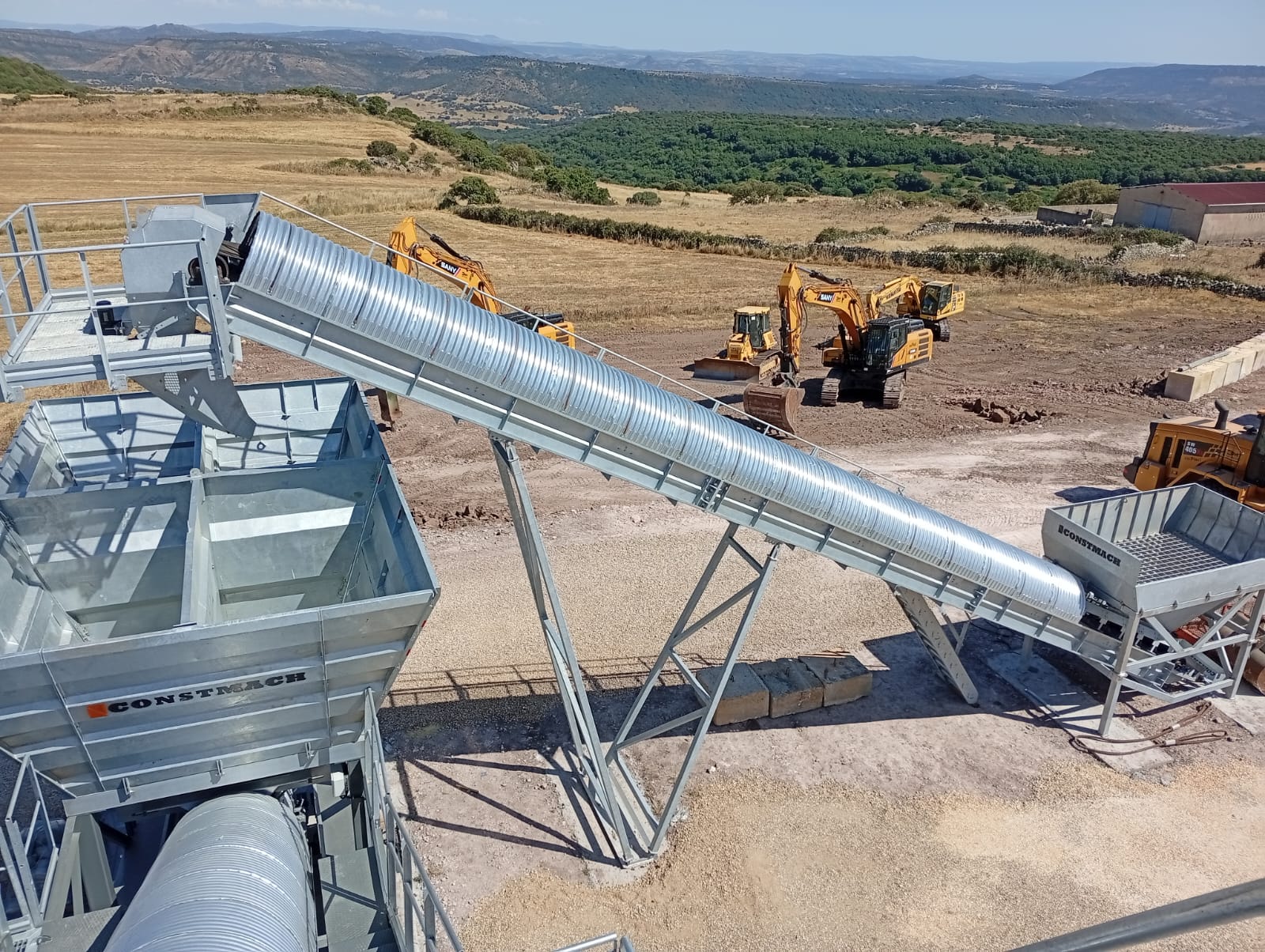

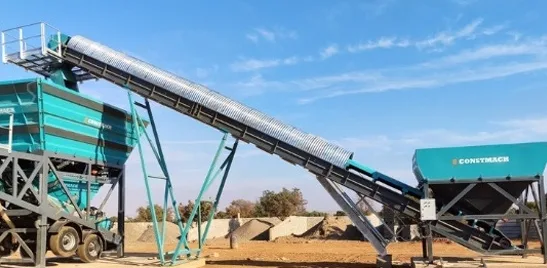

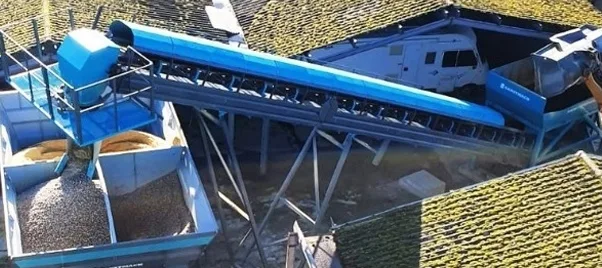

In case of using of mobile aggregate pre-feeding conveyors with our mobile concrete plants, necessity of construction of loading ramp is removed, thus the jobsite infrastructure investment is minimized.

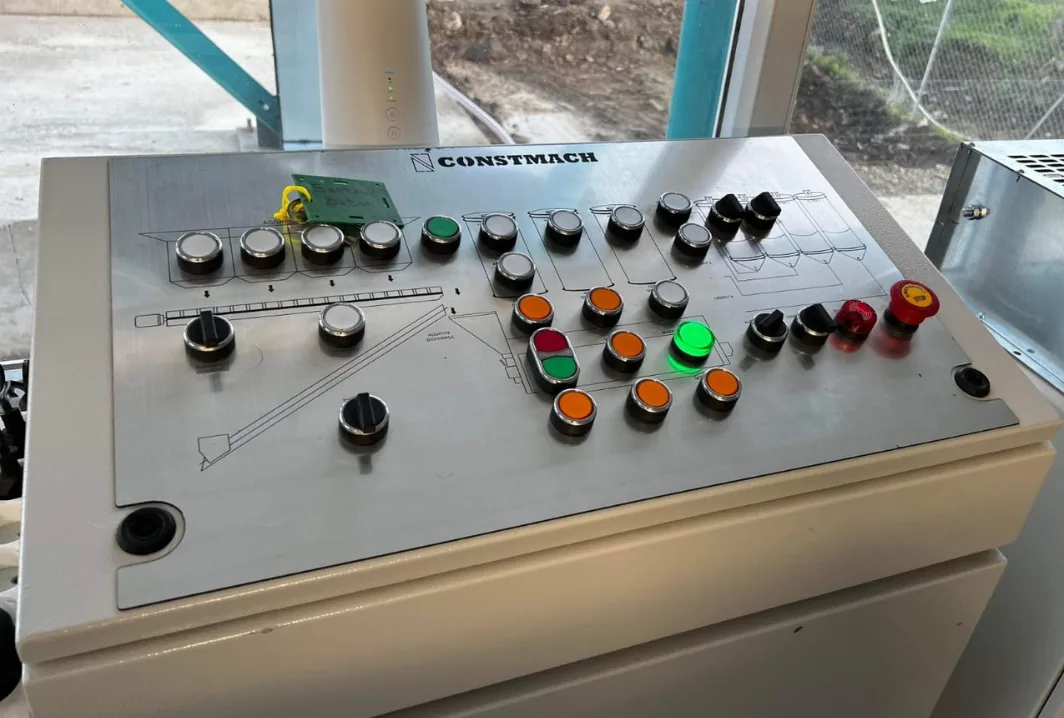

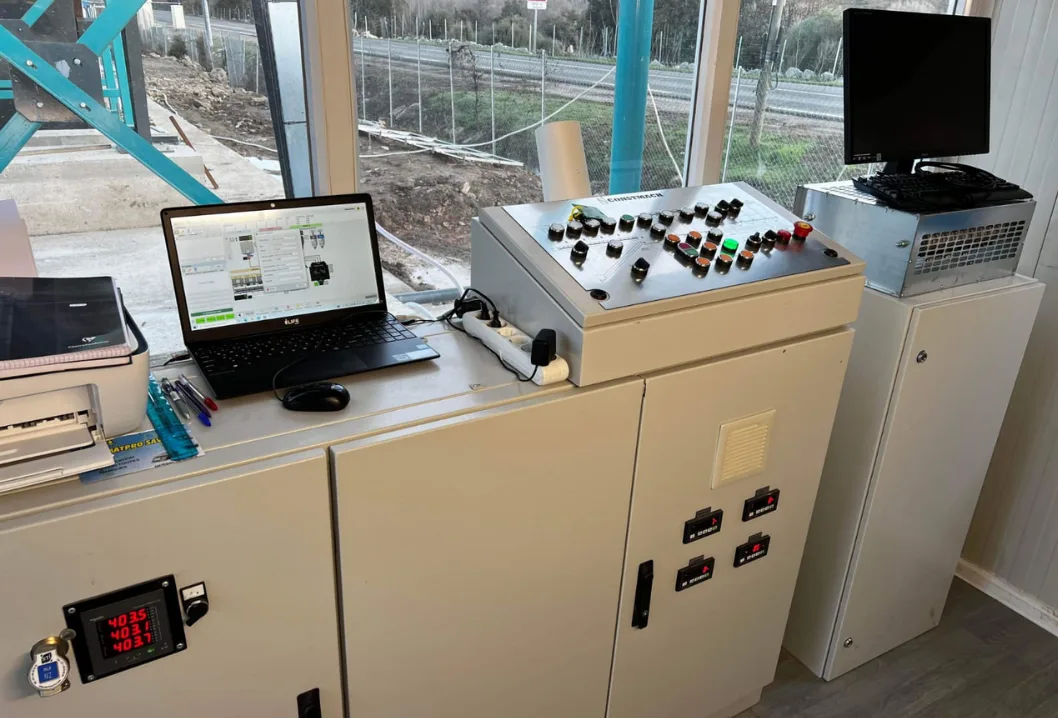

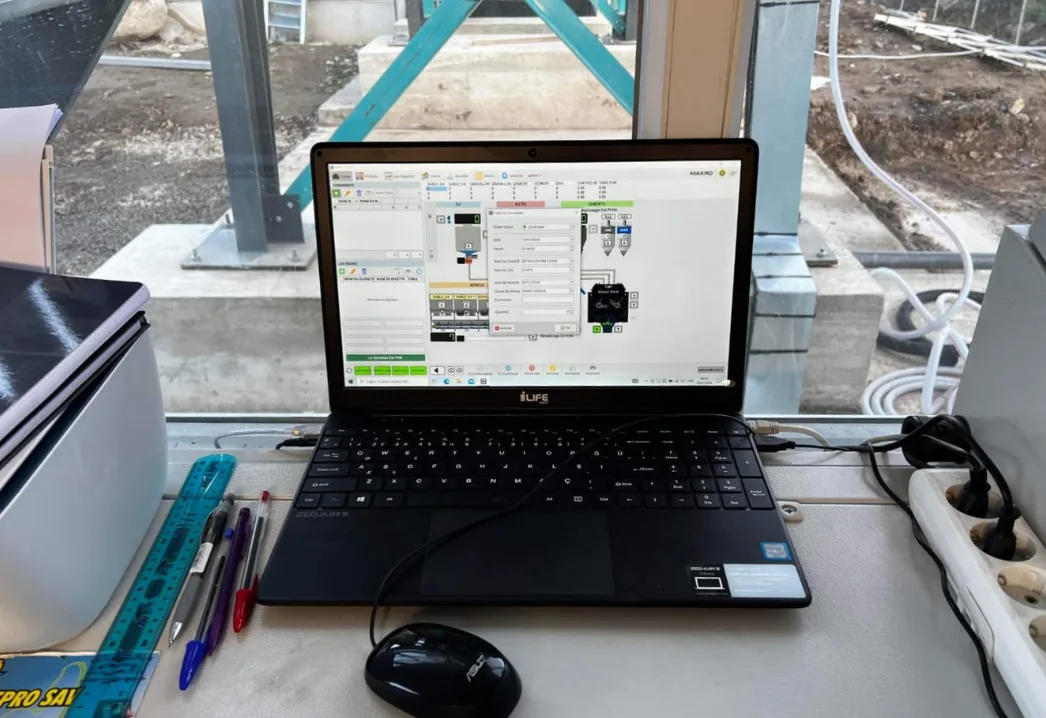

MOBILE 100 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

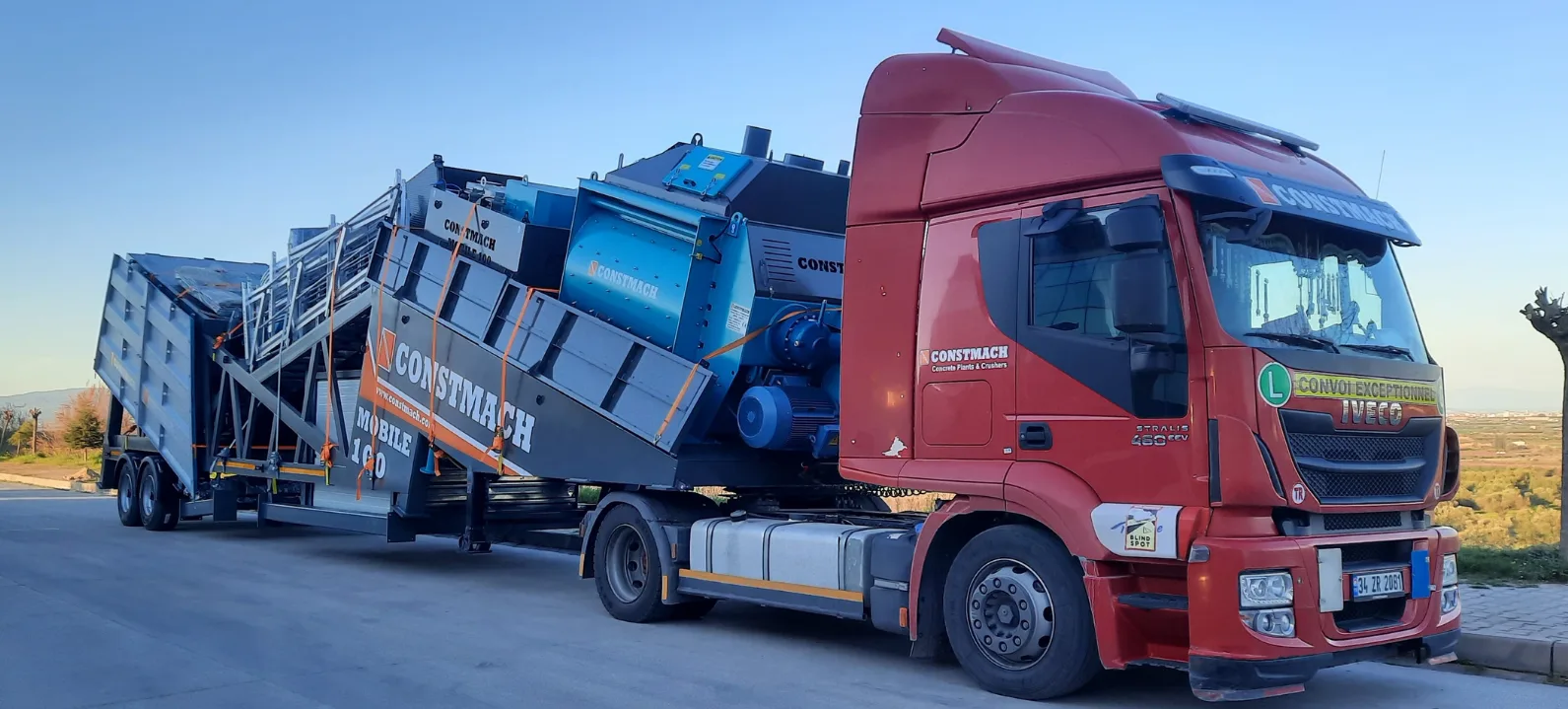

Overall dimensions of MOBILE 100 are determined according to international road transport regulations and it is transported between jobsites easily.

Mobile 100 Technical Specifications

MAIN VALUES OF THE PLANT


Production Capacity 100 m³/h
Sizes in Transport Position 16.5 (L) x 2.8 (W) x 4.3 (H) meters
Weight 28 tonnes
Total Motor Power 125 kW
Required Electric Generator 200 kVA
Mixer Options Pan - Single Shaft - Twin Shaft
Required area to operate 300 m²

TECHNICAL SPECIFICATIONS


Aggregate Hopper Volume 4 x 10 m³
Aggregate Weighing Hopper 2 m³
Aggregate Transfer Conveyor 1.000 x 12.000 mm
Mixer Wet Concrete Volume 2 m³
Cement Weighing Hopper 1.200 kg
Water Weighing Hopper 800 lt
Additive Weighing Hopper 30 lt
Air Compressor 500 lt, 7.5 kW

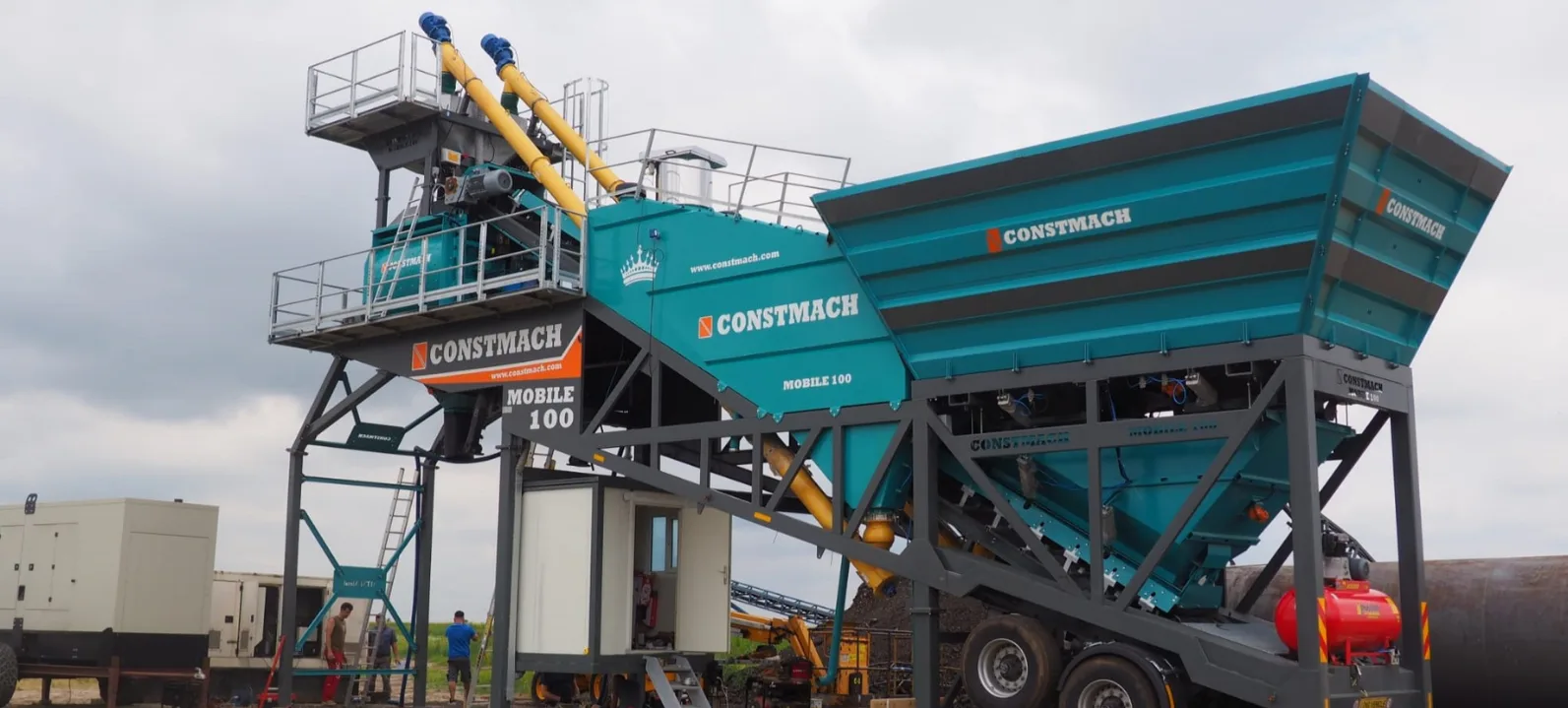

Cement Silo Option 1 Internal Type, embedded on the body,27 Tonnes capacity.

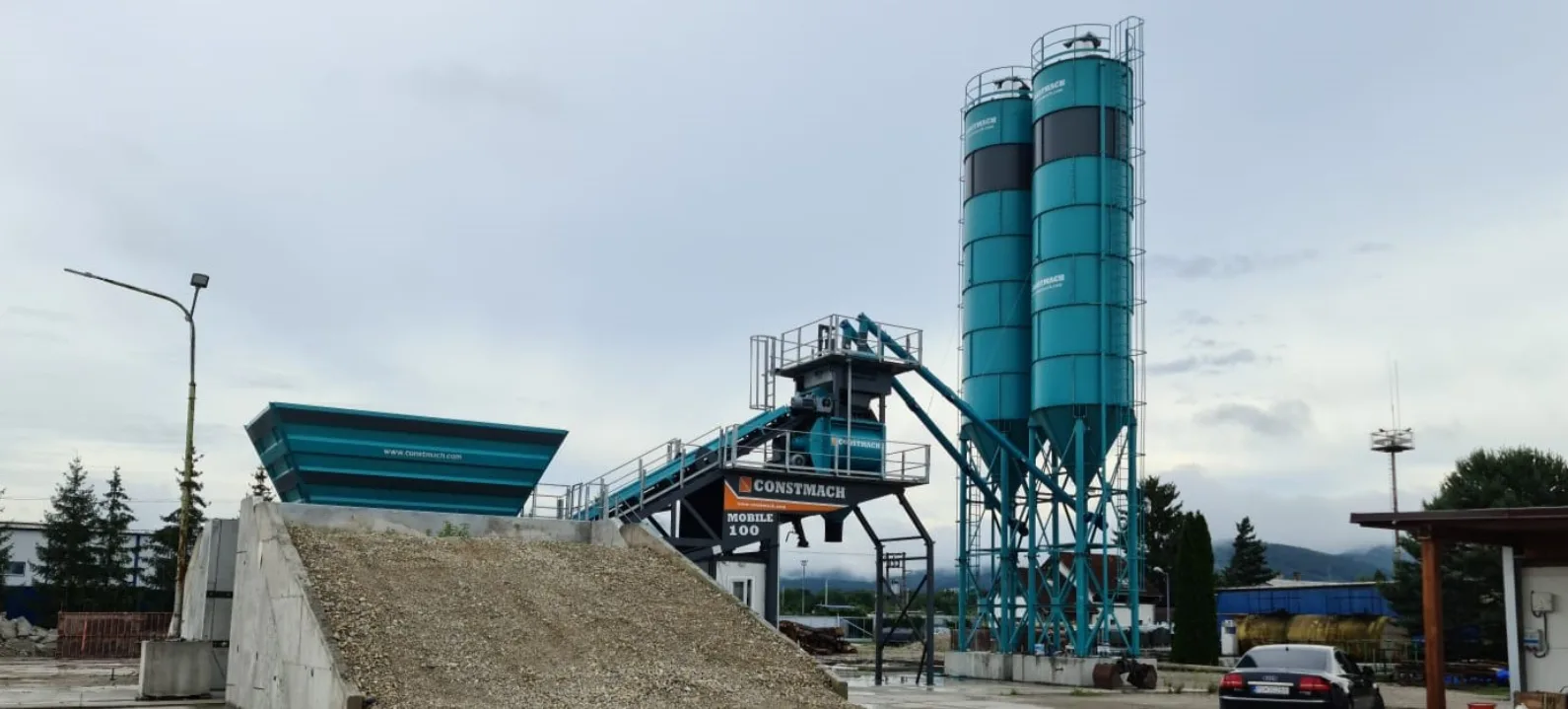

Cement Silo Option 2 External Type. Optional from 50 to 200 tonnes capacity.
Control Type FULL AUTOMATIC

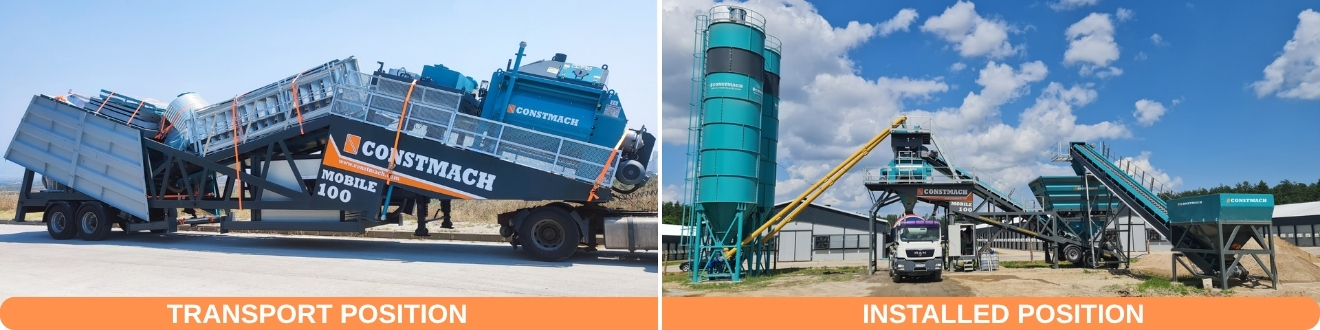

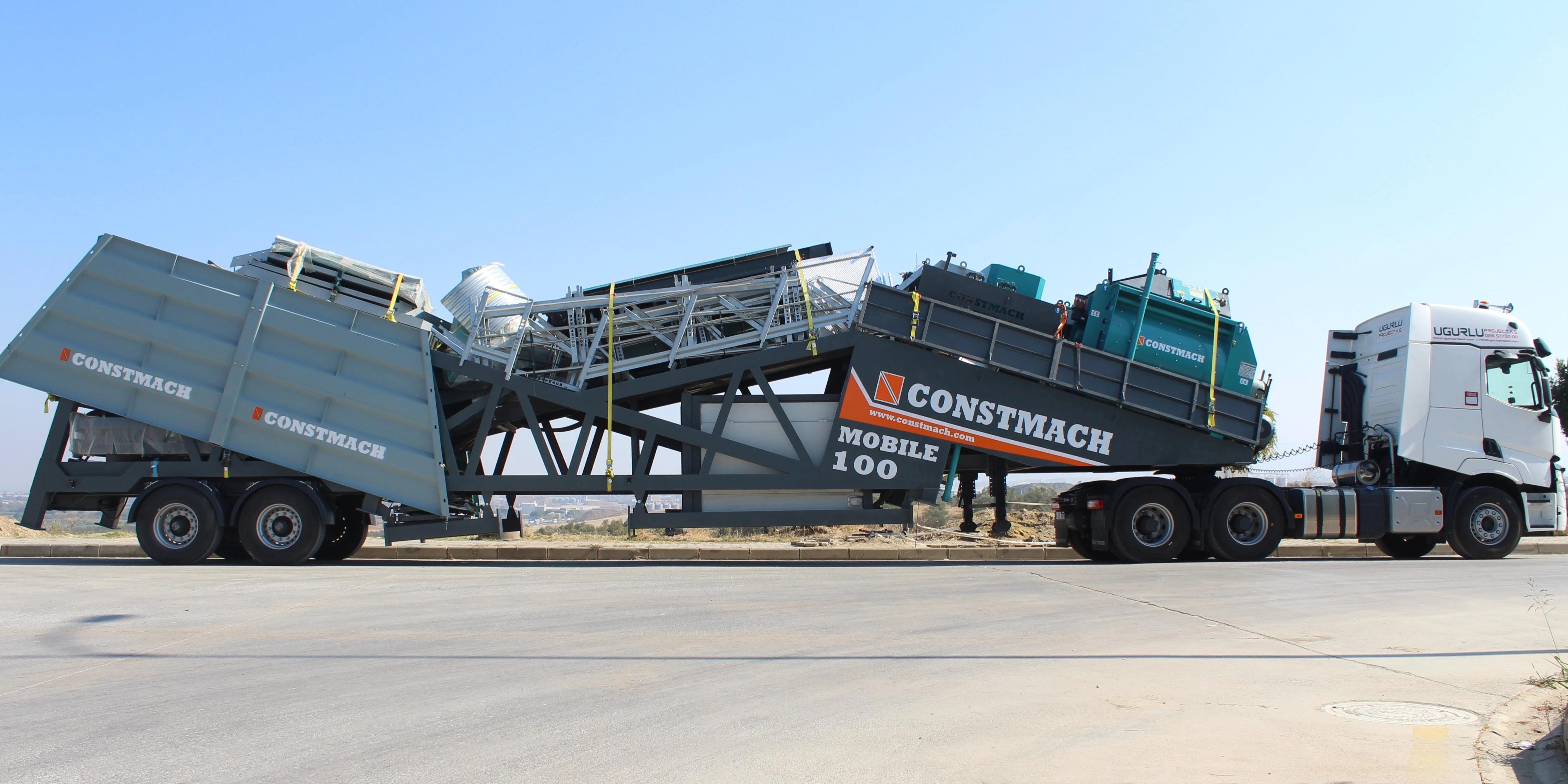

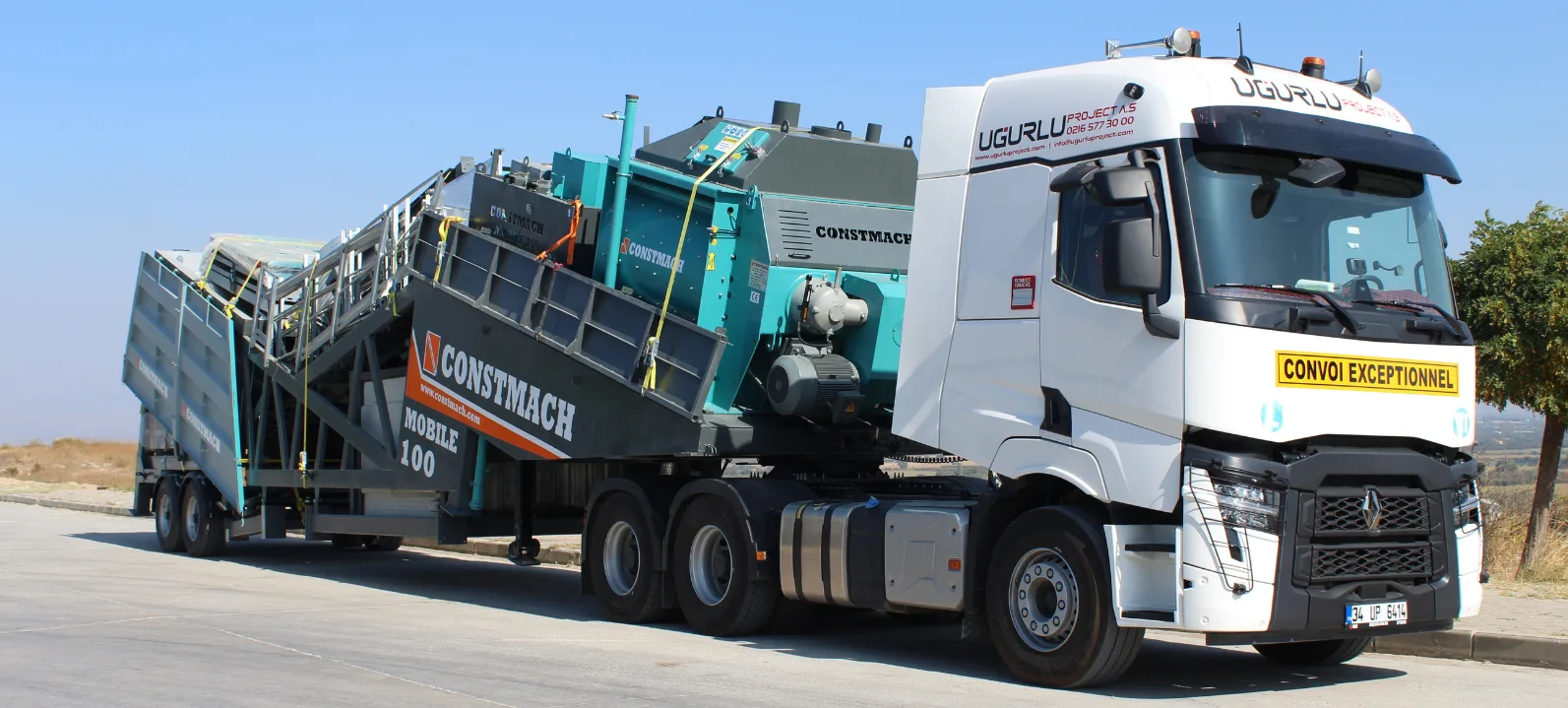

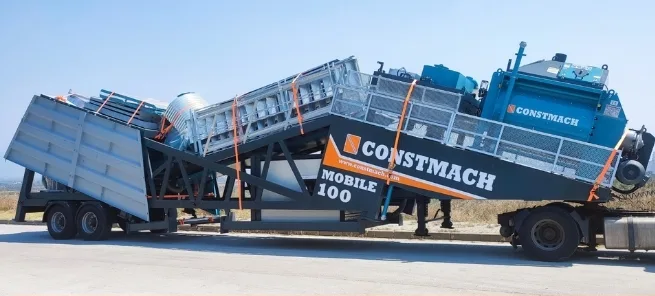

Transport
