Mobicom 45

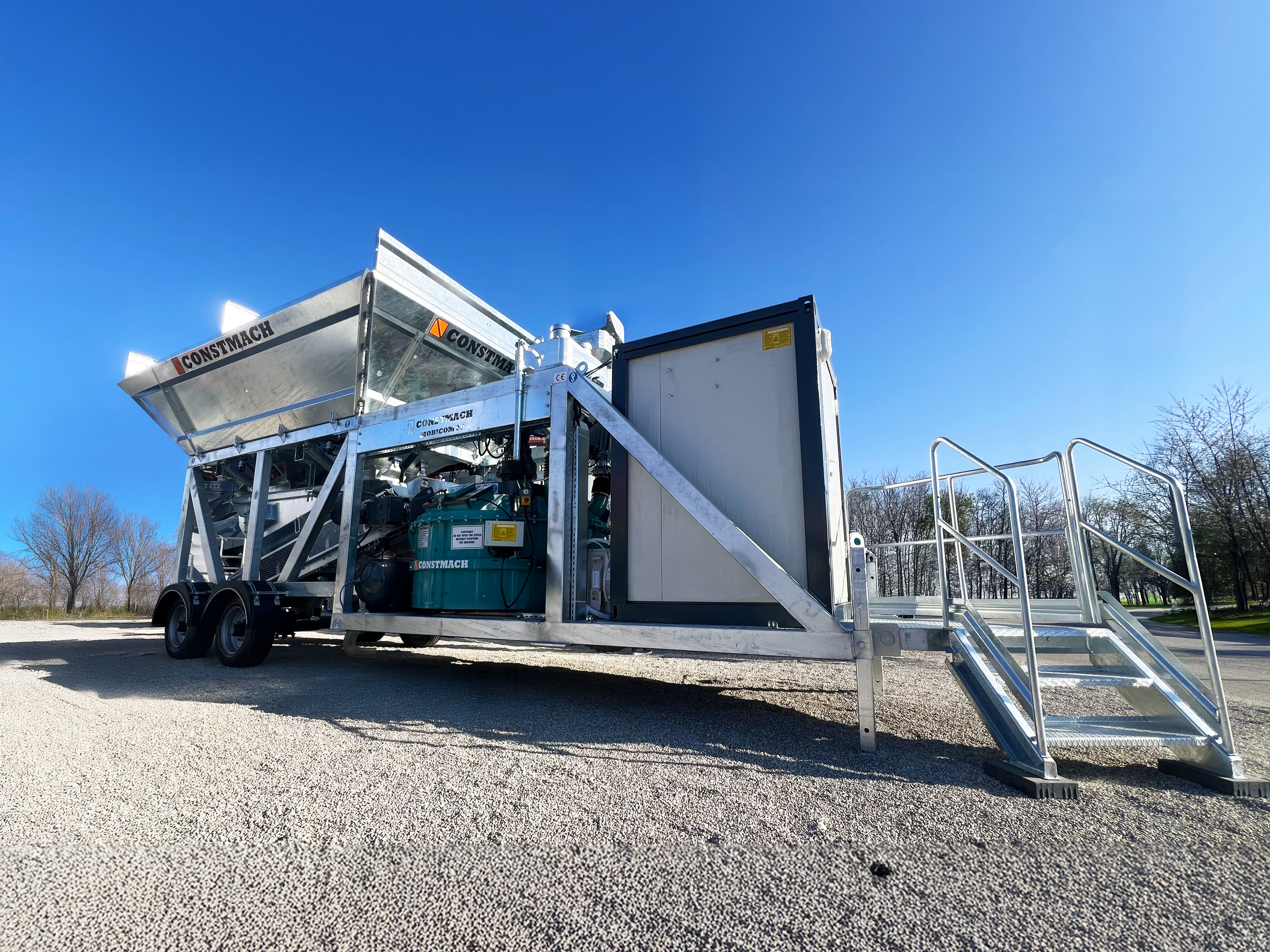

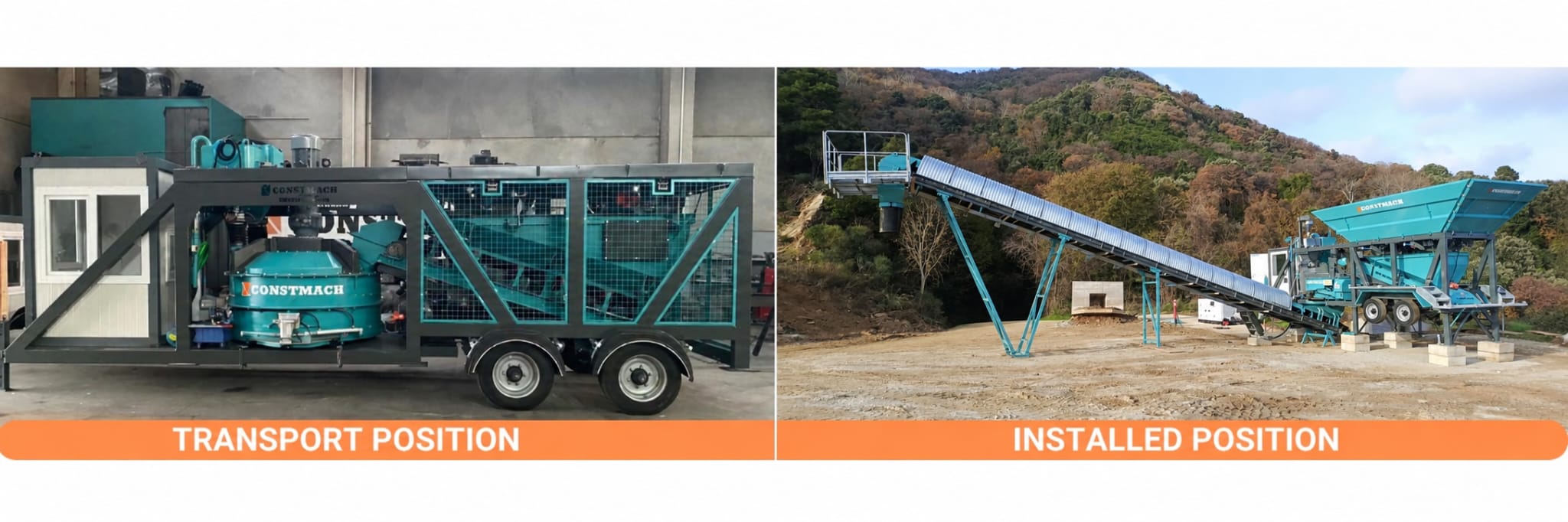

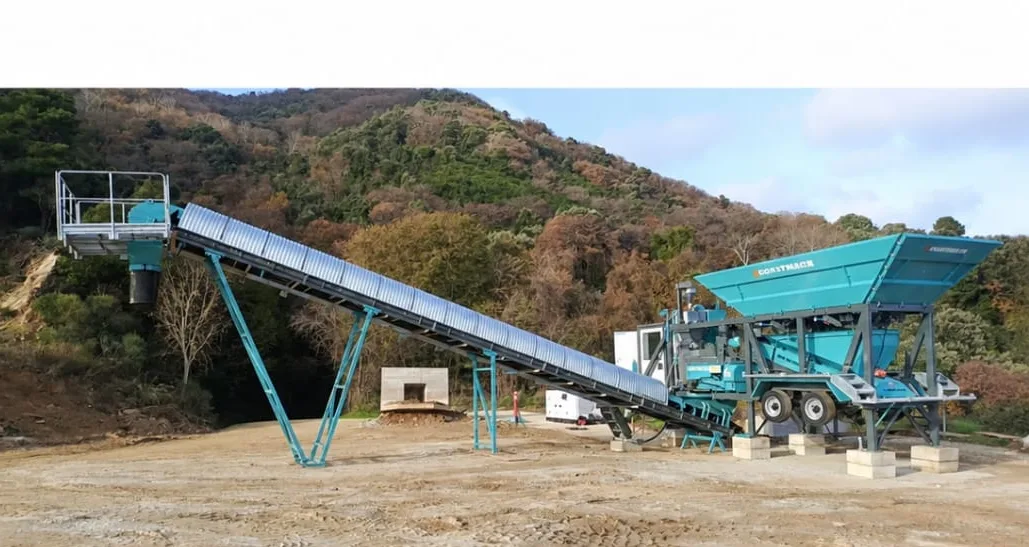

CONSTMACH MOBICOM 45 Mobile & Compact & site type concrete batching plant is an ideal solution for the projects that require high mobility, temporary production area and low investment budget. Unlike classical mobile concrete plants, MOBICOM 45 concrete plant can be shipped within only 1 pcs 40ft Container. It requires minimum site preparation and does not require a mobile crane for the installation. Only a loader is enough. The plant can be shipped by a truck between the jobsites easily. To ensure easy mobility, MOBICOM concrete plants remain at the same position during both production and transport. Since the mixer is just above the ground level, produced concrete is transferred to truck mixer by a conveyor belt. MOBICOM 45 site type Concrete batching plant requires a minimum site preparation. Just a flat ground that is capable to carry the total load of the plant is enough.

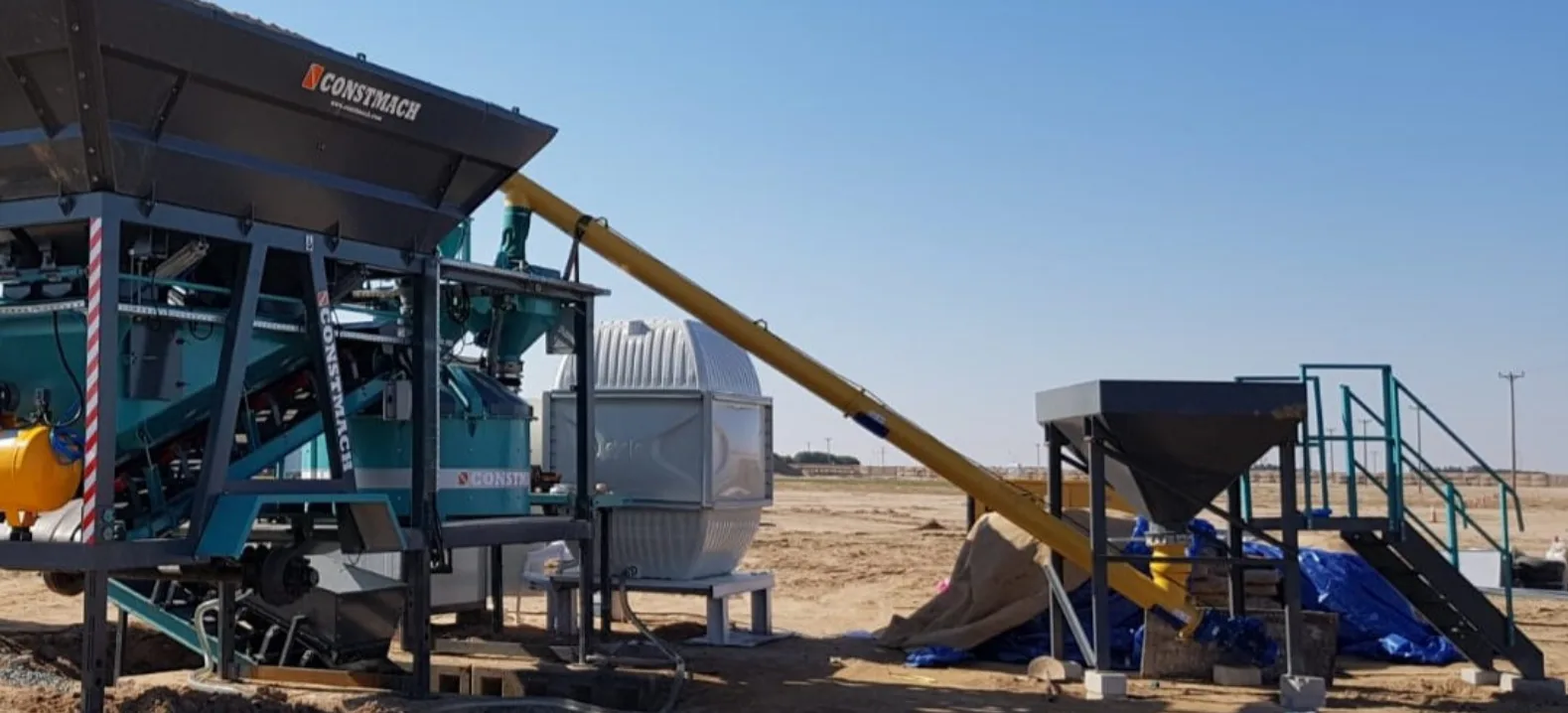

MOBICOM 45 site type mobile concrete plant has the features of being able to have all necessary equipments for concrete production except the cement silo, but If cement is supplied in bags, cement bag opening hopper and cement transfer system which are present on chassis of the plant is used instead of a cement silo. In case of need, MOBICOM 45 can be equipped by also a cement silo.

Single shaft, pan or planetary type mixers can be used in MOBICOM 45 so that it could be used for different purposes such as ready mixed concrete, dry mixed concrete, precast concrete production etc.

Thanks to the optimized aggregate feeding height of MOBICOM 45, ramp for loaders to charge aggregate to the hopper is not required. A loader can charge the hopper directly from ground level easily.

MOBICOM 45 is equipped with high-tech automation system including top class SIEMENS & SCHNEIDER brand electronic components and PLC. The whole system is controlled through an advanced software which has sophisticated features and user friendly interface.

Overall dimensions of MOBICOM 45 are determined according to international road transport regulations and it is transported between jobsites easily.

Mobicom 45 Technical Specifications


Production Capacity 45 m³/h

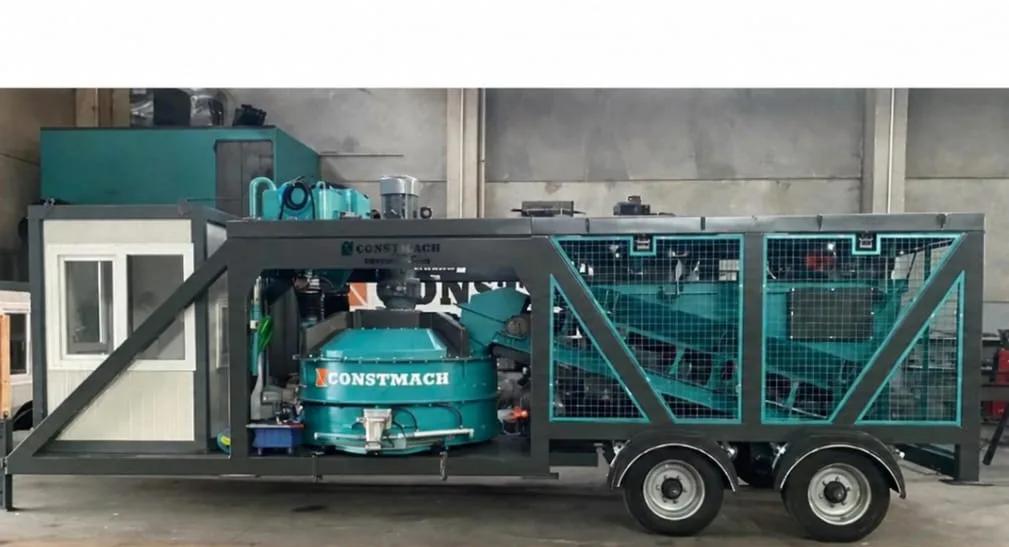

Sizes in Transport Position 8 (L) x 2.3 (W) x 2.5 (H) meters
Weight 9.5 tonnes
Total Motor Power 55 kW
Required Electric Generator 80 kVA
Mixer Options Pan - Single Shaft - Planetary
Required area to operate 200 m²


Aggregate Hopper Volume 4 x 6 m³
Aggregate Weighing Hopper 1 m³
Aggregate Transfer Conveyor 800 x 16.000 mm
Mixer Wet Concrete Volume 0.0.75 m³
Cement Weighing Hopper 450 kg
Water Weighing Hopper 300 lt
Additive Weighing Hopper 20 lt
Air Compressor 300 lt, 5.5 kW

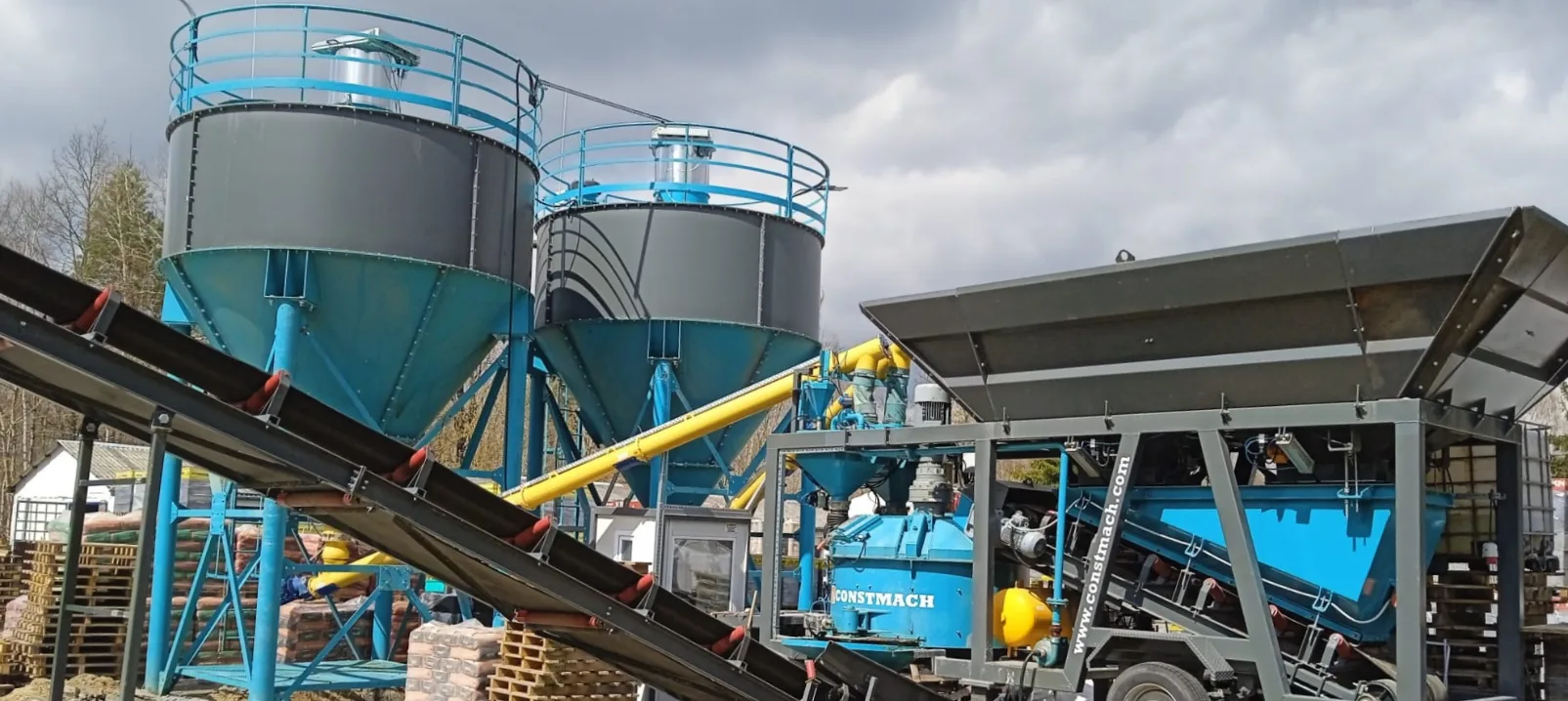

Cement Silo Optional from 50 to 200 tonnes capacity.

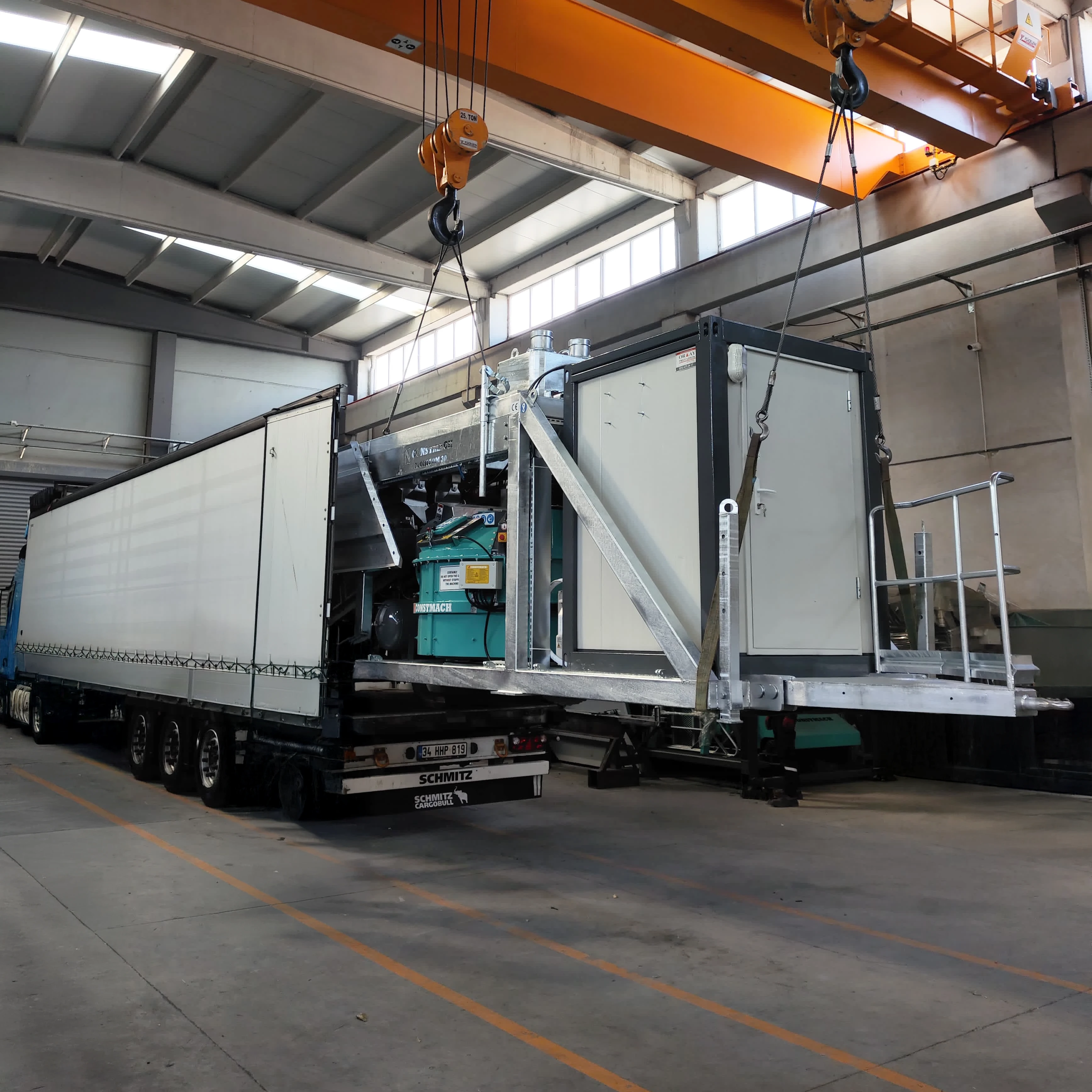

MOBICOM 45 concrete plant and its all equipment can be shipped within closed 1 pcs 40 ft OT container or truck trailer without any oversize.
Mobicom 45 Video
Mobicom 45 General Layout
