Single Shaft Concrete Mixer For Sale

Single Shaft Mixer

CONSTMACH Single Shaft Mixers are optimum solution for all types of concrete, especially general concrete production purpose. Easy maintenance and replacable liners, long lived Ni-Hard mixing elements promise users problem-free performance. Presence of double motor in 2 m3 models enables to proceed to production even in case of a problem with one of the motors. Robust pulley-chain mechanism conveys the movement from heavy duty electric motor & gearbox to the main shaft of the mixer. Thanks to the automatic lubrication system, bearings of the mixer shaft is always lubricated as long as the mixer is operated regularly. As all our other mixer types, our single shaft mixers are also equipped with emergency stop button, access hatch and SKF/FAG brand heavy duty type bearings.

Single Shaft Mixer Technical Specifications

MODEL OF MIXER	CSS - 0.5	CSS - 1	CSS - 2
Charging Volume	750 lt	1.500 lt	3.000 lt
Fresh Concrete Volume	625 lt	1.250 lt	2.500 lt
Compacted Concrete Volume	500 lt	1.000 lt	2.000 lt
Motor Power	18.5 kW	37 kW	37 kW
Side Body Wearing Plates	10 mm Hardox 450	15 mm Hardox 450	15 mm Hardox 450
Main Body Wearing Plates	15 mm Ni-Hard	15 mm Ni-Hard	20 mm Ni-Hard
Mixing Arm Wearing Plates	25 mm Ni-Hard	25 mm Ni-Hard	30 mm Ni-Hard
Automatic Lubrication System	AVAILABLE	AVAILABLE	AVAILABLE
Hydralulic Discharge Door	AVAILABLE	AVAILABLE	AVAILABLE
Maintanence Door Safety Switch	AVAILABLE	AVAILABLE	AVAILABLE

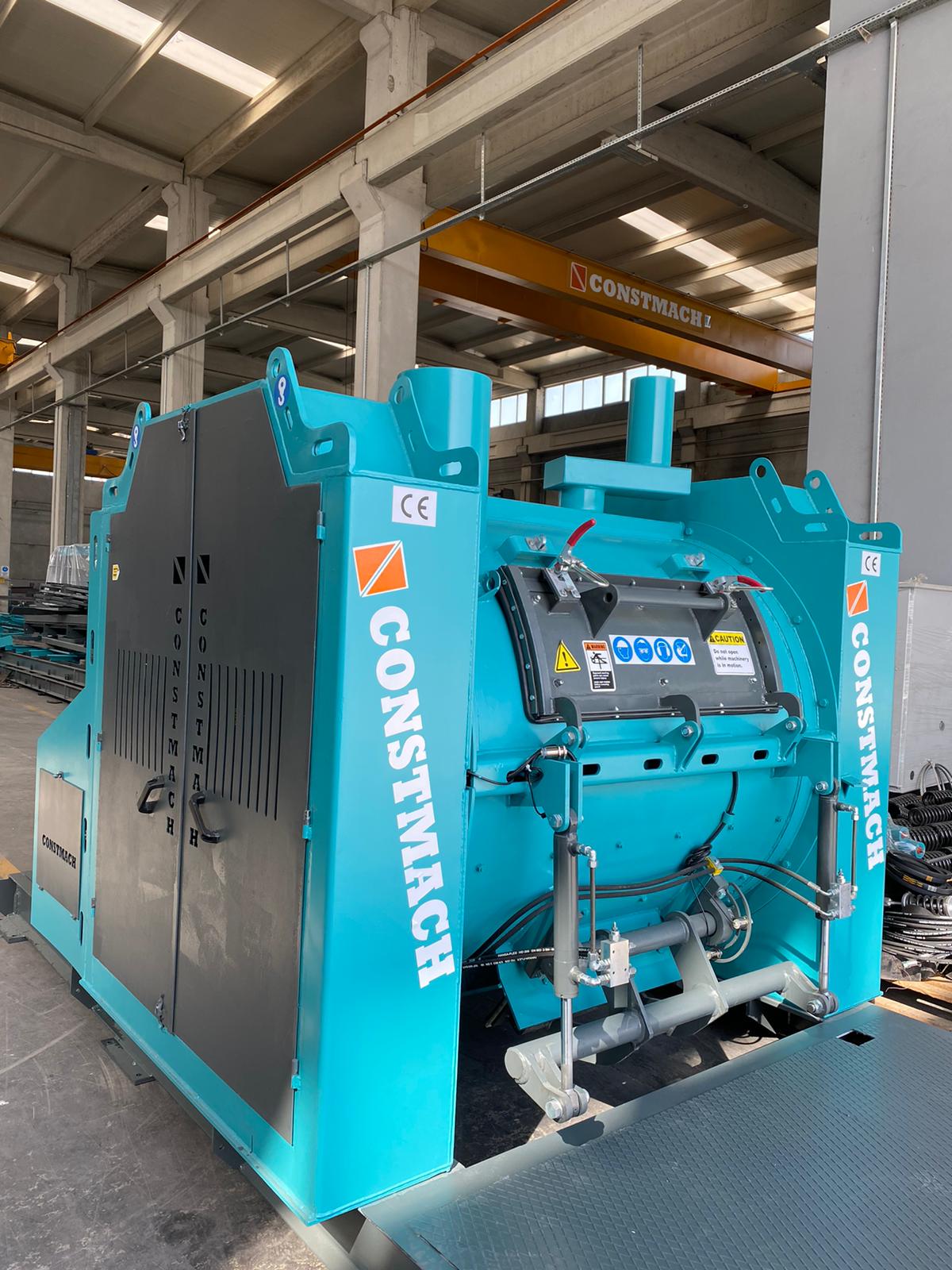

Single Shaft Mixer Gallery

You can examine some photos of the product named Single Shaft Mixer taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.

Transport

Single Shaft Mixer Transport

Single Shaft Mixer Video

Single Shaft Mixer General Layout

Single Shaft Mixer Catalogue Single Shaft Mixer Catalogue DOWNLOAD
