BS 20 is a hydraulic system, automatic, PLC controlling machine which also includes concrete batching plant has a pressure bar between 100-160 bars. BS 20 is a machine which produces 20 interlocks in one pres and 8 units 20x40x20 blocks. Packing of the dried products which are ready to be picked up can be made automatically by automatic picking robot also.

  • A + (A Plus) energy saving products
  • EFF3 class electric motors
  • Free spare parts with machine
  • 2 + 2 total of 4 years warranty
  • ISO 9001: 2008 total quality management system of conformity
  • CE declaration of European standards
  • Trained staff and "HL" product models
  • Fast service, spare parts guarantee
  • Appropriate material usage in the norms of DIN and TSEK standards
  • 7/24 accessibility
  • Easy usable program selection
  • Auto/Manuel Choice
  • Authorization certificate at the end of training period
  • Stop, standby and continue production from the point where was left.
  • Forklift usage option
  • Troubleshooting over the internet option
  • Compliance with low-voltage directive
  • Using raw materials of safe brands

BS-20 is designed to fulfill the demands of medium business entrepreneurs in concrete block making industry. With its minimum first investment cost and scalable structure, BS-20 is the ideal solution for the investors who are seeking to increase the overall quality of concrete products and to minimize manufacturing costs. PLC automation software, which is developed by CONSTMACH R&D engineers, has proven its quality and reliability in manufacturing plants of many local and foreign enterprises.

The whole plant operates automatic so production quality for each cycle and production capacity for each working shift are maintained and stabilized. Automation system also makes it possible to operate the plant in various speeds. A mimic control panel indicates all units of the plant on a graphical diagram so using the control panel became easy and practical. The operator can switch to manual operation anytime. Failure detection is also fast and easy with the mimic control panel.

You can see the general layout, transport information and photos of Concrete Block Machines - BS-20 by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.

BS-20 Technical Specifications

İnterlock pieces and printing time per pallet 20 pcs interlock / 30 sec
Block pieces and printing time per pallet 8 pcs block / 23 sec
Pump Power 48 lt/min Efficiency: 0,98
Hydraulic cooler capacity 90 lt/min, 0,18 kw
Hydraulic system brand and oil capacity Tellus 46, 180 lt
Machine working hydraulic pressure 120 bar
Vibration compress strength 11 000 kgf
Machine size and weight 2.2 x 5.5 x 2.5 7500 kg

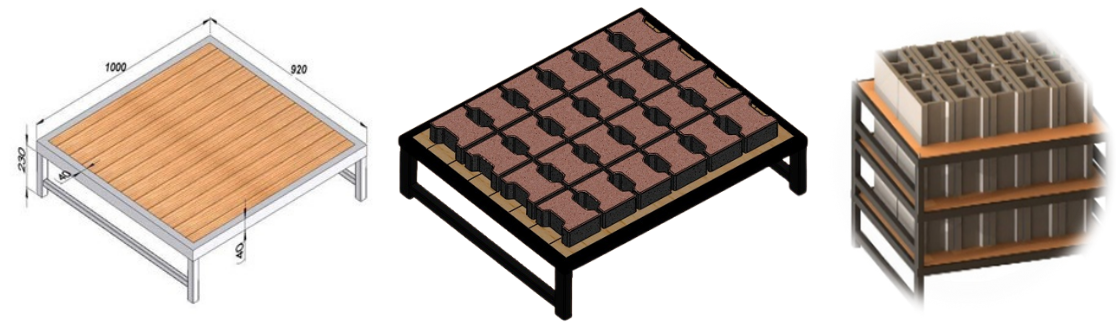

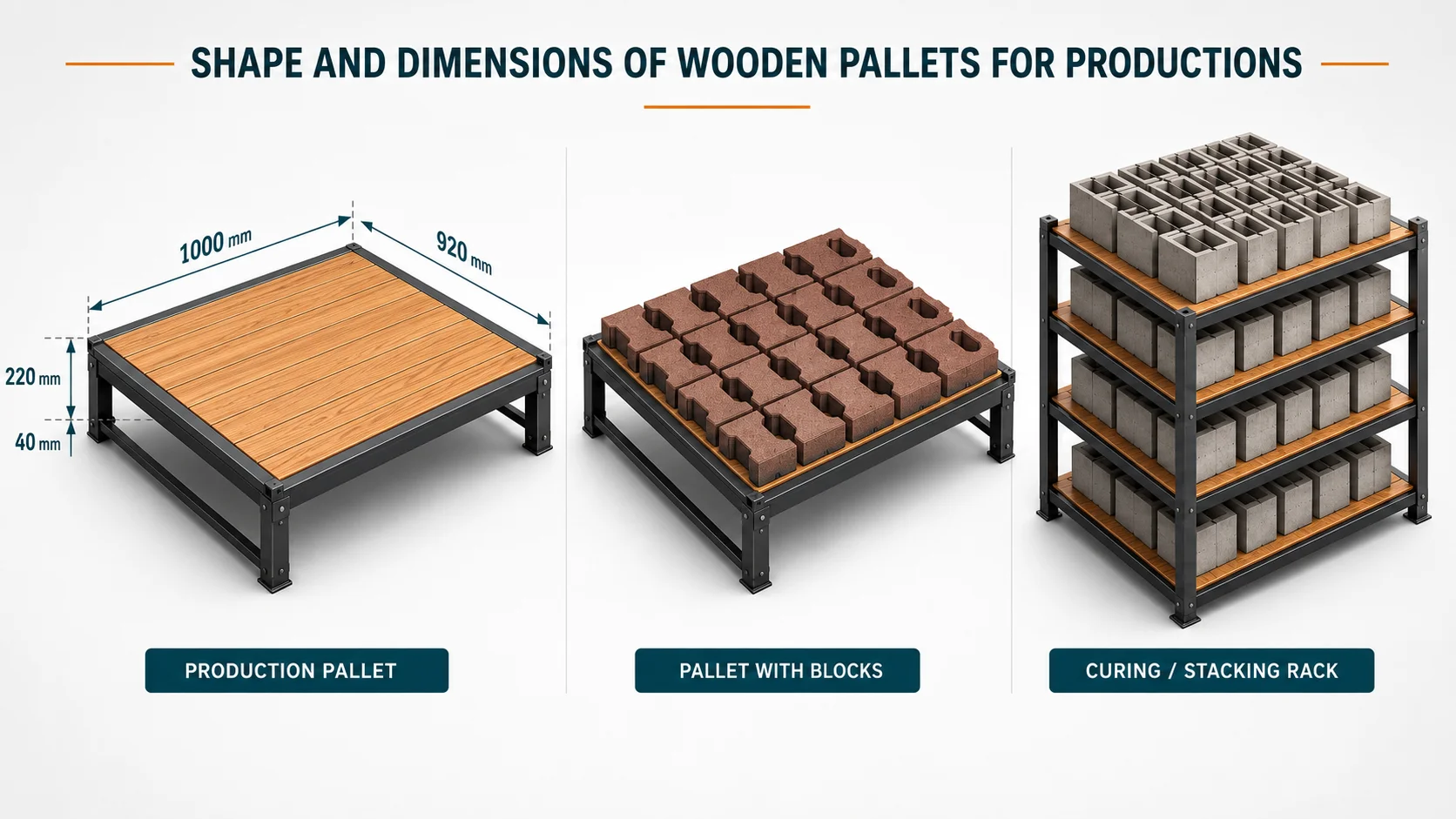

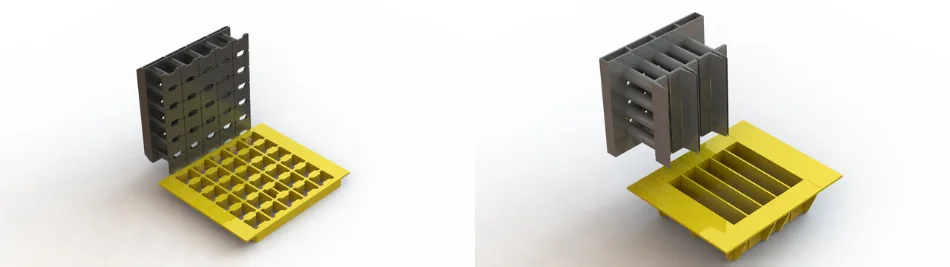

Interlock Mould
Oxygen cutting and CNC freze: 650 kg

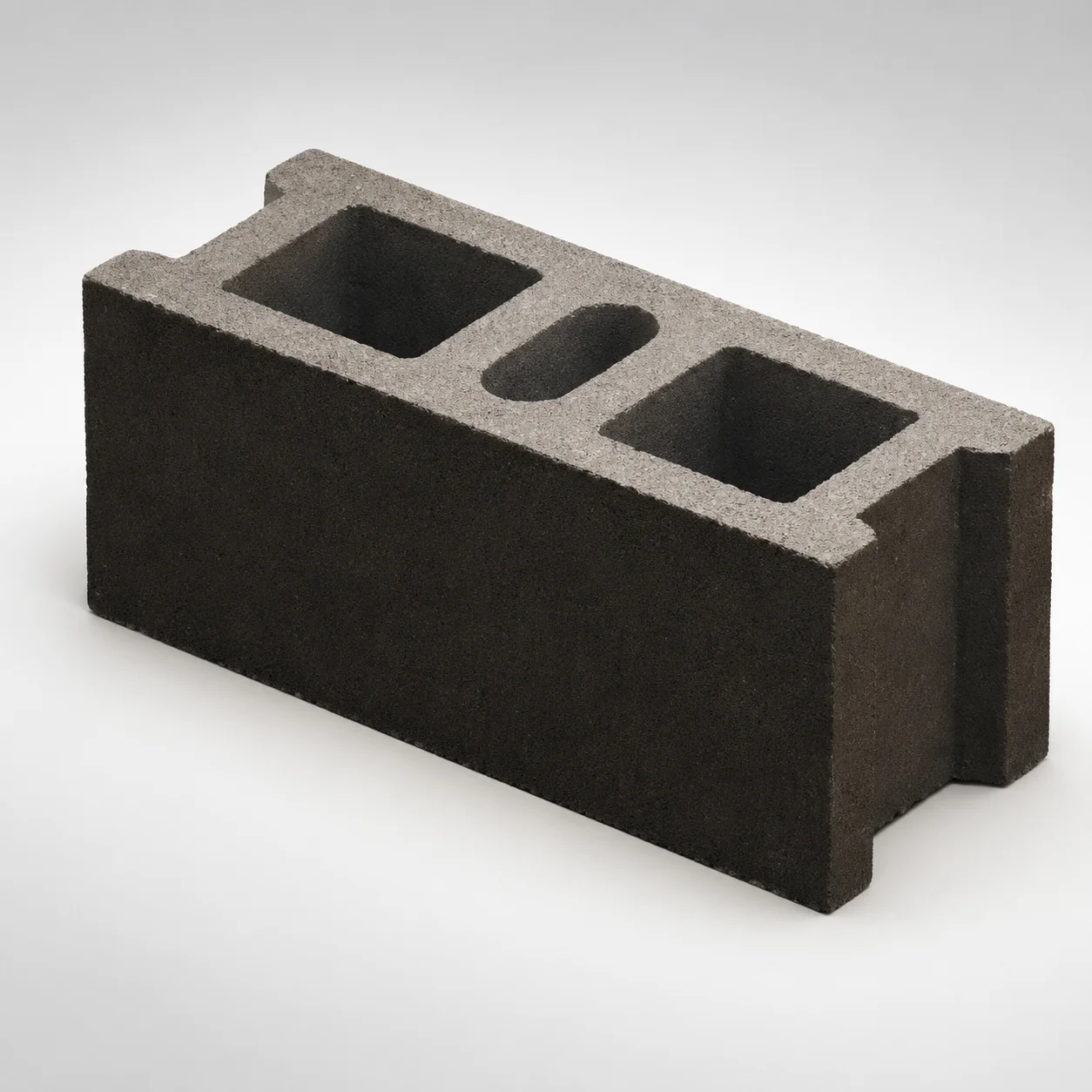

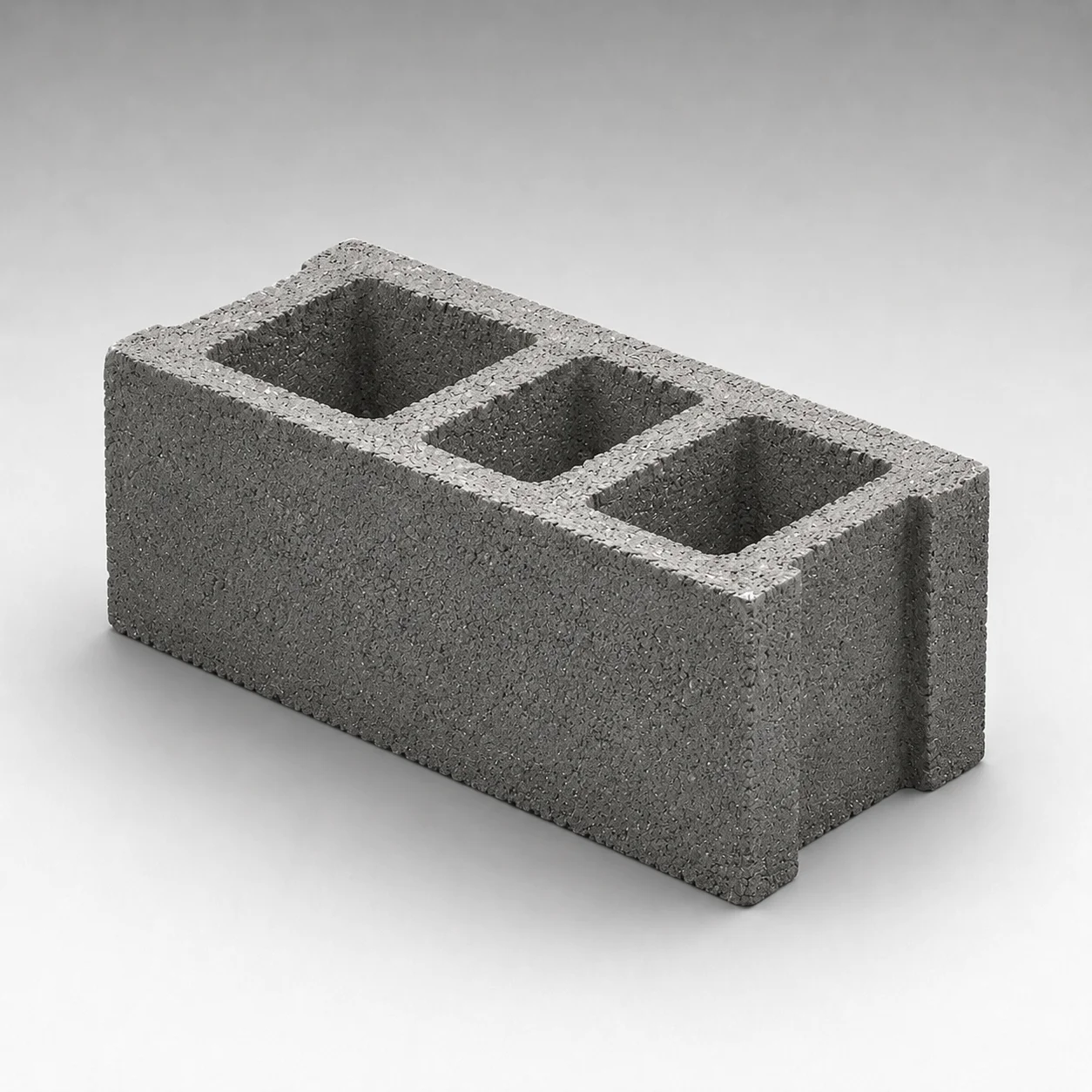

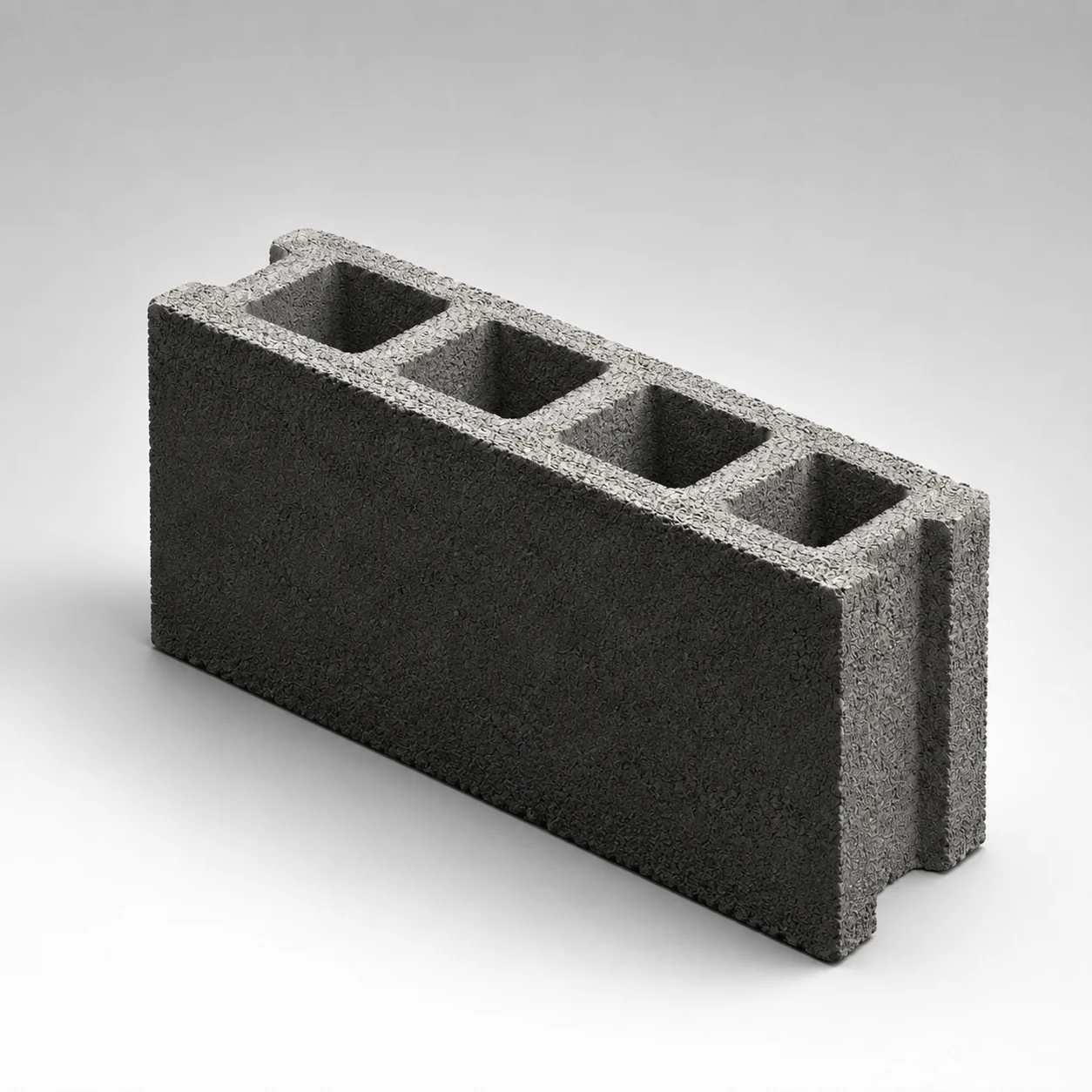

Block Mould
Corosion plate laser cutting system: 750 kg
2 - Stacking Robot
Pump Power 21 lt/min x2 pcs
Robot size and weight 1.45 x 3 x 1.5 m 1500 kg
4 - Electric Control
PLC and Moduls and screen Schneider (France) 7 inch touch screen
Termique and condactor brand Schneider (France) Weid Moeller (Germany)
5- Mortar Band
Size 8 m length, 70 cm width, 1000 kg

6- Mixer
Mixer Capacity 250 dm³
Mixing product weight and mix time 400 kg sand 65 kg cement + 30 kg water, Average 2,5 minute
Corosion conservation sheet iron Thickness: 15 mm, Model: st52 steel
Mixer motor power and moment 15 kw, 40 rpm x2 pcs 4500 Nm
7- Sand Band
Size 10 m length, 60 cm width, 1000 kg weight

8 - Aggregate Hopper And Weighting Band
Hopper capacity and weight 8m³ x3 pcs 4500 kg
Valve type and power Vibration system, 0,5 kw x3 pcs
Band lenght 10 m Band width: 70cm Weight: 1400 kg
Load tank weight equipments 4x pcs 1 lt capacity

9 - Cement Silo And Equipments
Silo capacity and weight 45 t 5500 kg
Silo size Diameter for container 2250 x 11500 mm
Cement weight capacity 300 kg
Loadcell brand ESIT 1 pcs 500 kg loadcell

Safety valve and 24 m² open area filter (airjetplus)

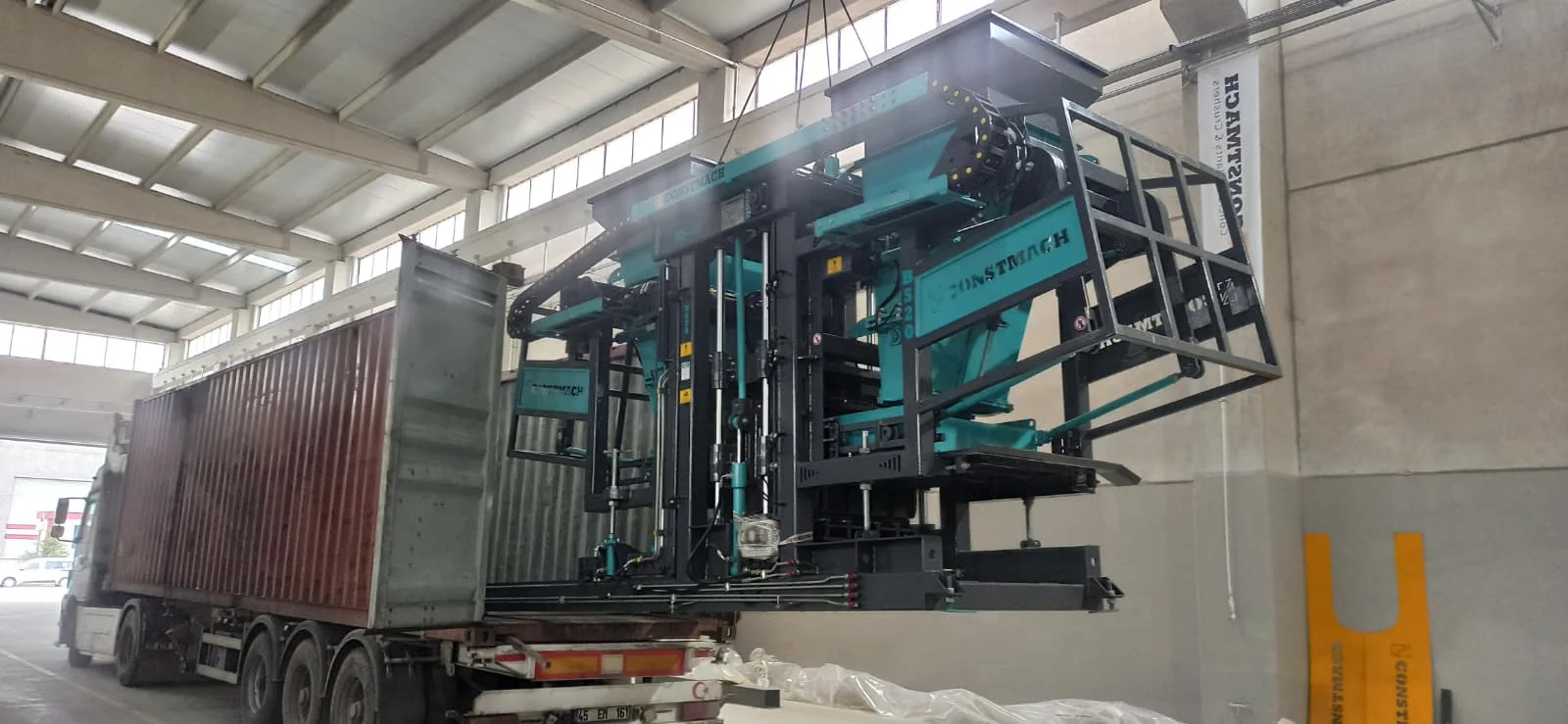

Shipping friendly equipments of our concrete block plants minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and containers.
