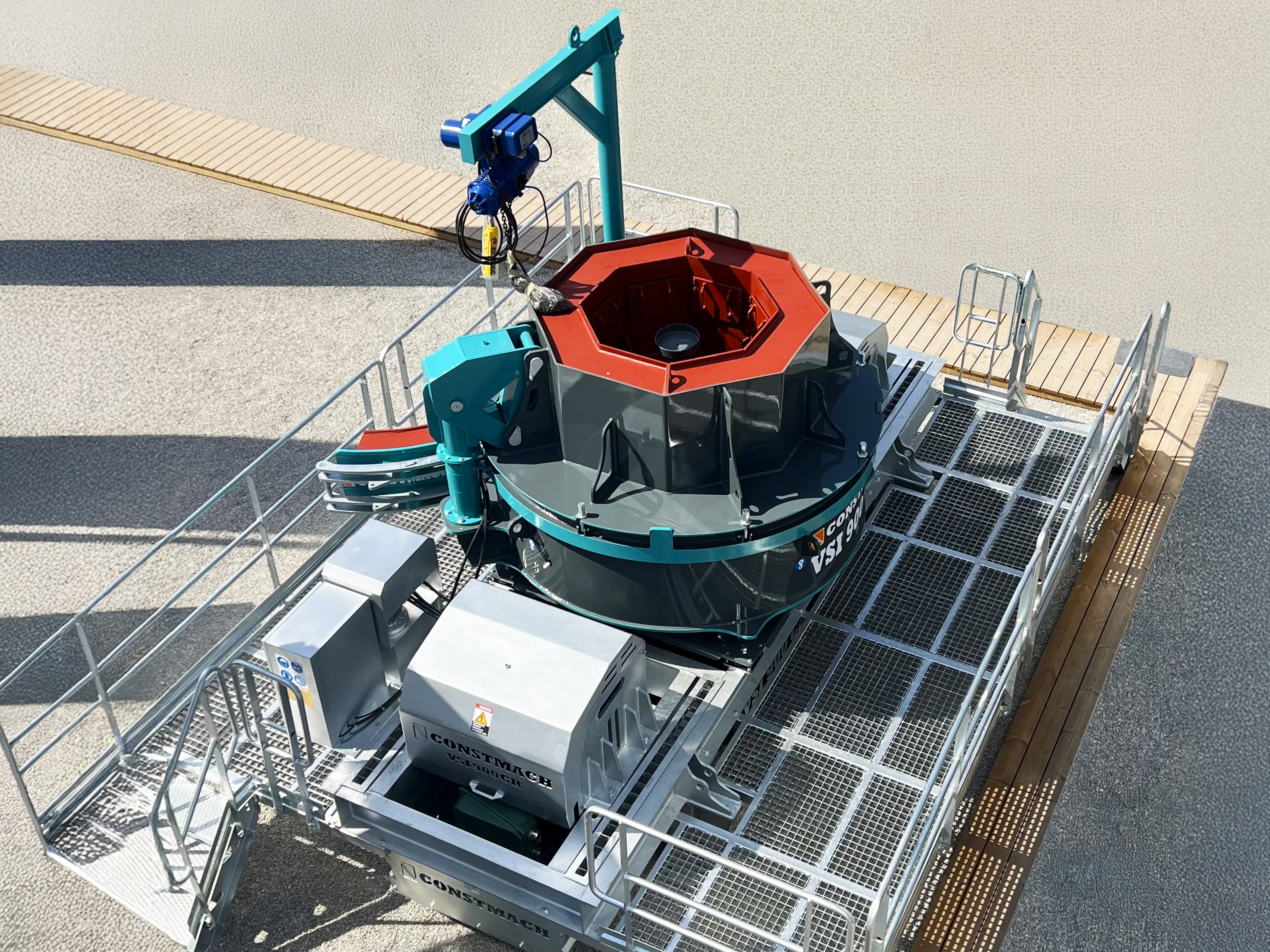

Vertical Shaft Impact Crushers

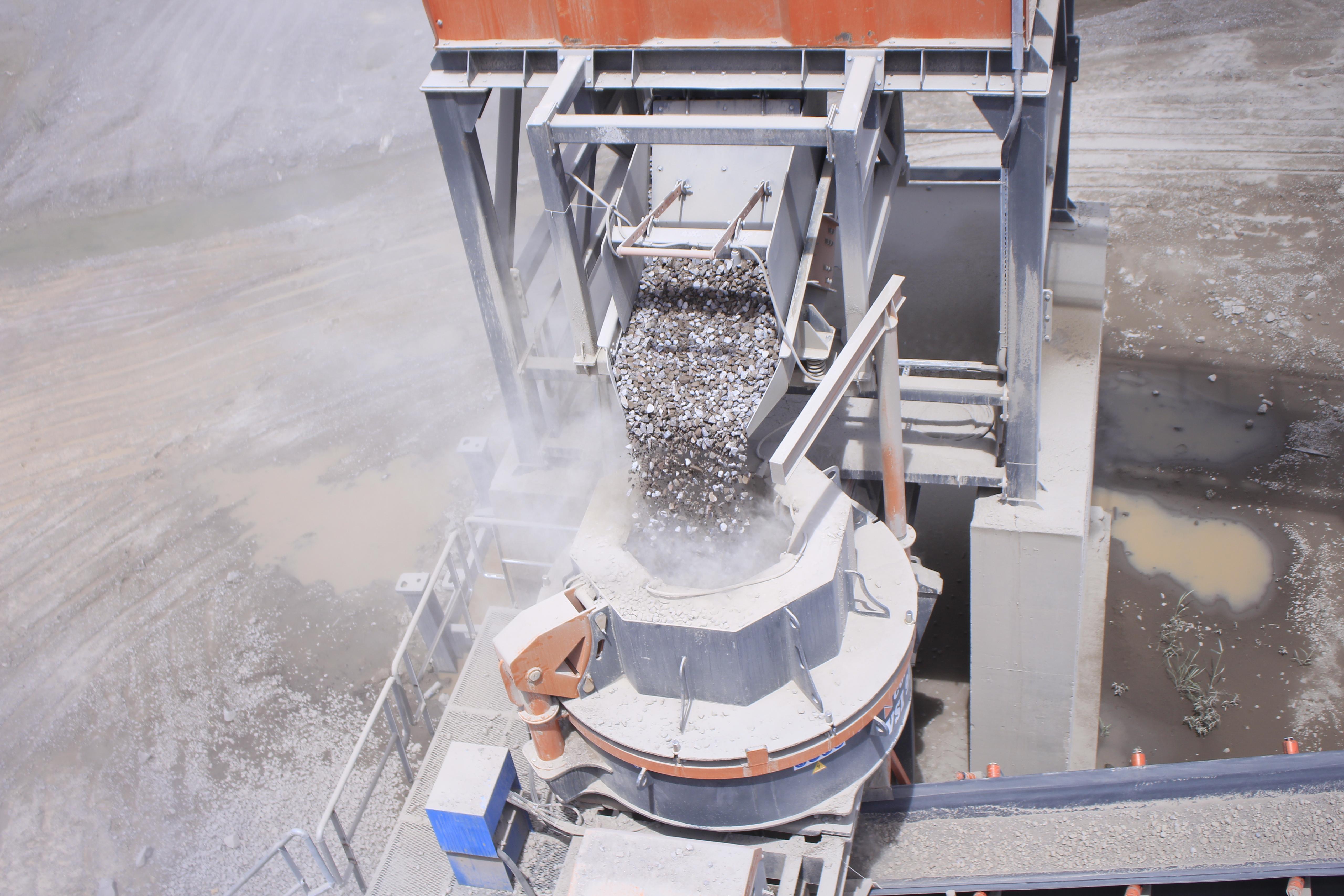

CONSTMACH Vertical Shaft Impact Crushers are known as also SAND MAKING MACHINES and used as a tertiary stage crusher to get high ratio of fine material and to give cubical shape to the products that are coming through the secondary crushers. Any type of materials, especially the hard stones such as basalt and granite with maximum 45 mm size which are crushed by secondary crushers are fed to Vertical Shaft Impact Crushers.

Features of CONSTMACH VSI CRUSHERS:

  • Four interchangeable crushing chambers allow for changes in material type and product specifications

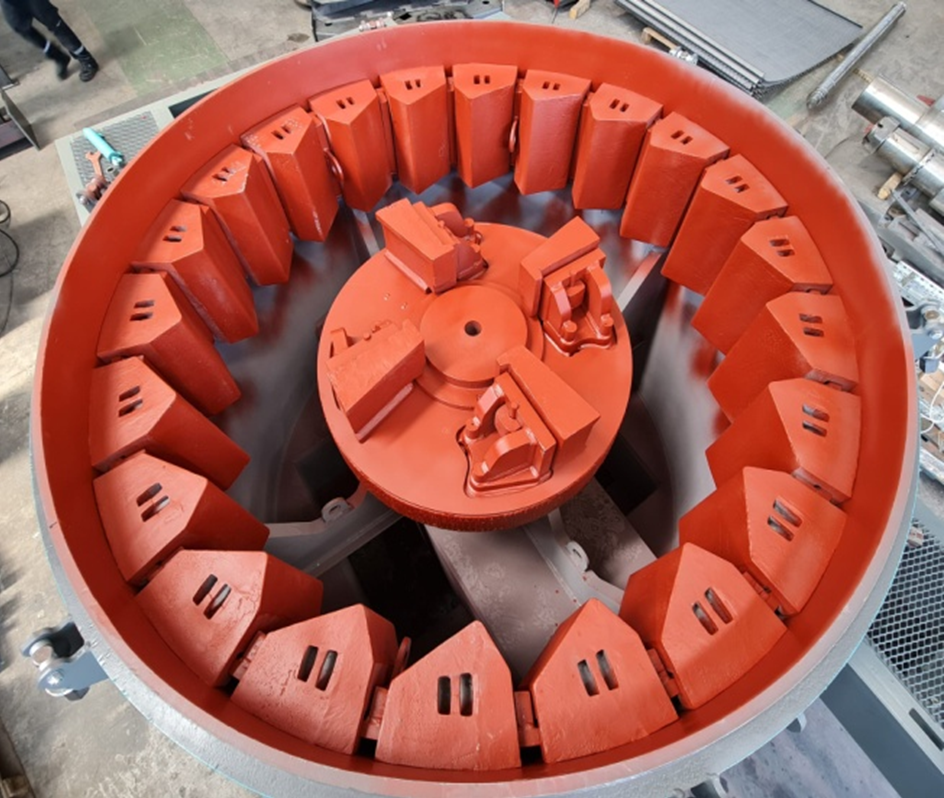

  • Variable speed impeller or rotor allows for changes in material type and product specifications
  • High reduction ratio
  • Large symmetrical feed box
  • Four interchangeable crushing chambers allow for changes in feed size and tonnage requirements
  • Heavy-duty roller bearings
  • Self-contained oil lubrication system

You can see the general layout, transport information and photos of or VSI CRUSHERS by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.

Vertical Shaft Impact Crushers Technical Specifications

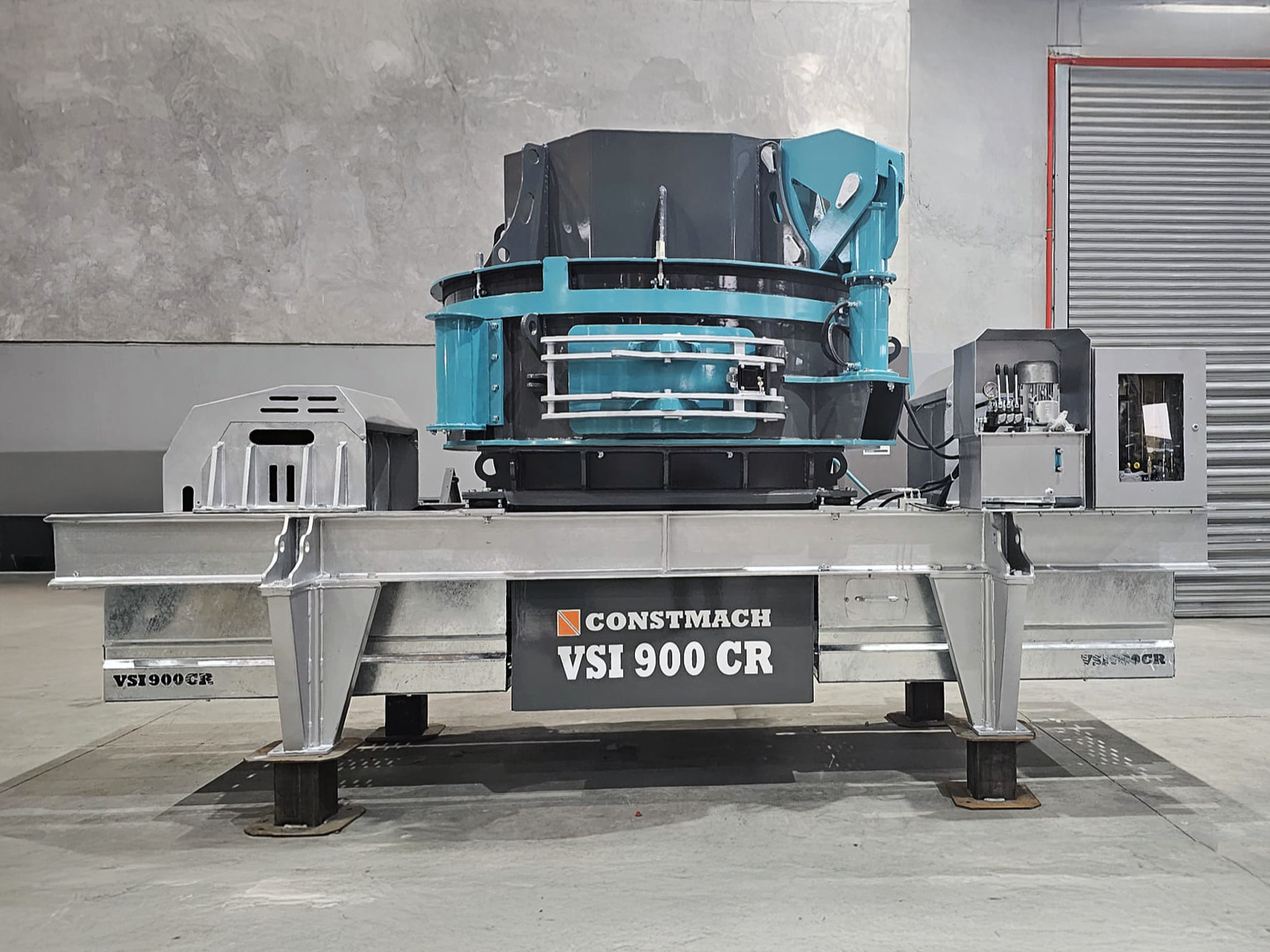

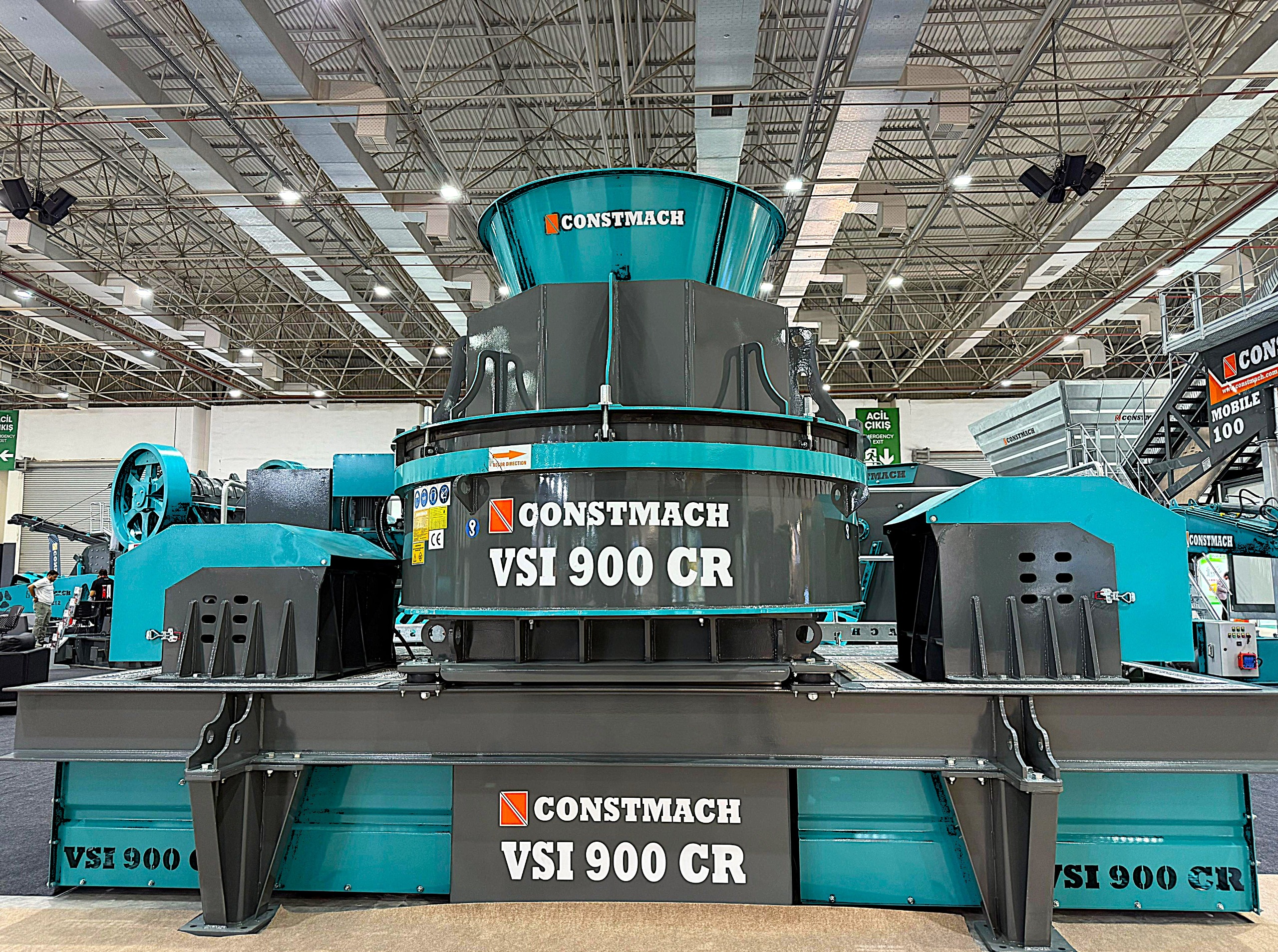

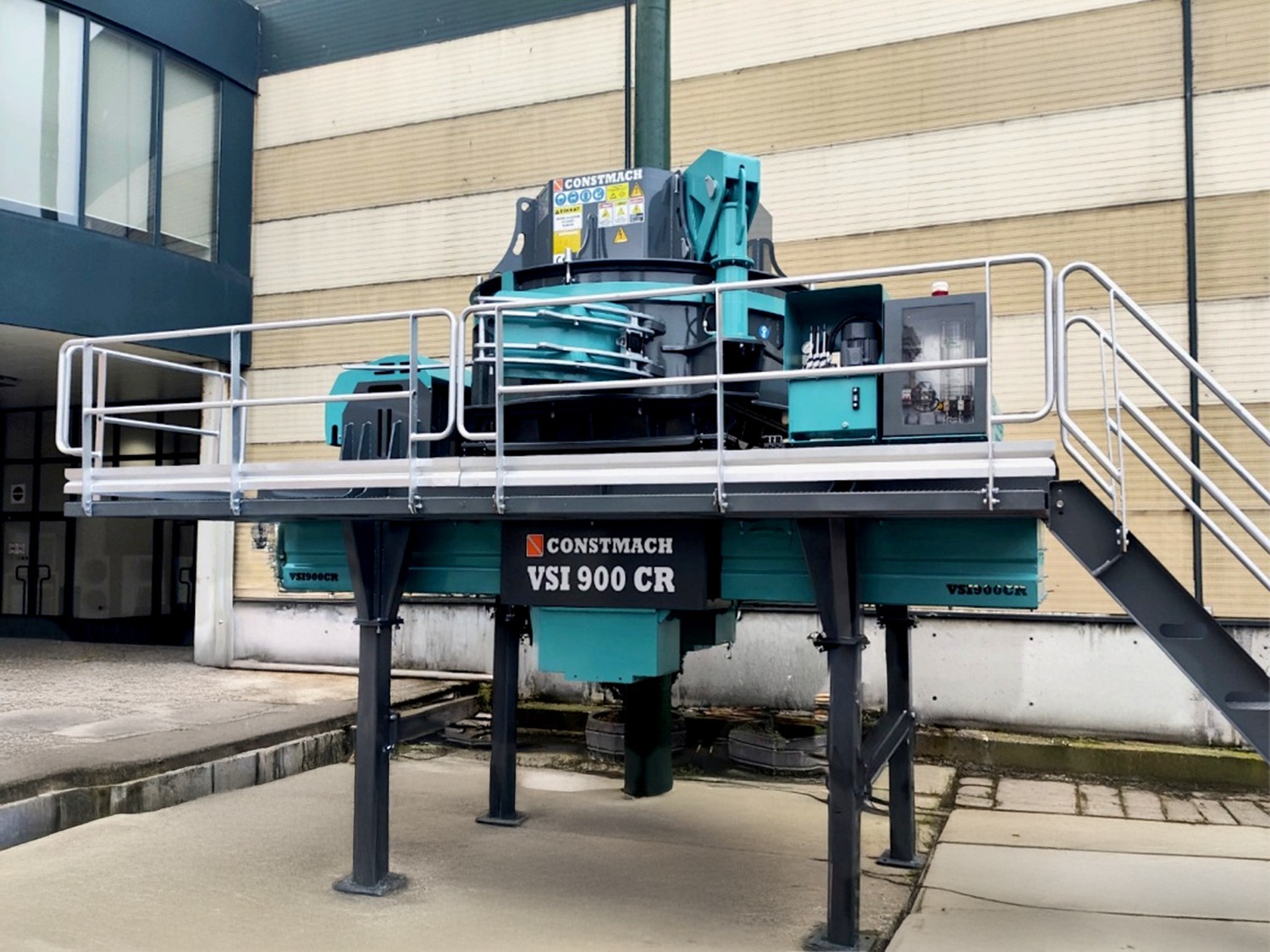

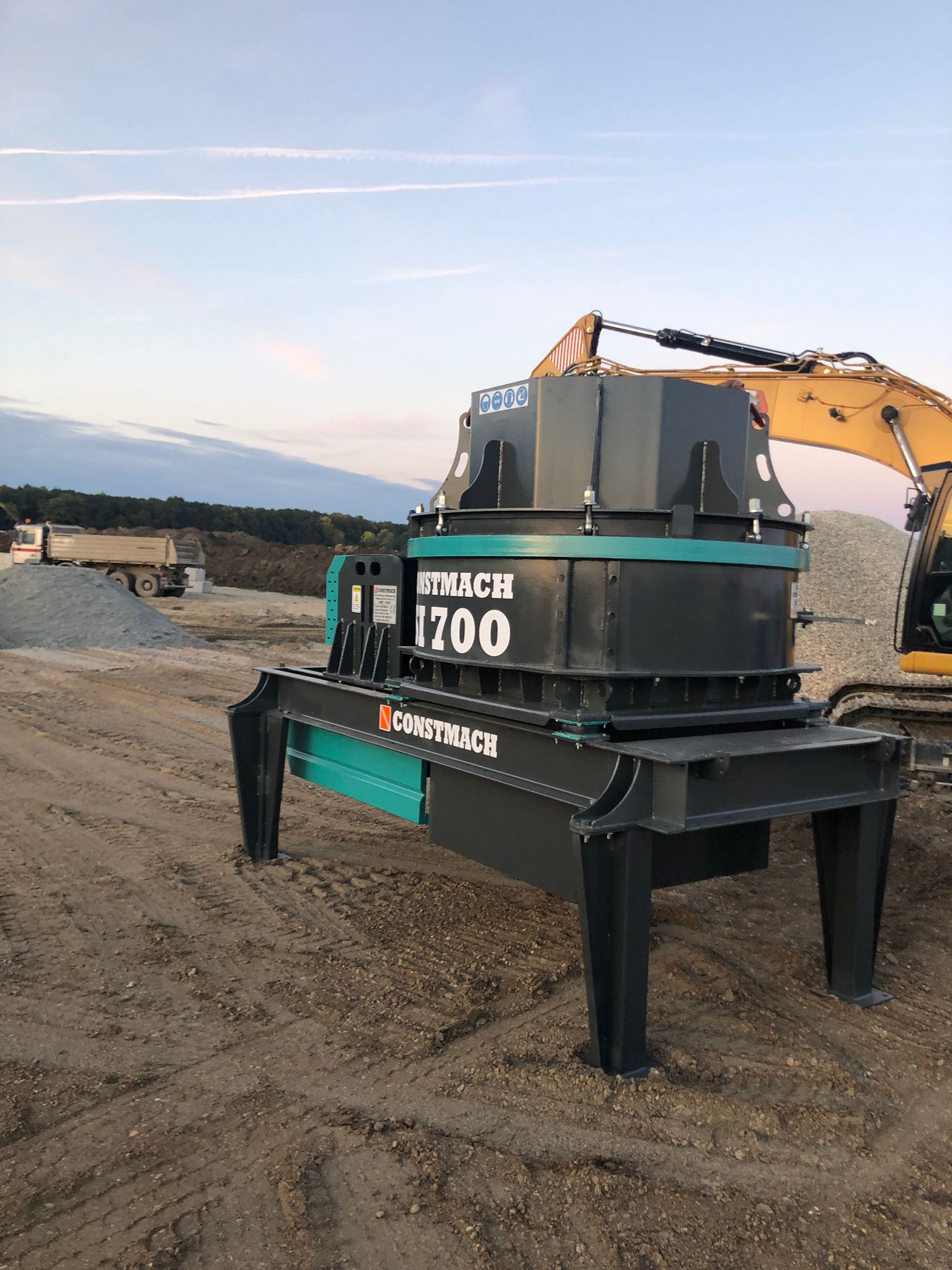

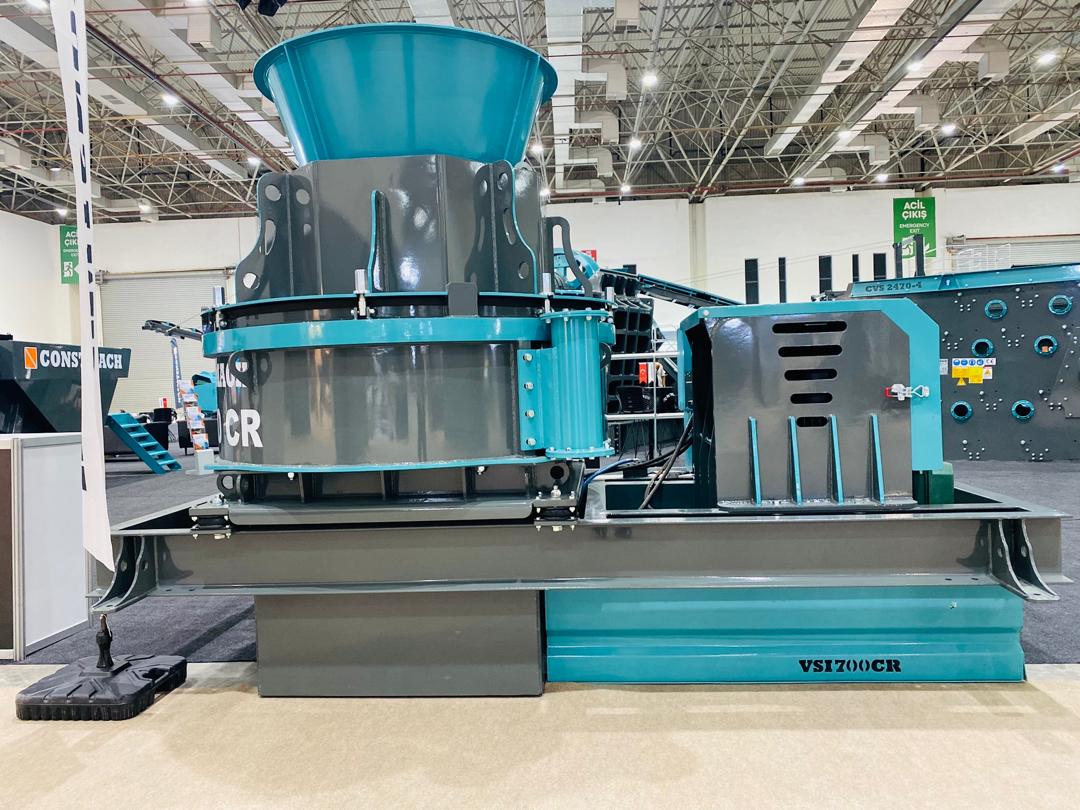

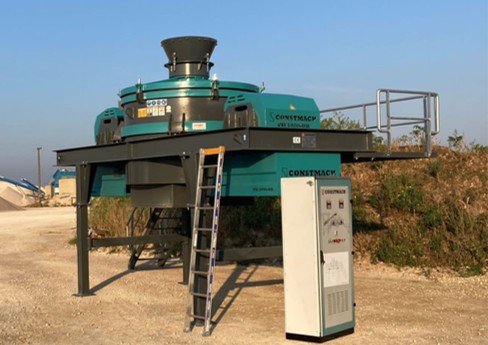

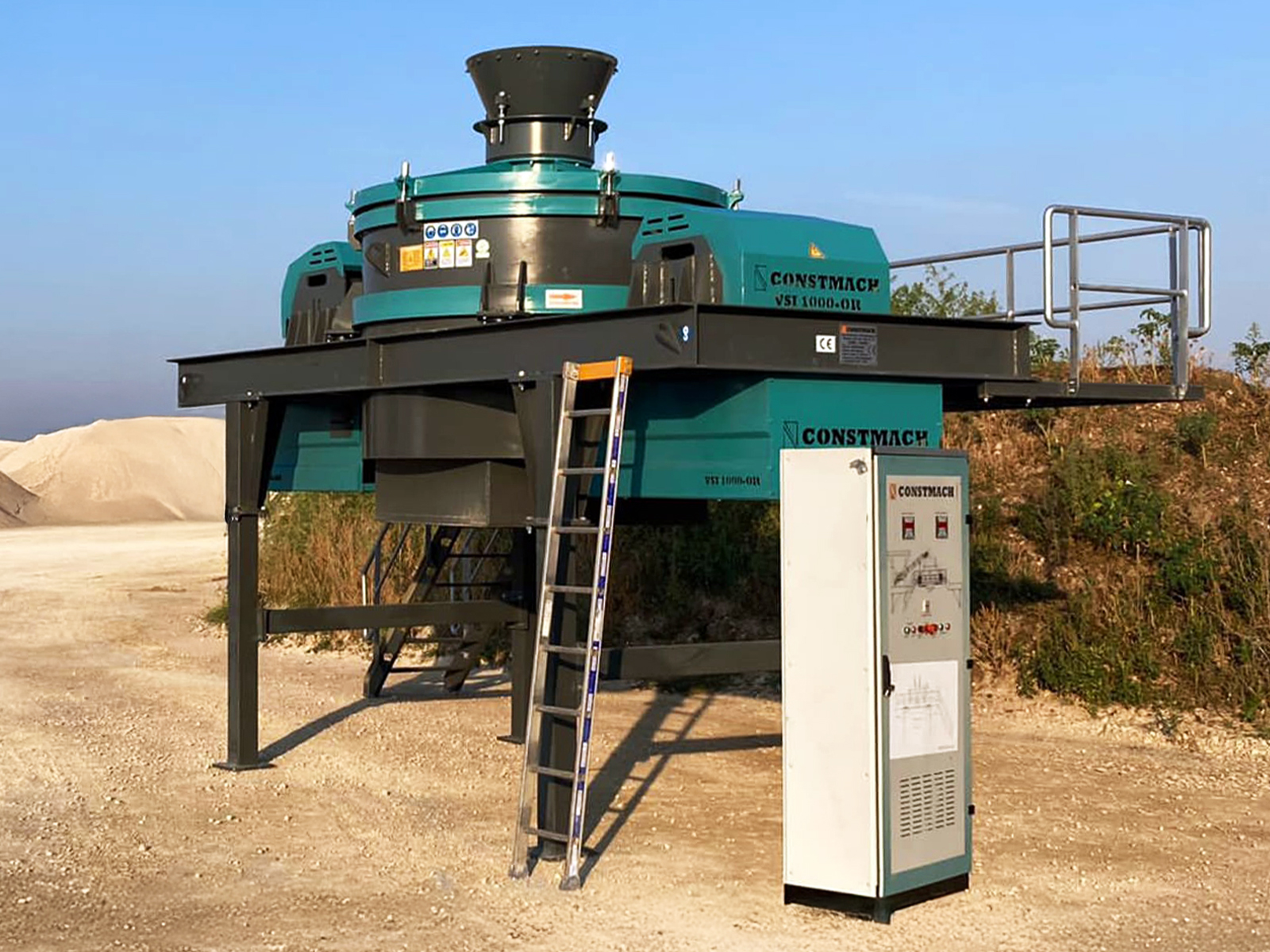

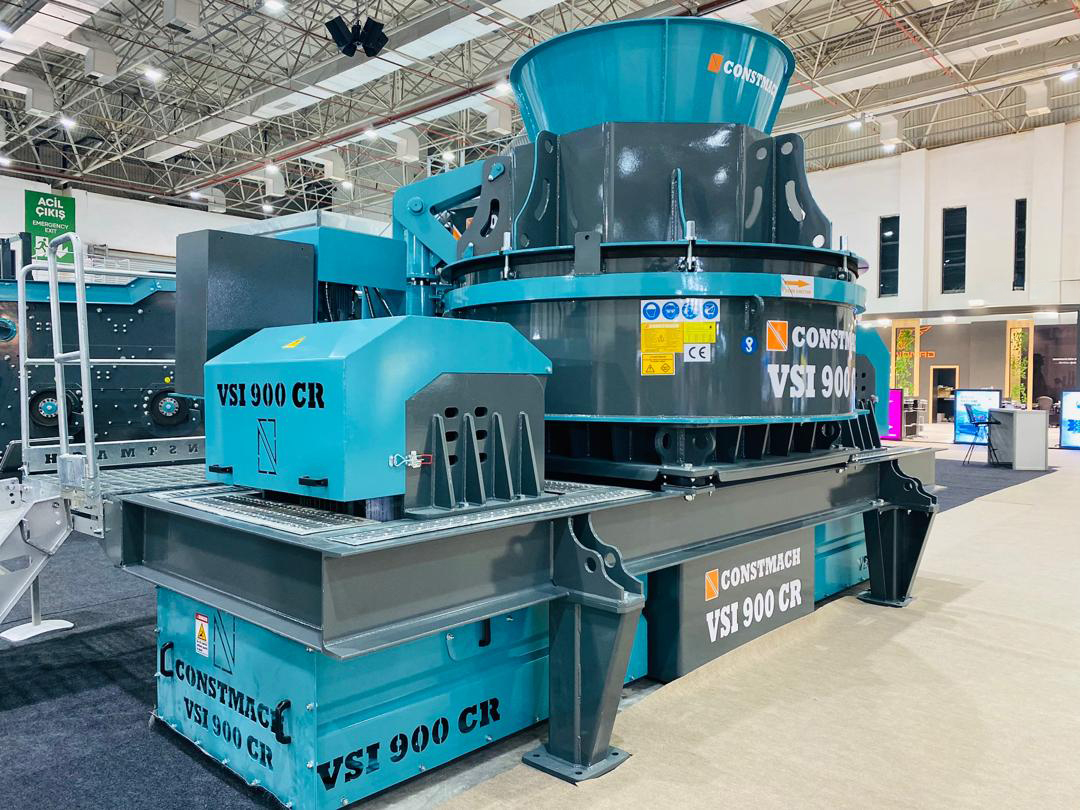

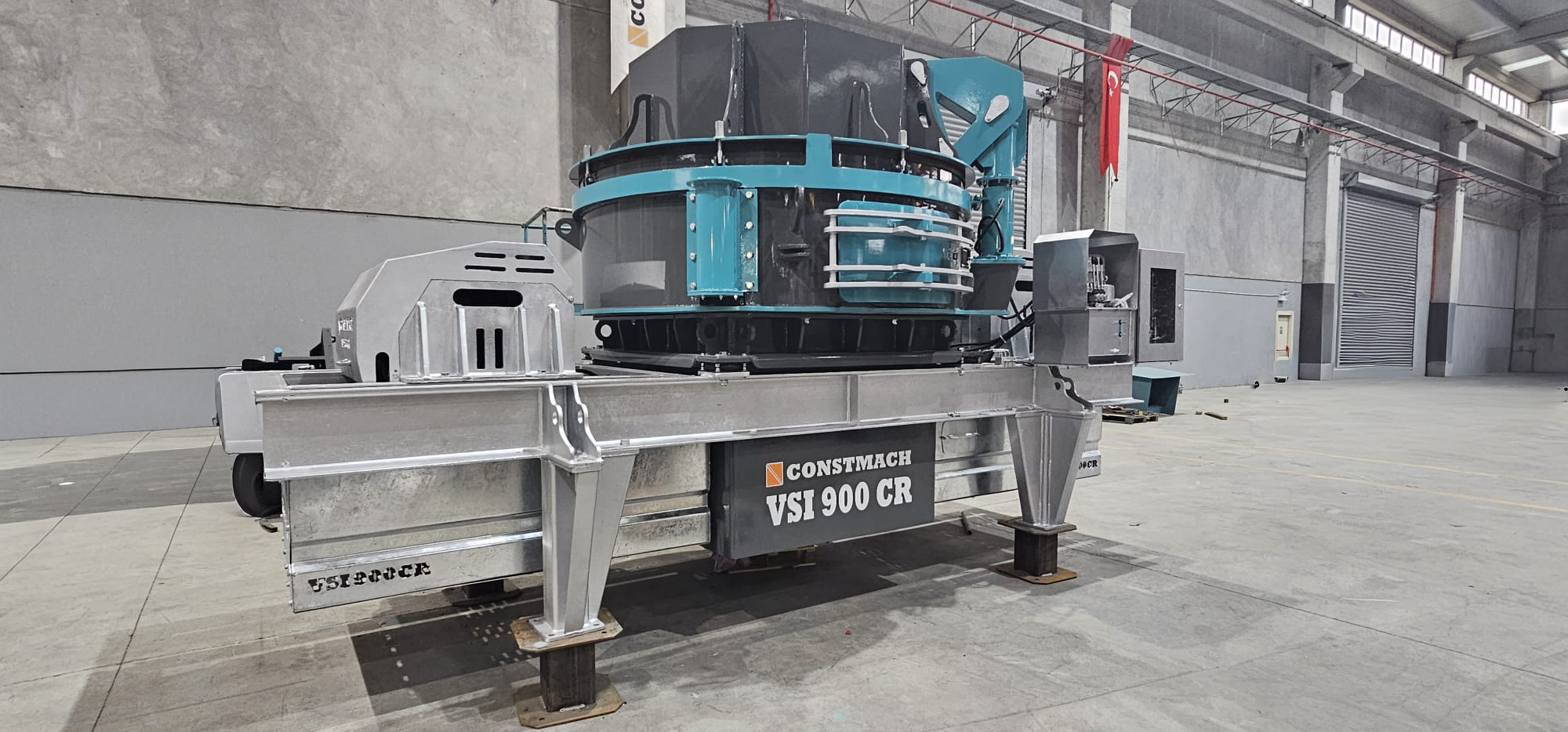

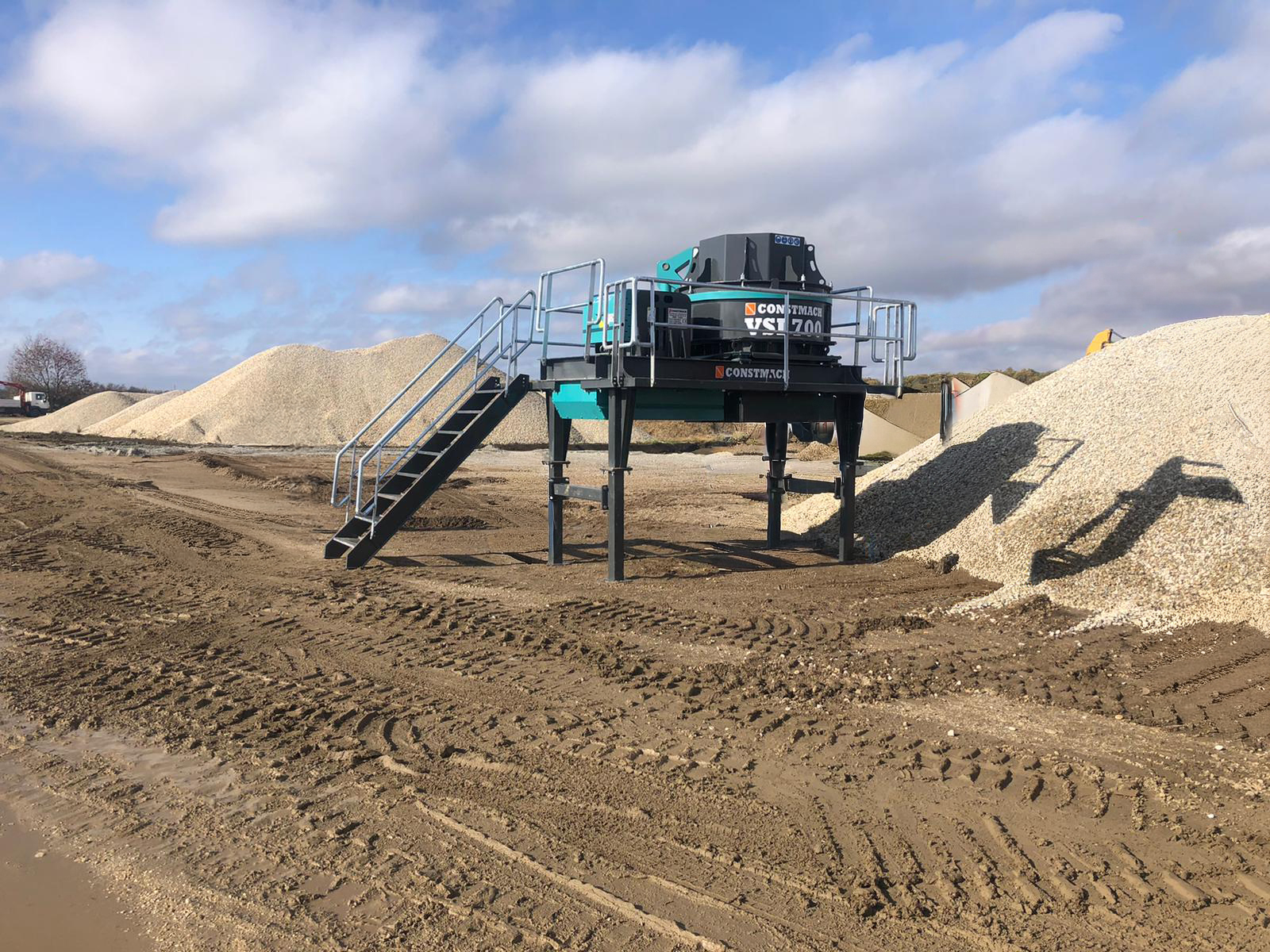

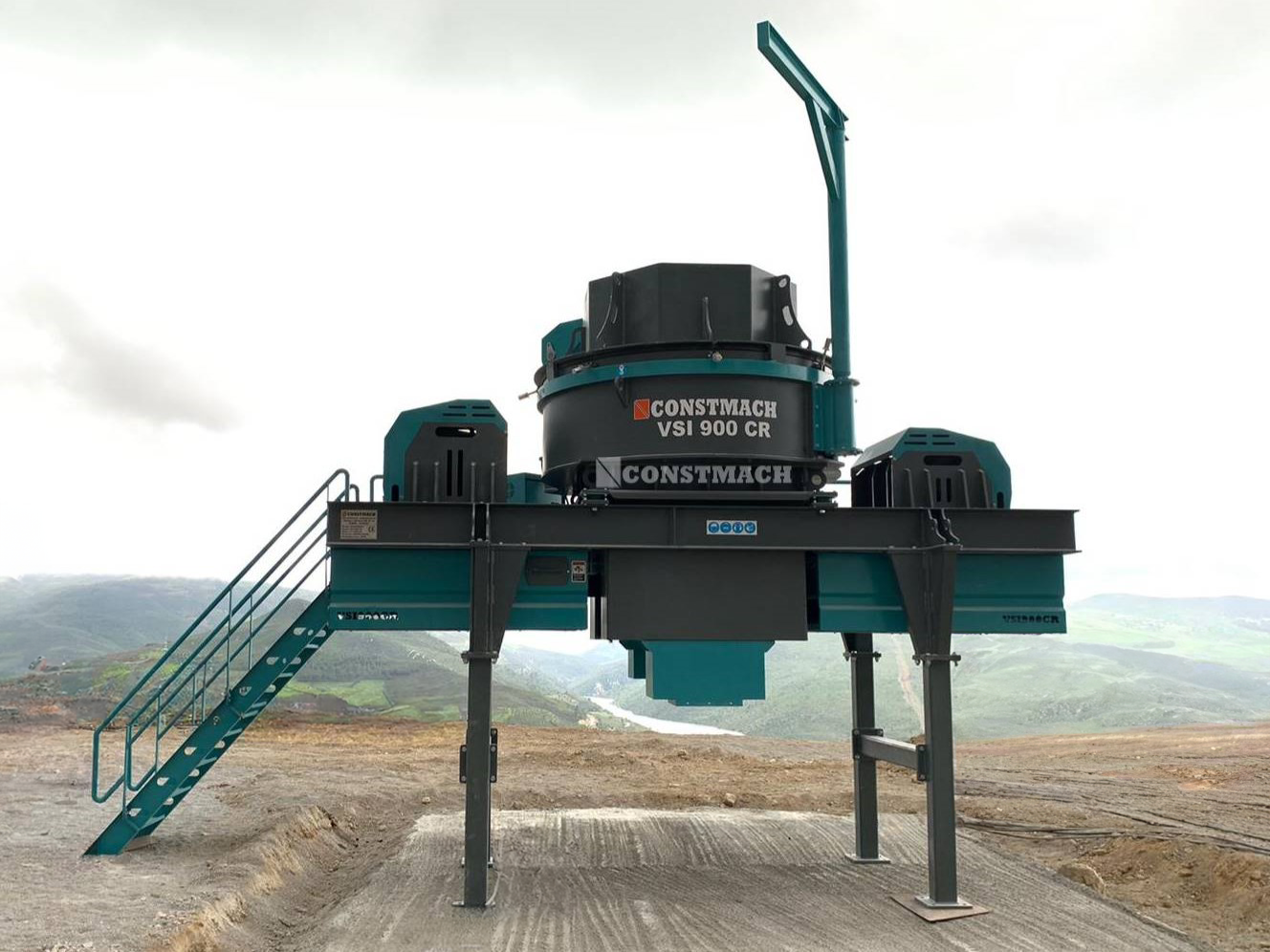

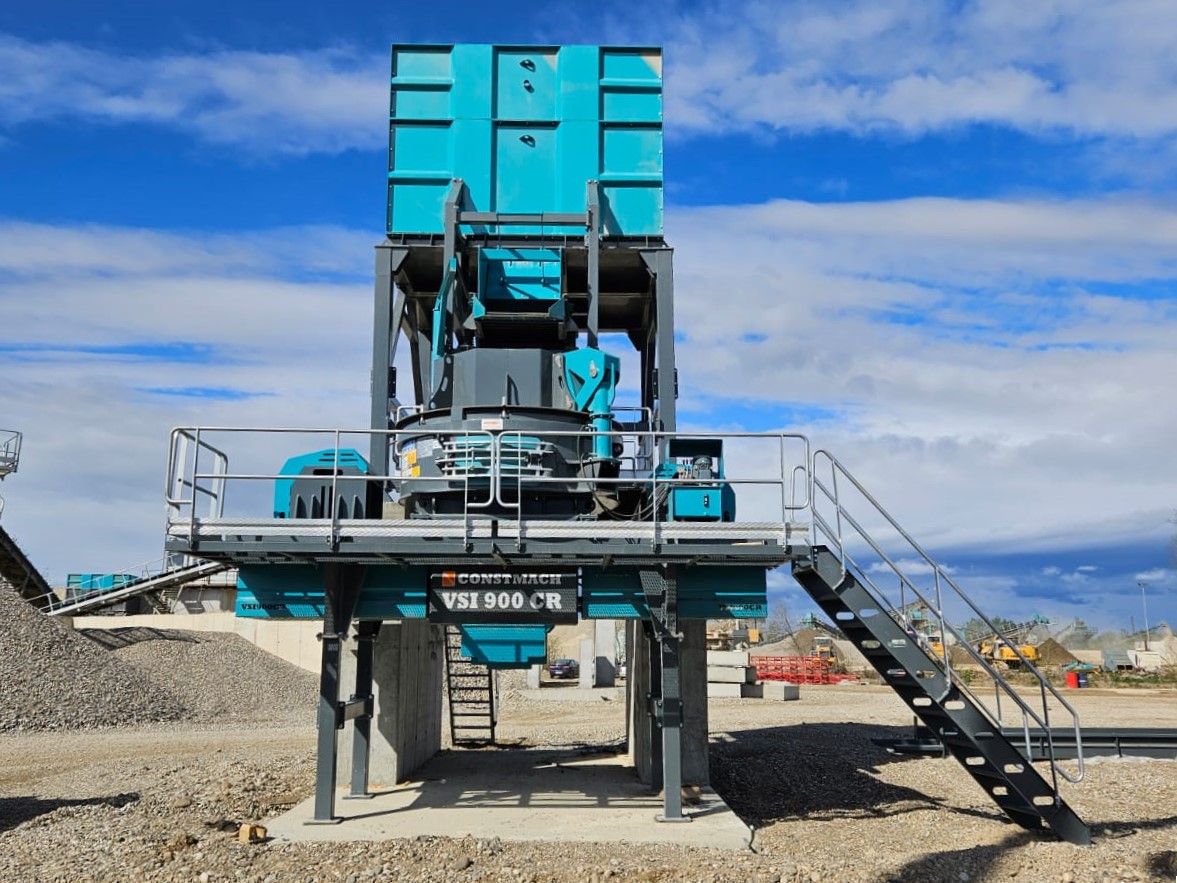

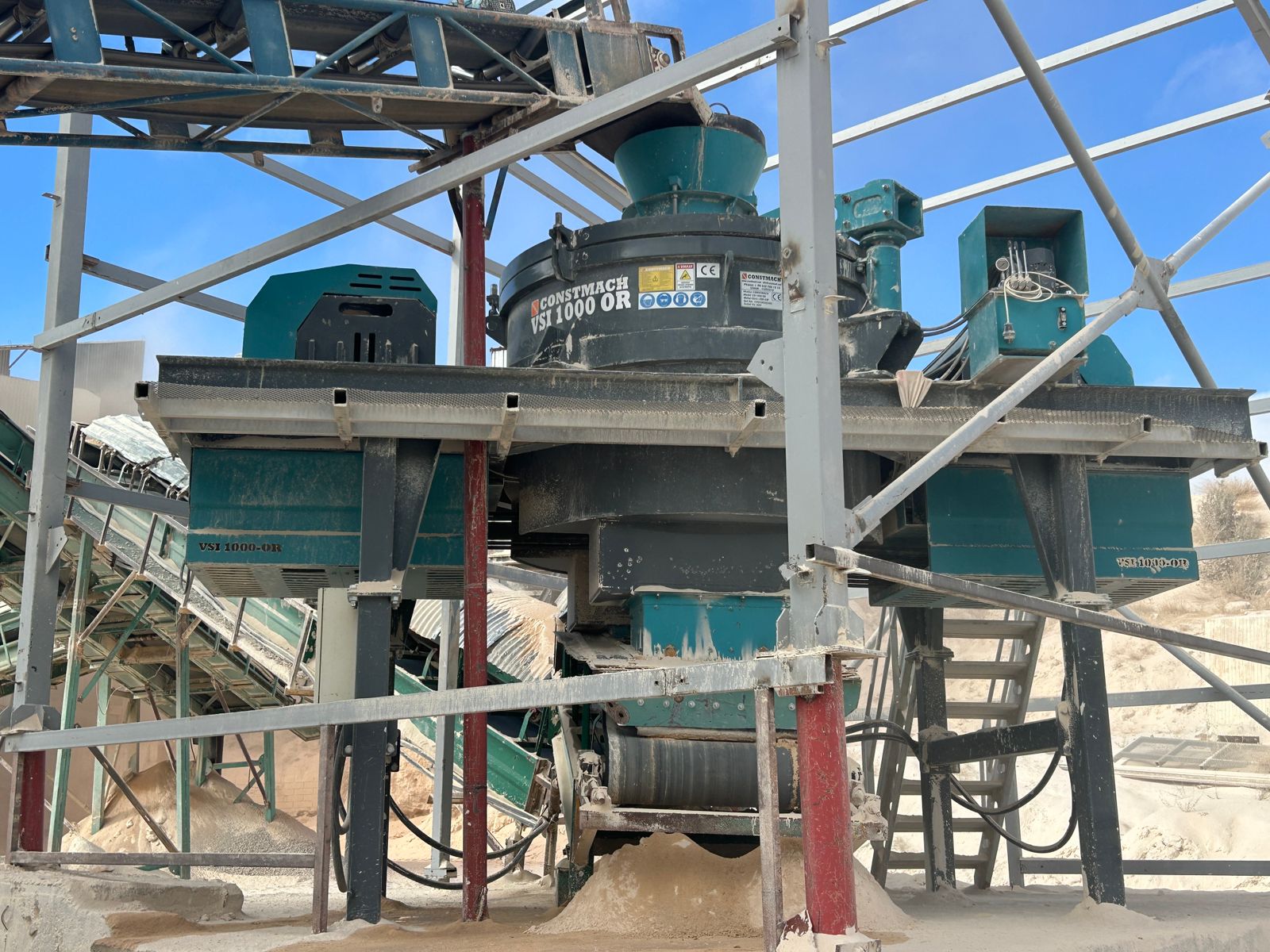

Model VSI-700-CR VSI-800-CR VSI-900-CR VSI-1000-OR
Max feeding size (mm) 35 mm 40 mm 45 mm 90 mm
Machine weight (kg) 6.500 Kg 12.000 Kg 14.500 Kg 15.000 Kg
Crusher motor power (kW) 110 kW 2 x 160 kW 2 x 185 kW 2 x 200 kW
Rotor Diameter (mm) Ø700 mm Ø900 mm Ø900 mm Ø975 mm
Rotor Speed (m/s) 45, 52, 58, 60 m/s 45, 52, 58, 60 m/s 45, 52, 58, 60 m/s 58, 60 m/s
Production capacity (t/h) 65 – 90 t/h 190 – 250 t/h 200– 300 t/h 250 – 400 t/h
Transport
Our shipping friendly VSI crushers minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT containers.
Vertical Shaft Impact Crushers Video
Vertical Shaft Impact Crushers E-Catalog
