Tertiary Impact Crushers
CONSTMACH Tertiary Impact Crusher is ideally suited to crush medium-hard, non-abrasive materials down to a cubical, well graded product size of 0 ֠5 mm (60% passing) in a single pass. Due to its added control over the upper product sizes and high reduction ratios, it can efficiently operate in closed circuit on smaller product fractions. Hydraulic opening mechanism helps the users to do the maintenance and settings operations easily.
Features of CONSTMACH TERTIARY IMPACT CRUSHERS:- High reduction ratio
- Cubical product with high crush count
- Selective crushing by speed and breaker plateadjustment
- Interchangeable wear parts
- Hydraulic adjustment and opening mechanism
Tertiary Impact Crushers Technical Specifications
| MODEL | Rotor Diameter (mm) |
Rotor Speed (rpm) |
Maximum Feeding Size (mm) |
Capacity (ton/hour) |
Motor Power (kW) |
Weight (kg) |
|---|---|---|---|---|---|---|
| CTC - 1275 | 1.100 x 750 mm | 800 - 900 | 100 mm | 60 - 80 t/h | 110 kW | 9.500 kg |
| CTC - 1210 | 1.100 x 1.000 mm | 800 - 900 | 120 mm | 80 - 135 t/h | 160 kW | 12.500 kg |
| CTC - 1212 | 1.100 x 1200 mm | 800 - 900 | 150 mm | 120 - 170 t/h | 200 kW | 15.500 kg |
| CTC - 1215 | 1.100 x 1.500 mm | 800 - 900 | 150 mm | 230 - 250 t/h | 250 kW | 18.500 kg |

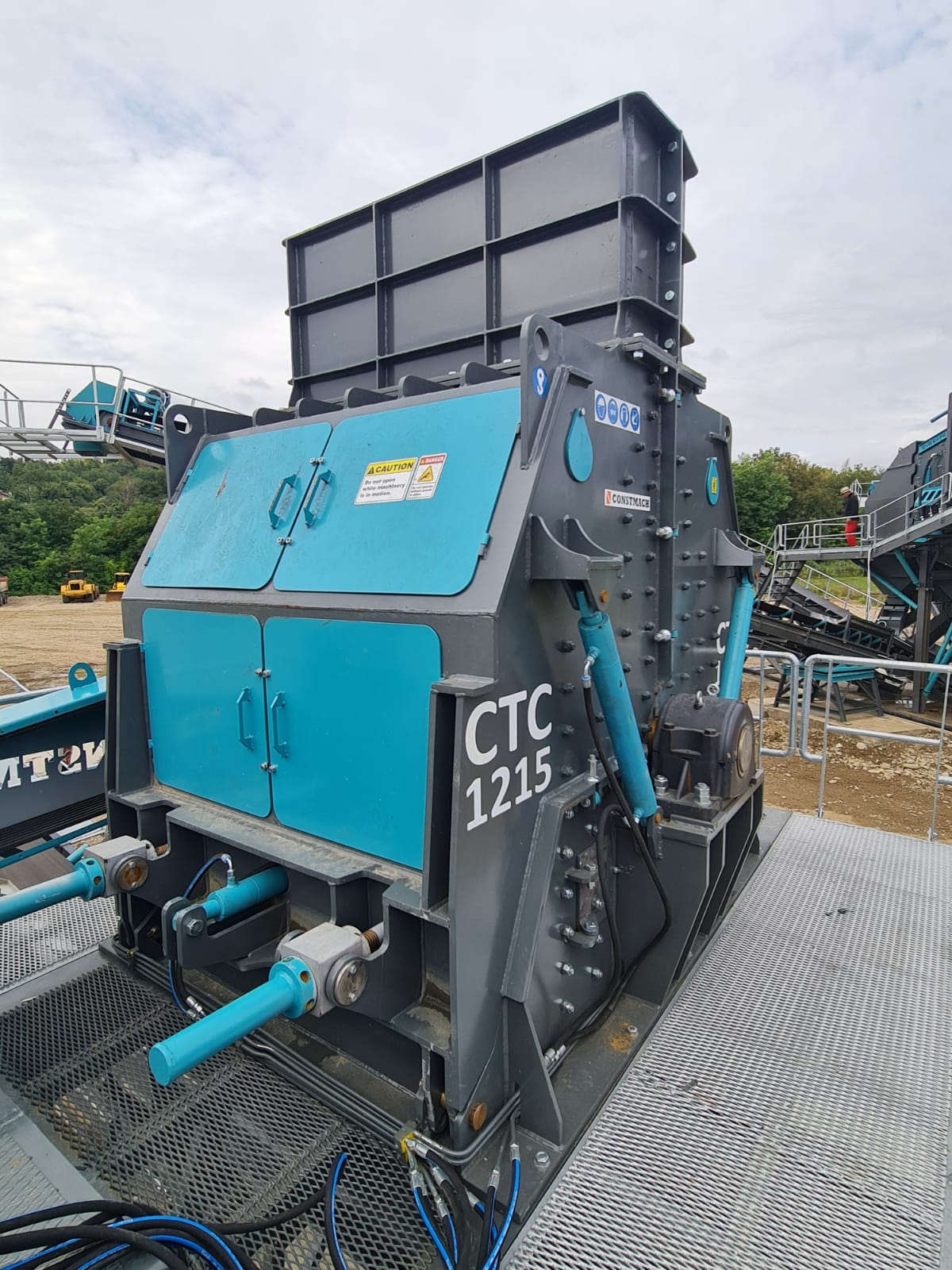

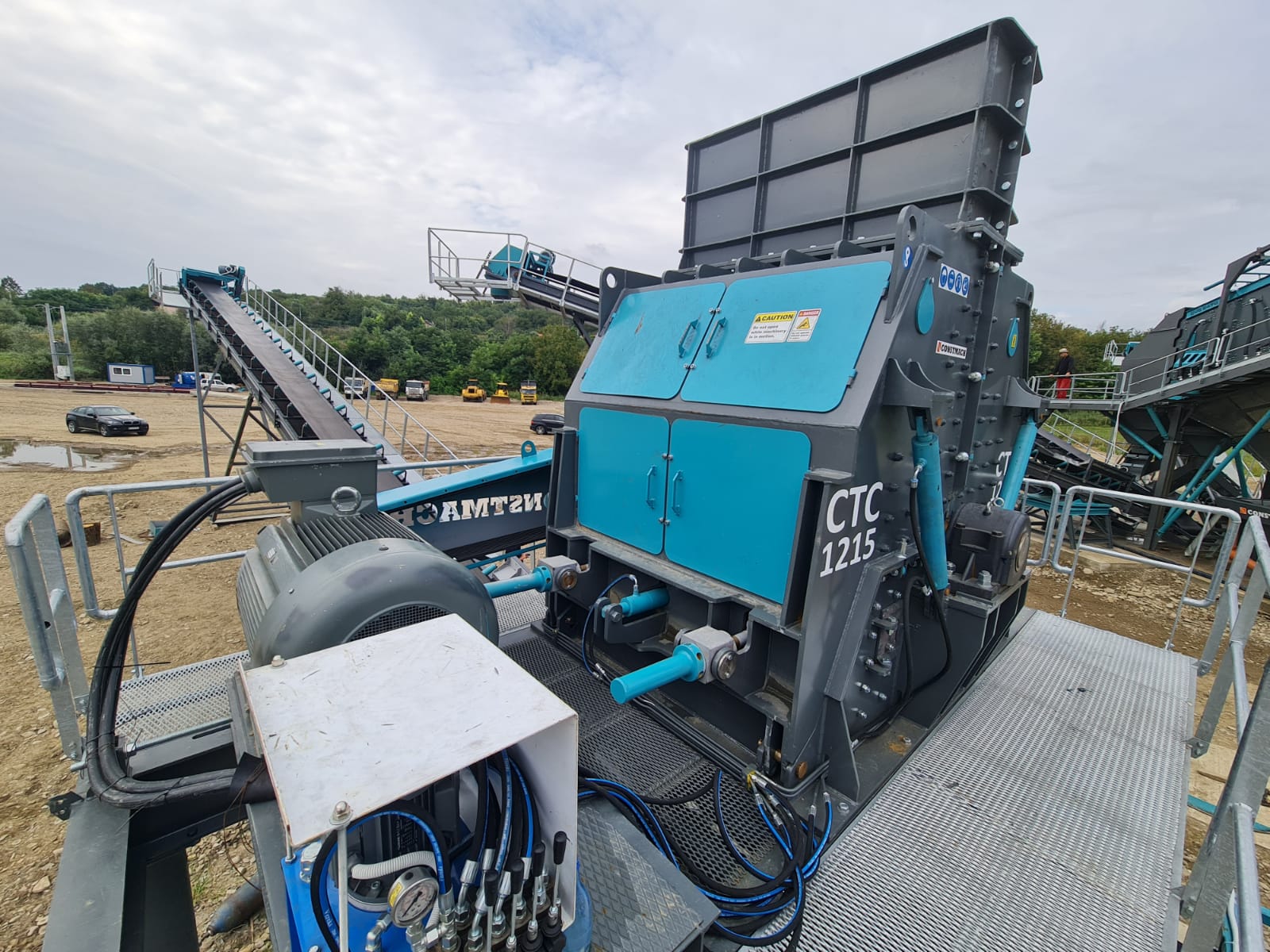

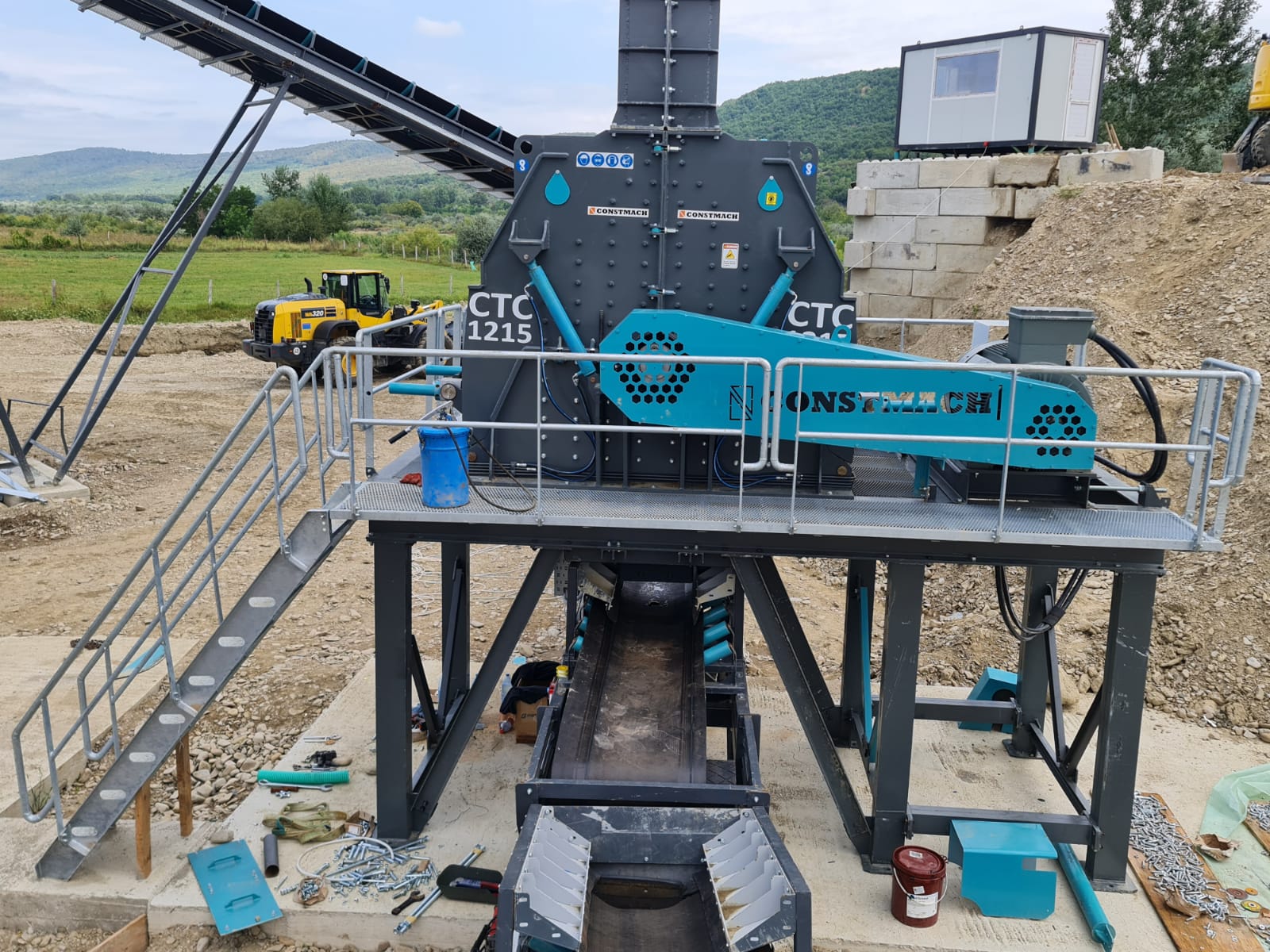

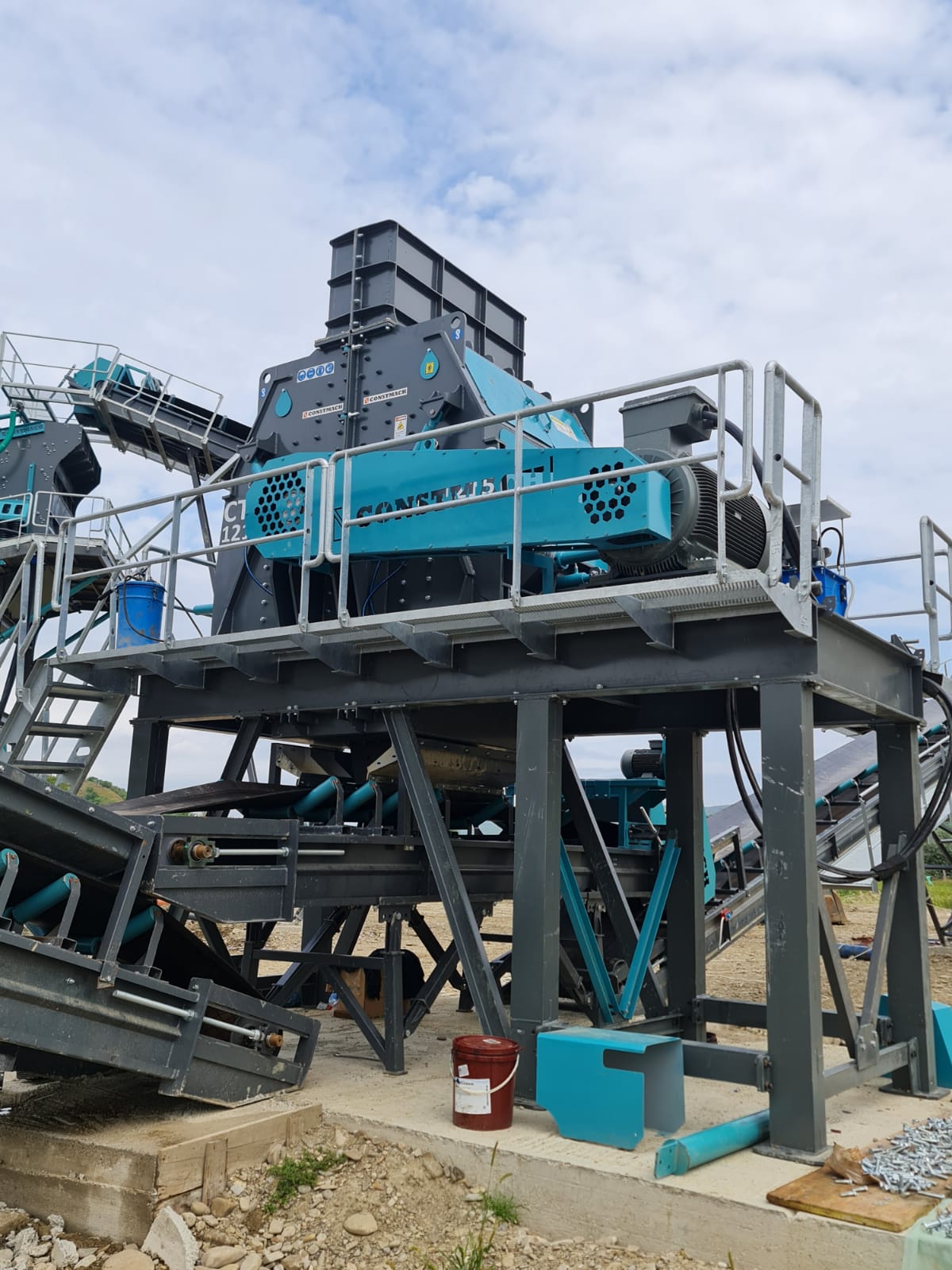

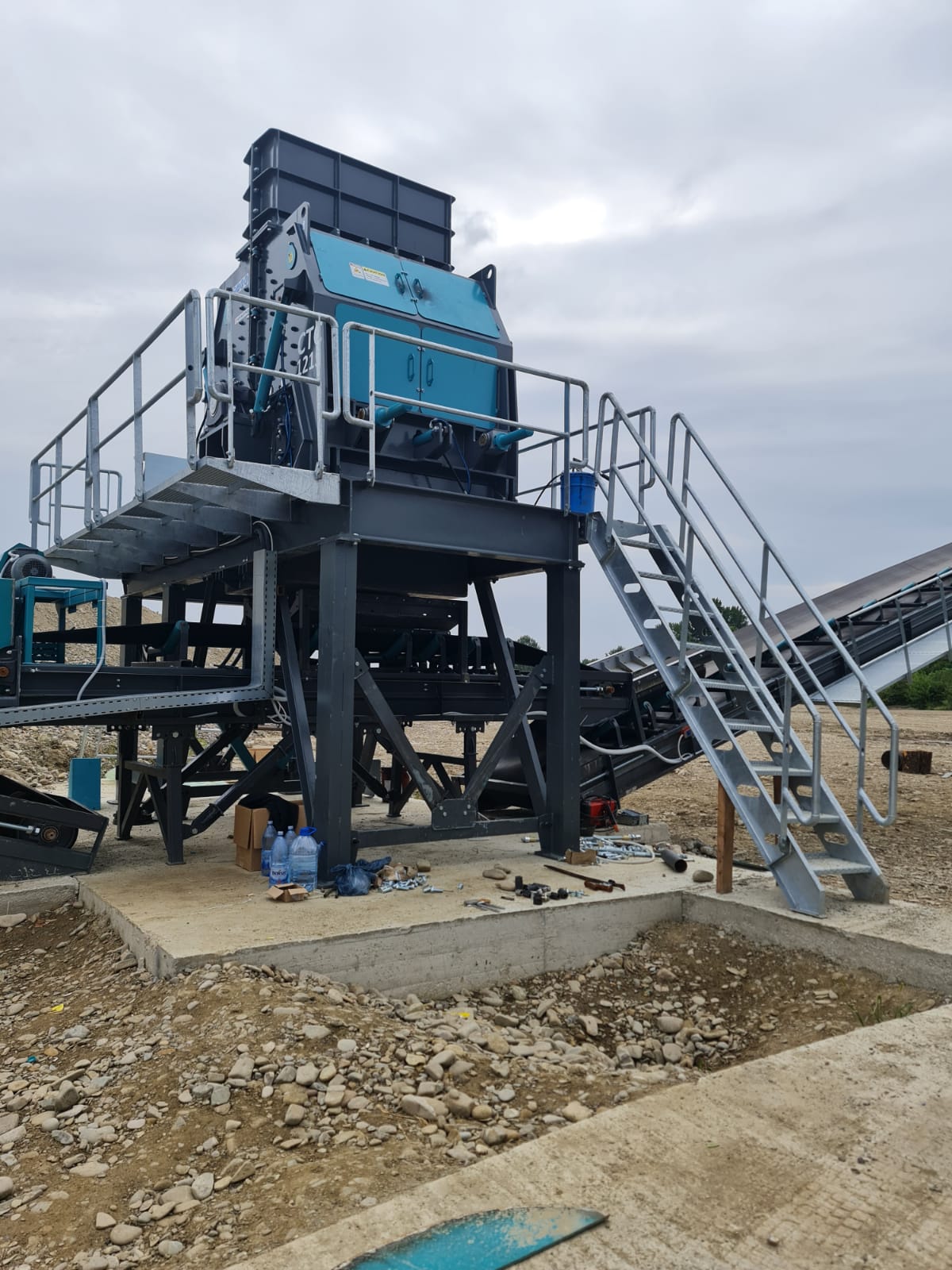

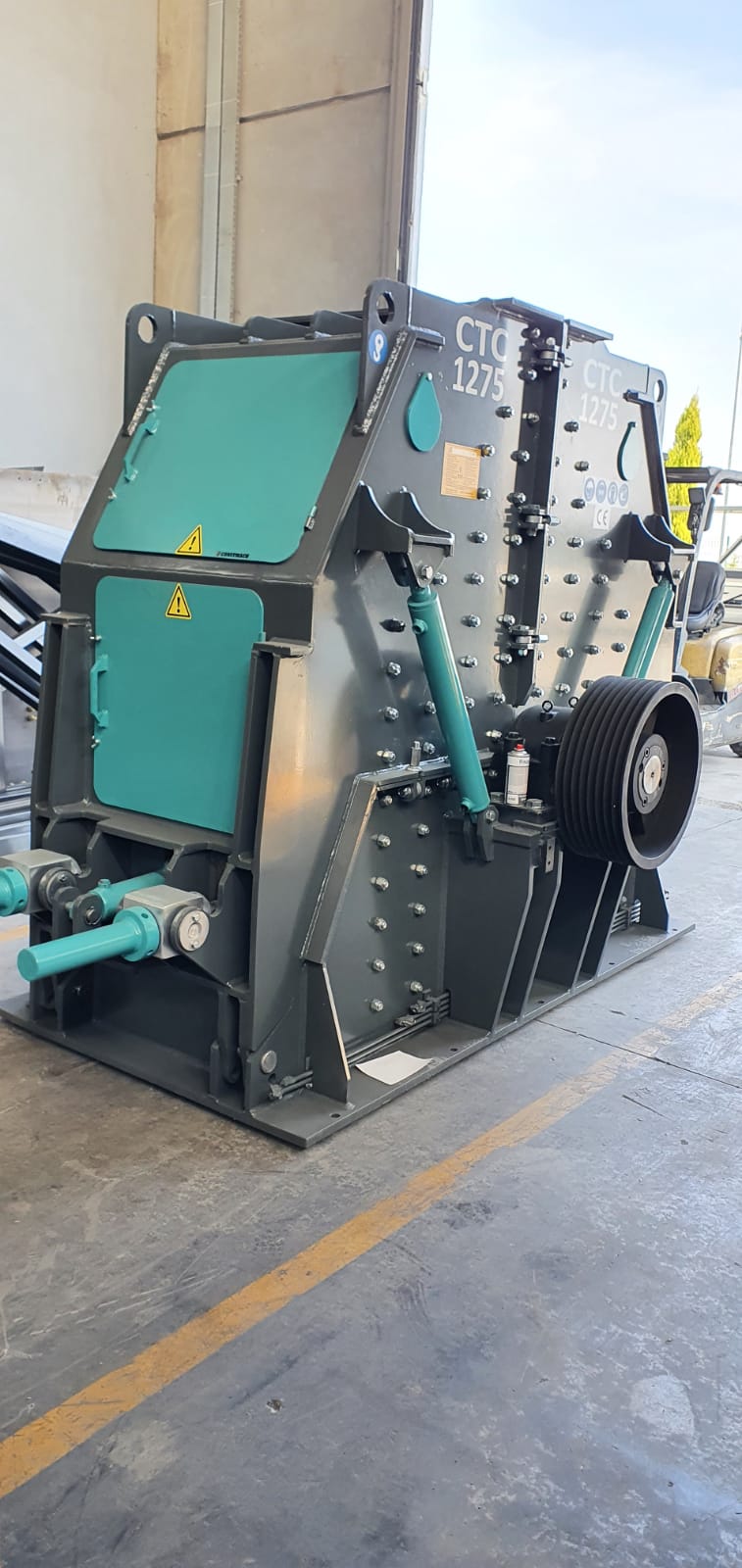

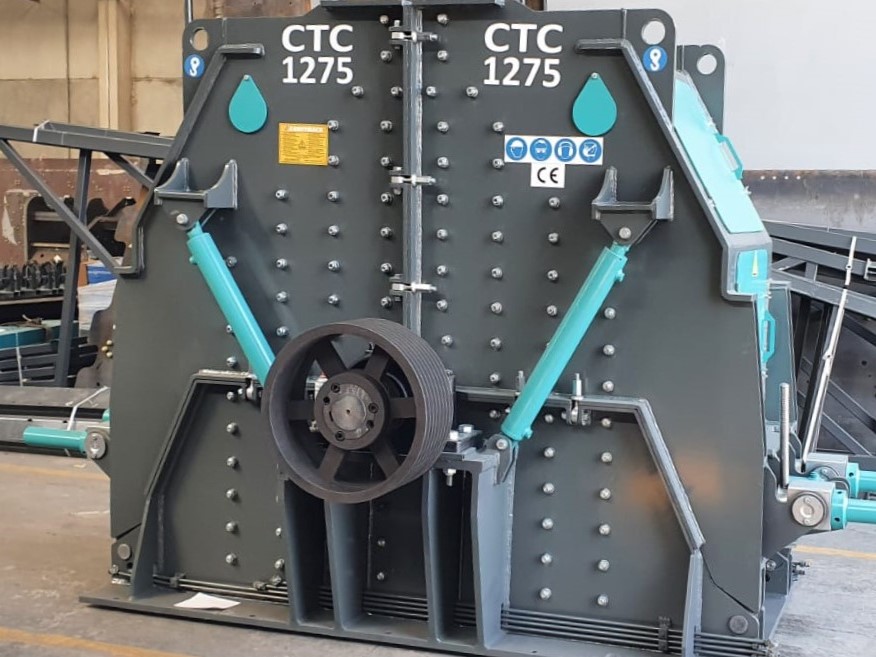

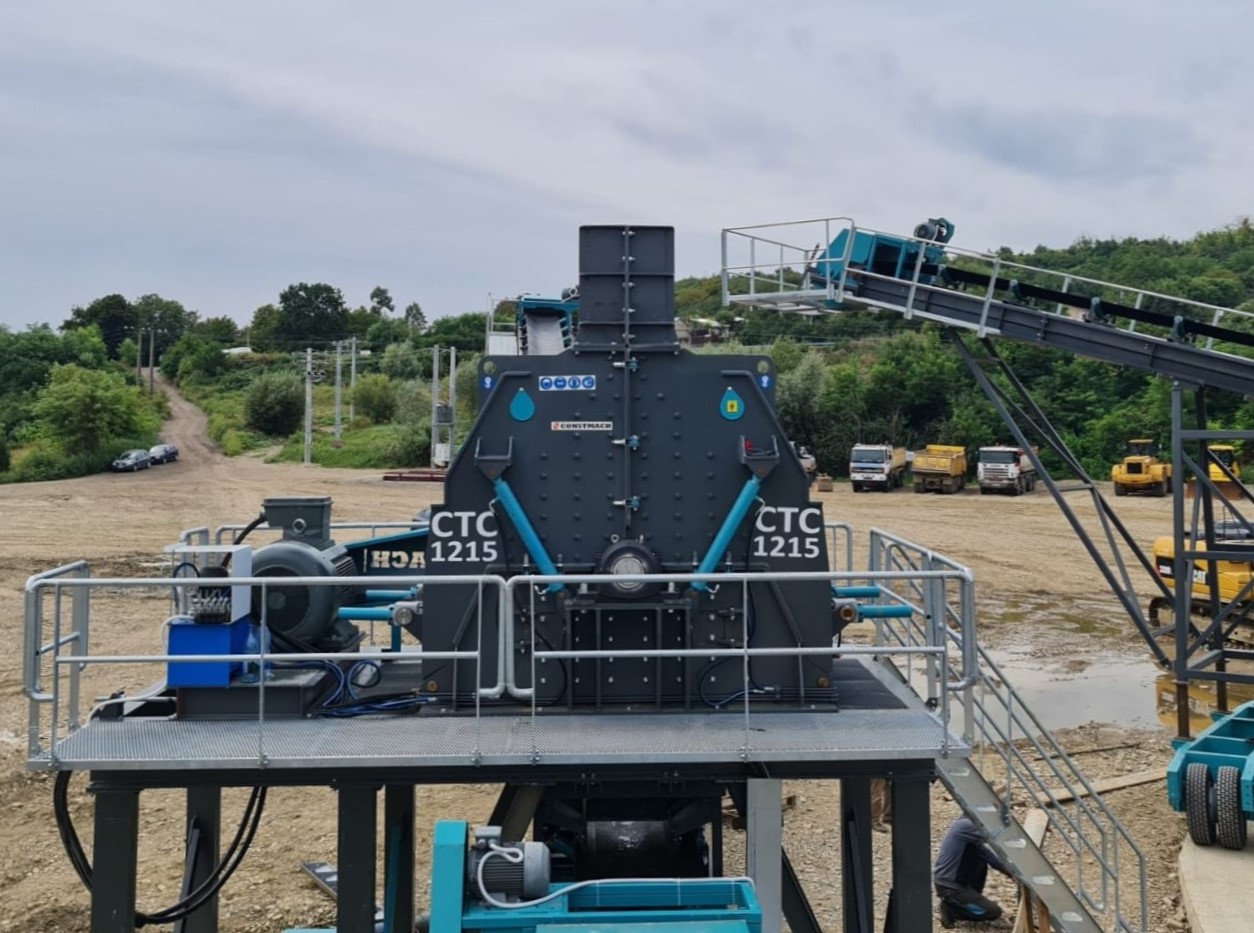

Tertiary Impact Crushers Gallery
You can examine some photos of the product named Tertiary Impact Crushers taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.

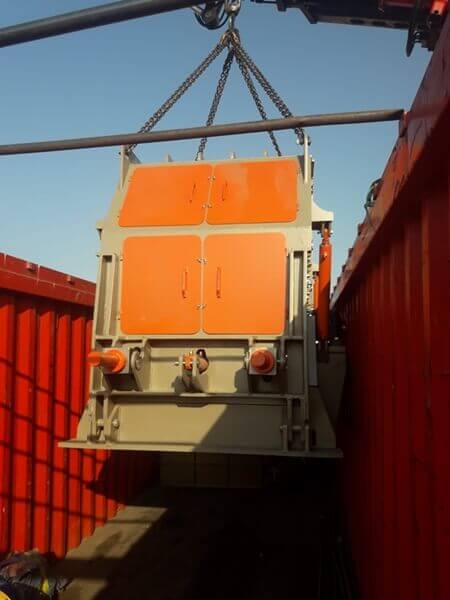

Transport
Our shipping friendly tertiary crushers minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT containers.

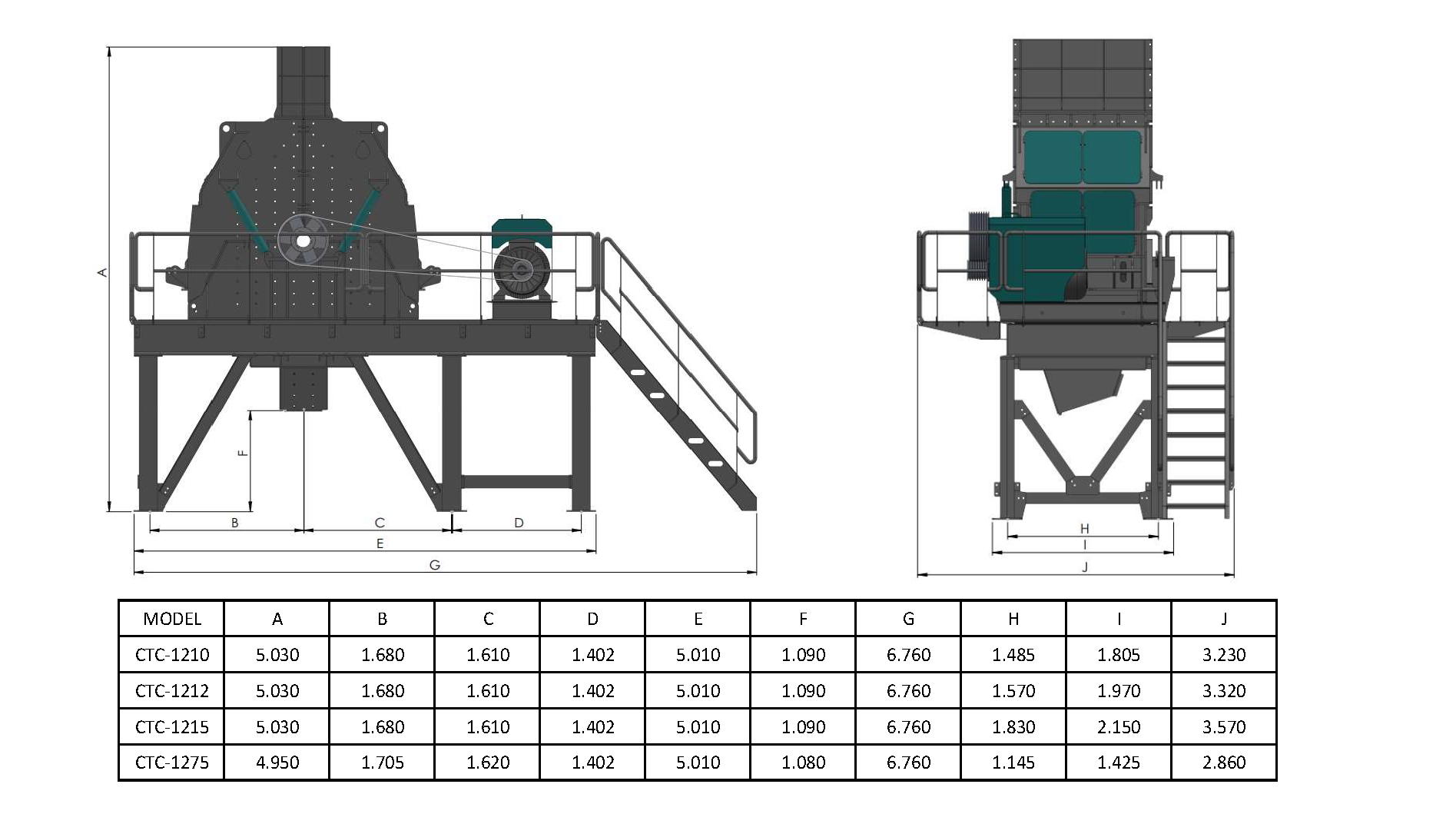

Tertiary Impact Crushers General Layout
