Primary Impact Crusher

Primary Impact Crushers

CONSTMACH Primary Impact Crushers are excellent solutions for crushing soft & middle hard materials with high production capacity and cubical shaped products. High reduction ratio of our Primary Impact Crushers allows secondary crushing requirements and helps to maximize the plant capacities. Thanks to its hydaulic setting mechanism, both settings and maintenance are done easily.

Features of CONSTMACH PRIMARY IMPACT CRUSHERS:

Thick side sheets, with manganese liners in wear areas
Large spherical self-aligning roller bearings
Rotor is arc-welded, then thermally stress relieved.
Manganese steel impeller bars
Large inlet feed opening with chain curtains to protect against rebounding
High reduction ratio
Unobstructed discharge openings
Adjustable breaker bar to aid in product size control

Primary Impact Crushers Technical Specifications

MODEL	Rotor Diameter (mm)	Max Feeding Size (mm)	Capacity (ton/hour)	Motor Power (kW)	Weight (kg)
CPI - 1412	1.400 x 1.250 mm	900 x 900 mm	200 - 250 t/h	250 kW	23.000 kg
CPI - 1415	1.400 x 1.540 mm	1.000 x 1.000 mm	350 - 400 t/h	315 kW	28.000 kg
CPI - 1620	1.600 x 2.000 mm	1.300 x 1.300 mm	400 – 600 t/h	2 x 250 kW	52.000 kg

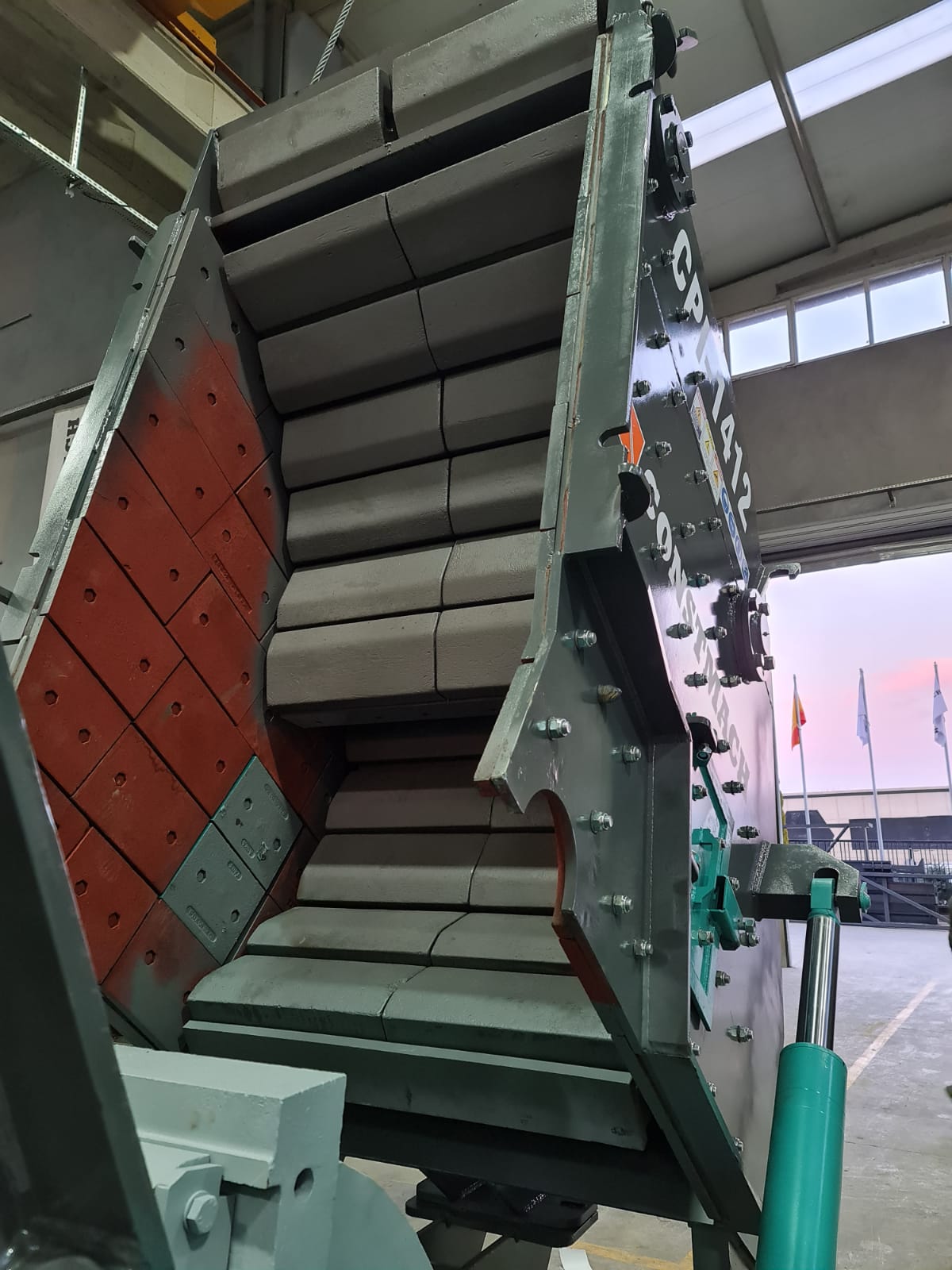

Primary Impact Crushers Gallery

You can examine some photos of the product named Primary Impact Crushers taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.

Transport

Our shipping friendly primary impact crushers minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT or flat rack containers.

Primary Impact Crushers General Layout

Primary Impact Crushers Catalogue Primary Impact Crushers Catalogue DOWNLOAD
