Belt Conveyors

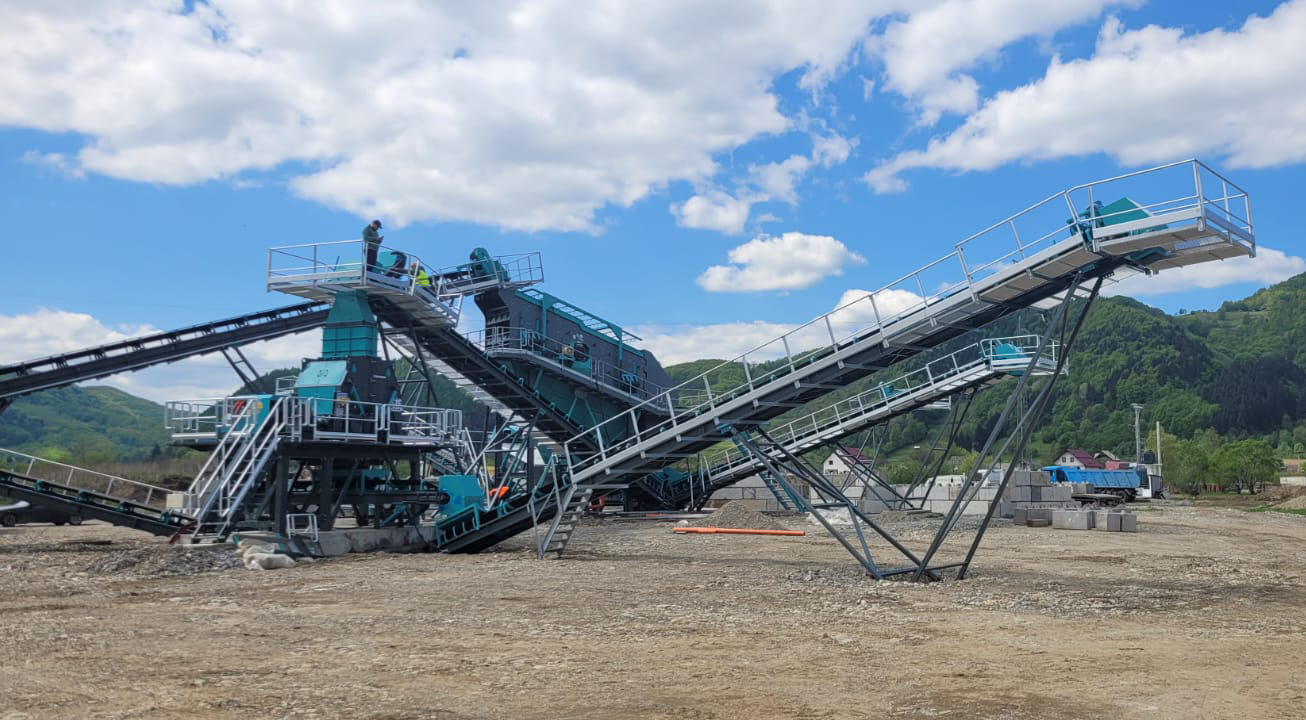

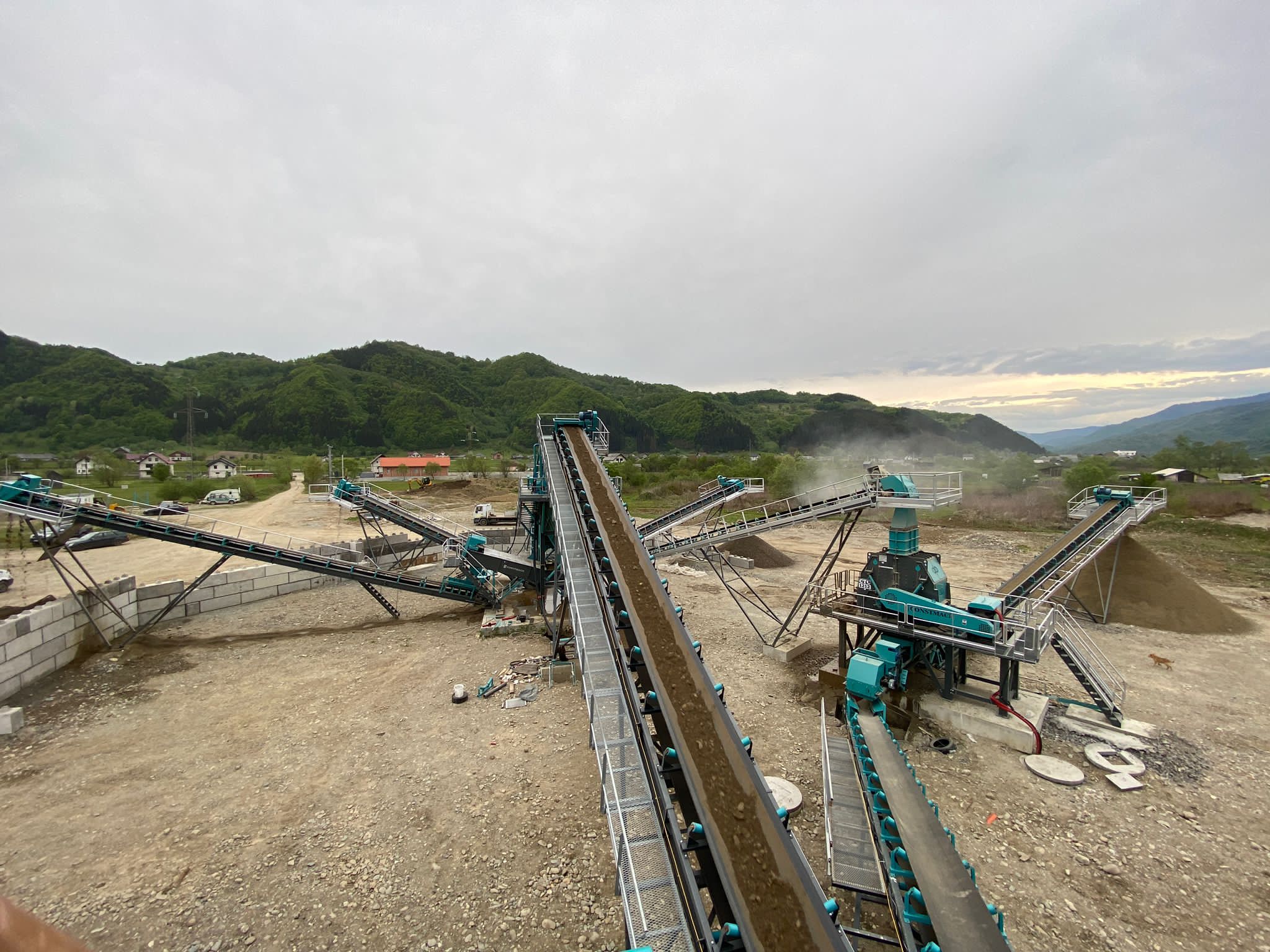

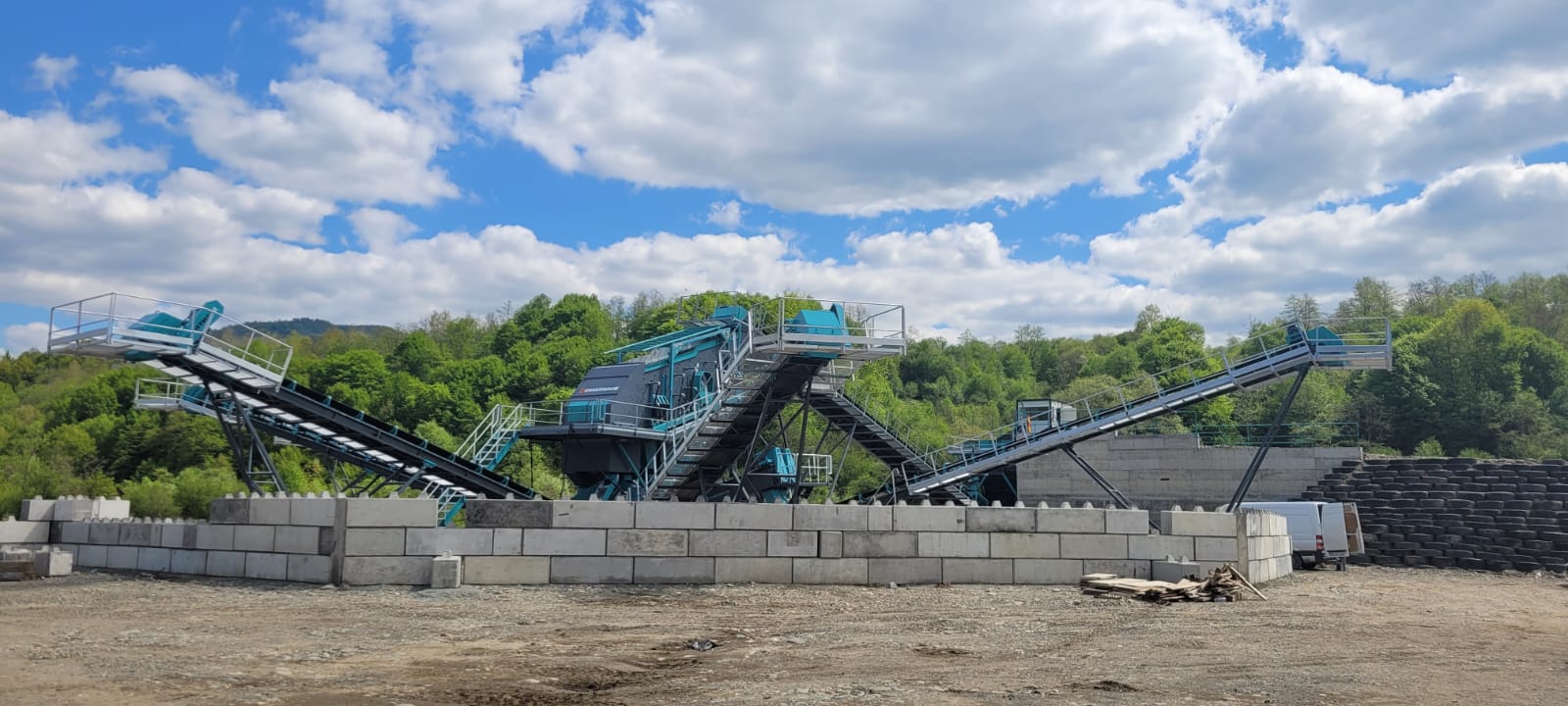

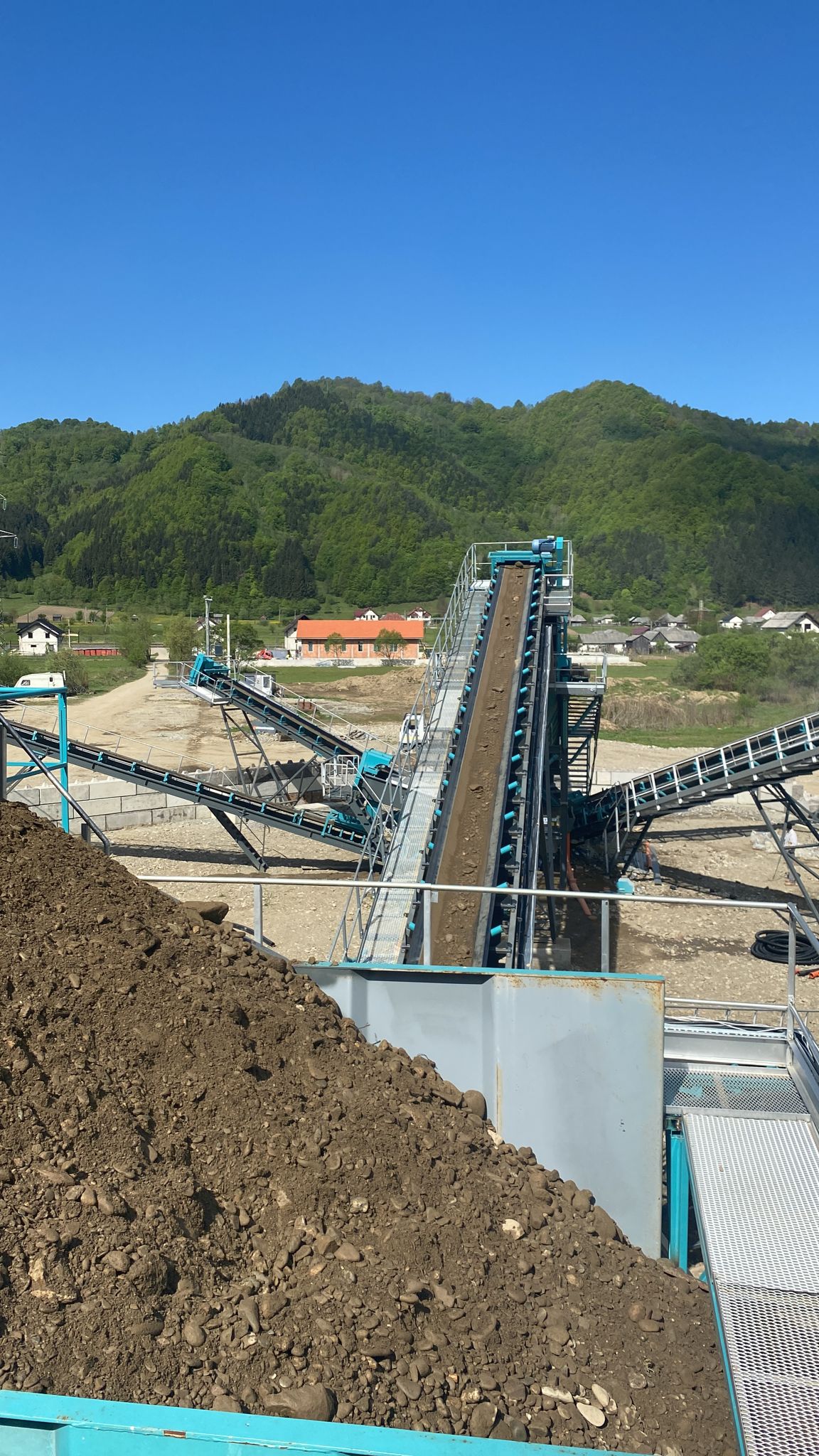

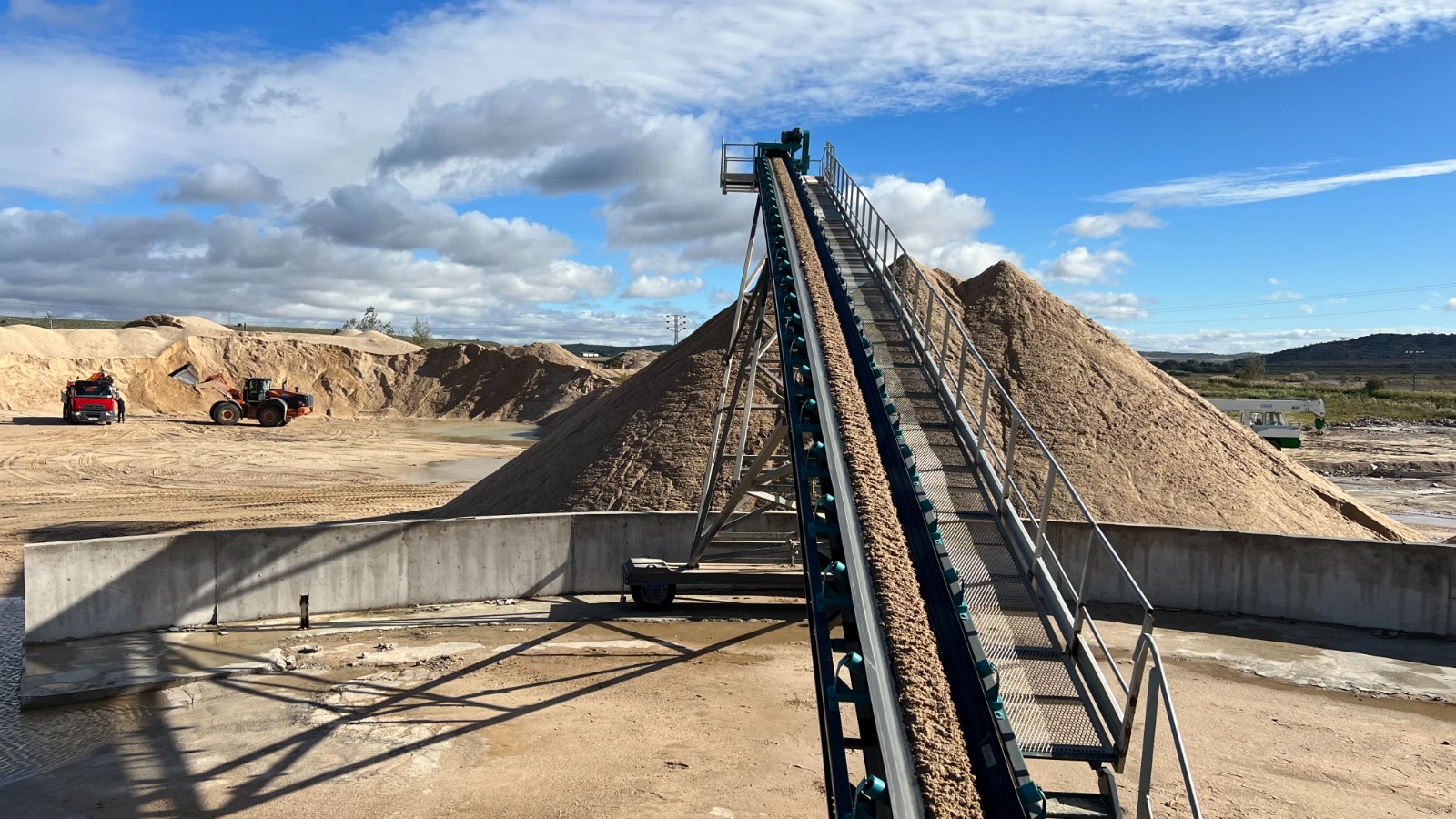

CONSTMACH Belt Conveyors are used in our concrete batching and stone crushing & screening plants to weigh, feed, transfer and stock the materials. CONSTMACH Belt Conveyors are equipped with high quality and heavy duty electric motors and gearboxes. In addition, 4 layers high quality belt rubbers, long life rollers, rubber coated drums, walking platforms, durable & strong steel chassis, emergency stop buttons are other elements of our belt conveyors.As an optional application, our conveyors can be covered to reduce dust extraction to the environment. In addition to the conveyors which are part of our complete lines, our company manufactures also conveyors for our clients’ existing plants with the requested sizes.

You can see the general layout, transport information and photos of Belt Conveyors by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.
Belt Conveyors Technical Specifications
MODEL
CBC-500
CBC-650
CBC-800
CBC-1.000
CBC-1.200
Band width (mm) 500 mm 650 mm 800 mm 1.000 mm 1.200 mm
Power equipment Reducer motor or Motor and Reducer with V-belt transmission
Rubber band Smooth or ribbed rubber band depending on application, 4 tarpaulin quality band is applied as standard
Bearings Spherical roller double row spherical roller bearings, SN type split housing
Inner scrapper RV-shaped rubber scraper next to transfer drum
Driving drum Rubberized and vulcanized with diamond grooves for greater grip on the band, with tightening rings on the axis
Transfer drum Rubberized and vulcanized with diamond grooves for greater grip on the band, with tightening rings on the axis
Support rollers Heavy series support rollers for mining, measures according to belt width and application
Transport
Our shipping friendly conveyors minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT containers.
