CS-75 - Cement Silo

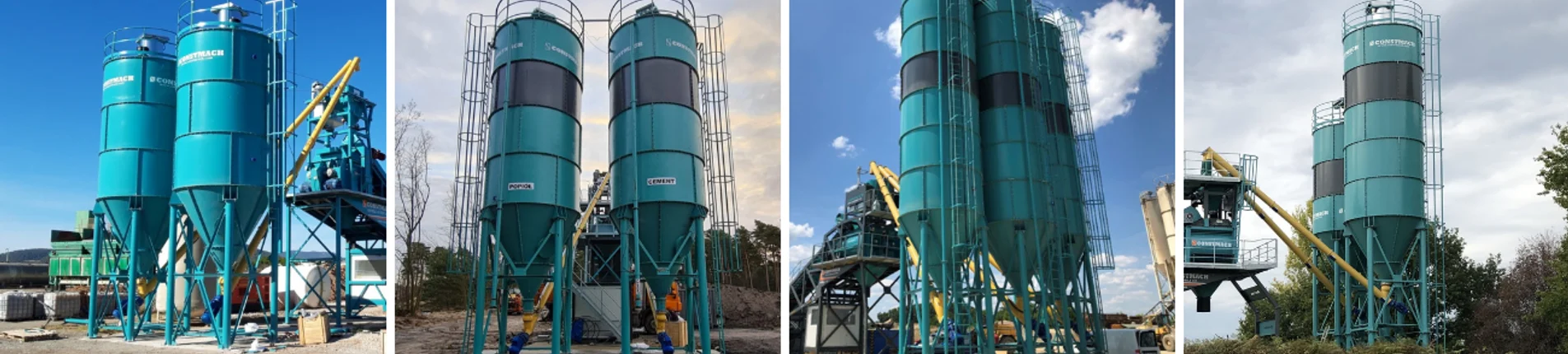

CONSTMACH 75 tonnes capacity cement silo CS-75 has a wide range of usage area from concrete plants to block machines and also ground study applications. CS-75 can be manufactured as bolted or welded type. 2 sets of bolted version of CS-75 can be shipped within 1 pcs 40 ft OT container or a truck.

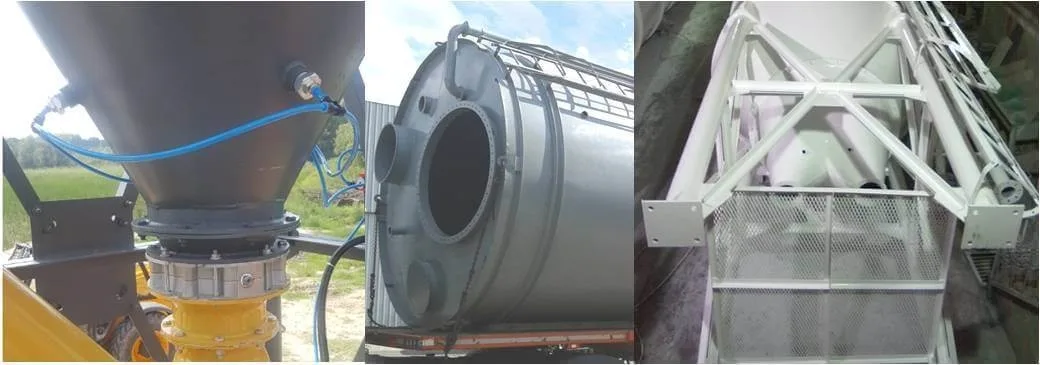

CONSTMACH CS-75 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve.

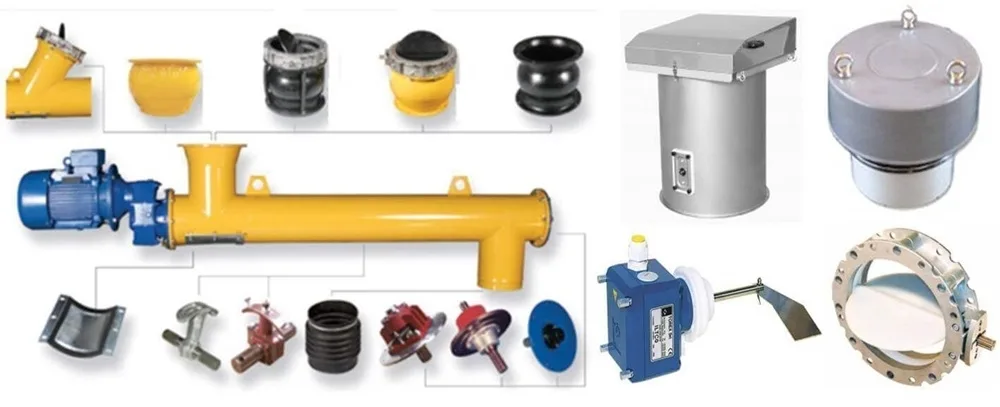

CONSTMACH CS-75 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging.

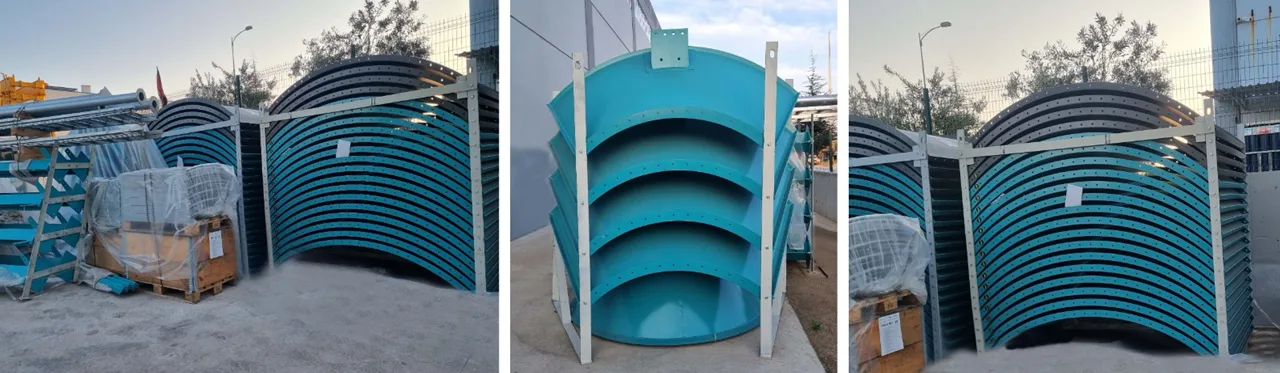

In case of manufacturing the bolted type version, parts of cement silos are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively.

1 layer of anticorrosive paint and 2 layers of FINAL COAT EPOXY PAINT with total paint thickness of 140 Microns are applied on our cement silos.

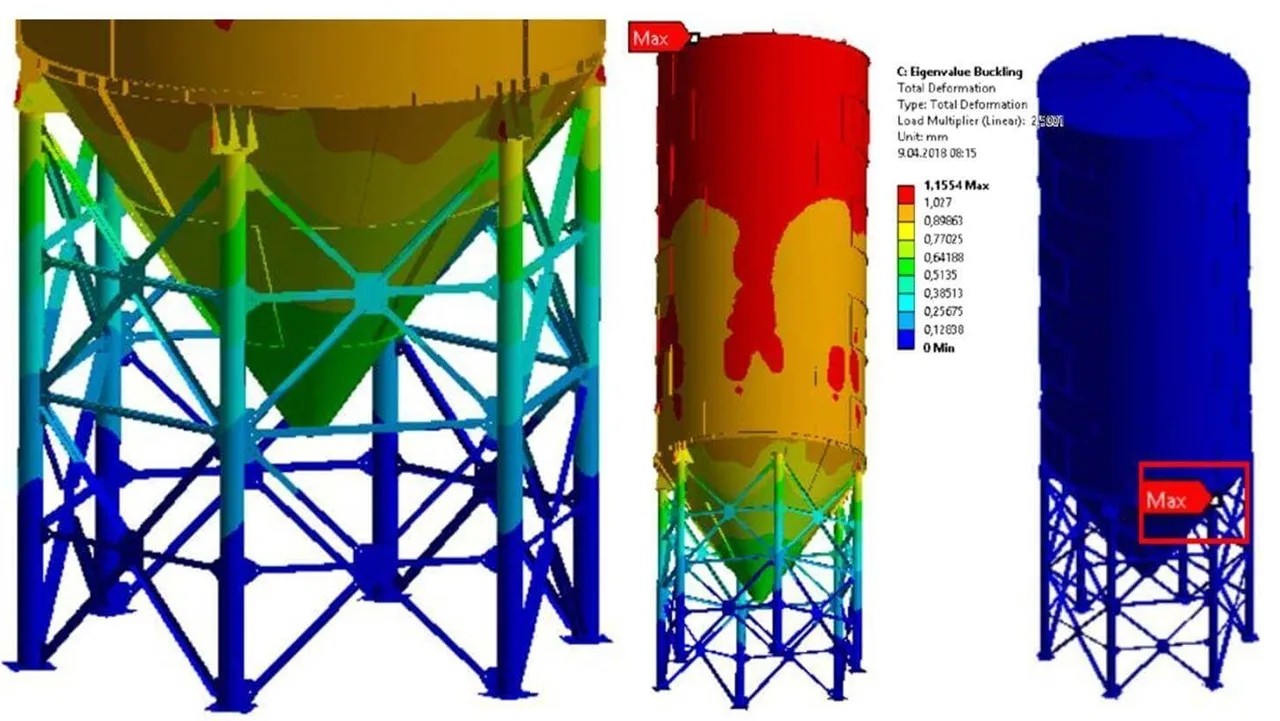

All static load and mechanical calculations of CS-75 is done by using ANSYS Workbench CAE software and the silo is capable to be stocked 75 tonnes of cement or similar material without any deformation in all conditions.

CS-75 - Cement Silo Technical Specifications
SILO CAPACITY 75 TONS, 58 m³
SILO HEIGHT 15880 mm
SILO DIAMETER Ø 3060 mm
QUANTITY OF SILO LEGS 4
SILO OUTPUT DIAMETER
NUMBER OF COMPONENTS 98
SILO WEIGHT 6360 kg
MATERIAL OF SILO LEGS 219x5 mm, STEEL PIPE
SUPPORTS OF SILO LEG NPL 80 mm CORNER IRON
SHEET METALS OF SILO LEG 20 mm SHEET METAL
CONICAL PART SUPPORT MATERIAL 100 mm STEEL C CHANNEL
CONICAL PART MATERIAL ST - 37 - 6 mm SHEET METAL
SILO BODY MATERIAL ST - 37 - 5 mm SHEET METAL
SILO TOP COVER MATERIAL ST - 37 - 4 mm SHEET METAL
CHARGING PIPE 4" STEEL PIPE UP TO SILO LEG
INNER MANHOLE IS PRESENT
OUTER MAN HOLE IS PRESENT
SILO ROOF INCLUDES HANDRAILS
MAINTENANCE PLATFORM IS PRESENT
STRUCTURAL ANALYSIS IS MADE FOR THE SILOS AND MANUFACTURING PROCESS DEPENDS ON APPROVED PROJECTS.
Transport

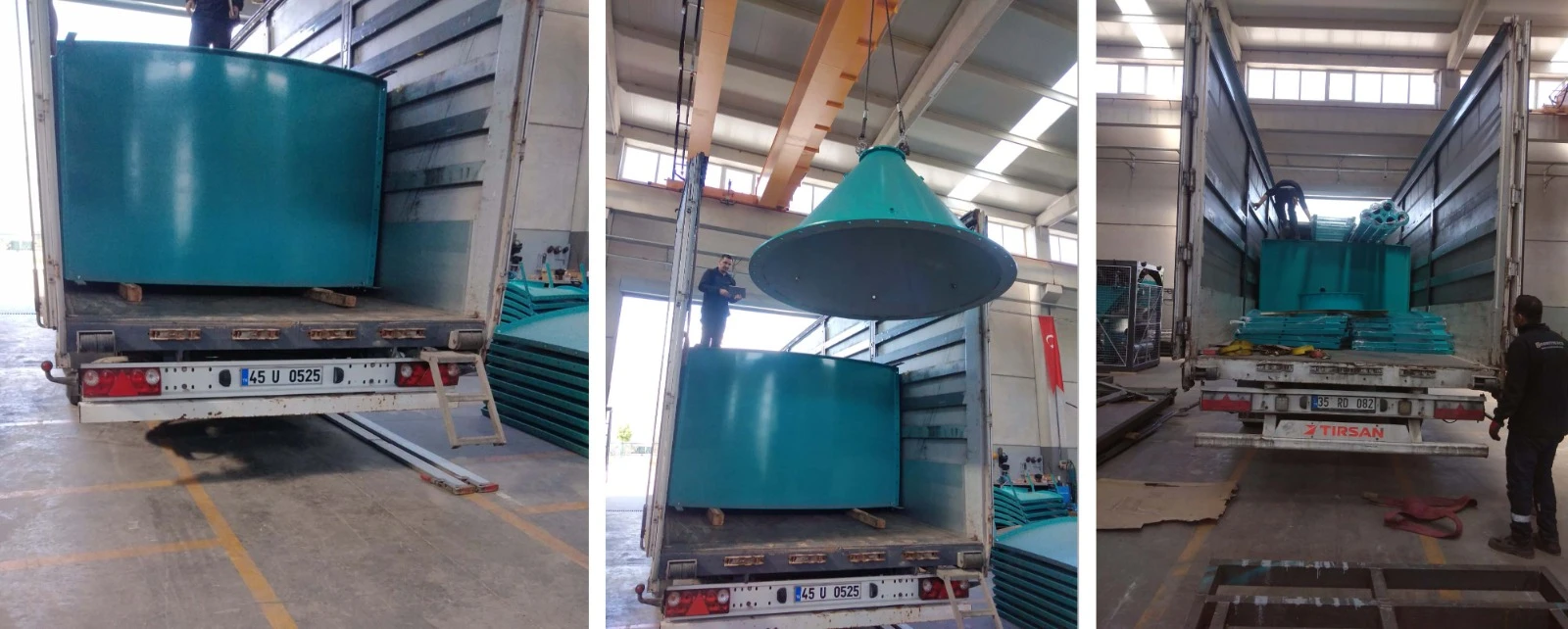

2 sets of bolted version of CS-75 can be shipped within 1 pcs 40 ft OT container or a truck trailer.
CS-75 - Cement Silo General Layout
