CS-300 Bolted Cement Silo

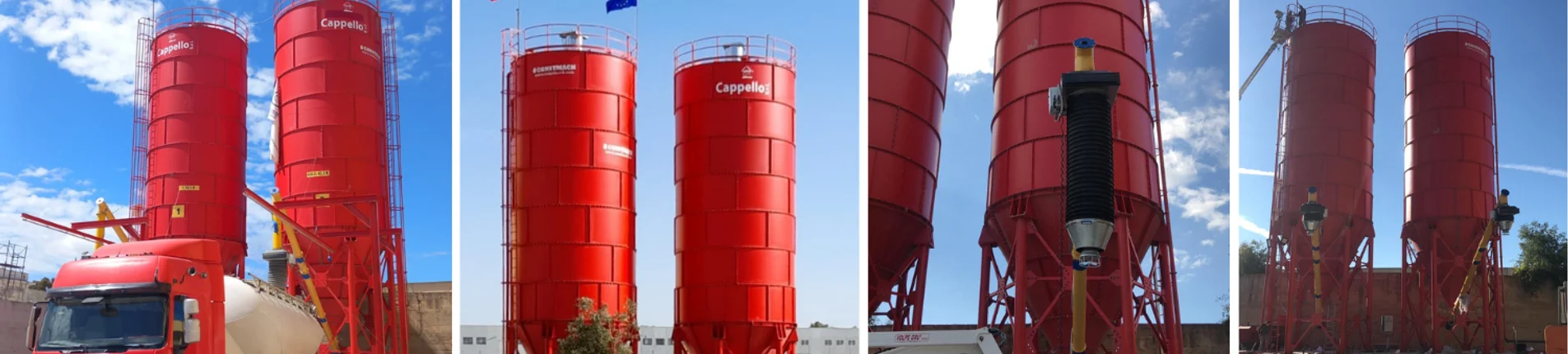

CONSTMACH 300 tonnes capacity, bolted type cement silo CS-300 is preferred especially in high capacity concrete batching plants and also in projects that cement stocking has a critical role.

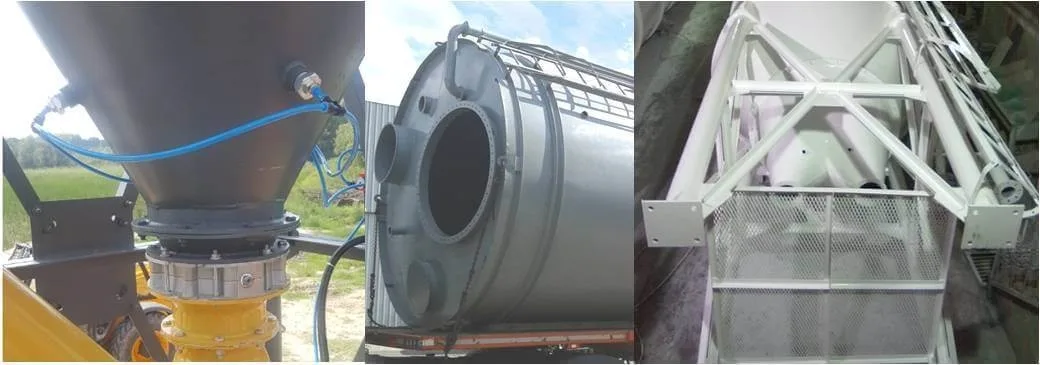

CONSTMACH CS-300 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve.

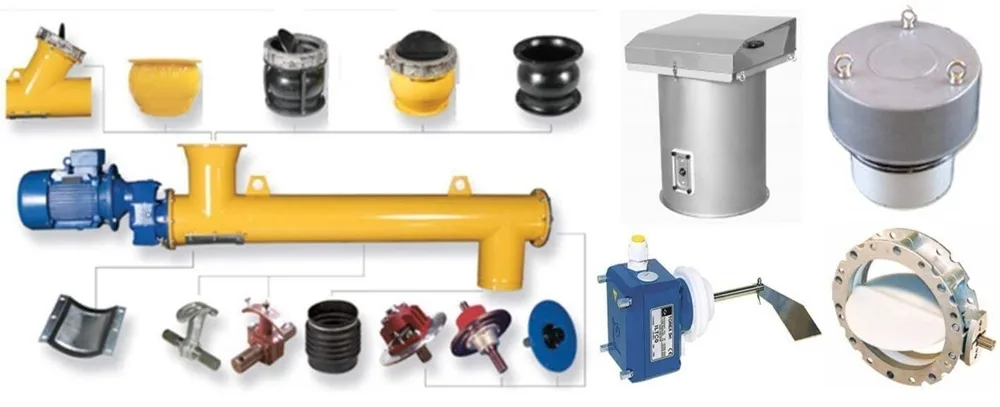

CONSTMACH CS-300 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging.

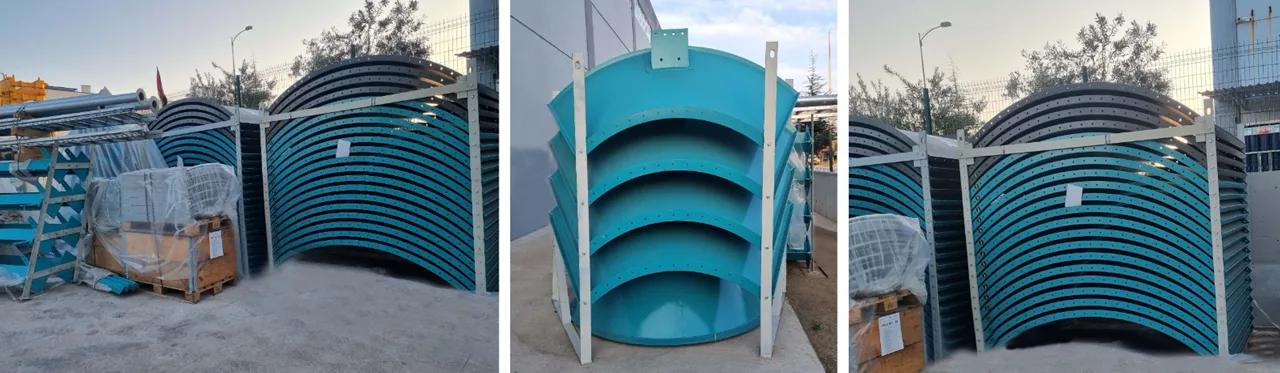

Parts of CS-300 bolted type cement silo are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively.

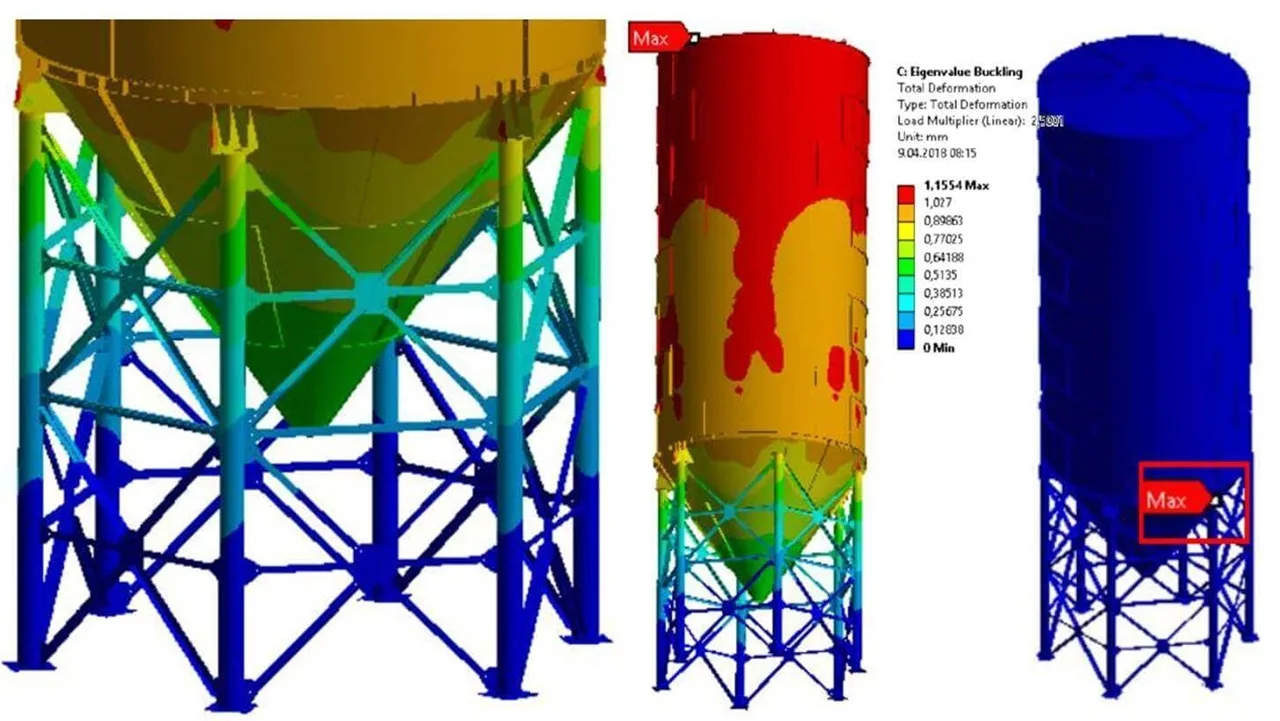

All static load and mechanical calculations of CS-300 is done by using ANSYS Workbench CAE software and the silo is capable to be stocked 300 tonnes of cement or similar material without any deformation in all conditions.

1 layer of anticorrosive paint and 2 layers of FINAL COAT EPOXY PAINT with total paint thickness of 140 Microns are applied on our cement silos.

CS-300 Bolted Cement Silo Technical Specifications
SILO CAPACITY 300 TONS, 230 m³ (cement density as 1,3 ton/m³)
SILO HEIGHT 18450 mm
SILO DIAMETER Ø 5140 mm
QUANTITY OF SILO LEGS 6
SILO OUTPUT DIAMETER Ø 300 mm
NUMBER OF COMPONENTS 191
SILO WEIGHT 22000 kg
MATERIAL OF SILO LEGS Ø273 x 10 mm STEEL PIPE
SUPPORTS OF SILO LEG NPL 80 mm CORNER IRON
SHEET METALS OF SILO LEG 20 mm
CONICAL PART SUPPORT MATERIAL 200 mm STEEL C CHANNEL
CONICAL PART MATERIAL ST- 37, 8 mm SHEET METAL
SILO BODY MATERIAL ST -37, 8 - 6 - 5 mm SHEET METAL
SILO TOP COVER MATERIAL ST -37, 5 mm SHEET METAL
CHARGING PIPE 4" STEEL PIPE UP TO SILO LEG
INNER MANHOLE IS PRESENT
OUTER MAN HOLE IS PRESENT
SILO ROOF INCLUDES HANDRAILS
MAINTENANCE PLATFORM IS PRESENT
STRUCTURAL ANALYSIS IS MADE FOR THE SILOS AND MANUFACTURING PROCESS DEPENDS ON APPROVED PROJECTS.
Painting : 1 layer of anticorrosive paint, 2 layers of FINAL COAT EPOXY PAINT , total paint thickness : 140 microns
Transport

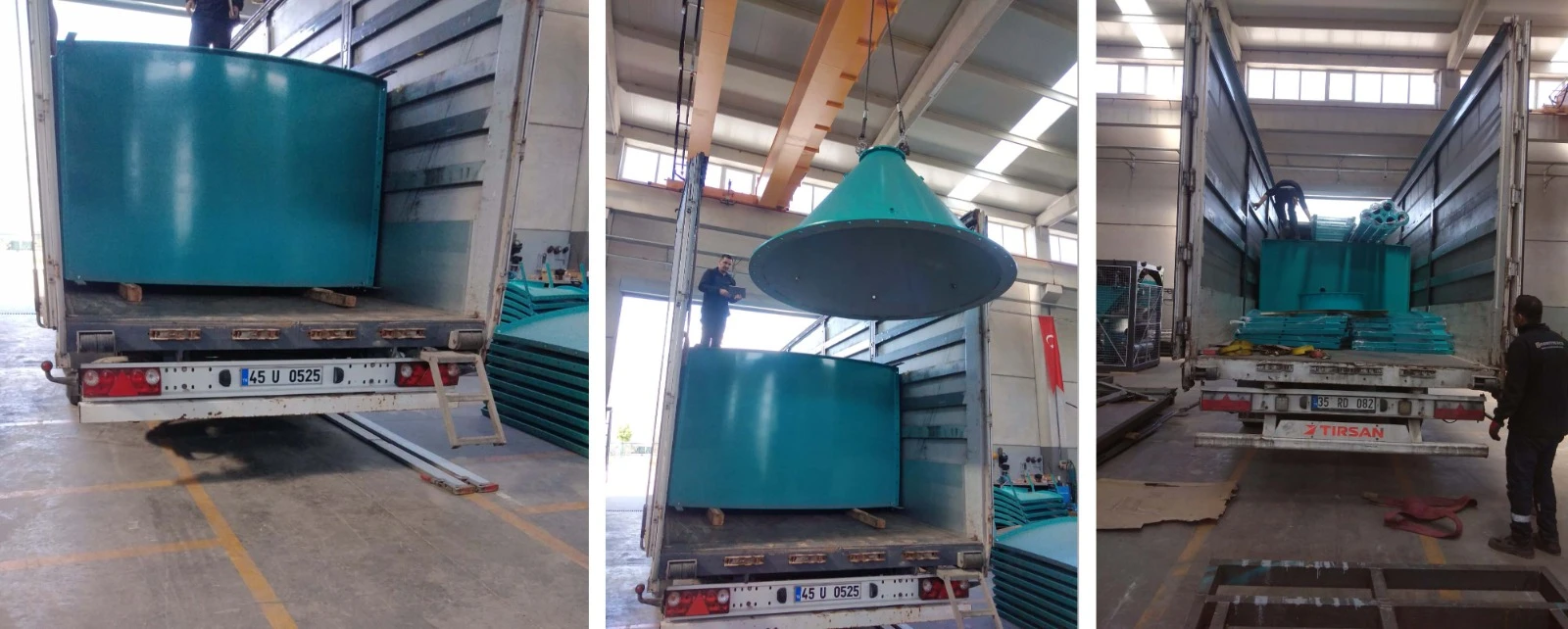

1 set of CS-300 bolted type cement silo can be shipped within 2 pcs 40 ft OT container or 2 pcs truck trailers.
CS-300 Bolted Cement Silo Transport
