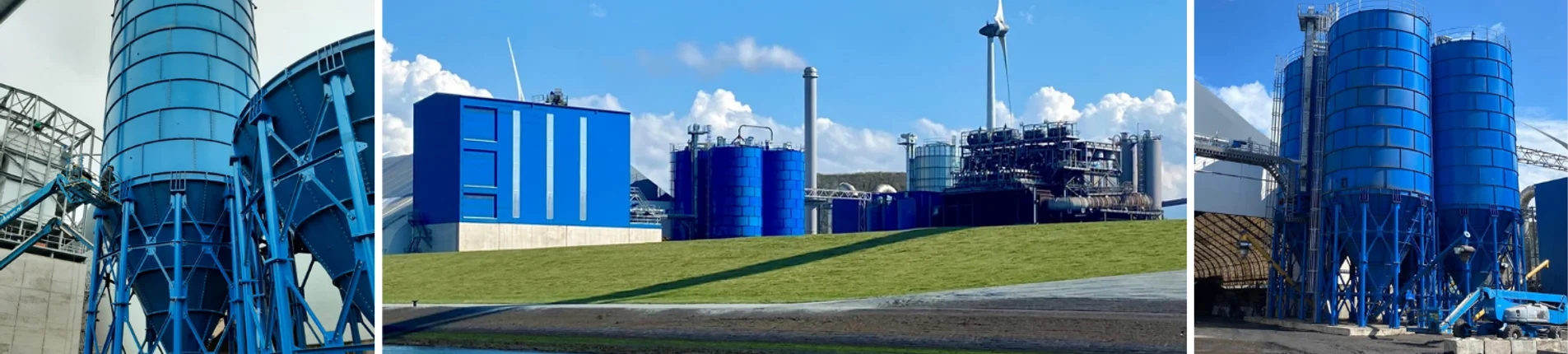

CONSTMACH 1000 tonnes capacity, bolted type cement silo CS-1000 is used especially in cement terminals, cement factories and limestone powder stocking applications.

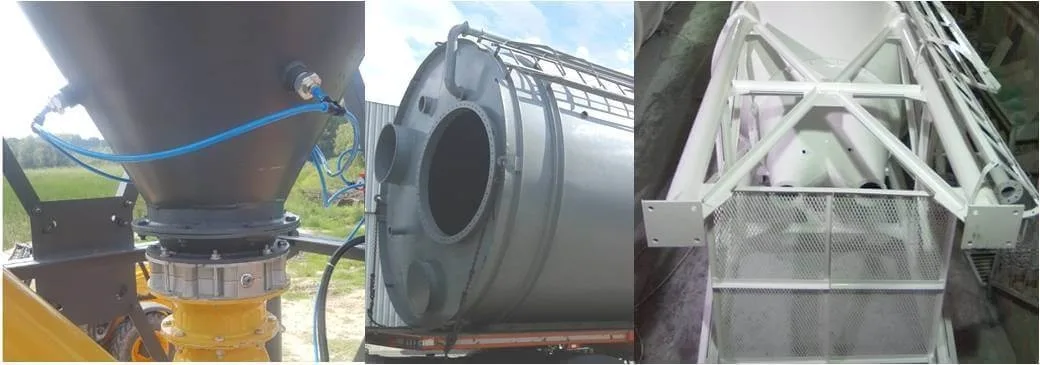

CONSTMACH CS-1000 cement silo is equipped with maintenance platform between the legs, cement filling pipe, inner and outer manholes, safety guards, roof flanges for air filter and pressure safety valve, a roof gate for inner manhole and also a cone flange for butter fly valve.

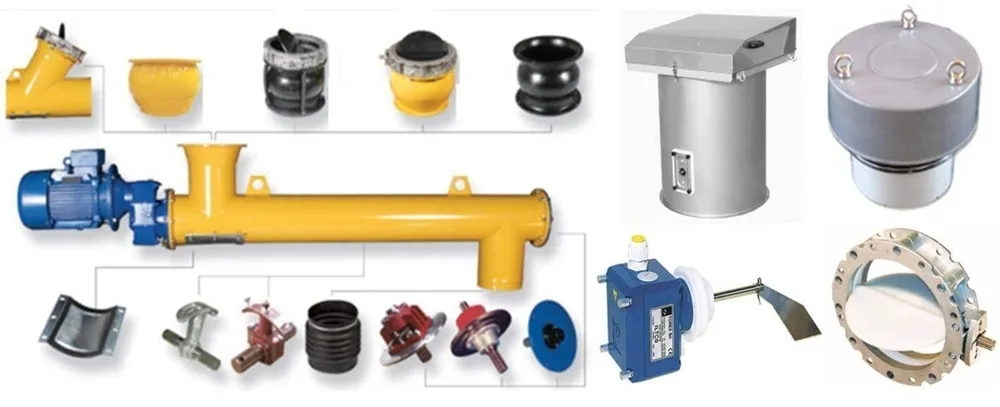

CONSTMACH CS-1000 cement silo is supplied together with all necessary silo equipment such as cement screw conveyor with the desired diameter & length, air filter, pressure safety valve, top & bottom level indicators, air fluidization nozzles, pulse valve and cone butter fly valve for manual cement discharging. In case of using the silo for cement terminal or similar application, the screw conveyor can be connected to a loading below to distribute the cement to the trucks.

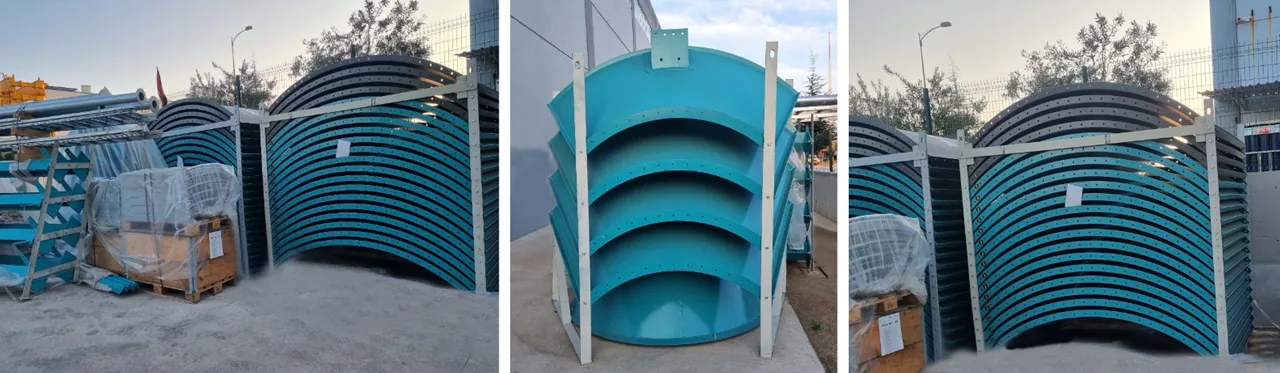

Parts of CS-1000 bolted type cement silo are manufactured by sensitive laser cutting and drilling methods. In the jobsite, parts of cement silos can be assembled easily and sensitively.

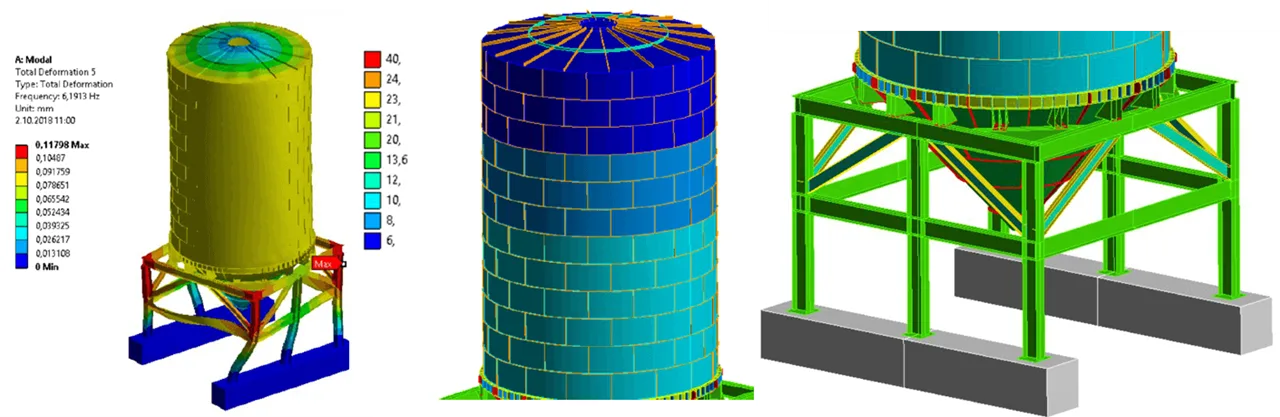

All static load and mechanical calculations of CS-1000 is done by using ANSYS Workbench CAE software and the silo is capable to be stocked 1000 tonnes of cement or similar material without any deformation in all conditions.

1 layer of anticorrosive paint and 2 layers of FINAL COAT EPOXY PAINT with total paint thickness of 140 Microns are applied on our cement silos.
