Size |
2000 x 7000 mm (Double Row) |

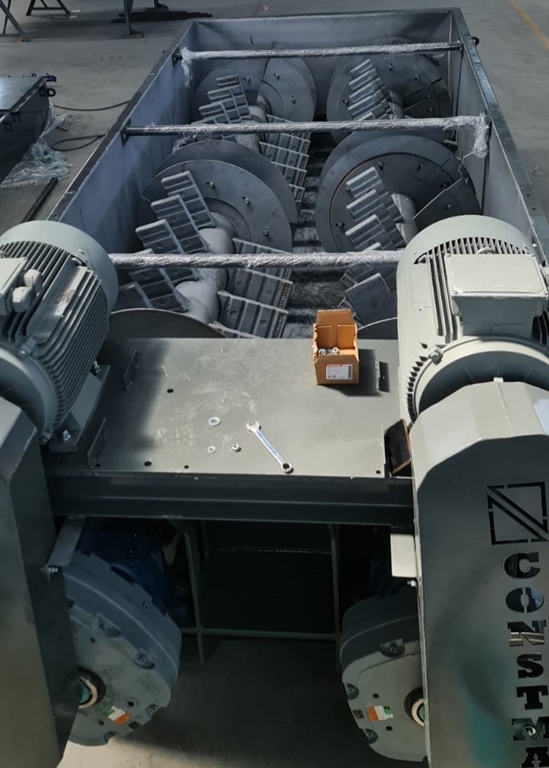

Electric Motor |
2 x 37 kW, GAMAK Brand, IE3 Efficiency class, 1500 rpm |
Feeding Size |
0 - 50 mm |
Main Body Material |
S235JR A1 Quality, 8 mm Sheet as Twisted Type |
Speed |
15 - 25 rpm |

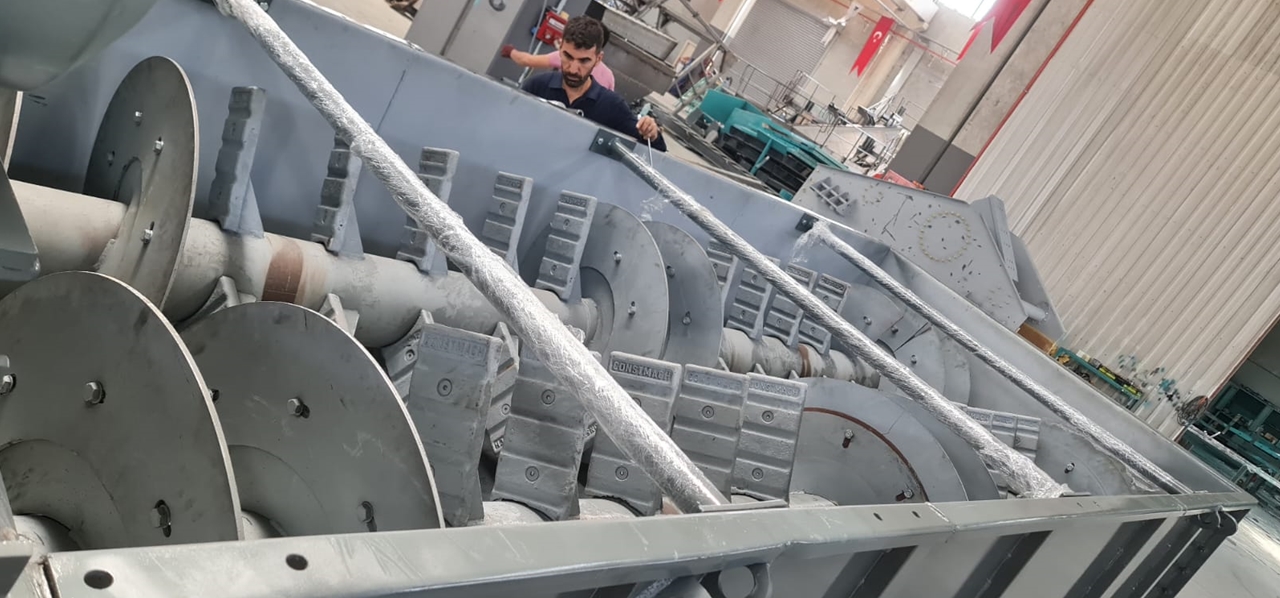

Screw |
Double Row Carrier Spiral Spoons, S235JR, 8 mm Sheet and the Arms Against Wear Will be Covered With Casting, Helices are Hardox Coated. |
Shaft |
Cr-Ni-Mo Alloy Steel |
Housing |
GS52 Steel Casting |
Bearing |
SKF or FAG, Heavy Duty type spherical roller bearings |
Capacity |
200 - 400 tph |
Weight |
24000 kg |
