Dewatering Screen & Hydrocyclone
CONSTMACH dewatering screens and hydrocyclones are excellent solutions for washing the fine materials with up to 7 mm size. The biggest advantage of choosing Dewatering Screens and Hydrocyclones in fine material washing applications is to save the particuls in sand even with 90 microns size. This helps to user to do production according to any type of project requirements since to keep the micronized material inside the sand after washing is so difficult result with classical washing systems such as screw, wheel etc. Features of CONSTMACH Dewatering Screens & Hydrocyclones.
- Micronized material saving,
- Water saving,
- Low power & water consumption;
- Ease of maintenance.

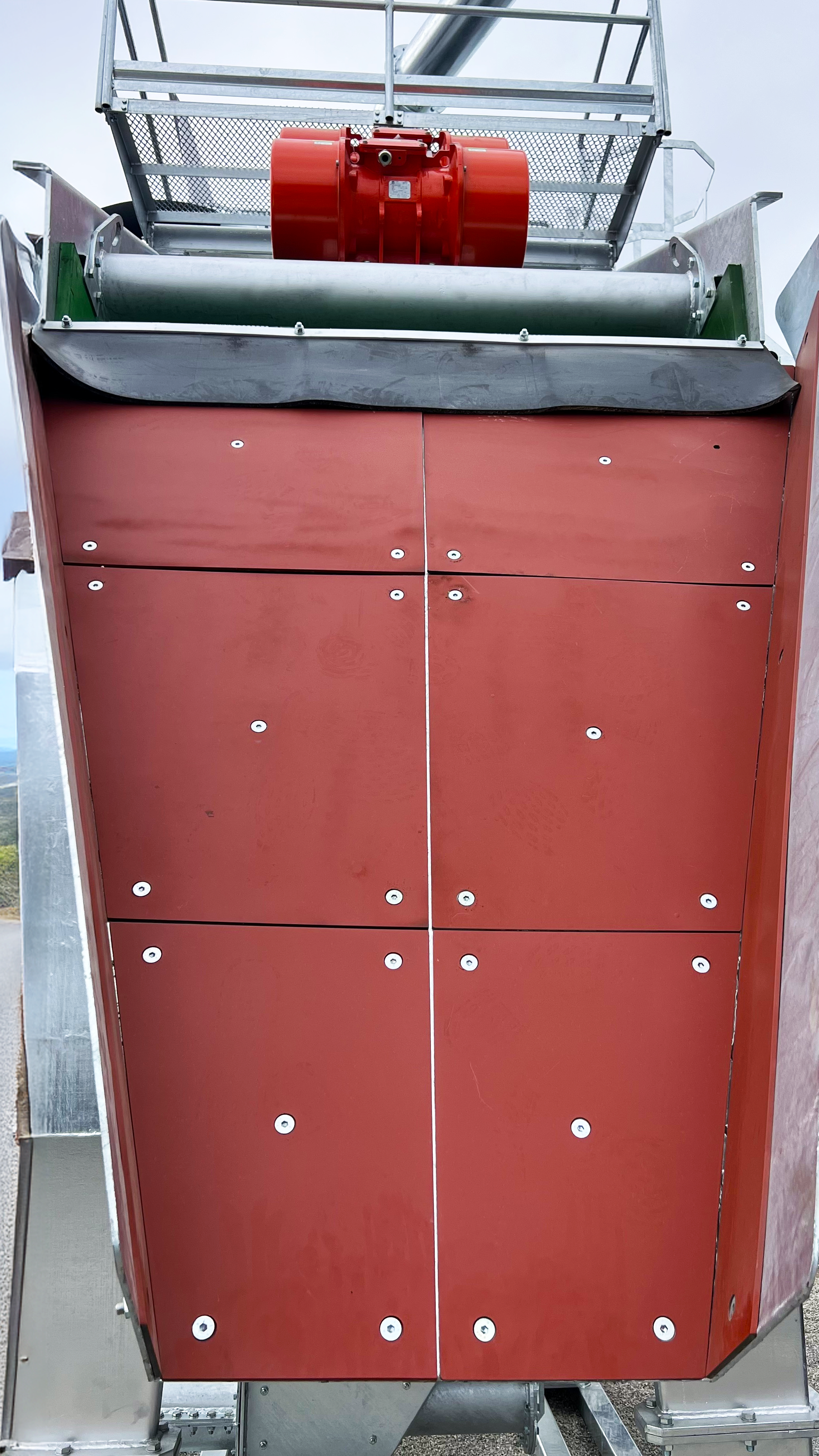

- Long life PU screen meshes
- Dry final material which is easy to stock
Dewatering Screen & Hydrocyclone Technical Specifications
| MODEL | Dewatering Screen Sizes |
Hydrocyclone Diameter |
Slurry Pump Motor Power (kW) |
Vibrator Motor Power (kW) |
Production Capacity (ton/hour) |
|---|---|---|---|---|---|
| CDS - 1225 | 1.200 x 2.500 mm | 20” | 37 kW | 2 x 4.5 kW | 60 - 80 t/h |
| CDS - 1635 | 1.600 x 3.500 mm | 26” | 55 kW | 2 x 7.5 kW | 100 - 150 t/h |
| CDS - 2040 | 2.000 x 4.000 mm | 2 x 26” | 75 kW | 2 x 11 kW | 150 - 200 t/h |

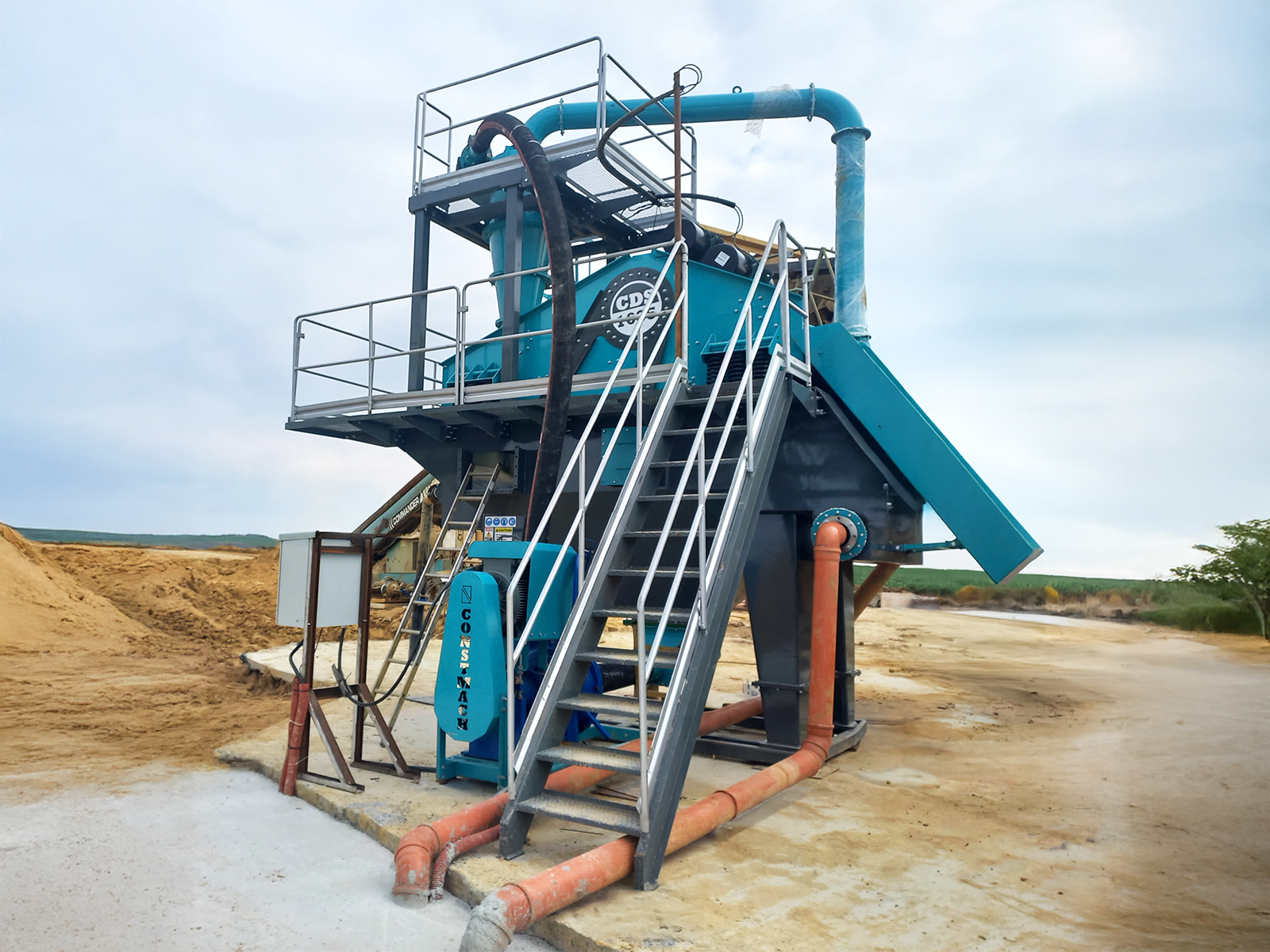

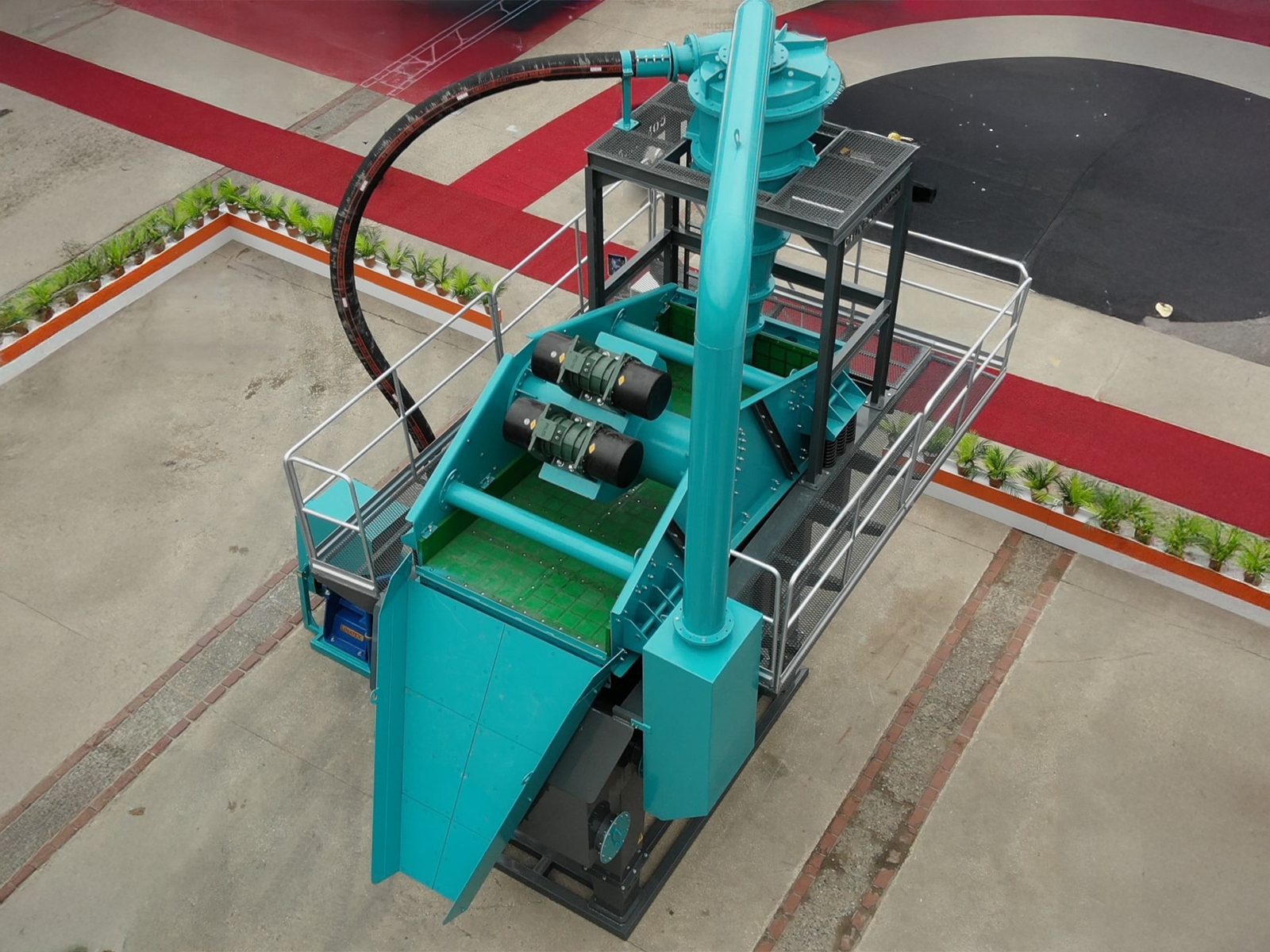

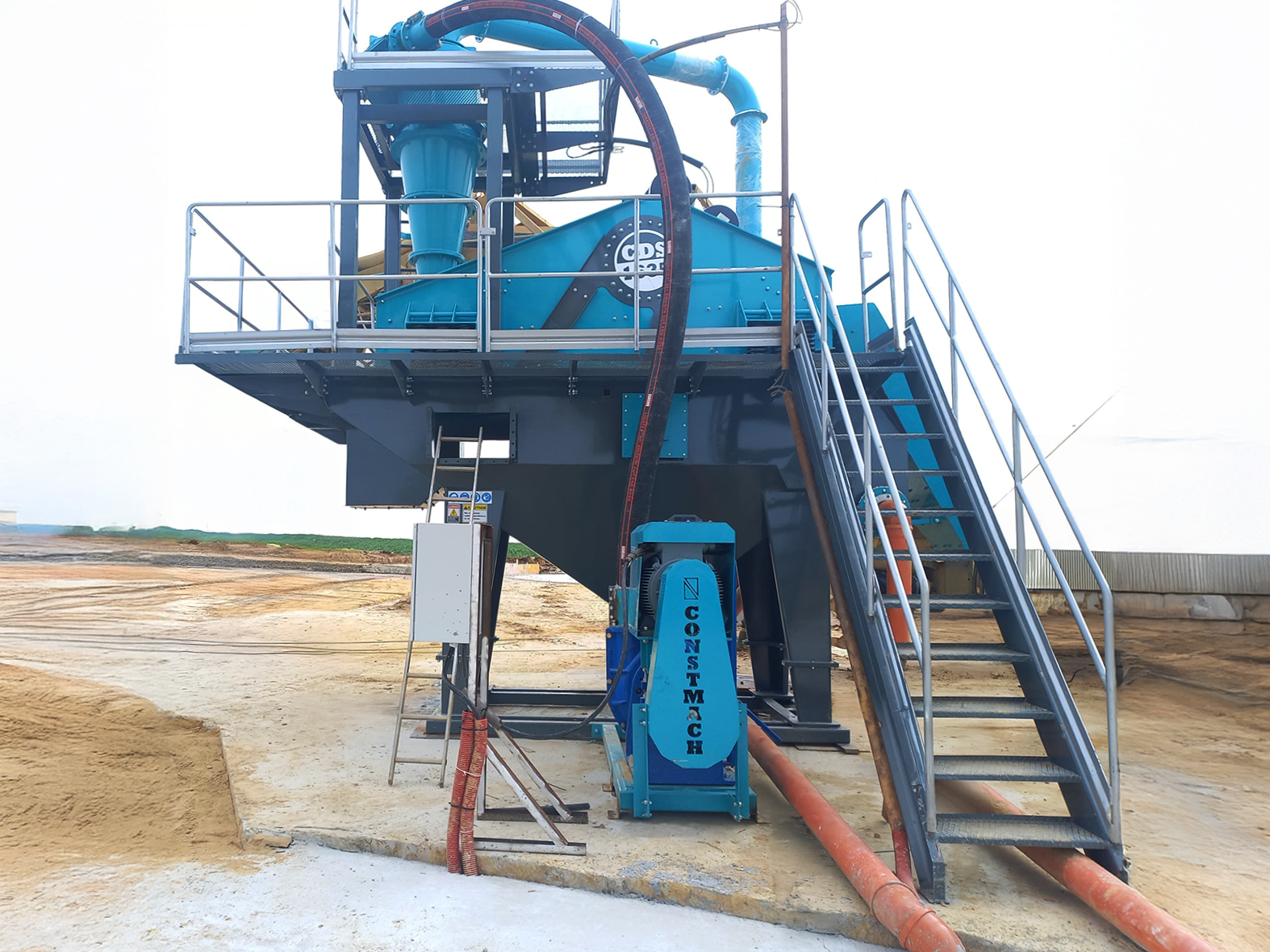

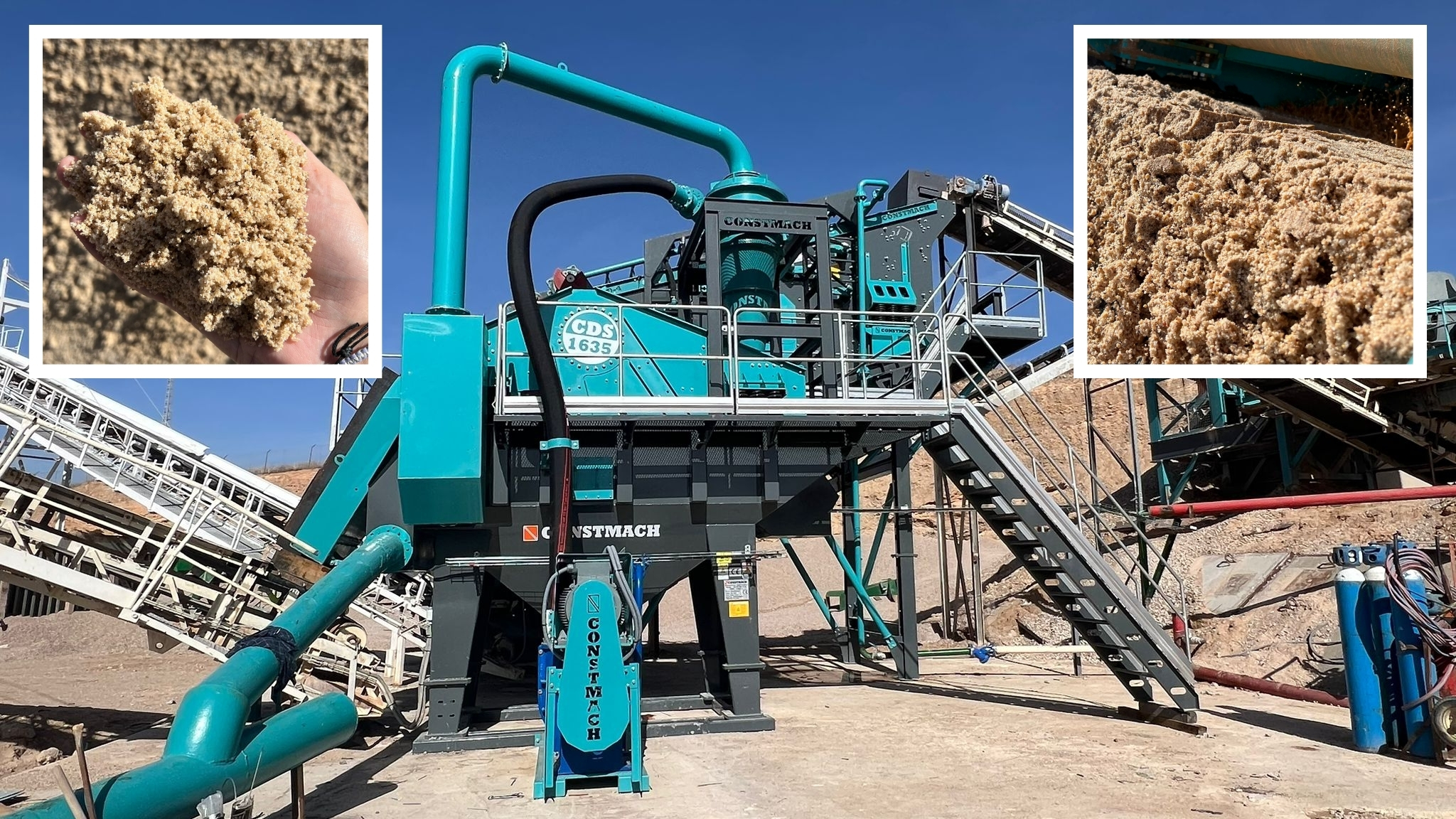

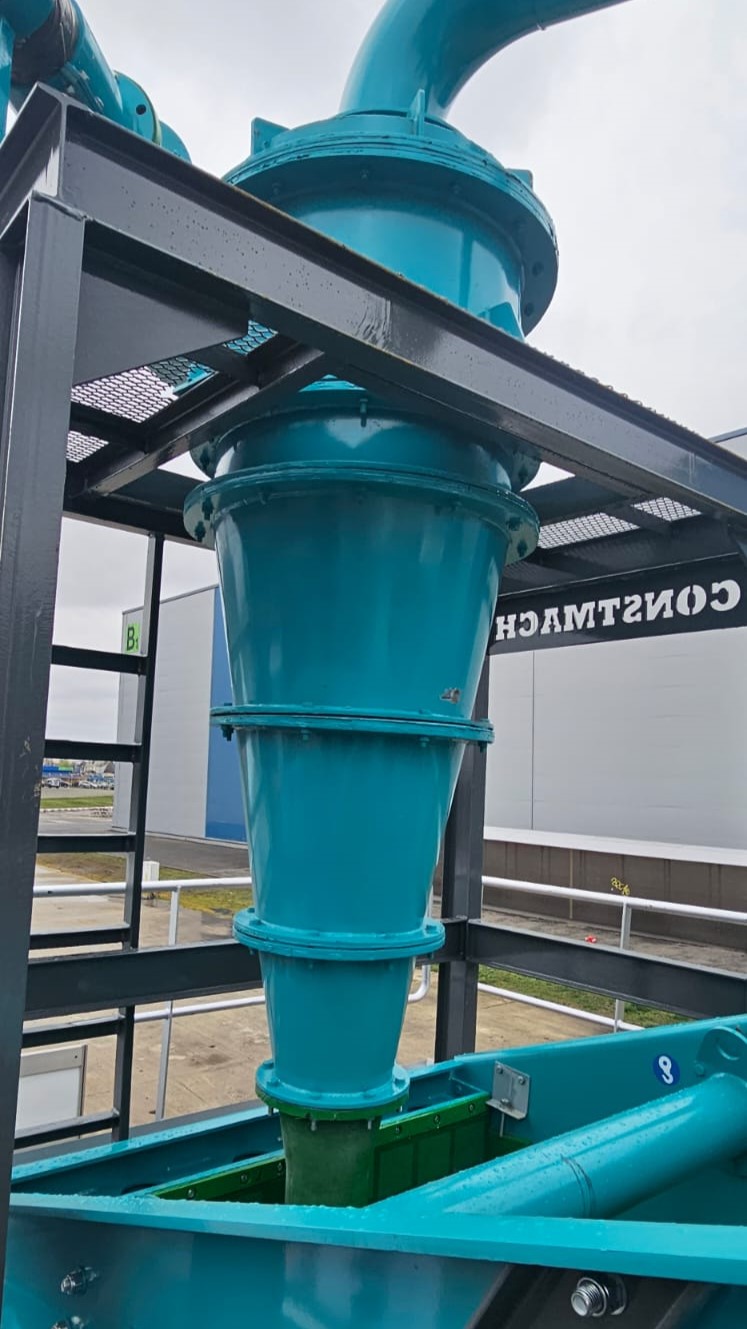

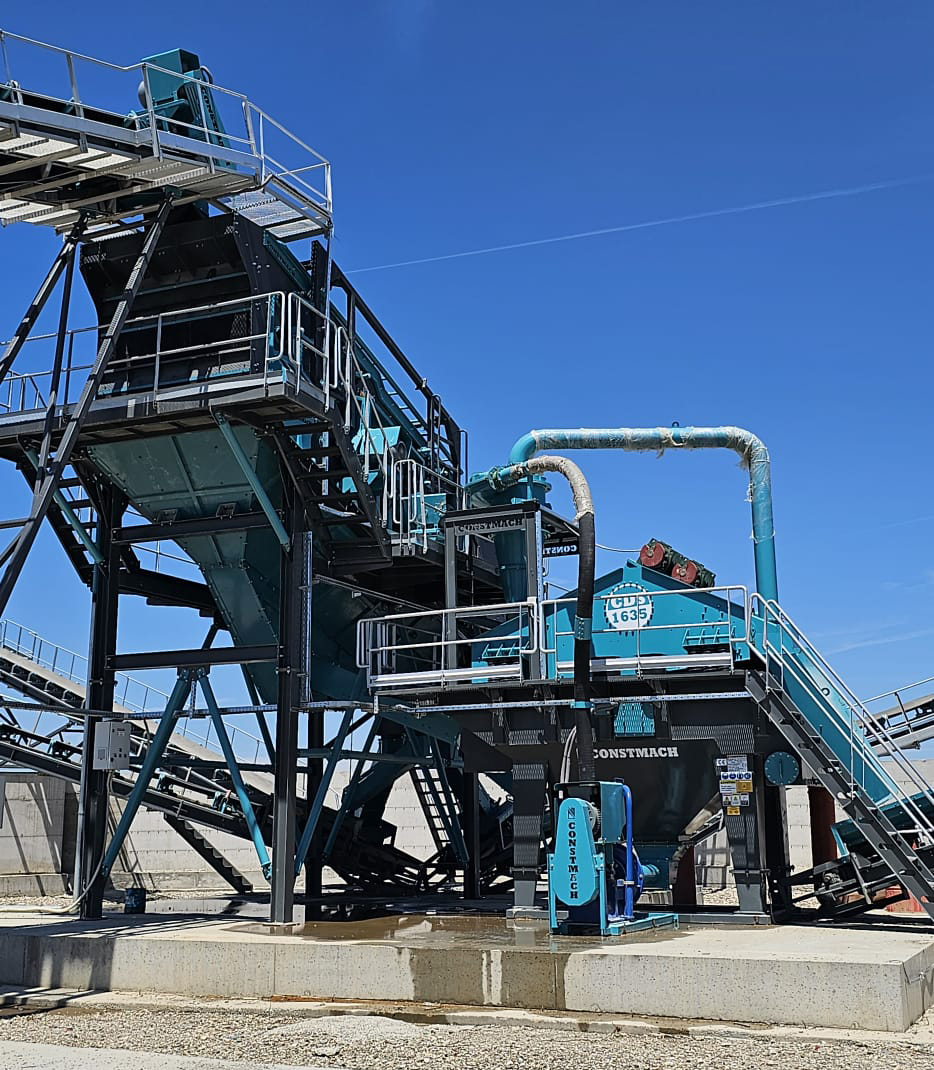

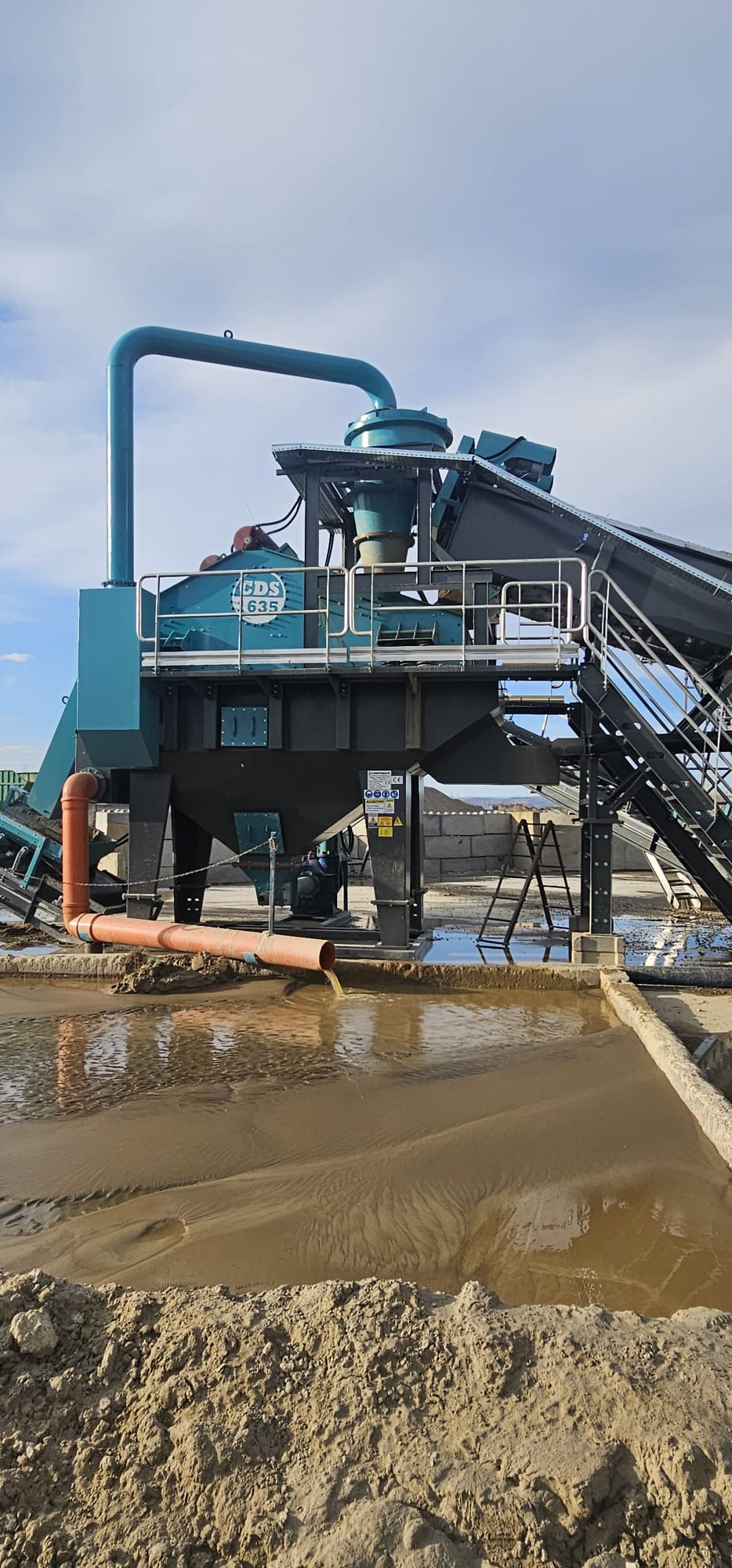

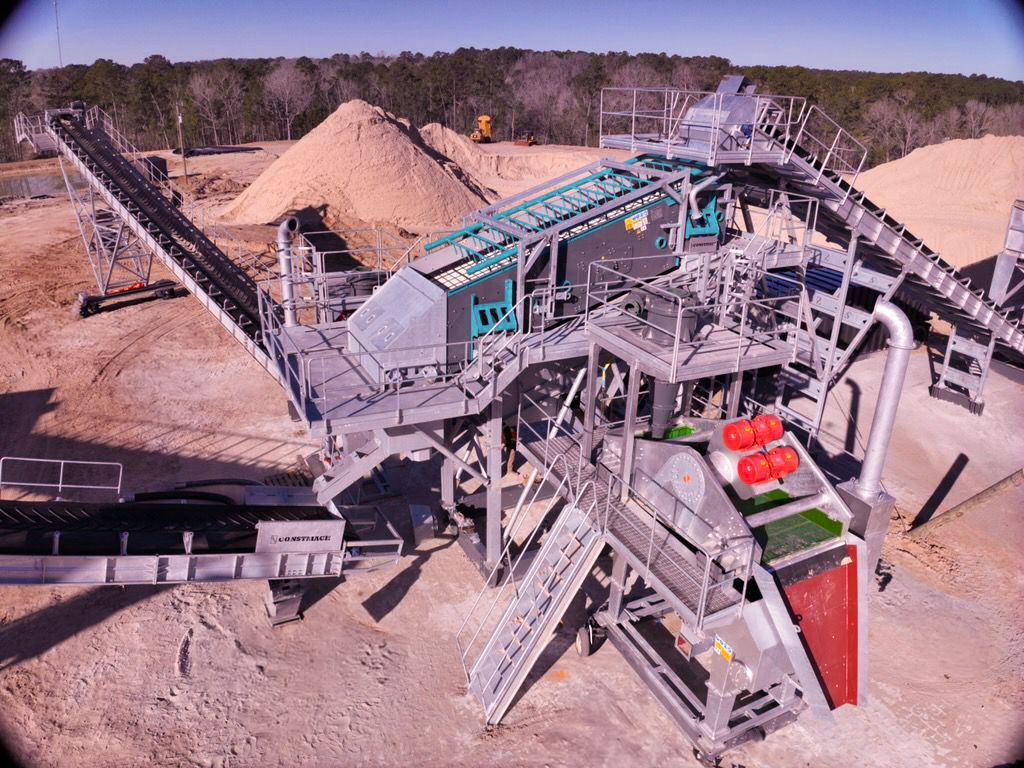

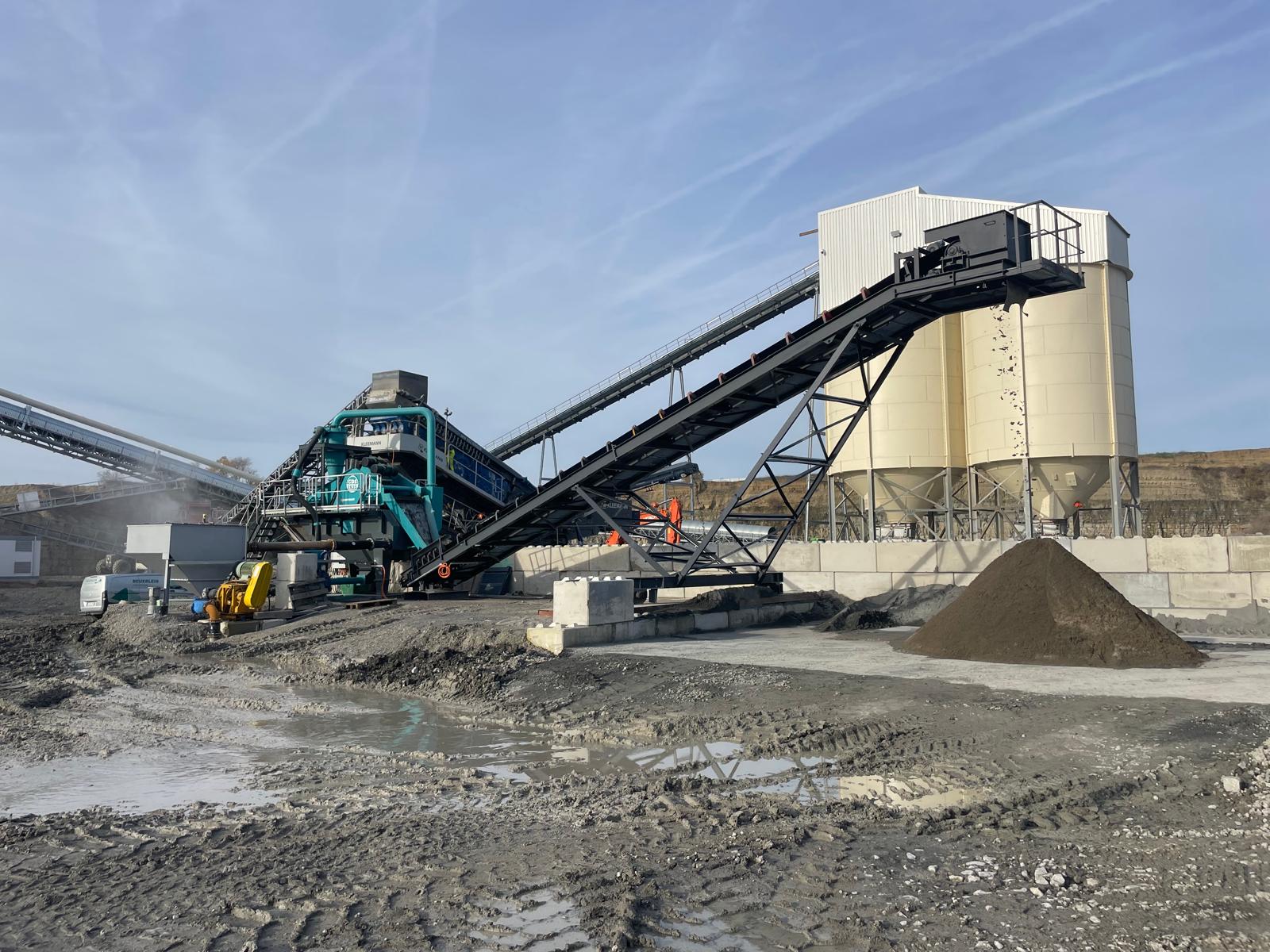

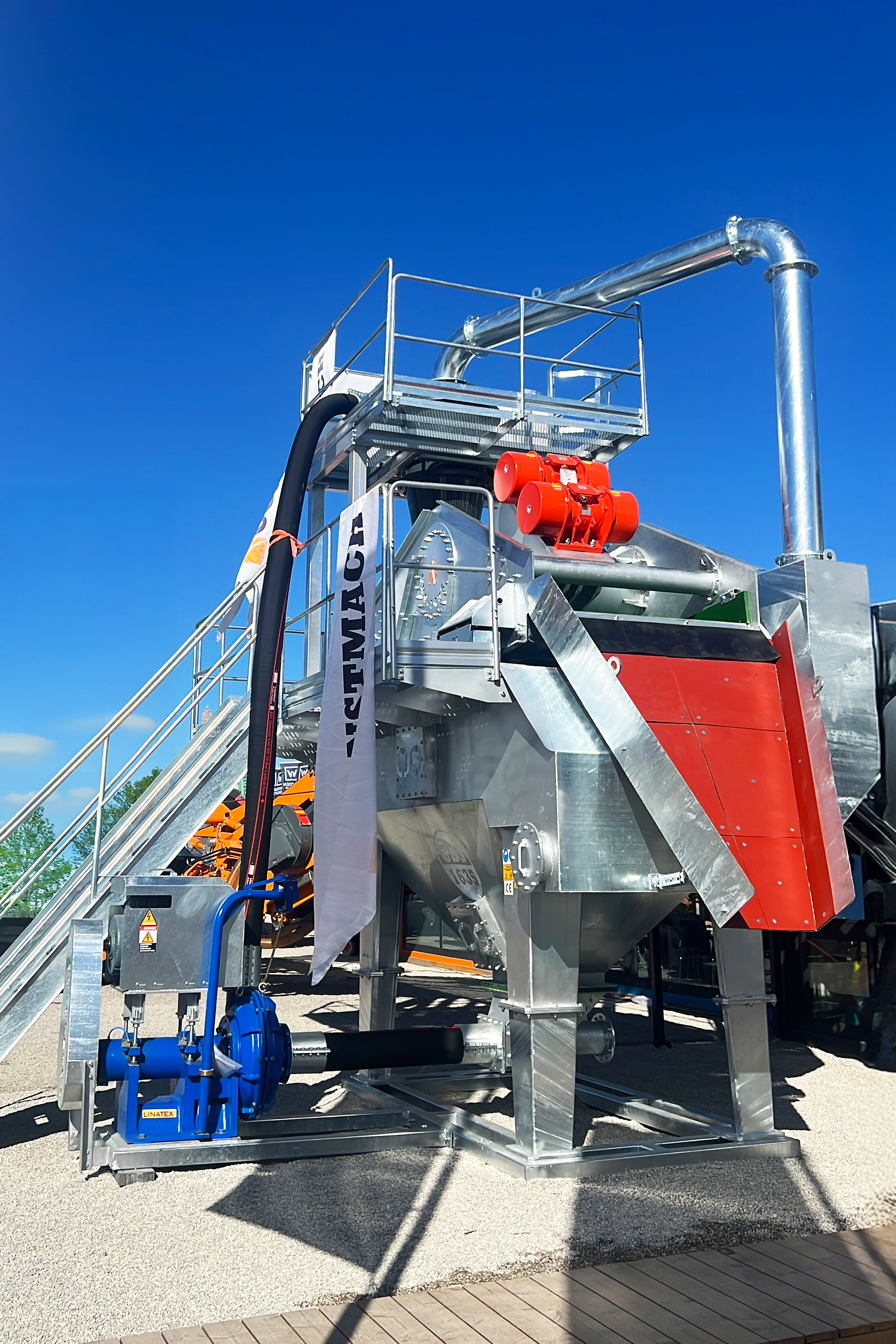

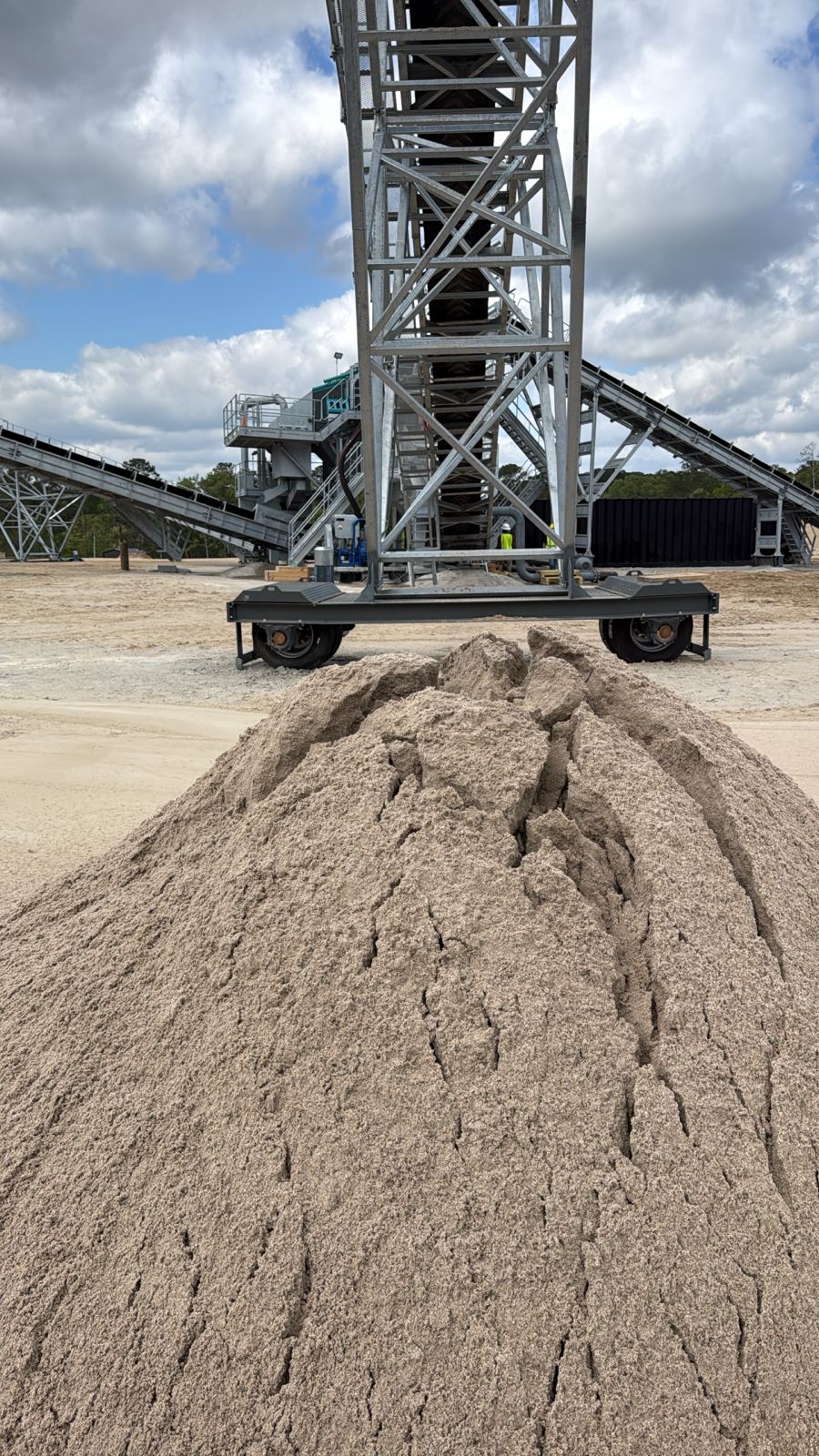

Dewatering Screen & Hydrocyclone Gallery
You can examine some photos of the product named Dewatering Screen & Hydrocyclone taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.
Transport
Our shipping friendly wheel washers minimize the transport cost of our clients with its modular structure and availablity to be shipped within closed truck trailers and 40 ft OT containers.
Dewatering Screen & Hydrocyclone Video
Dewatering Screen & Hydrocyclone General Layout
