Horizontal Cement Silo
CONSTMACH Mobile & Horizontal type cement silo is a great solution to make the concrete plants fully mobile and minimize the site preparation & installation costs.
Horizontal type silo body is equipped with vibrators, pneumatic elements and air nozzles to ensure proper cement flow. Thanks to V type horizontal screw conveyor that exists under the silo, cement transfer is realized.
Silo body is installed on a trailer with double axles and wheels to ensure mobility.
Silo top filter and safety valve installed on the silo roof like in classical vertical type silos.
You can see the general layout, transport information and photos of Horizontal Cement Silo by clicking the related tabs and you can request a quotation by clicking REQUEST A QUOTE tabs.
Horizontal Cement Silo Technical Specifications
| SILO CAPACITY | 39 tonnes, 30 m³ (cement density as 1,3 ton/m³) |
|---|---|
| SILO WEIGHT | 7.460 kg |
| SILO BODY MATERIAL | ST -37, 5 mm SHEET METAL |
| TOP COVER MATERIAL OF SILO | ST -37, 4 mm SHEET METAL |
| CHARGING PIPE | 4’’ STEEL PIPE |
| Painting | 1 layer of anticorrosive paint, 2 layers of FINAL COAT EPOXY PAINT , total paint thickness : 140 Microns |
| Silo is equipped with 3 pcs 0.37 kW vibrators, V-type screw conveyor, fluidization nozzles and pneumatic installation elements | |
| Maintenance door is present on both sides and on the roof. | |
| CHASSIS MATERIAL | NPU 180 mm |
| Double axles & 4 tyres are present on the trailer. | |

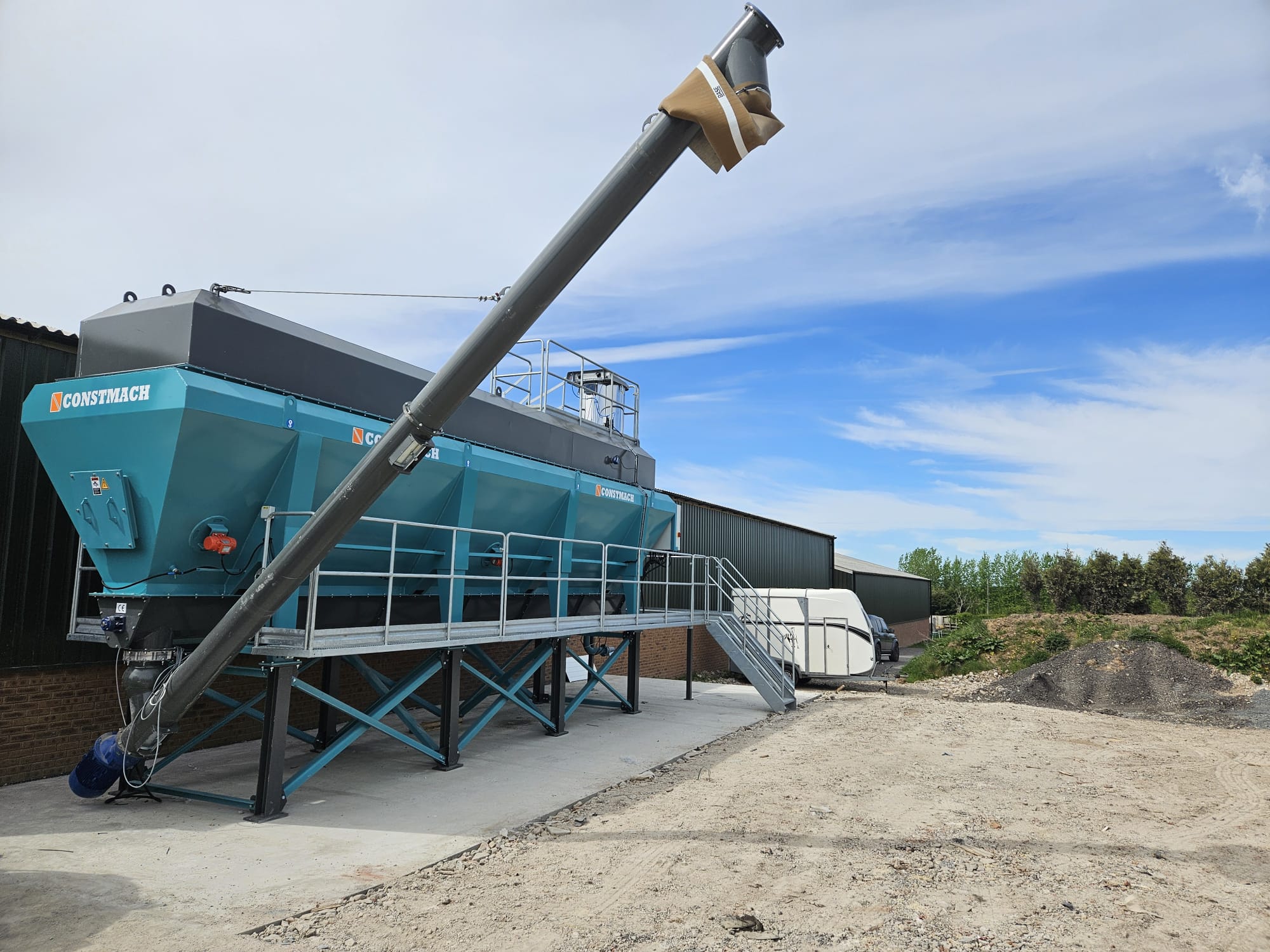

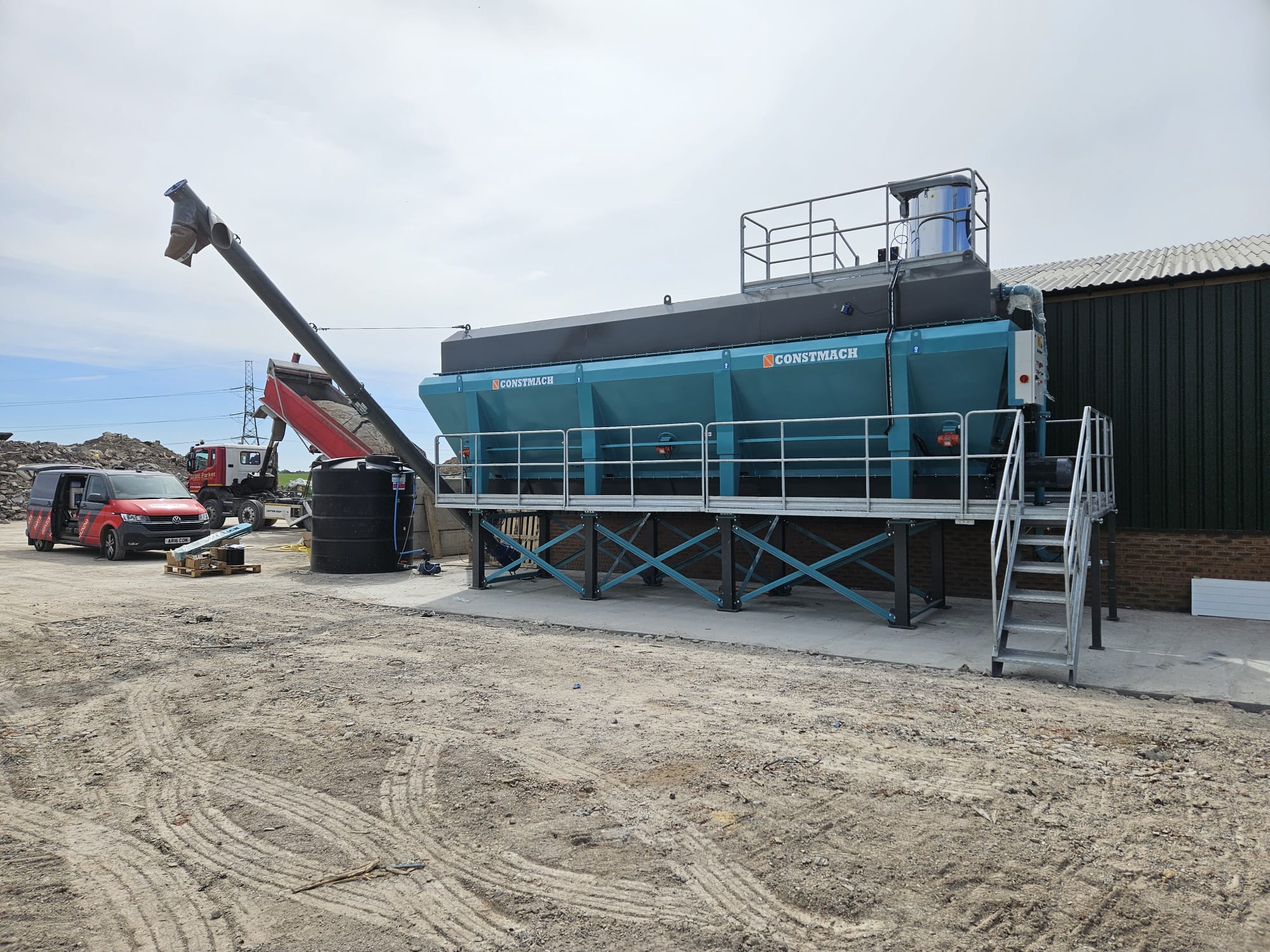

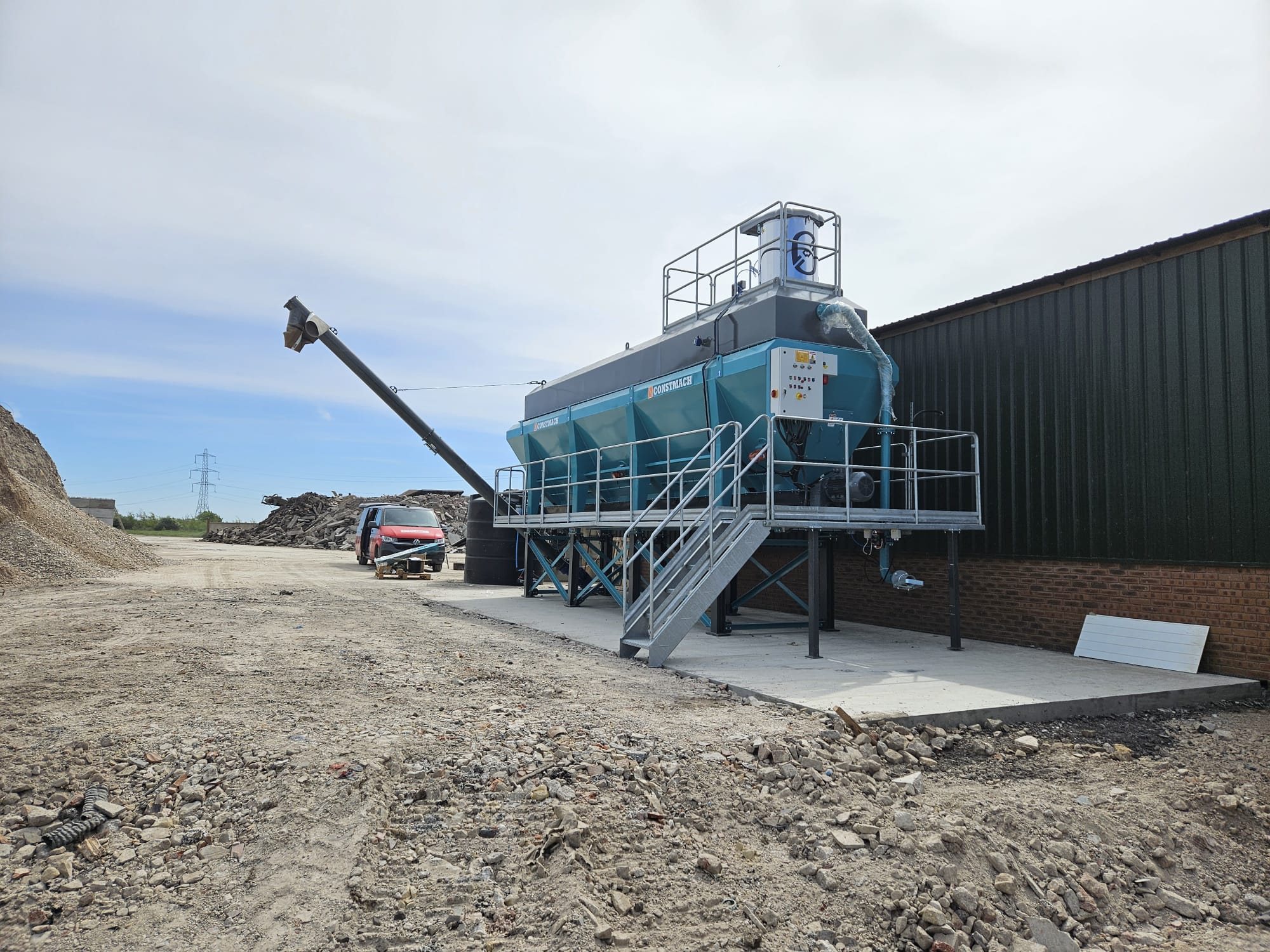

Horizontal Cement Silo Gallery
You can examine some photos of the product named Horizontal Cement Silo taken in our established facilities. For detailed information and references, you can contact our sales team by calling back or filling out the request form.

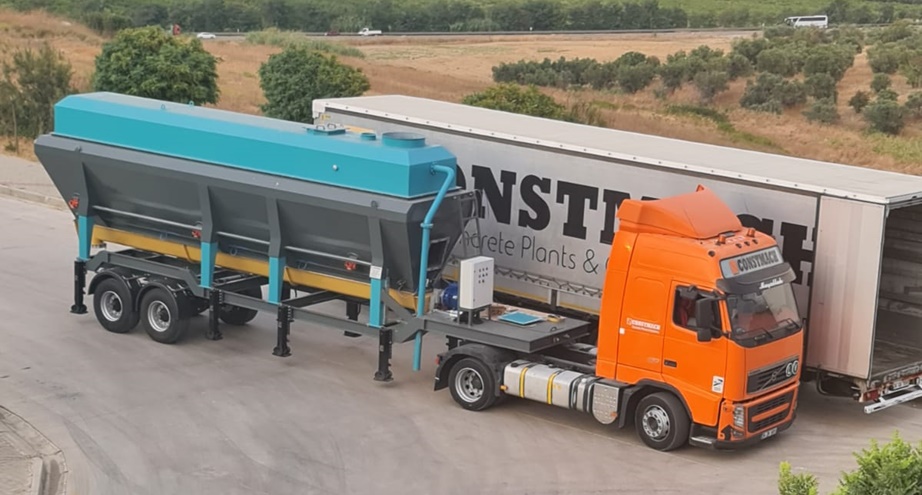

Transport
2 sets of bolted version of CS-100 can be shipped within 1 pcs 40 ft OT container or a truck trailer.
Horizontal Cement Silo General Layout
